| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ550 |
| Maximum Cutting Diameter | mm | Φ440 |
| Machining Diameter Under Turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective machining length 500) |

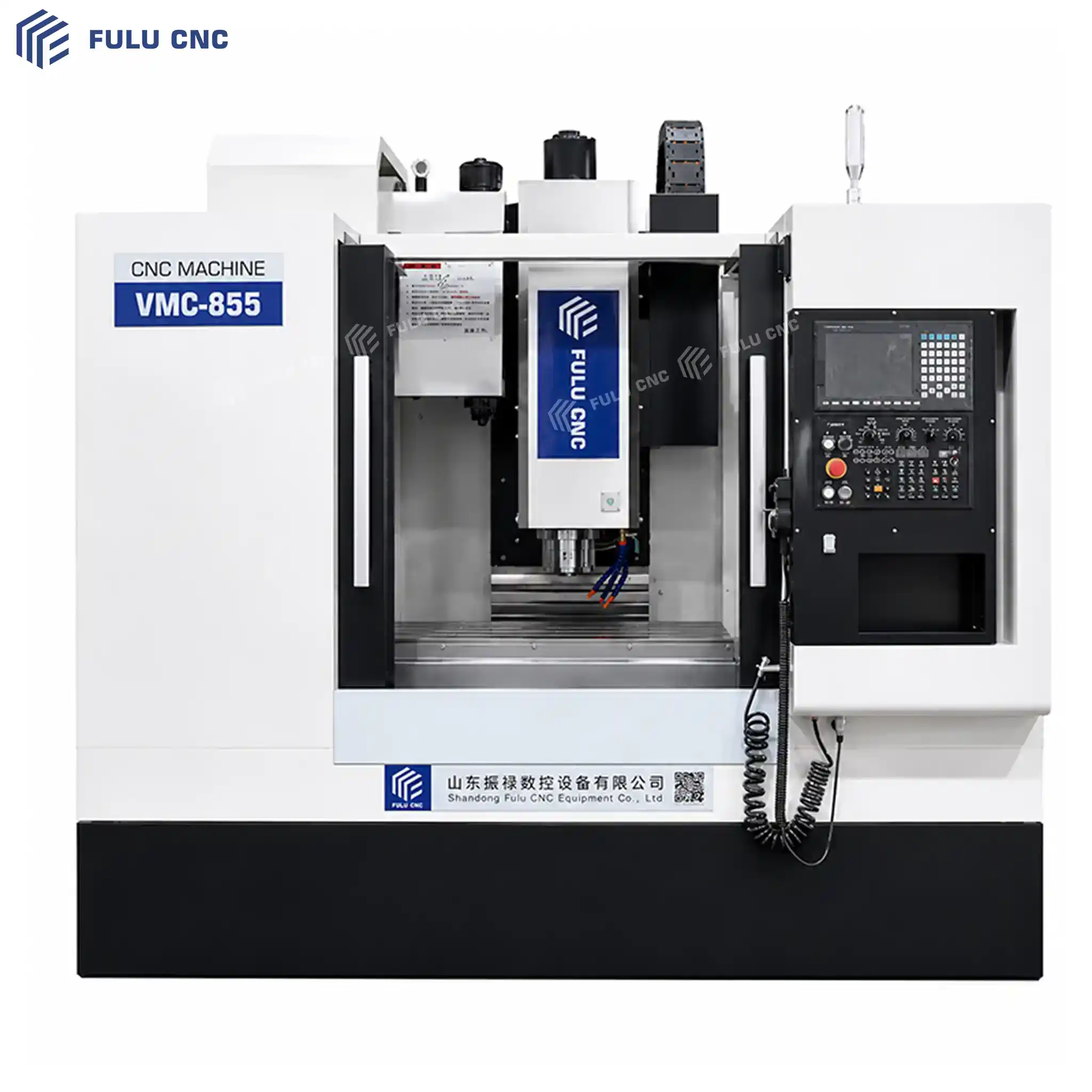

| Machine model: VMC855 | Unit | Specification |
| Table size | mm | 1000x550 |
| X/Y/Z axis travel | mm | 800/550/550 |
| Distance from spindle face to table | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Maximum load on table | Kg | 600 |
| T-slot on table | mm | 5-18x90 |
| X/Y/Z axis rapid feed | m/min | 36/36/32 |
| X/Y/Z guide rail width specification | mm | RGH35/45/45 roller linear guide |
| X/Y/Z screw specification | mm | φ4016 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.006 /300 |
| Minimum positioning unit | mm | ±0.001 |
| Four-axis accuracy | mm | ≤0.01 |
| Maximum spindle speed | rpm | 8000 (spindle ring spray) |
| Spindle taper | mm | BT40-150 |
| Disc mechanical arm tool magazine | pcs | 24T |
| Controller system | / | GSK25i |
| X/Y/Z axis motor power | Nm | 15/15/22 |
| Spindle motor power | Kw | 11 |
| Machine weight approximately | Kg | 5000 |
| Dimensions | mm | 2600x2400x2650 |
| NO | Configuration Content | NO | Configuration Content |
| 1 | Cutting Cooling System | 13 | Machine Internal Cleaning Device: Chip Blowing Gun |
| 2 | Automatic Lubrication System | 14 | Manual Pulse Generator: Handwheel |
| 3 | Cutting Blowing Device | 15 | External Network Transmission Interface |
| 4 | Spindle and Servo Overload System Protection | 16 | Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal) |
| 5 | Three-Color Alarm Light | 17 | External Protective High-Quality Painted Sheet Metal |
| 6 | Horizontal Adjustment Bolt and Shim | 18 | Rigid Tapping |
| 7 | Electrical Box Heat Exchanger | 19 | Accuracy Inspection Certificate |
| 8 | Three-Axis Screw Pre-Tensioning Device | 20 | Electrical Manual |
| 9 | Program Storage | 21 | User Manual |
| 10 | Spindle Ring Water Spray | 22 | Program Operation Manual |
| 11 | Reserved for Adding Four-Axis Interface | 23 | Front Chip Removal |
| 12 | Internal Work Light |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg central water outlet |
| Renishaw tool setter |
| 170/200/250/300mm fourth axis |
| 125/170/210/250mm fifth axis |
| chain-type chip conveyor |

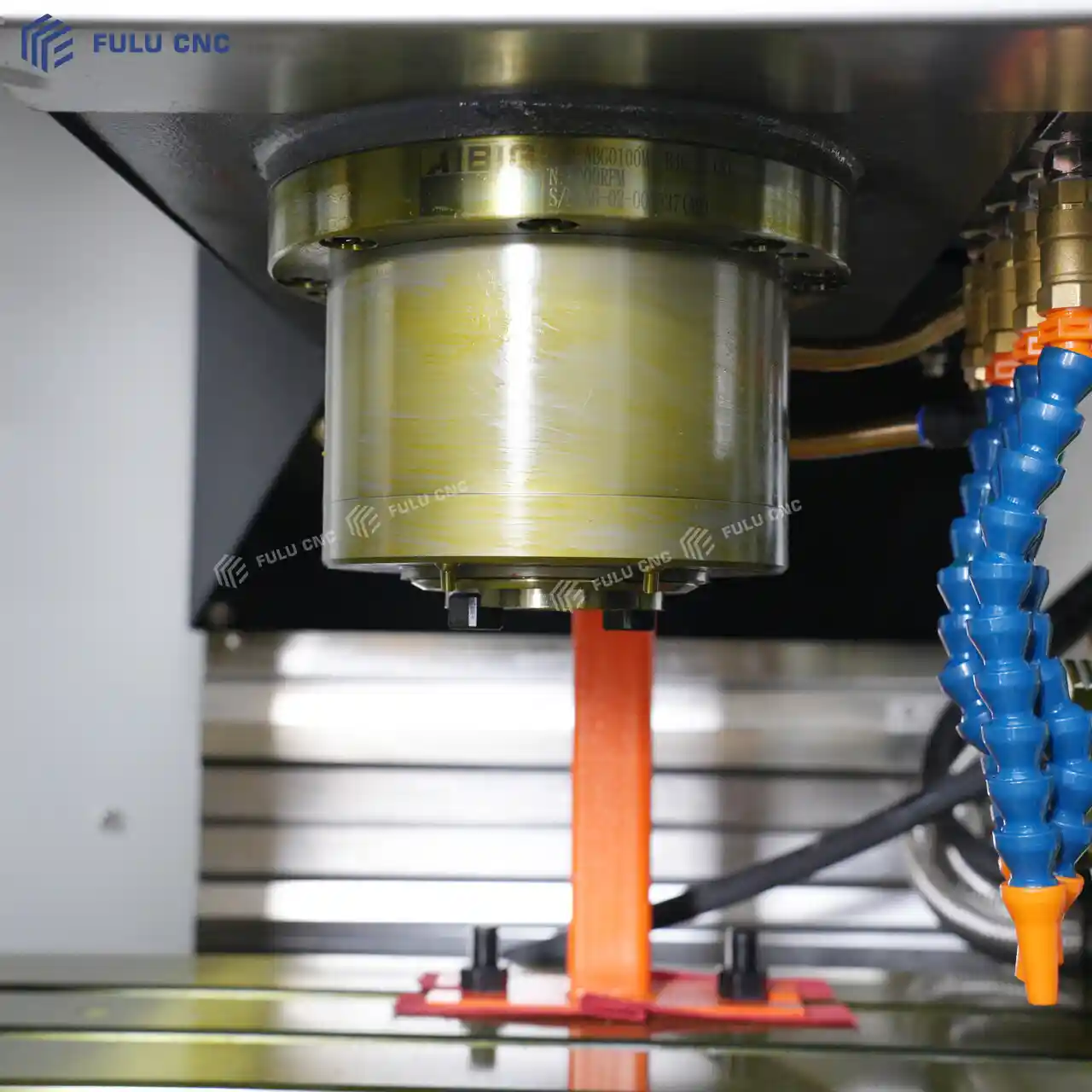

High efficiency machining, reducing production costs
The maximum speed of this spindle can reach 12000 RPM, belonging to the medium-high speed spindle configuration, balancing the rigid cutting of steel parts and the high-speed precision machining needs of aluminum parts and molds.

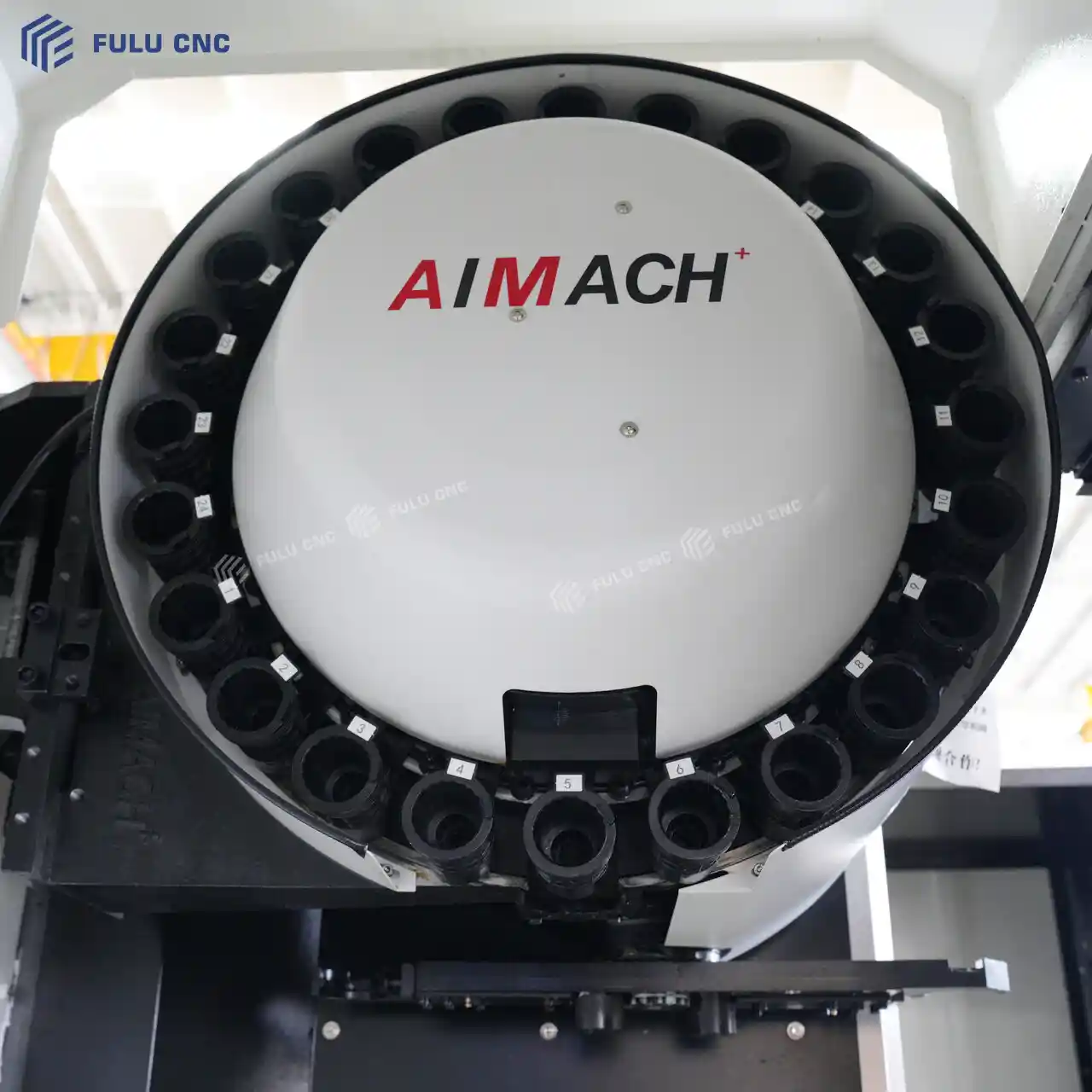

Disc Tool Magazine
Automatically switches tools during different machining processes without manual intervention, achievingmulti-process machining in one clamping.

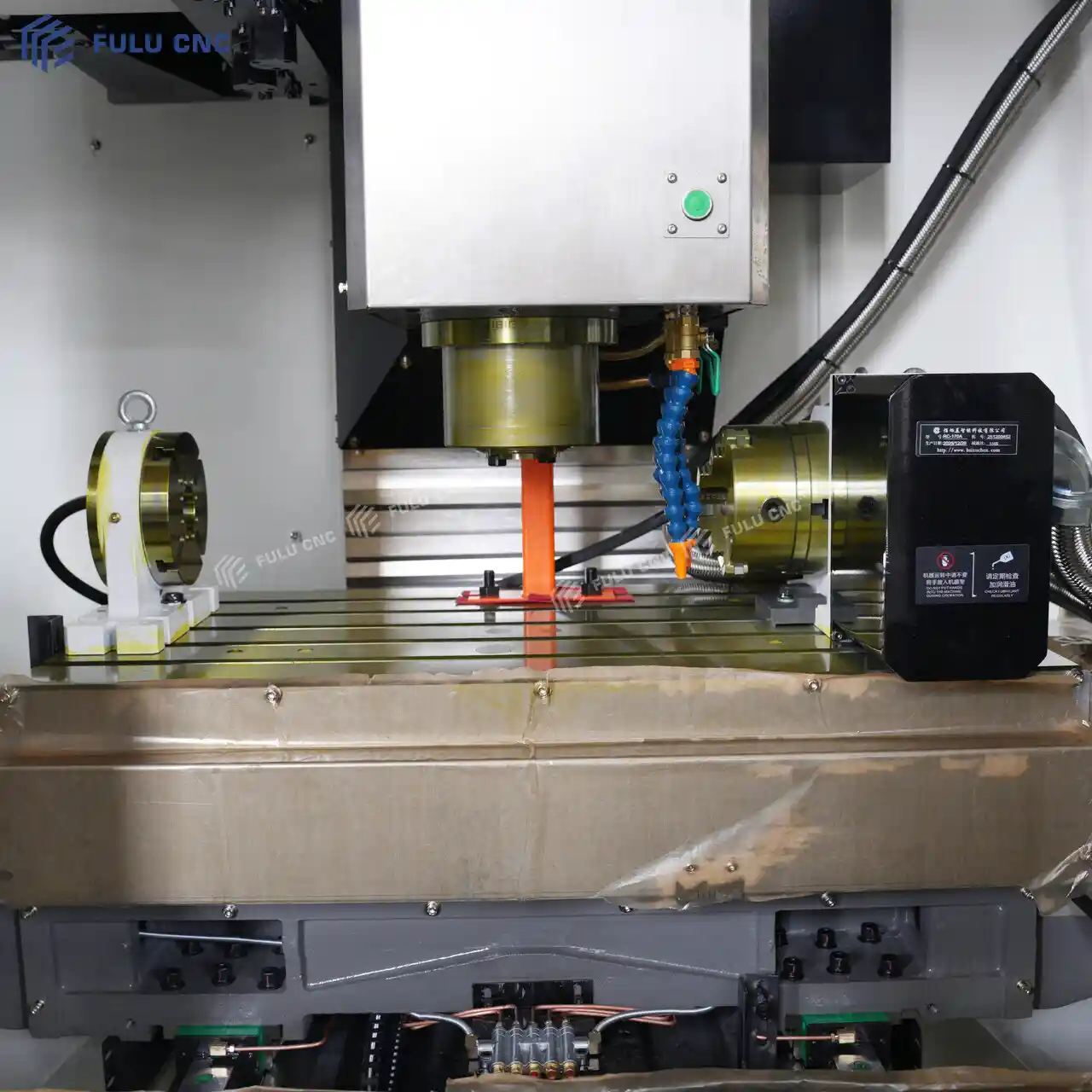

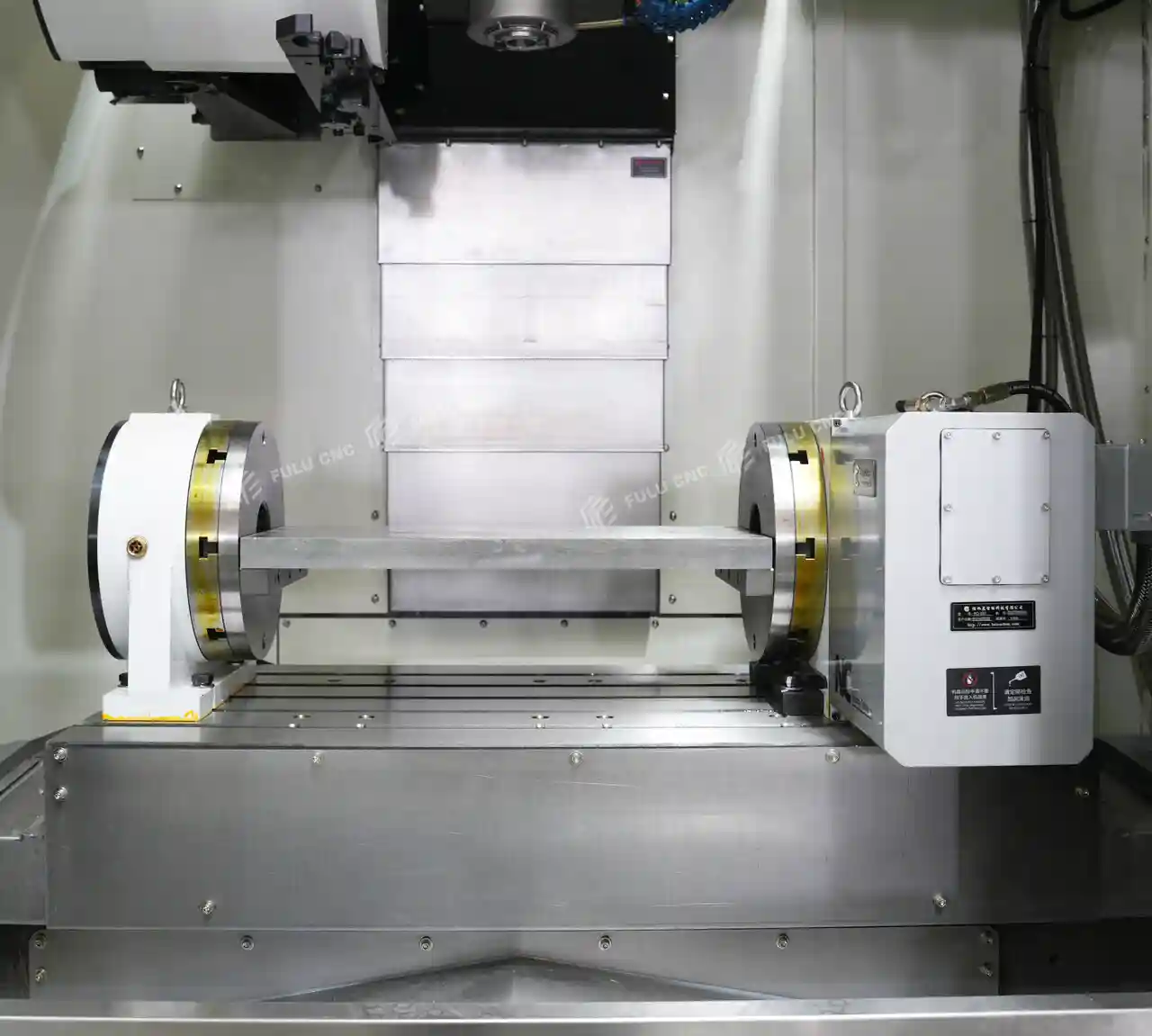

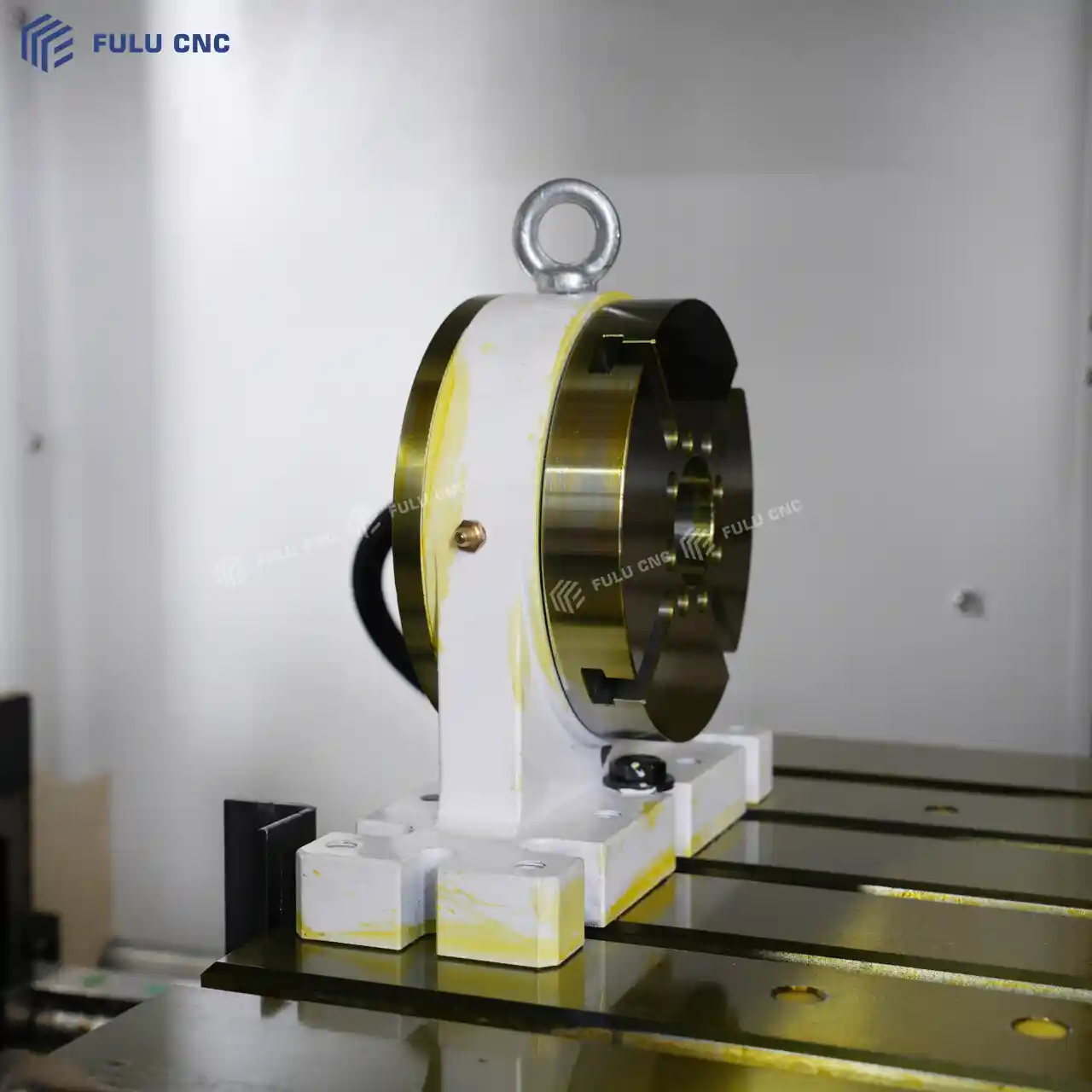

Fourth Axis
Equipped with a fourth axis CNC rotary table and tailstock in the vertical machining center working area.On the right side is the CNC indexing rotary table, and on the left side is the tailstock support device, which can achieve multi-surface machining of shaft-type, flange-type, and complex multi-faceted parts in one clamping, significantly improving machining accuracy and production efficiency.

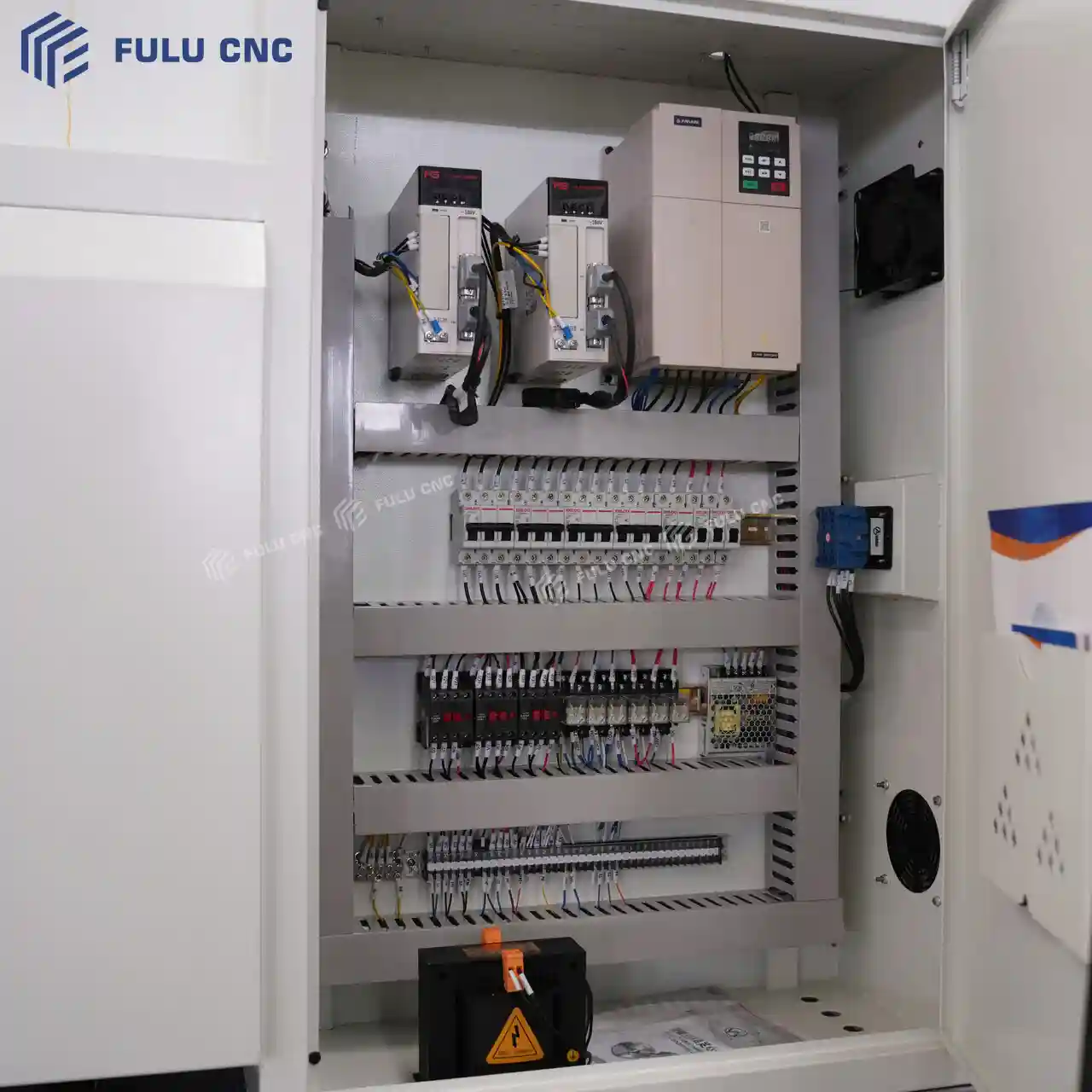

Electrical Control Cabinet

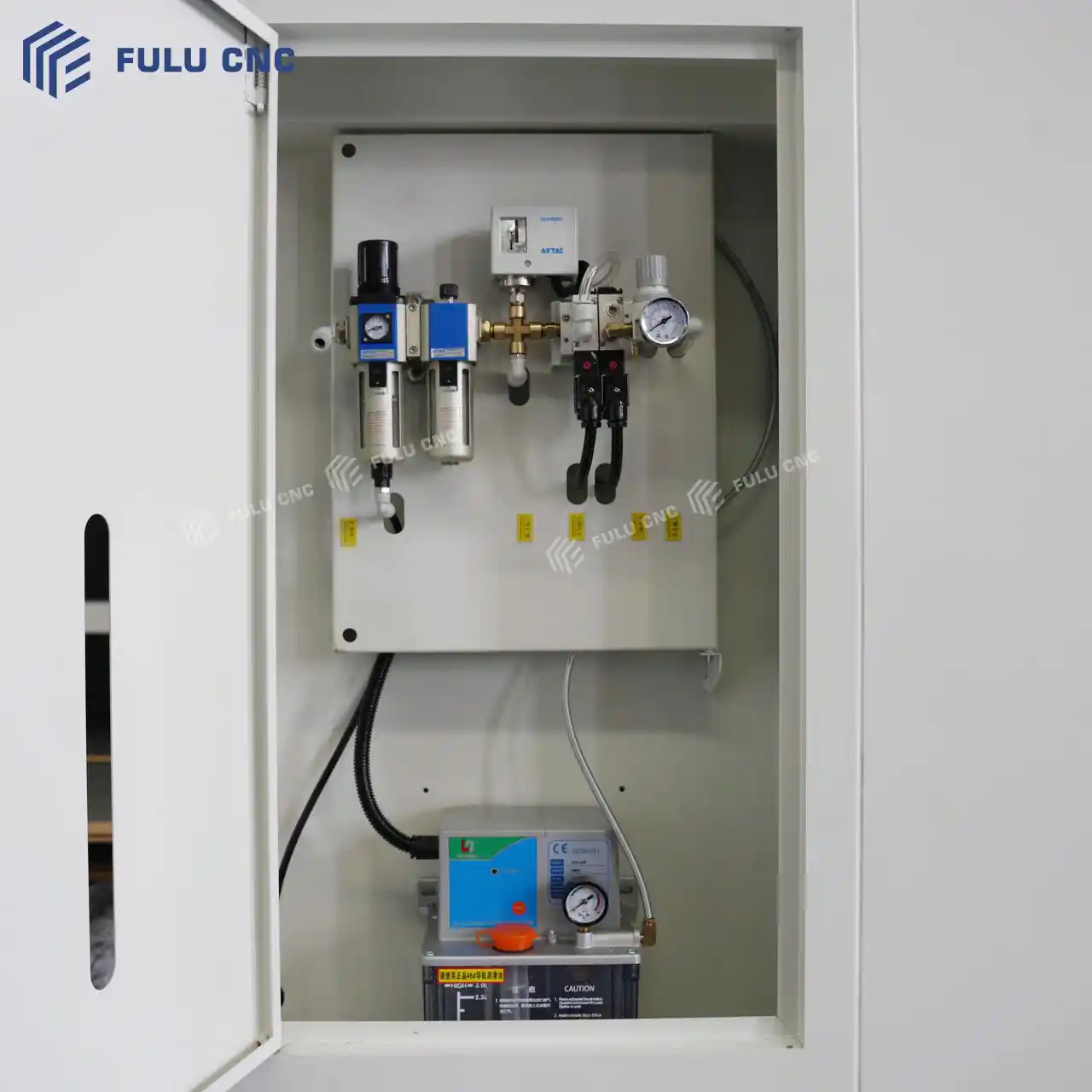

Automatic Lubrication Pump
The machine tool is equipped with an intelligent centralized automatic lubrication system that can automatically supply oil to the guide rails, screws, and key transmission components according to the set cycle, achieving continuous and stable lubrication, effectively reducing wear, and improving machining accuracy and equipment lifespan.
Fourth Axis

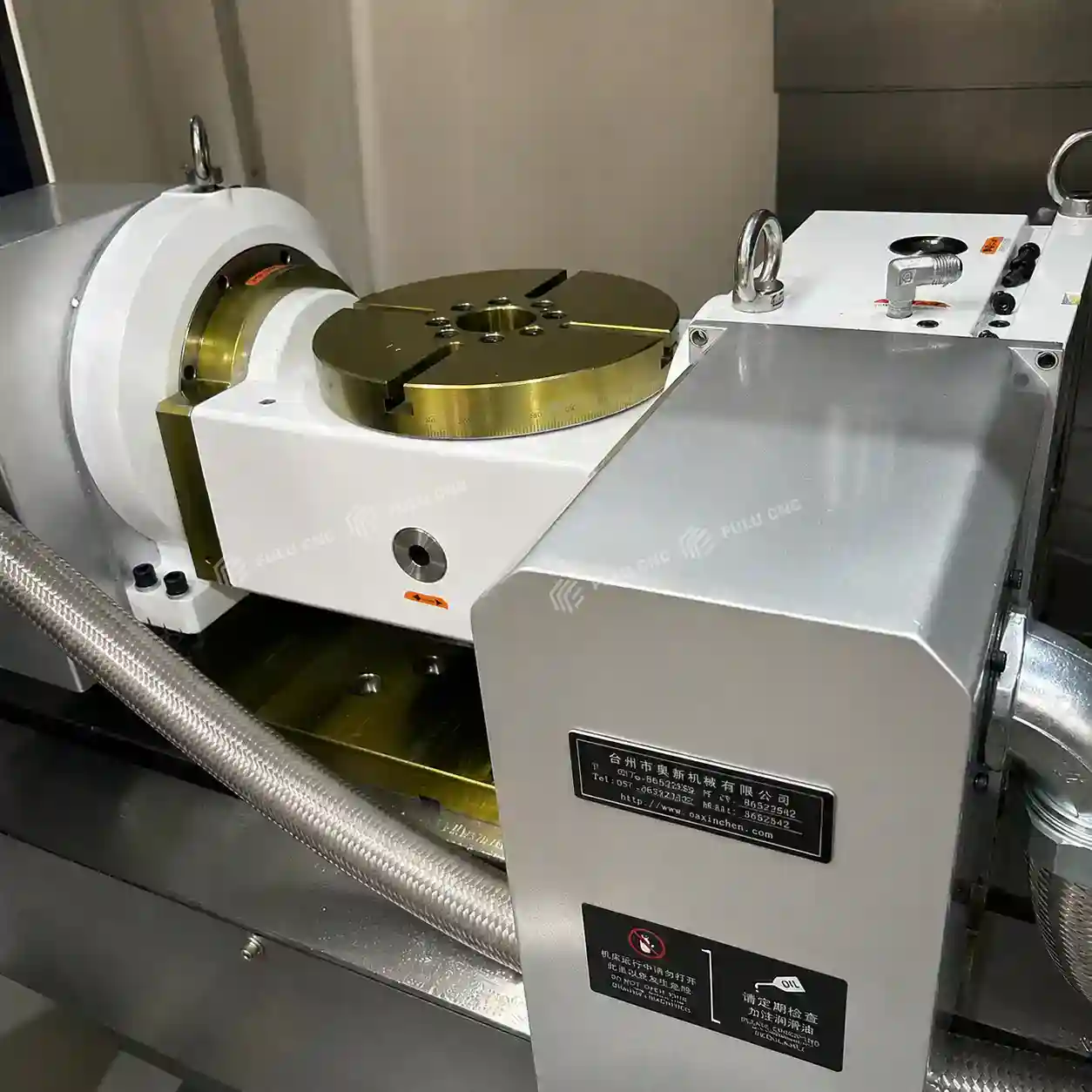

Fifth Axis

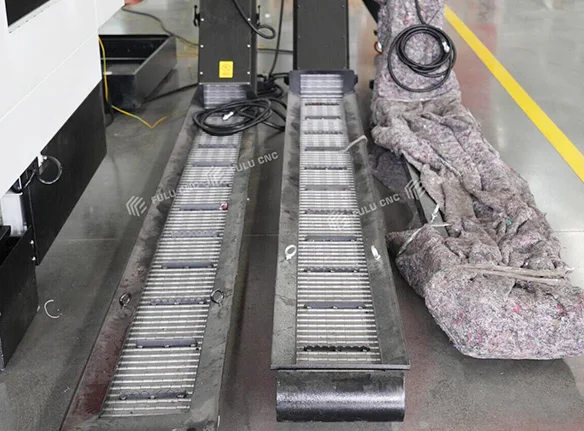

Chain Chip Conveyor

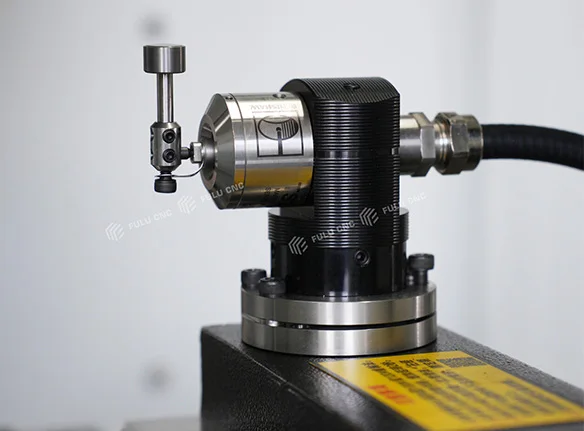

Renishaw Tool Arm

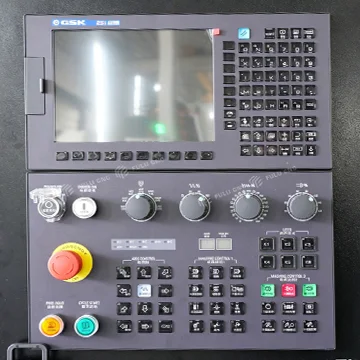

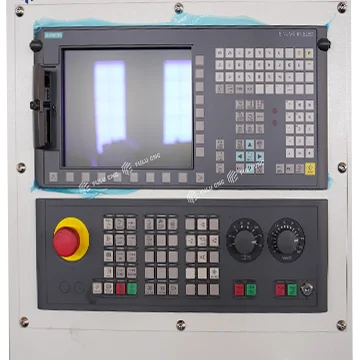

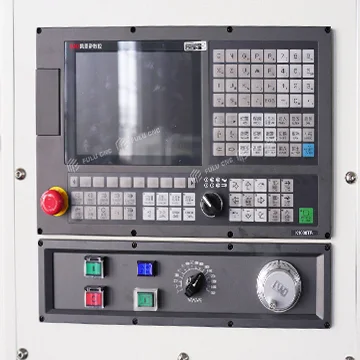

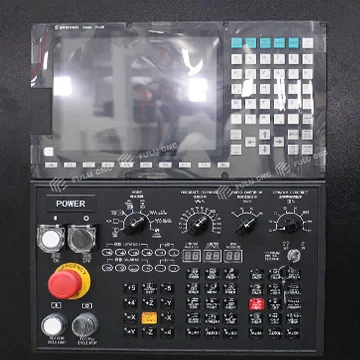

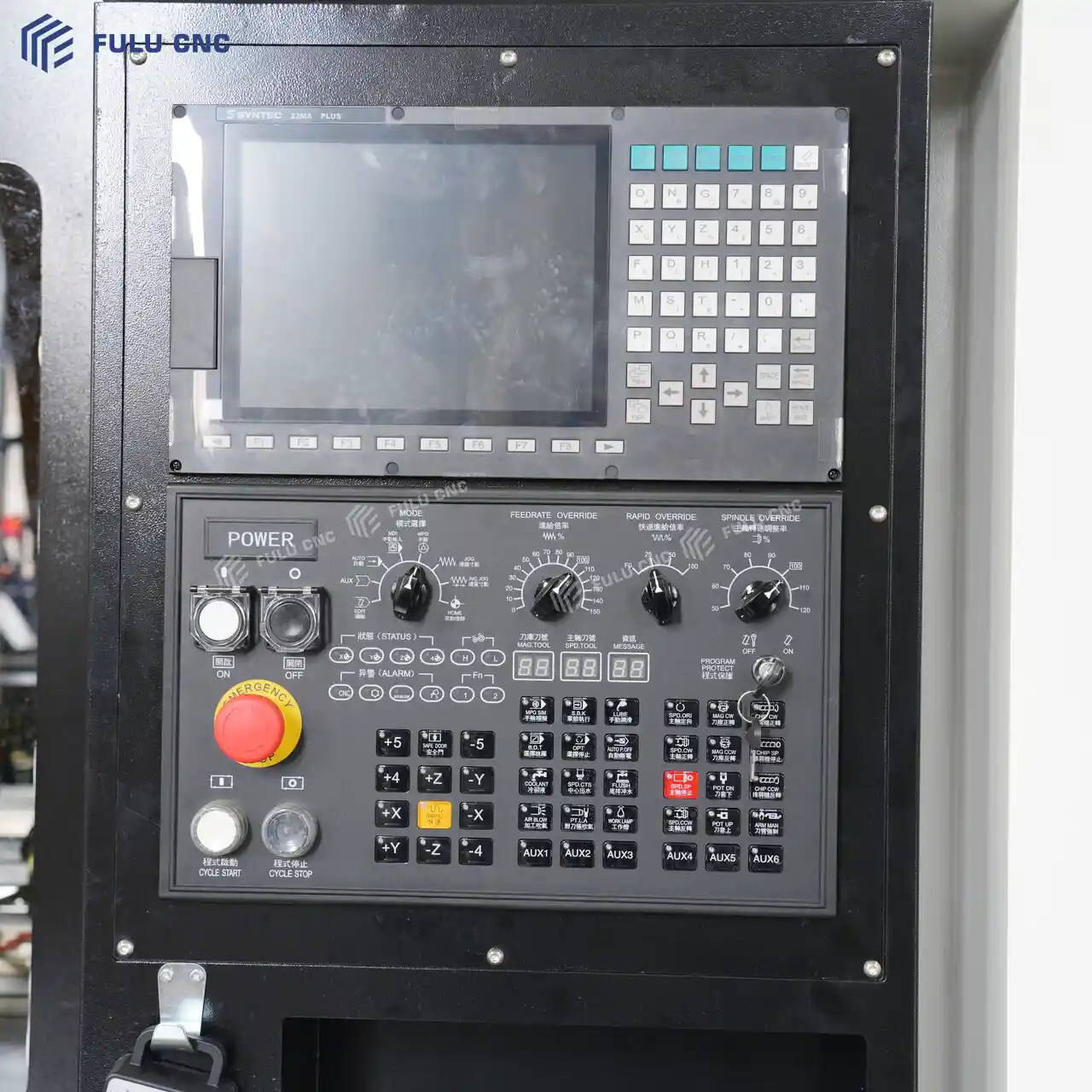

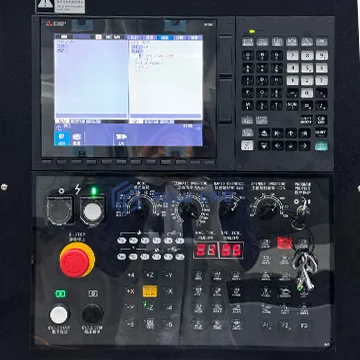

Optional CNC SystemsControl System
