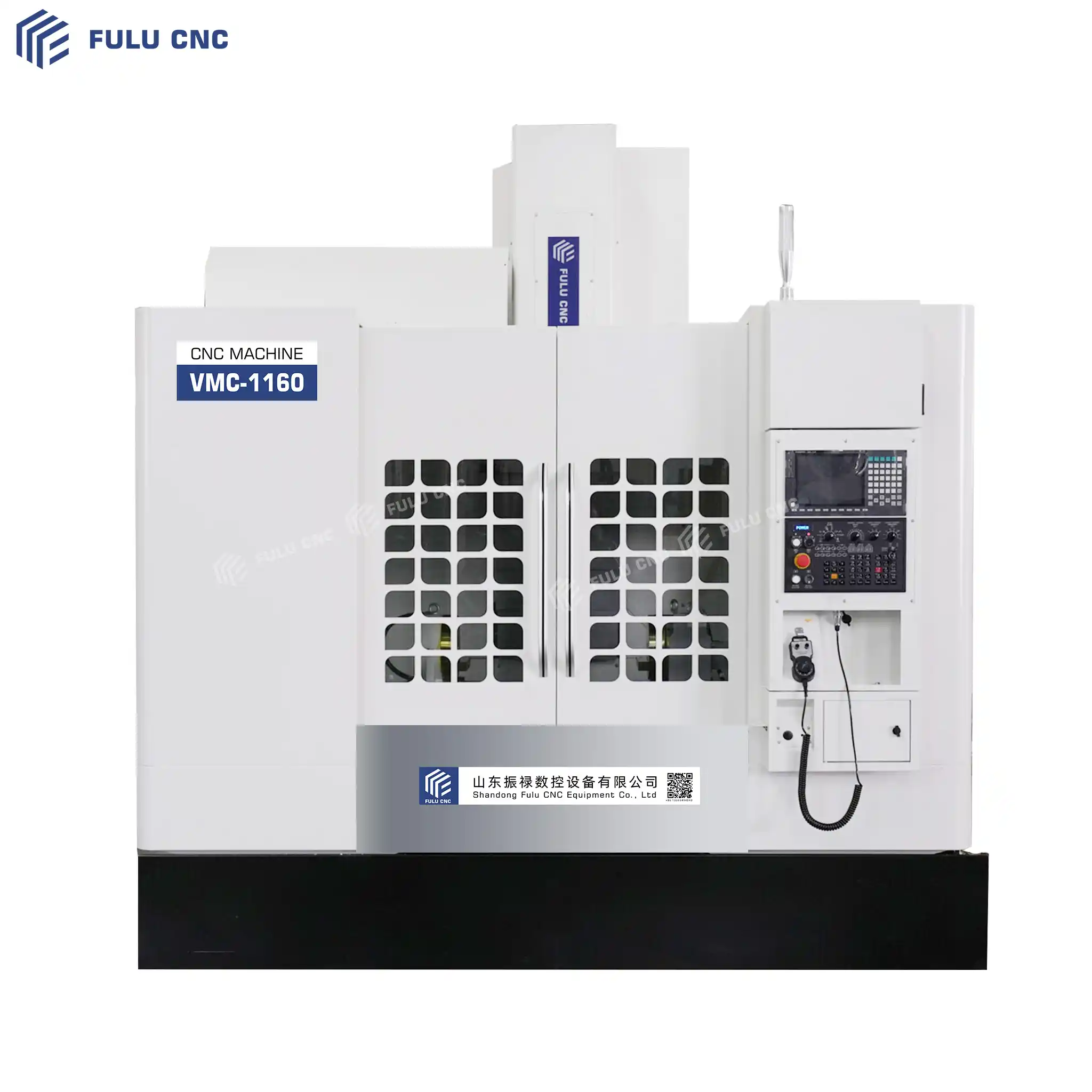

vmc1160 gray sheet metal vertical machining center

VMC1160 Gray Sheet Metal CNC Vertical Machining Center

Machine Model: VMC1160	Unit	Specification
Table Size	mm	1200x600
X/Y/Z Axis Travel	mm	1100/600/600
Distance from Spindle Nose to Table	mm	120-720
Distance from spindle center to column	mm	672
Maximum load on worktable	Kg	800
Worktable T-slot	mm	5-18x100
X/Y/Z axis rapid feed	m/min	32/32/26

Inquiry

Content Details Inquiry

Technical Parameters
Standard Configuration
Select Configuration

Machine Model: VMC1160	Unit	Specification
Table Size	mm	1200x600
X/Y/Z Axis Travel	mm	1100/600/600
Distance from Spindle Face to Table	mm	120-720
Distance from Spindle Center to Column	mm	672
Maximum Load on Table	Kg	800
Table T-Slot	mm	5-18x100
X/Y/Z Axis Rapid Feed	m/min	32/32/26
X/Y/Z Guide Rail Width Specification	mm	RGH45/45/45
X/Y/Z Screw Specification	mm	4012
Positioning Accuracy	mm	±0.008
Repeat Positioning Accuracy	mm	±0.005/300
Minimum Positioning Unit	mm	±0.001
Maximum Spindle Speed	rpm	8000 (ring cooling spray)
Spindle Taper	mm	BT40-150
Disc Mechanical Arm Tool Magazine	pcs	24T
Controller System	/	GSK 25i
X/Y/Z Axis Motor Power	Nm	18/18/28
Spindle Motor Power	Kw	November 15
Machine Weight Approximately	Kg	6000
Dimensions	mm	2800x2400x2800

No	Product Name	Place of Origin	Manufacturer
1	Main Structure Cast Iron (Bed)	Yunnan	Tai Biao
2	CNC Controller	Taiwan	Guangshu 25i
3	Spindle Drive Motor	Taiwan	Guangshu 25i
4	Three-axis Drive Motor	Taiwan	Guangshu 25i
5	Integrated Spindle	Taiwan	Okada
6	Spindle Tool Cylinder	China-Japan	China-Japan Xina Card
7	X, Y, Z Three-axis Bearings (P4)	Taiwan/Japan	TPI/NACHI
8	X, Y, Z Three-axis Linear Guide	Taiwan	Hiwin
9	X, Y, Z Ball Screw (C3 Grade)	Taiwan	Hiwin
10	Three-axis Coupling	Taiwan	S+P
11	Centralized Automatic Lubrication System	Taiwan	Baoyu
12	Air Source Filtration and Purification Device	Taiwan	AirTAC Air Curtain Protection
13	Cooling Device	China	Weisen
14	Operation Panel and Handwheel	Taiwan	Guangshu
15	Electrical Appliances, Overload Protector	France	Schneider
16	Robot Tool Magazine	Taiwan	Okada
17	Electrical Cabinet Heat Exchanger	Jiangsu	Ke Heng Ao

10000/12000rpm spindle speed

30kg/50kg/70kg center water outlet

Renishaw tool setter

170/200/250/300mm fourth axis

125/170/210/250mm fifth axis

chain-type chip conveyor

Machining Center Product Details

High efficiency processing, reducing production costs

High-speed spindle and automatic tool change system, greatly shortening processing cycle
High rigidity body structure, ensuring long-term stable processing
Optimized processing flow, improving processing efficiency by more than 2 times
Reduce manual operation and equipment downtime, lowering overall production costs by more than 30%

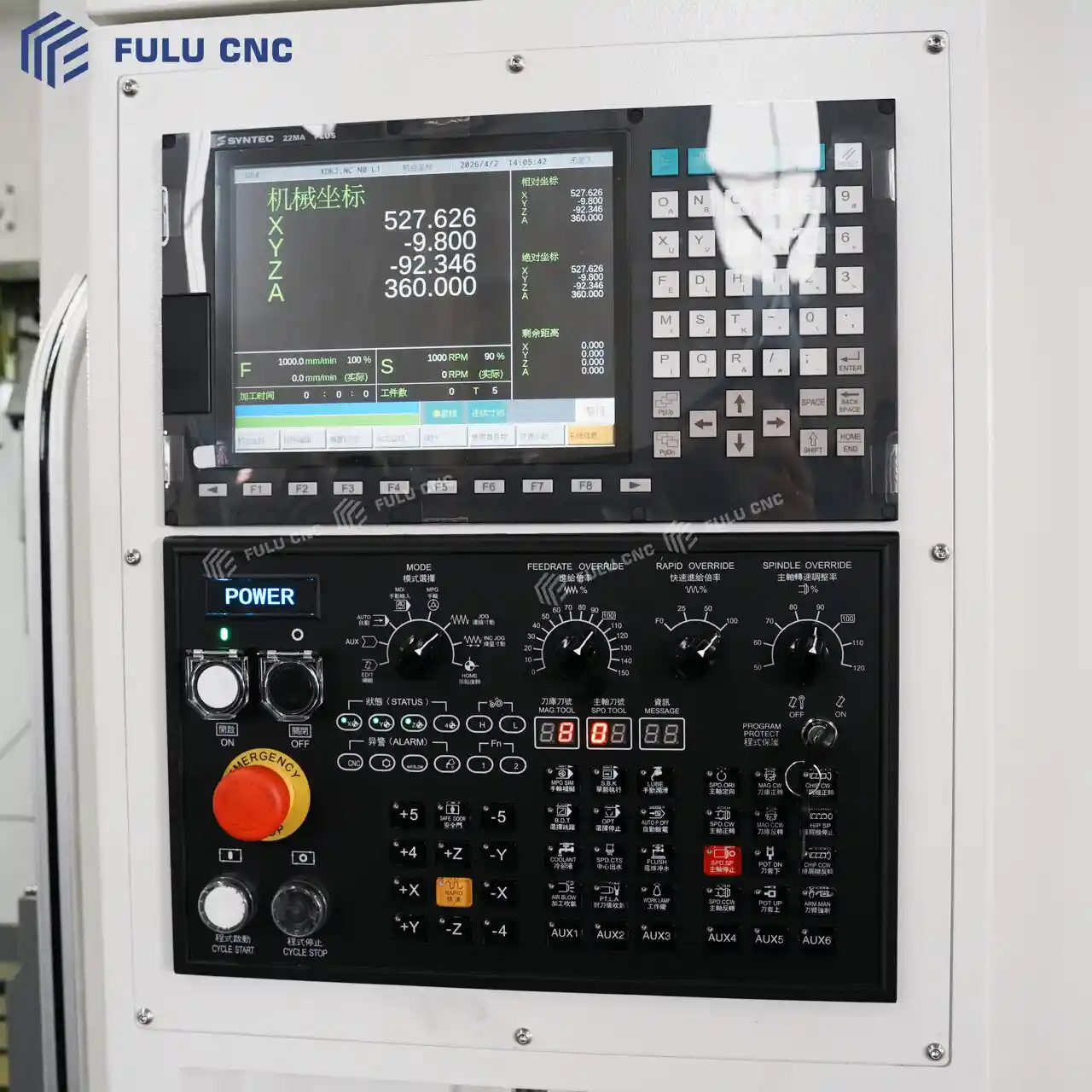

New generation control system

The VMC-855 vertical machining center is equipped with an industrial-grade CNC operation panel, integrating program editing, processing control, and status monitoring. It adopts a user-friendly layout design, with clearly defined functional key areas, supporting various operating modes such as automatic processing, manual adjustment, and electronic handwheel. Combined with feed rate, spindle rate, and rapid movement adjustment functions, it can achieve efficient, safe, and precise processing, meeting the needs of mold manufacturing, mechanical parts processing, and mass production.

Spindle

The maximum speed of this spindle can reach12000 RPM, belonging to the medium-high speed spindle configuration, balancing the rigid cutting of steel parts and the high-speed precision processing needs of aluminum parts and molds.

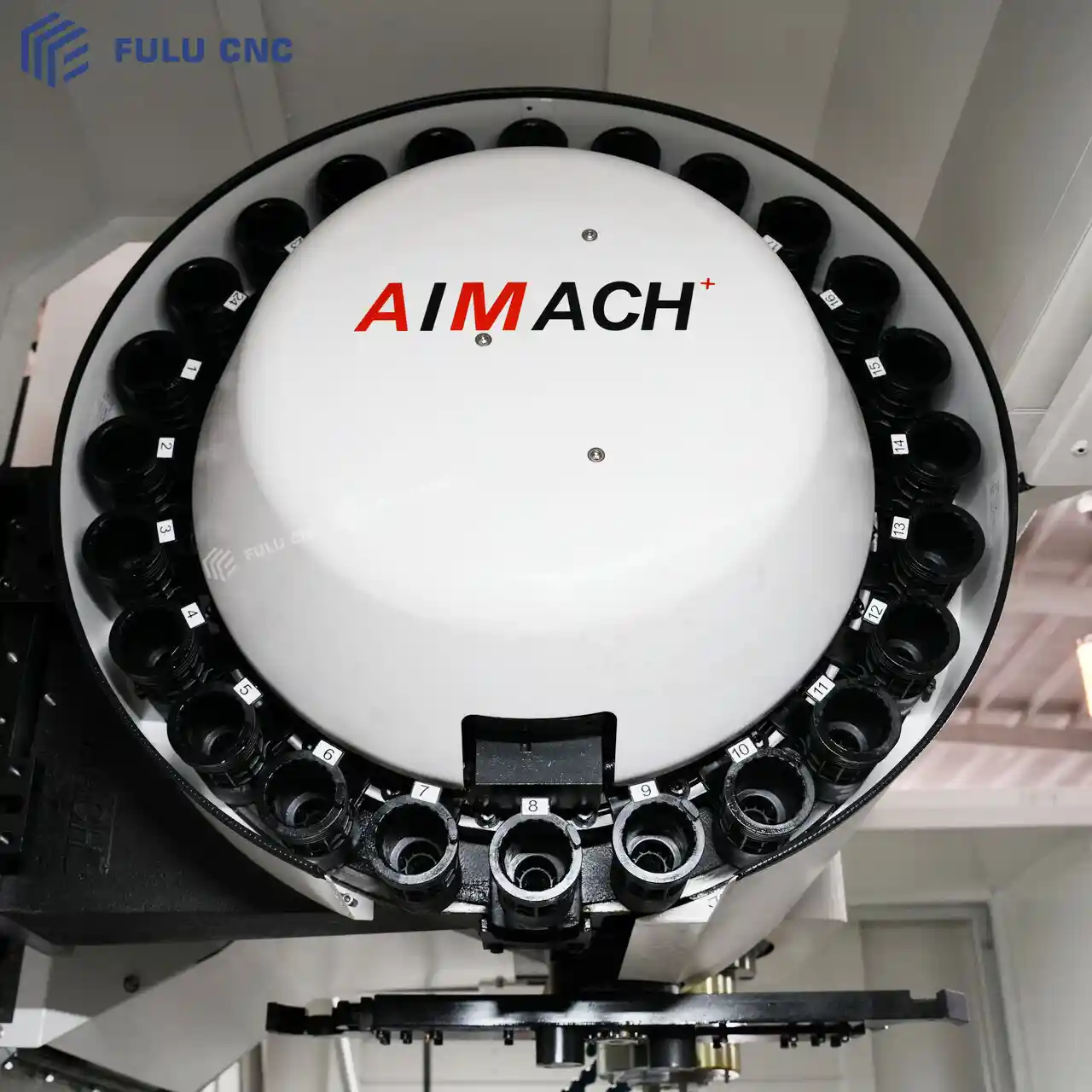

Disc-type Tool Magazine

Automatically switches tools between different processing operations without manual intervention, achievingMulti-process machining completed in one clamping。

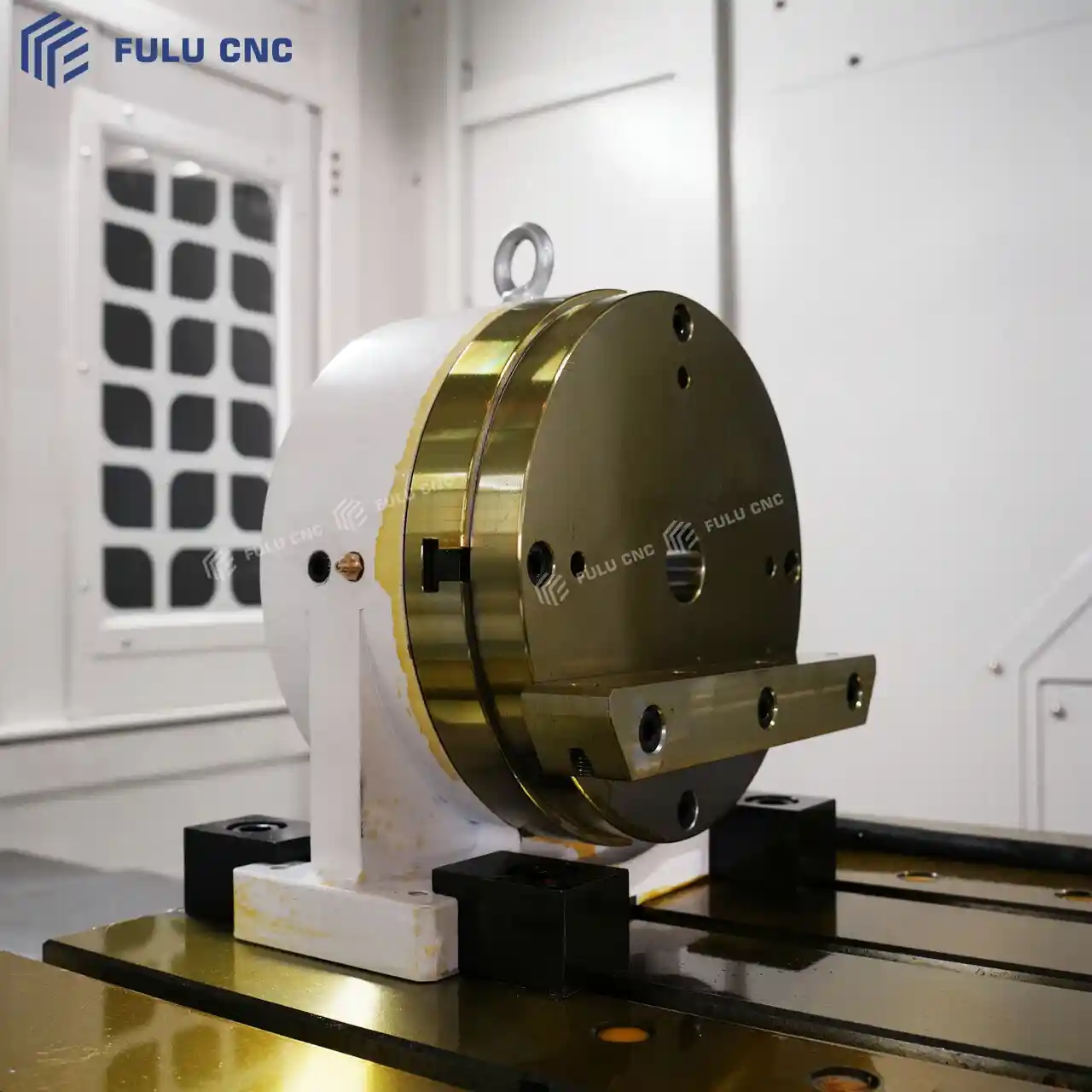

Fourth Axis Configuration

This isthe internal working table area of the vertical CNC machining center, the whole machine isthe VMC series vertical machining center, equipped withdual-sided dual four-axis dividing heads, belonging to a five-sided machining dedicated CNC milling machine, commonly used for precision complex parts multi-process machining in one clamping.

Electrical Control Cabinet

The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.
The layout in the image adopts a layered, modular design, separating strong and weak currents to reduce electromagnetic interference, which is a typical configuration for high-end domestic machining centers.

cnc machining center pneumatic control system

Automatic Lubrication Pump

The machine tool is equipped with an intelligent centralized automatic lubrication system, which can automatically supply oil to the guide rails, ball screws, and key transmission components according to a set cycle, achieving continuous and stable lubrication,

effectively reducing wear and improving processing accuracy and equipment service life.

Select CNC Machine Configuration

Fourth Axis

Fifth Axis

Chain Chip Conveyor

vertical machining center renishaw tool setter

Renishaw Tool Arm

Optional CNC SystemsControl System

GSK
Fanuc
Kane's Empire
Mitsubishi
Siemens
New Era

------

Applications of CNC Machining Centers

Box Type

Gearbox Case / Gearbox Shell: Multi-hole System, Inner Cavity, Installation Surface Pump Body / Valve Body: Irregular Cavity, Flow Path Hole, Flange Surface

Plate Type / Disk Type / Flange Type

Installation Large Plate / Panel: Array Hole, Countersink Hole, Flat Groove Flange Plate / End Cap: Round Disk, Evenly Distributed Bolt Hole, Stop

Irregular Bracket / Support Type

Mechanical Bracket / Connection Seat: L/T Type, Multi-step, Lateral Hole Bearing Seat / Vertical Support: Half-round / Full-round Bearing Hole, Installation Bottom Surface

vertical machining center complex surface parts

Mold Type (Main Force of Vertical Machining Center)

Plastic Model Cavity / Core: Deep Cavity, Ribs, Curved Surface Mold Frame / Ejector Plate: Array Guide Post Hole, Ejector Hole

Complex Curved Surface Type (Three-axis / Five-axis)

Impeller / Blade: Spatial Twisted Surface, Flow Path Turbine / Fan Wheel: Multi-blade, Annular Curved Surface

vertical machining center precision parts

Precision Small Parts / Aluminum Shell Type

Aluminum Alloy Shell / Controller Box: Thin-walled Cavity, Interface Hole, Slot Multi-way Hydraulic Oil Block: Cross Deep Hole, Flat Sealing Position
