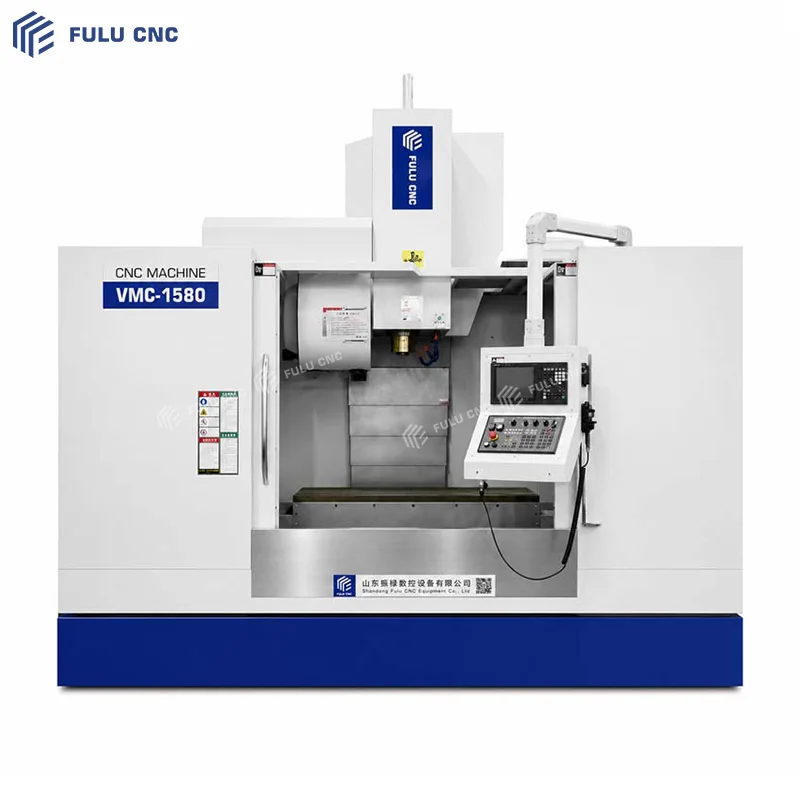

VMC1580-Mitsubishi CNC Vertical Machining Center

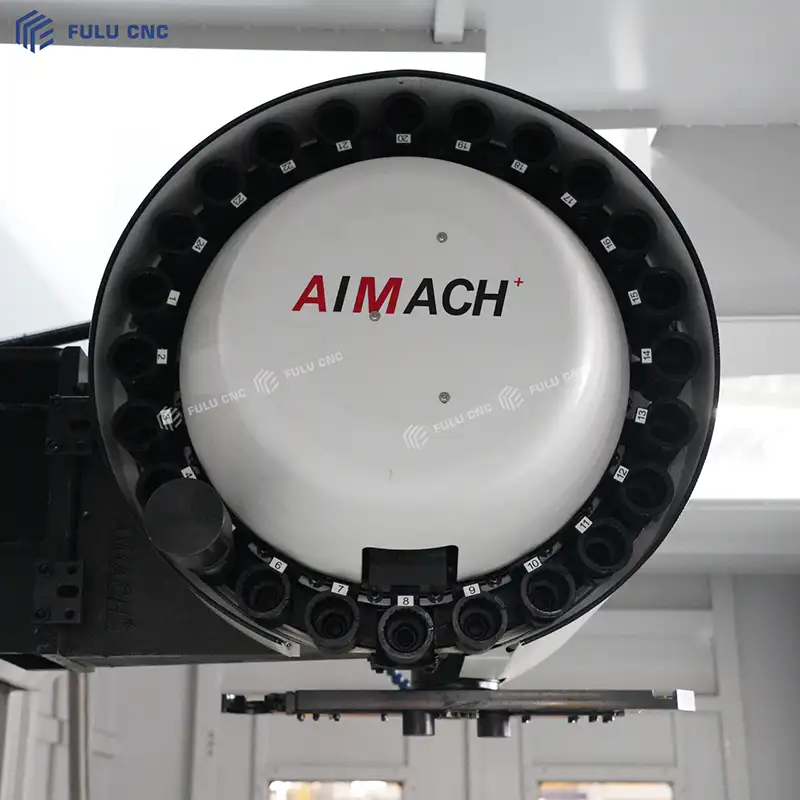

Disc-type Tool Magazine

Can automatically switch tools between different machining processes without manual intervention, achievingmulti-process machining completed in one clamping。

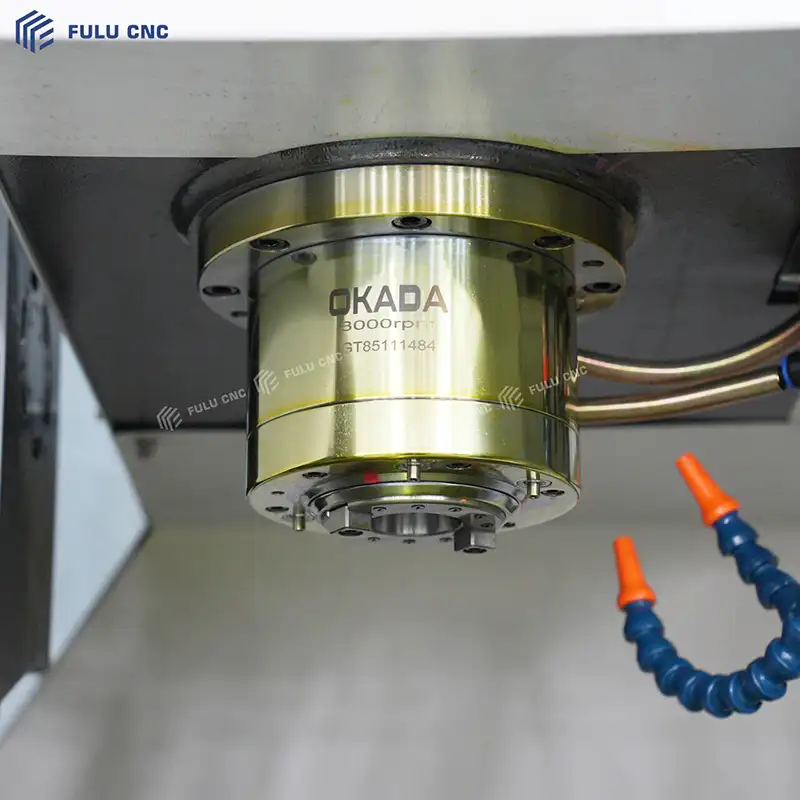

Spindle Cooling / Cutting Fluid Pipeline

• The function of the cutting fluid is to cool the tool and workpiece, lubricate the cutting area, flush away chips, and prevent tool overheating and wear, as well as thermal deformation of the workpiece.
• This "multi-path cooling" design is standard equipment for vertical machining centers, adaptable to the needs of different tools and machining processes.

Electrical Control Cabinet

• The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.
• The layout shown uses layered and modular design, separating strong and weak currents to reduce electromagnetic interference, which is a typical configuration for high-end domestic machining centers.

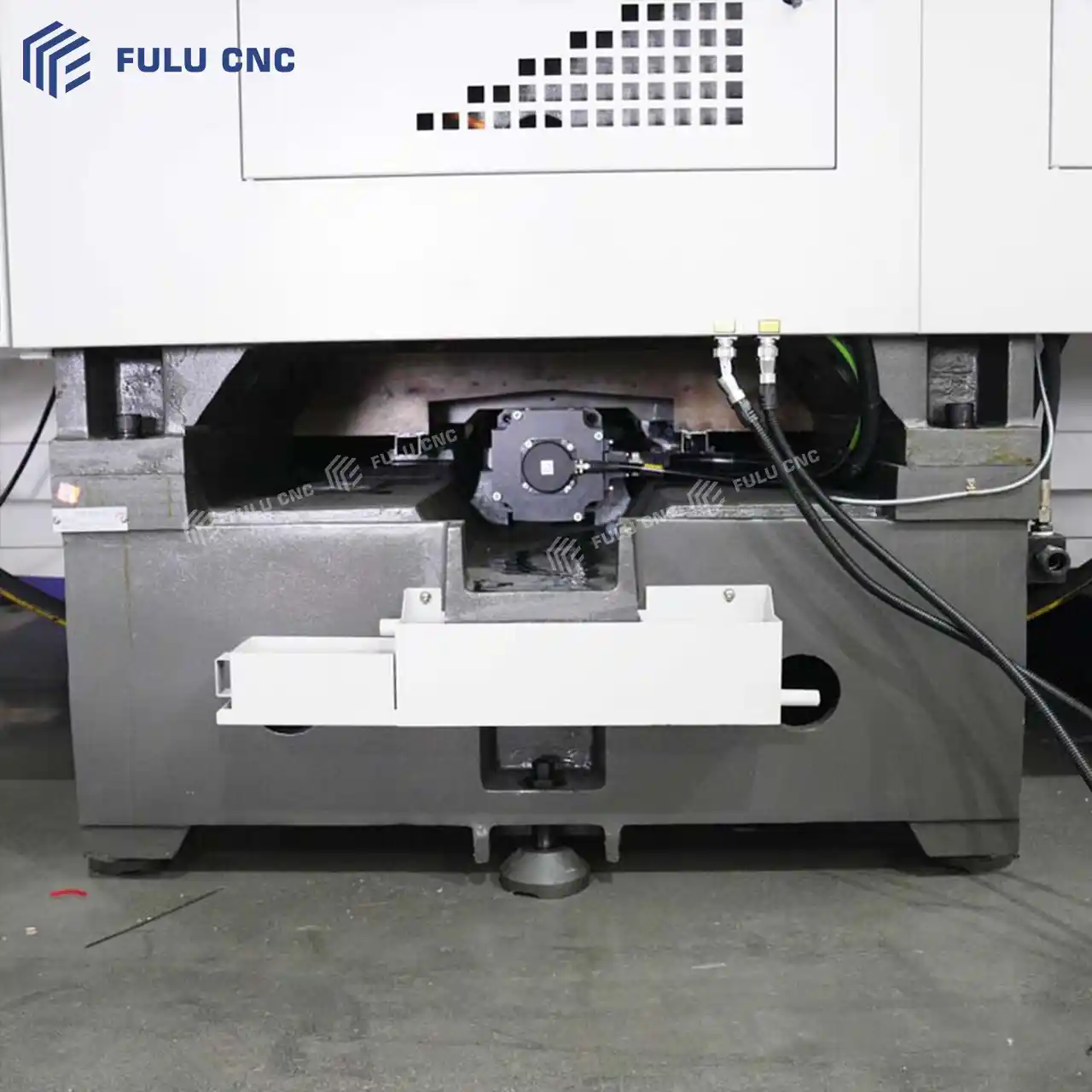

Servo Spindle Motor + Oil-Gas Lubrication Collection Tank

This structure is thecutting power unit of the CNC machining center: The servo spindle motor outputs cutting power, the white oil collection tank is responsible for lubrication fluid recovery protection, and the heavy cast iron saddle ensures high-speed heavy cutting rigidity, working with the M80 CNC system to complete all processes of part milling, drilling, boring, and tapping.
