| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ550 |
| Maximum Cutting Diameter | mm | Φ440 |
| Machining Diameter Under Turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective machining length 500) |

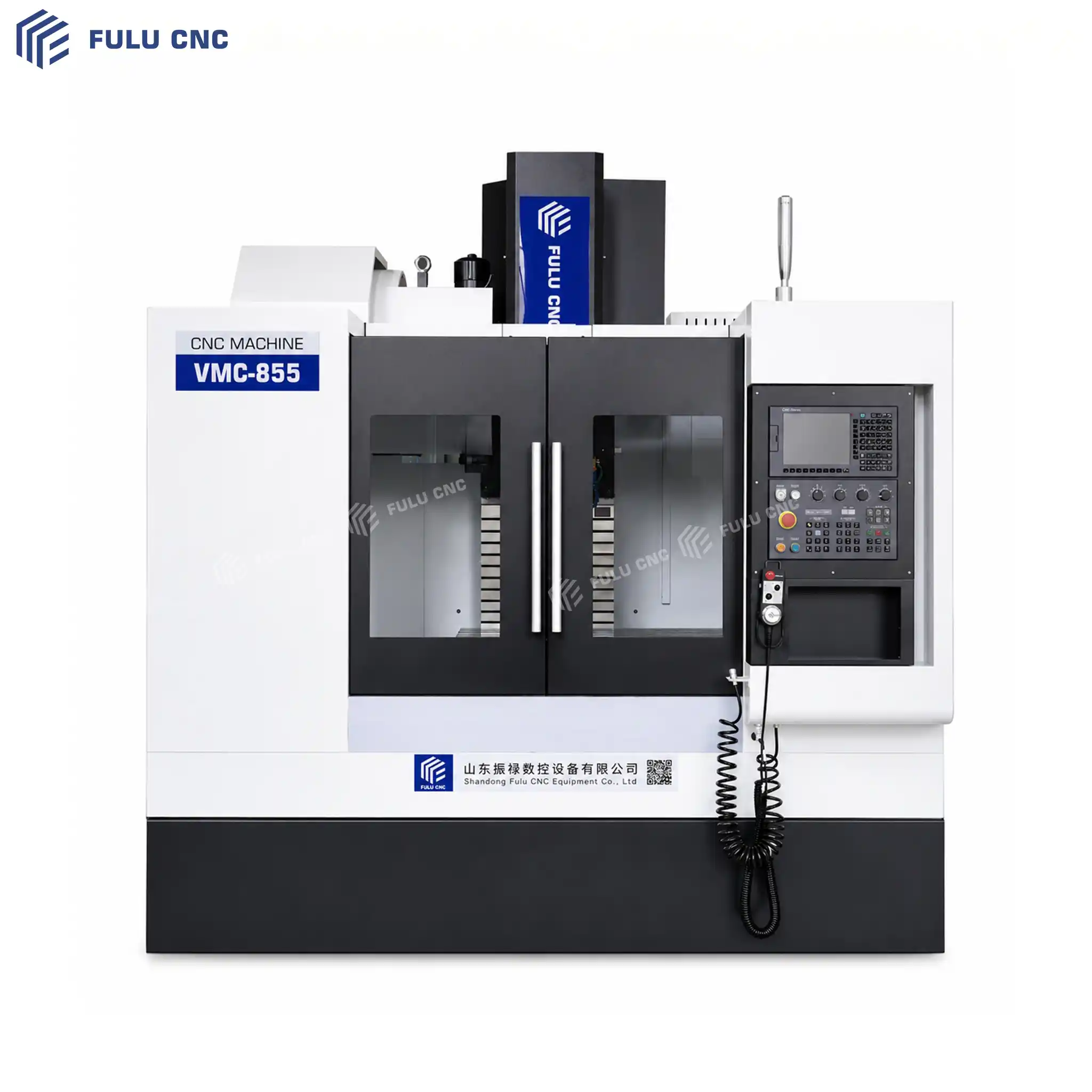

| Machine model: VMC855 | Unit | Specification |
| Table size | mm | 1000x550 |
| X/Y/Z axis travel | mm | 800/550/550 |
| Distance from spindle end face to table | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Maximum load on table | Kg | 600 |
| T-slot on table | mm | 5-18x90 |
| X/Y/Z axis rapid feed | m/min | 36/36/32 |
| X/Y/Z guide rail width specification | mm | RGH35/45/45 roller linear guide |
| X/Y/Z screw specification | mm | φ4016 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.006 /300 |
| Minimum positioning unit | mm | ±0.001 |
| Four-axis accuracy | mm | ≤0.01 |
| Maximum spindle speed | rpm | 8000 (spindle ring spray) |
| Spindle taper | mm | BT40-150 |

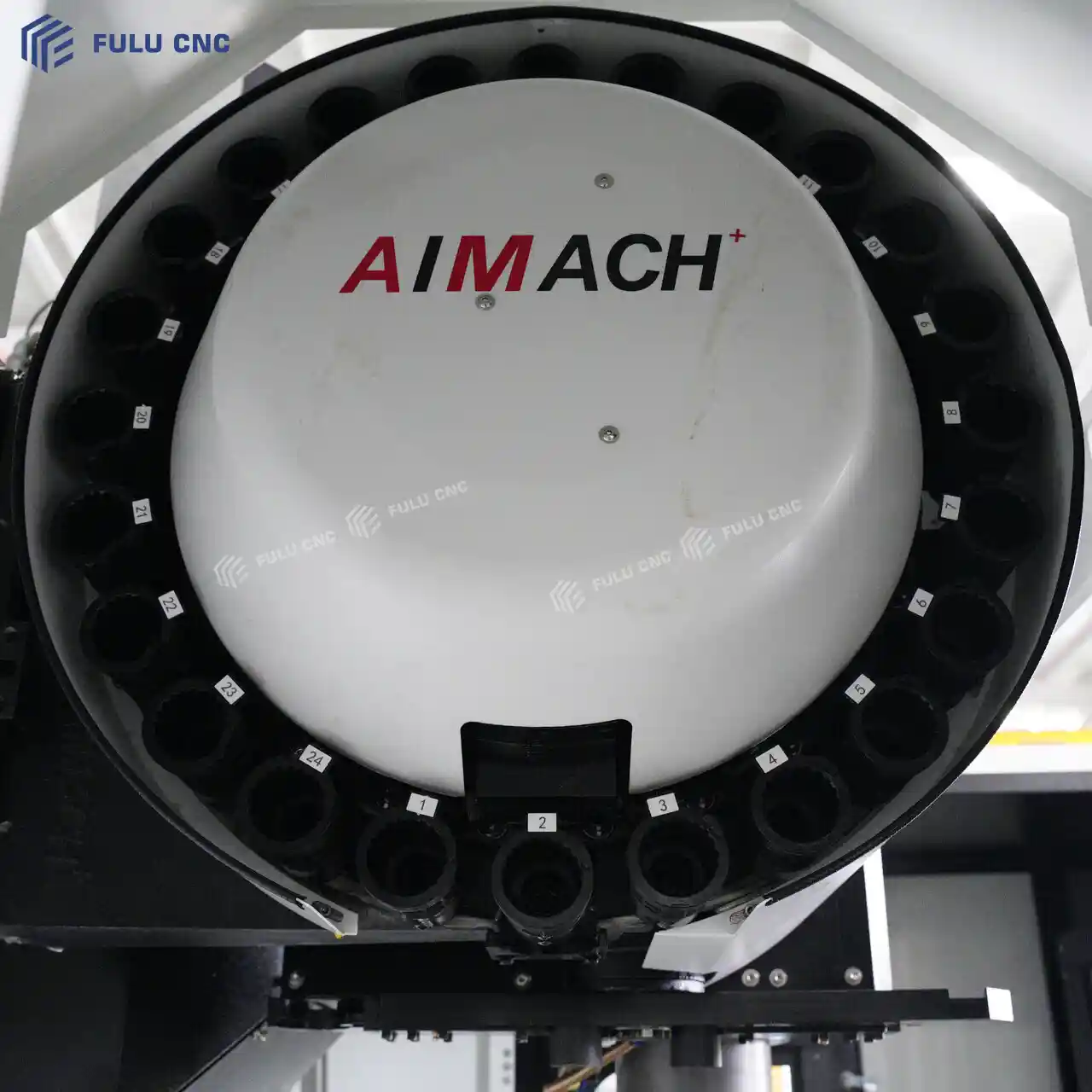

| Disc mechanical arm tool magazine | pcs | 24T |
| Controller system | / | GSK25i |
| X/Y/Z axis motor power | Nm | 15/15/22 |
| Spindle motor power | Kw | 11 |
| Machine weight approximately | Kg | 5000 |
| Dimensions | mm | 2600x2400x2650 |
| NO | Configuration Content | NO | Configuration Content |
| 1 | Cutting Cooling System | 13 | Machine Internal Cleaning Device: Chip Blowing Gun |
| 2 | Automatic Lubrication System | 14 | Manual Pulse Generator: Handwheel |
| 3 | Cutting Blowing Device | 15 | External Network Transmission Interface |
| 4 | Spindle and Servo Overload System Protection | 16 | Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal) |
| 5 | Three-Color Alarm Light | 17 | External Protection High-Quality Baked Paint Sheet Metal |
| 6 | Horizontal Adjustment Bolt and Spacer | 18 | Rigid Tapping |
| 7 | Electrical Box Heat Exchanger | 19 | Precision Inspection Certificate |
| 8 | Three-Axis Screw Pre-Tensioning Device | 20 | Electrical Manual |
| 9 | Program Storage | 21 | User Manual |
| 10 | Spindle Ring Water Spray | 22 | Program Operation Manual |
| 11 | Reserved for Adding Four-Axis Interface | 23 | Front Chip Discharge |
| 12 | Internal Work Light |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg central water outlet |
| Renishaw tool setter |
| 170/200/250/300mm fourth axis |
| 125/170/210/250mm fifth axis |
| chain-type chip conveyor |

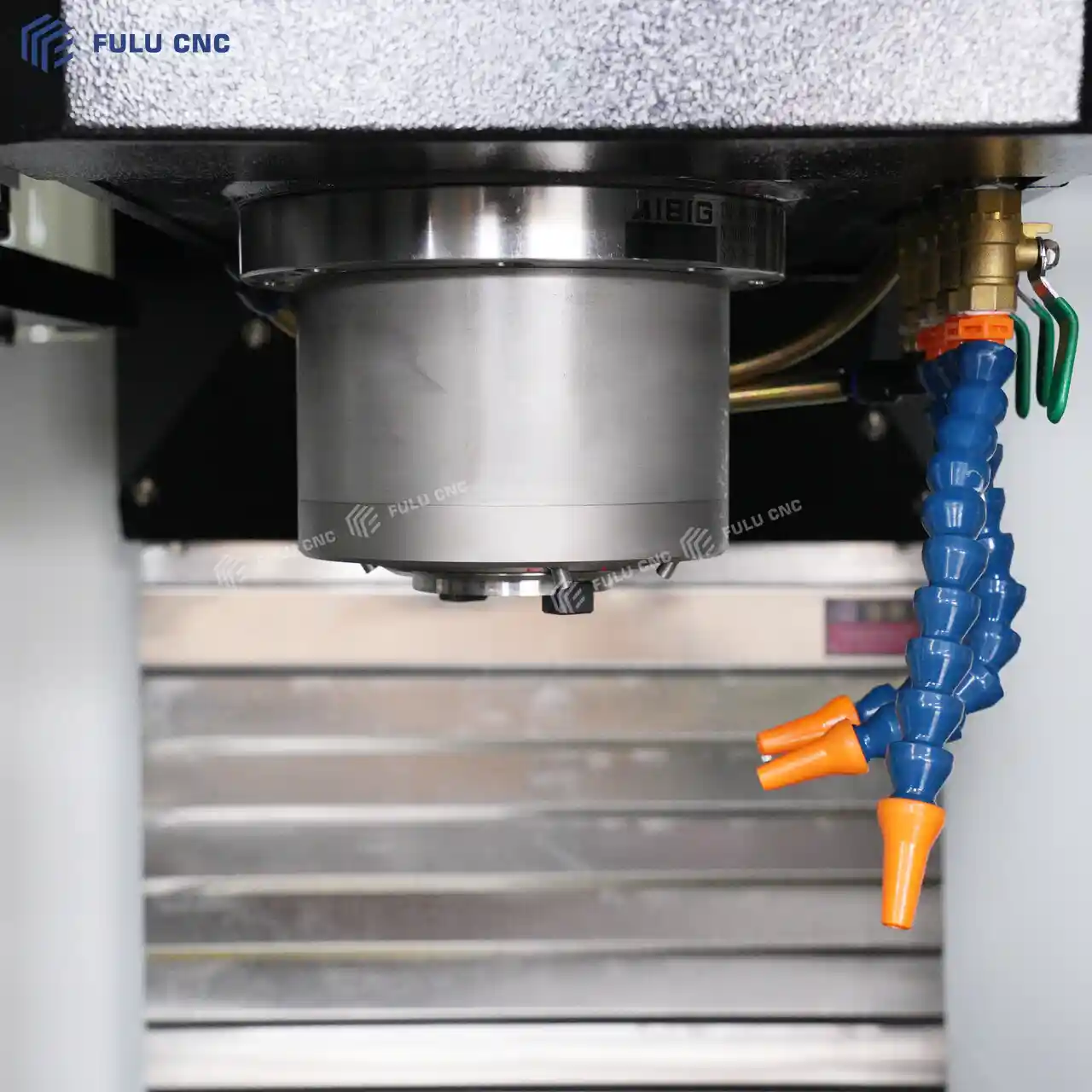

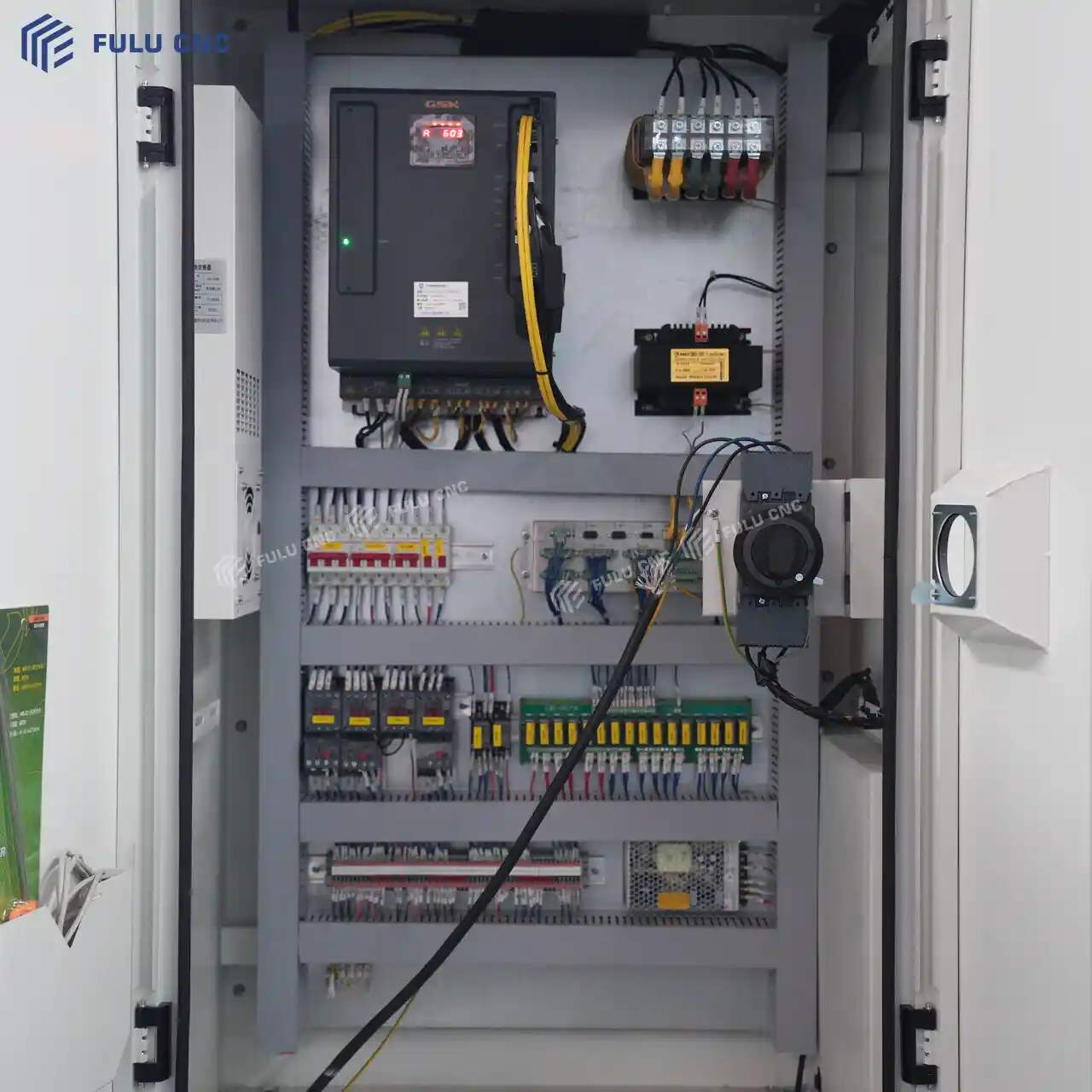

High efficiency machining, reducing production costs Spindle The maximum speed of this spindle can reach12000 RPM, belonging to the medium-high speed spindle configuration, balancing the rigid cutting of steel parts and the high-speed precision machining needs of aluminum parts and molds. Disc-type Tool Magazine Automatically switches tools between different machining processes without manual intervention, achievingMulti-process machining completed in one clamping。 Multi-nozzle Cooling Device Electrical Control Cabinet Automatic Lubrication Pump The machine tool is equipped with an intelligent centralized automatic lubrication system that can automatically supply oil to the guide rails, ball screws, and key transmission components according to a set cycle, achieving continuous and stable lubrication, effectively reducing wear and improving machining accuracy and equipment service life.
Machining Center Product Details
Learn more

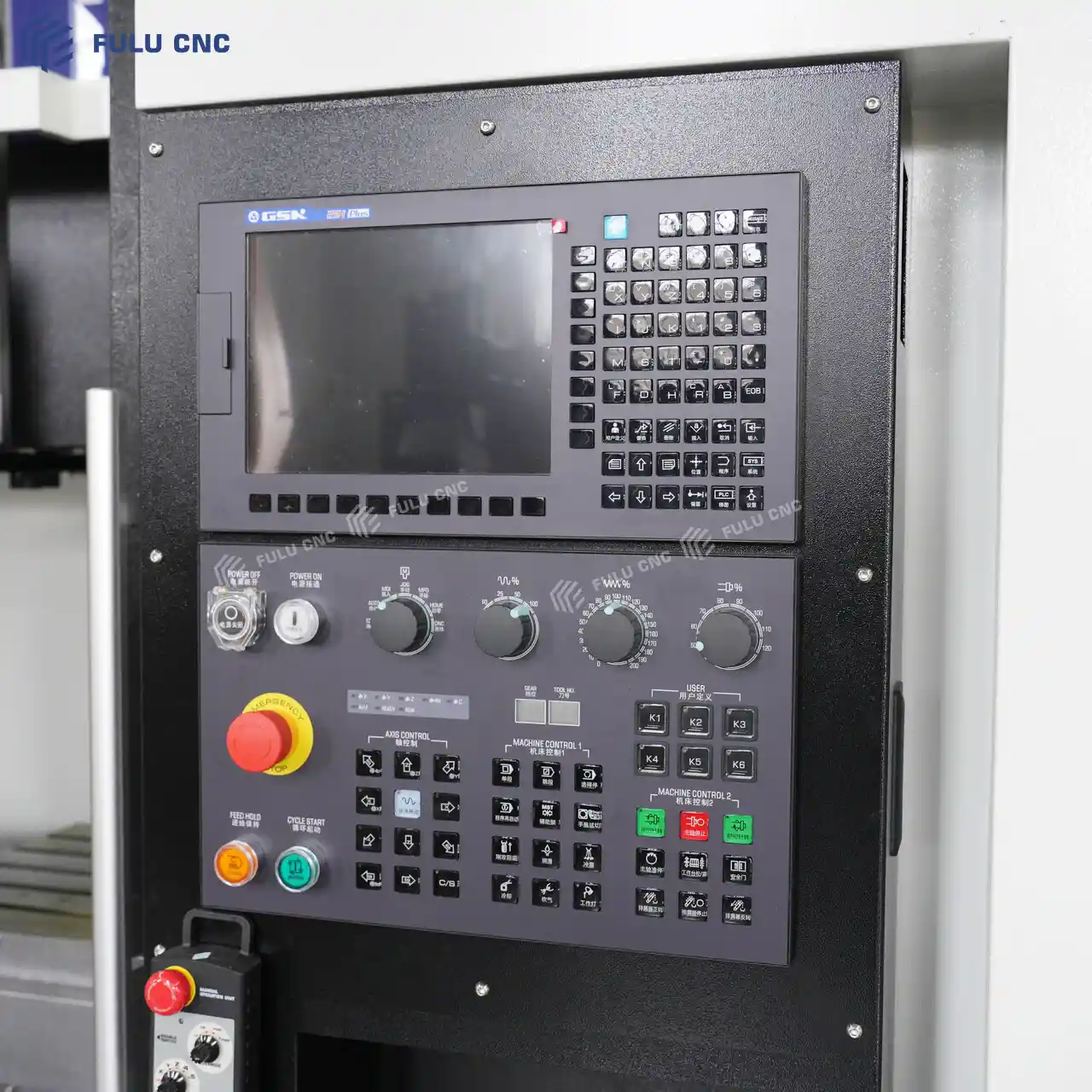

GSK Control System
This GSK system is the mainstream configuration for domestic economical machining centers, featuring stable performance and complete functions, supporting G-code programming, tool compensation, macro programs, and other commonly used functions of machining centers.
Fourth Axis
Fifth Axis

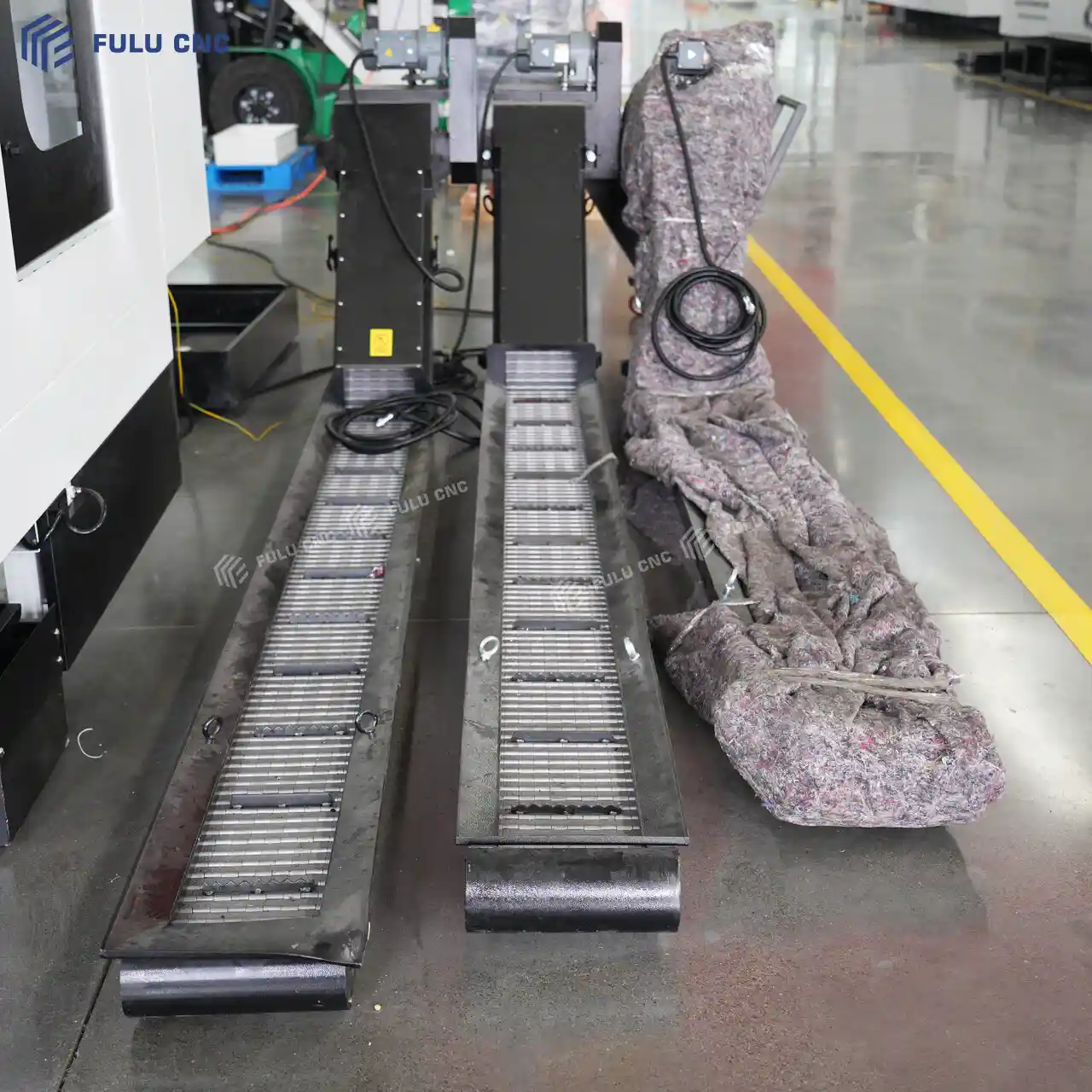

Chain Chip Conveyor
Renishaw Tool Arm
Optional CNC SystemsControl System
