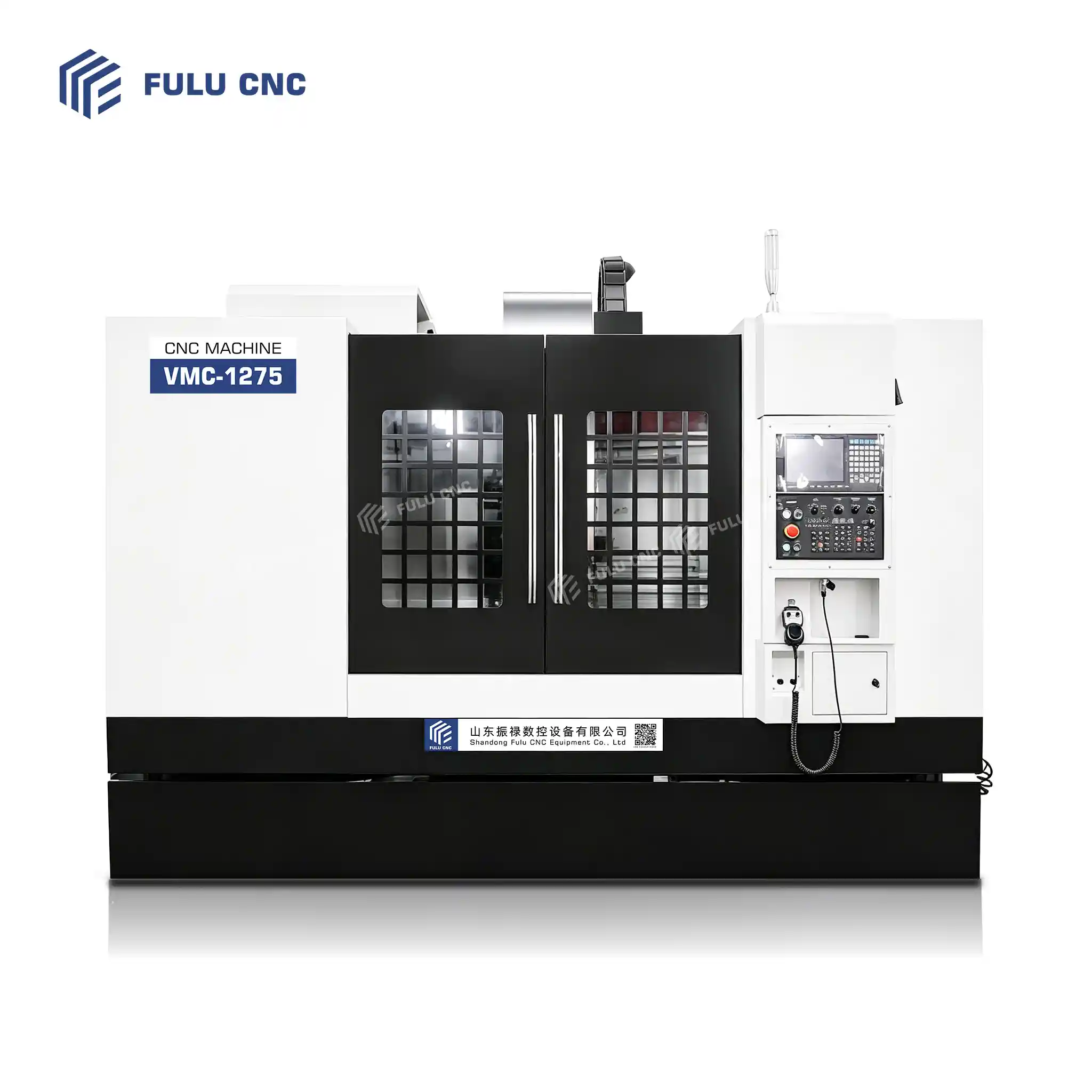

VMC1275 CNC Vertical Machining Center

Project	Parameters
Model	VMC1275
X-axis Travel	1200 mm
Y-axis Travel	750 mm
Z-axis Travel	600 mm
Table Size	1300 × 700 mm
T-slot	7 × 18 × 100 mm
Maximum worktable load	800~1000 kg
Distance from spindle end face to worktable	120~720 mm
Distance from spindle center to column guide rail	775 mm

Inquiry

Content Details Inquiry

Technical Parameters
Standard Configuration
Select Configuration

Project	Parameters
Model	VMC1275
X-axis travel	1200 mm
Y-axis travel	750 mm
Z-axis travel	600 mm
Table size	1300 × 700 mm
T-slot	7 × 18 × 100 mm
Maximum load on table	800~1000 kg
Distance from spindle end face to table	120~720 mm
Distance from spindle center to column guide rail	775 mm
Spindle taper	BT40 (optional BT50)
Spindle speed	8000 rpm (optional 10000/12000rpm)
Spindle motor power	11/15 kW
Rapid traverse of three axes	36/36/36 m/min (some manufacturers 24/24/20 m/min)
Cutting feed speed	1~10000 mm/min
Tool magazine capacity	24-piece disc tool magazine
Maximum tool diameter	Φ78 mm
Maximum tool length	300 mm
Positioning accuracy	±0.005 mm
Repeat positioning accuracy	±0.003 mm
Machine weight	6500~9000 kg
Overall dimensions	Approximately 3200~3900 × 2300~2900 × 2600~3000 mm

Standard Configuration

Taiwan High-Speed Spindle

Taiwan Roller Linear Guide (X/Y/Z Axes)

Taiwan Precision Ball Screw

24-Position Disc Tool Magazine

Automatic Lubrication System

Fully Enclosed Protection

Pneumatic System

Cooling System

LED Work Light

Three-Color Warning Light

Handheld Electronic Handwheel (Optional)

10000/12000rpm spindle speed

30kg/50kg/70kg central water outlet

Renishaw tool setter

170/200/250/300mm fourth axis

125/170/210/250mm fifth axis

chain-type chip conveyor

Learn More

Machining Center Product Details

High efficiency machining, reducing production costs

High-speed spindle and automatic tool change system, significantly shortening machining cycles
High rigidity body structure, ensuring long-term stable machining
Optimized machining process, increasing machining efficiency by more than 2 times
Reduce manual operations and equipment downtime, lowering overall production costs by more than 30%

GSK Control System

This GSK system is the mainstream configuration for domestic economical machining centers, featuring stable performance and comprehensive functions, supporting G-code programming, tool compensation, macro programs, and other commonly used functions of machining centers.

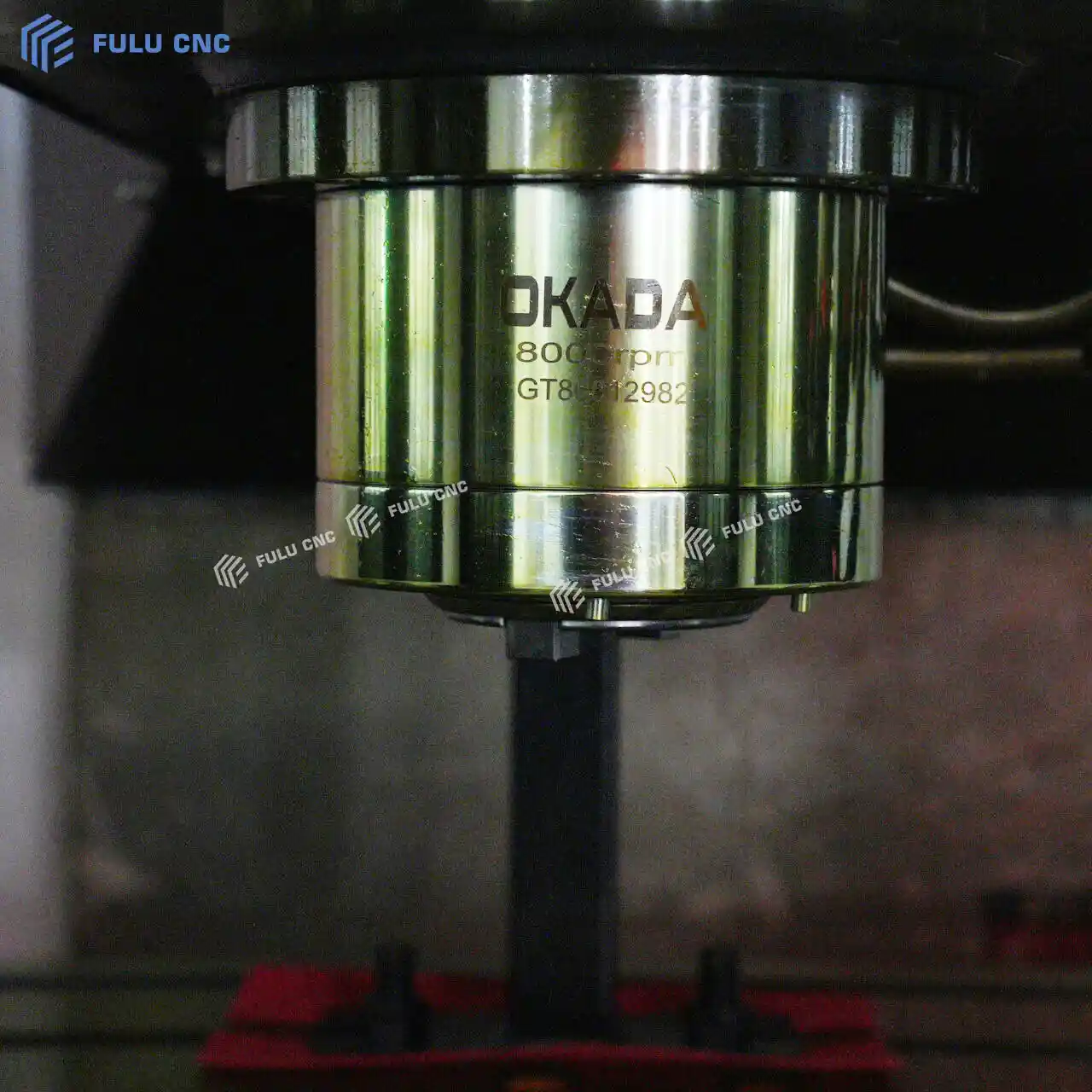

Spindle

The maximum speed of this spindle can reach12000 RPM, belonging to the medium-high speed spindle configuration, balancing the rigid cutting of steel parts and the high-speed precision machining needs of aluminum parts and molds.

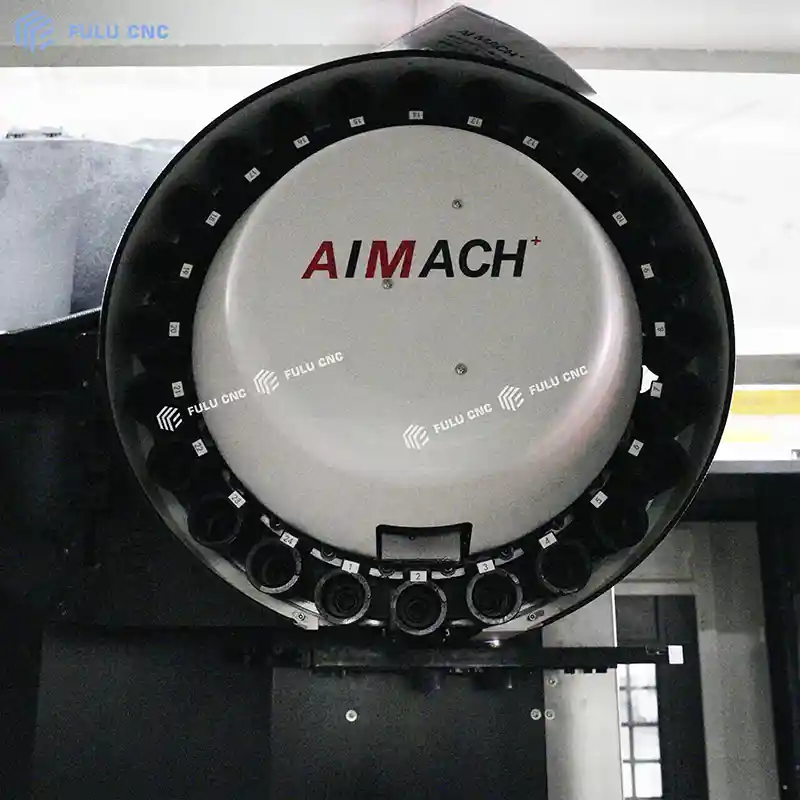

Disc Tool Magazine

Automatically switches tools between different machining processes without manual intervention, achievingMulti-process machining completed in one clamping。

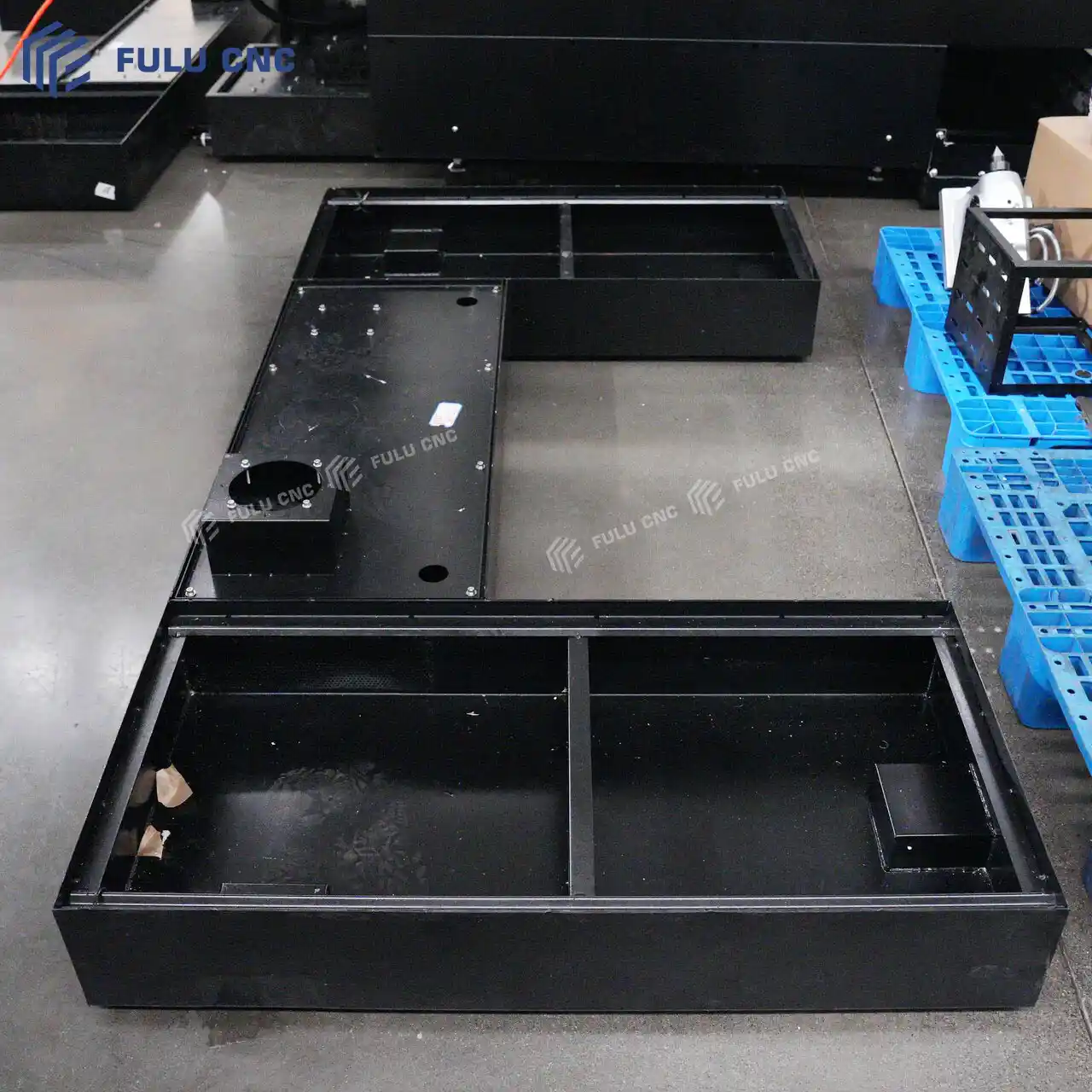

Cutting Fluid Cooling Tank

Stores circulating cutting fluid (coolant / cutting oil)
Multi-stage sedimentation filtration
Integrated base function

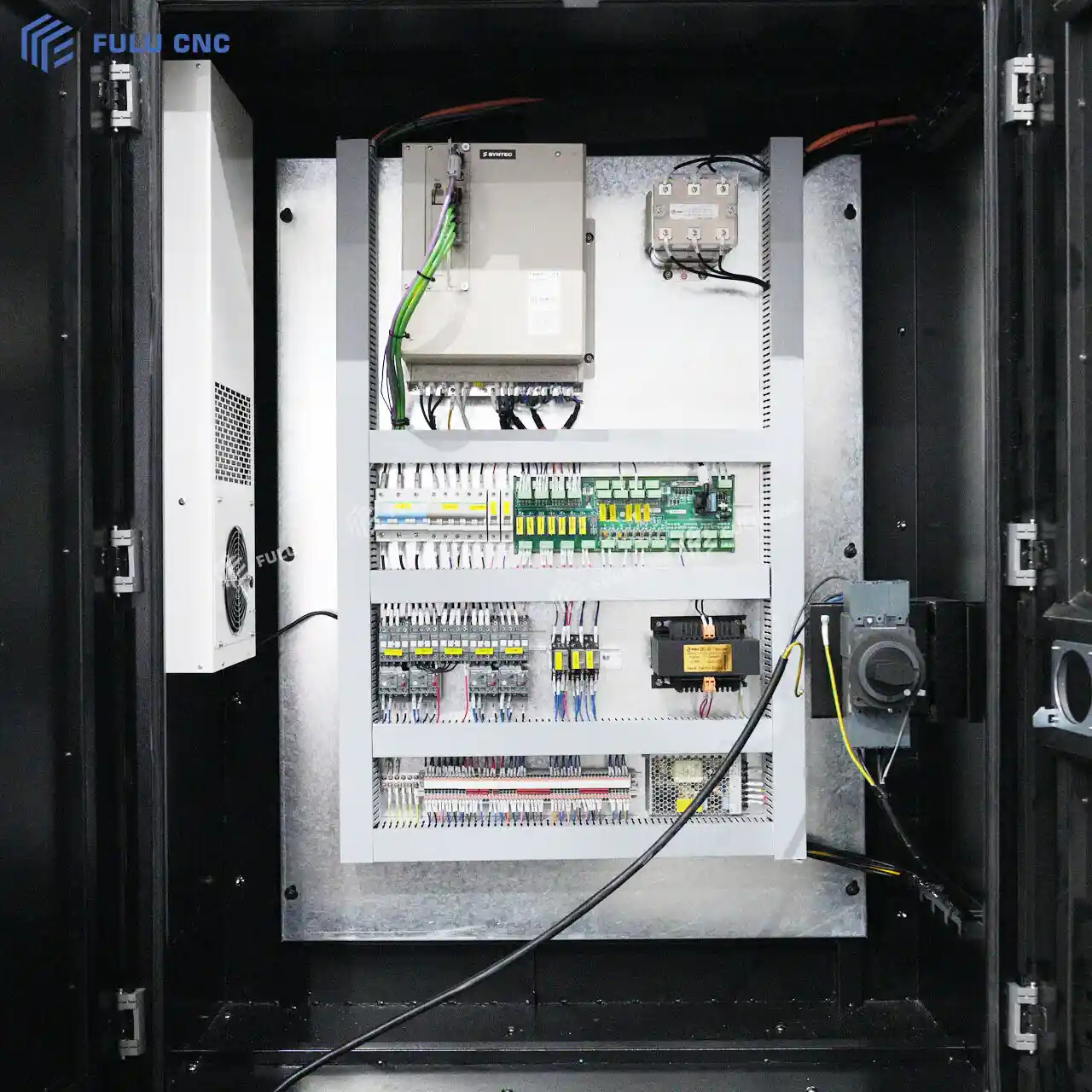

Electrical Control Cabinet

The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.
The layout in the picture adopts a layered, modular design, separating strong and weak currents to reduce electromagnetic interference, which is a typical configuration for high-end domestic machining centers.

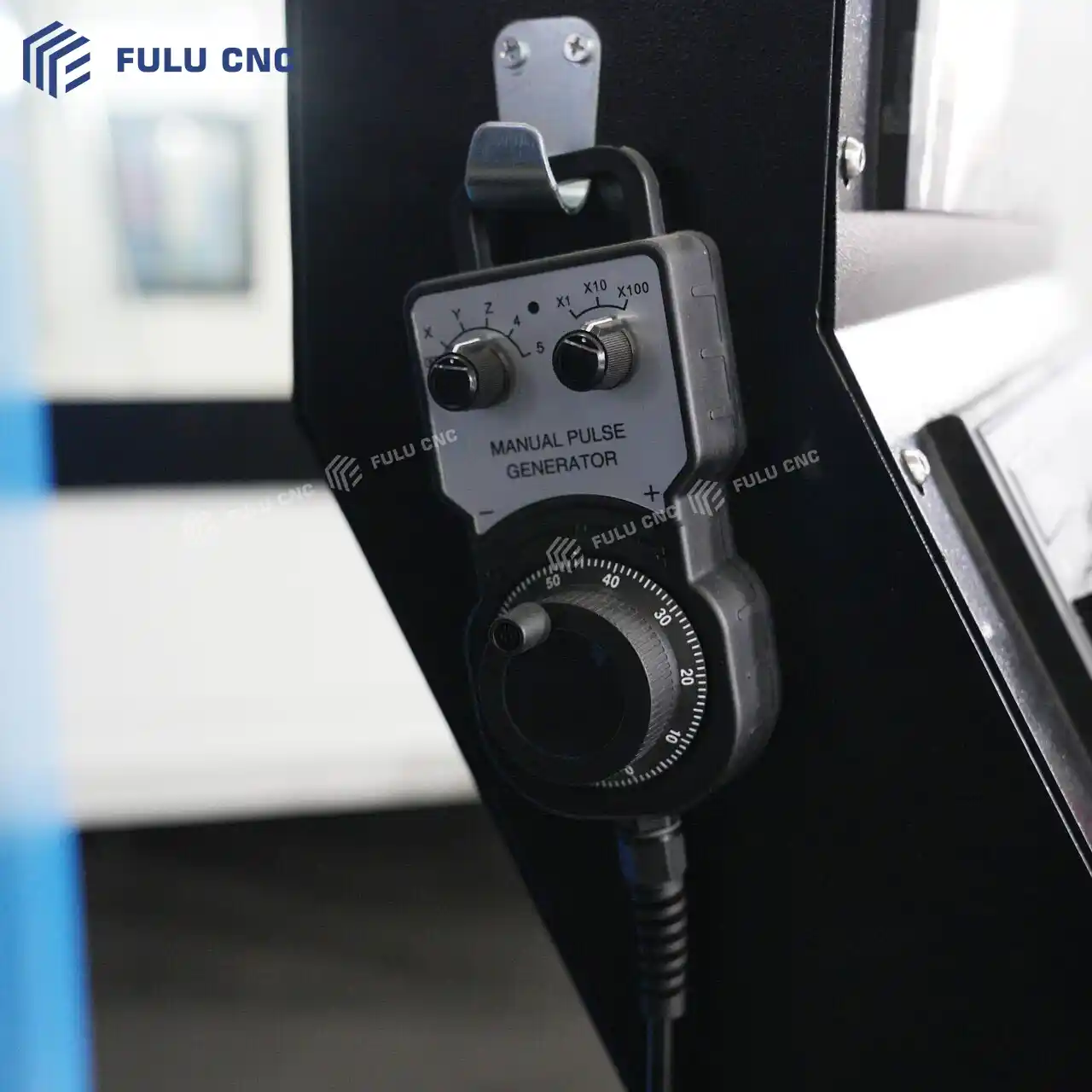

Manual Pulse Generator

Portable handheld design, allowing close-range operation of workpieces away from the machine panel;
Stable pulse signal, high displacement accuracy;
Shell is shock-resistant and durable in oily workshop environments;
Multi-axis, multi-magnification switching, balancing fine adjustment and rapid movement.

Select CNC Machine Configuration

Fourth Axis

4th Axis Rotary Table

4th Axis with Tailstock

3+2 Axis 5-Axis Rotary Table

CNC Machining Center Optional Configurations

Enhance your CNC machining center with optional configurations designed to improve machining accuracy, efficiency, cooling performance, and automated production.

30KG Through-Spindle Coolant

Efficient cooling and chip removal for stable machining.

50KG Through-Spindle Coolant

High-pressure cooling for deep-hole and heavy-duty machining.

Chain-Type Chip Conveyor

Automatic chip removal for continuous CNC machining.

Renishaw Tool Setter

Fast, precise automatic tool measurement and setting.

Optional CNC Control Systems

GSK
Fanuc
Kane's Empire
Siemens
New Era
Mitsubishi

Applications of CNC Machining Centers

Box Type

Gearbox Case / Gearbox Shell: Multi-hole System, Inner Cavity, Installation Surface Pump Body / Valve Body: Irregular Cavity, Flow Path Hole, Flange Surface

Plate Type / Disk Type / Flange Type

Installation Large Plate / Panel: Array Hole, Countersink Hole, Flat Groove Flange Plate / End Cap: Round Disk, Evenly Distributed Bolt Hole, Stop

Irregular Bracket / Support Type

Mechanical Bracket / Connection Seat: L/T Type, Multi-step, Lateral Hole Bearing Seat / Vertical Support: Half-round / Full-round Bearing Hole, Installation Bottom Surface

vertical machining center complex surface parts

Mold Type (Main Force of Vertical Machining Center)

Plastic Model Cavity / Core: Deep Cavity, Ribs, Curved Surface Mold Frame / Ejector Plate: Array Guide Post Hole, Ejector Hole

Complex Curved Surface Type (Three-axis / Five-axis)

Impeller / Blade: Spatial Twisted Surface, Flow Path Turbine / Fan Wheel: Multi-blade, Annular Curved Surface

vertical machining center precision parts

Precision Small Parts / Aluminum Shell Type

Aluminum Alloy Shell / Controller Box: Thin-walled Cavity, Interface Hole, Slot Multi-way Hydraulic Oil Block: Cross Deep Hole, Flat Sealing Position
