VMC1160 CNC Vertical Machining Center

Machine Model: VMC1160	Unit	Specification
Table Size	mm	1200x600
X/Y/Z Axis Travel	mm	1100/600/600
Distance from Spindle Nose to Table	mm	120-720
Distance from spindle center to column	mm	672
Maximum load on worktable	Kg	800
Worktable T-slot	mm	5-18x100
X/Y/Z axis rapid feed	m/min	32/32/26

Inquiry

Content Details Inquiry

VMC1160,Vertical Machining Center,Vertical CNC Machine ,CNC Machine, CNC Machine Manufacturer,VMC1160 Vertical Machining Center ,VMC1160 CNC Milling Machine,VMC1160 Vertical Machining Center Manufacturer

Technical Parameters
Standard Configuration
Select Configuration

Machine Model: VMC1160	Unit	Specification
Table Size	mm	1200x600
X/Y/Z Axis Travel	mm	1100/600/600
Distance from Spindle Face to Table	mm	120-720
Distance from Spindle Center to Column	mm	672
Maximum Load on Table	Kg	800
Table T-Slot	mm	5-18x100
X/Y/Z Axis Rapid Feed	m/min	32/32/26
X/Y/Z Guide Rail Width Specification	mm	RGH45/45/45
X/Y/Z Screw Specification	mm	4012
Positioning Accuracy	mm	±0.008
Repeat Positioning Accuracy	mm	±0.005/300
Minimum Positioning Unit	mm	±0.001
Maximum Spindle Speed	rpm	8000 (ring cooling spray)
Spindle Taper	mm	BT40-150
Disc Mechanical Arm Tool Magazine	pcs	24T
Controller System	/	GSK 25i
X/Y/Z Axis Motor Power	Nm	18/18/28
Spindle Motor Power	Kw	November 15
Machine Weight Approximately	Kg	6000
Dimensions	mm	2800x2400x2800

No	Product Name	Place of Origin	Manufacturer
1	Main Structure Cast Iron (Bed)	Yunnan	Tai Biao
2	CNC Controller	Taiwan	Guangshu 25i
3	Spindle Drive Motor	Taiwan	Guangshu 25i
4	Three-axis Drive Motor	Taiwan	Guangshu 25i
5	Integrated Spindle	Taiwan	Okada
6	Spindle Tool Cylinder	China-Japan	China-Japan Xina Card
7	X, Y, Z Three-axis Bearings (P4)	Taiwan/Japan	TPI/NACHI
8	X, Y, Z Three-axis Linear Guide	Taiwan	Hiwin
9	X, Y, Z Ball Screw (C3 Grade)	Taiwan	Hiwin
10	Three-axis Coupling	Taiwan	S+P
11	Centralized Automatic Lubrication System	Taiwan	Baoyu
12	Air Source Filtration and Purification Device	Taiwan	AirTAC Air Curtain Protection
13	Cooling Device	China	Weisen
14	Operation Panel and Handwheel	Taiwan	Guangshu
15	Electrical Appliances, Overload Protector	France	Schneider
16	Robot Tool Magazine	Taiwan	Okada
17	Electrical Cabinet Heat Exchanger	Jiangsu	Ke Heng Ao

10000/12000rpm spindle speed

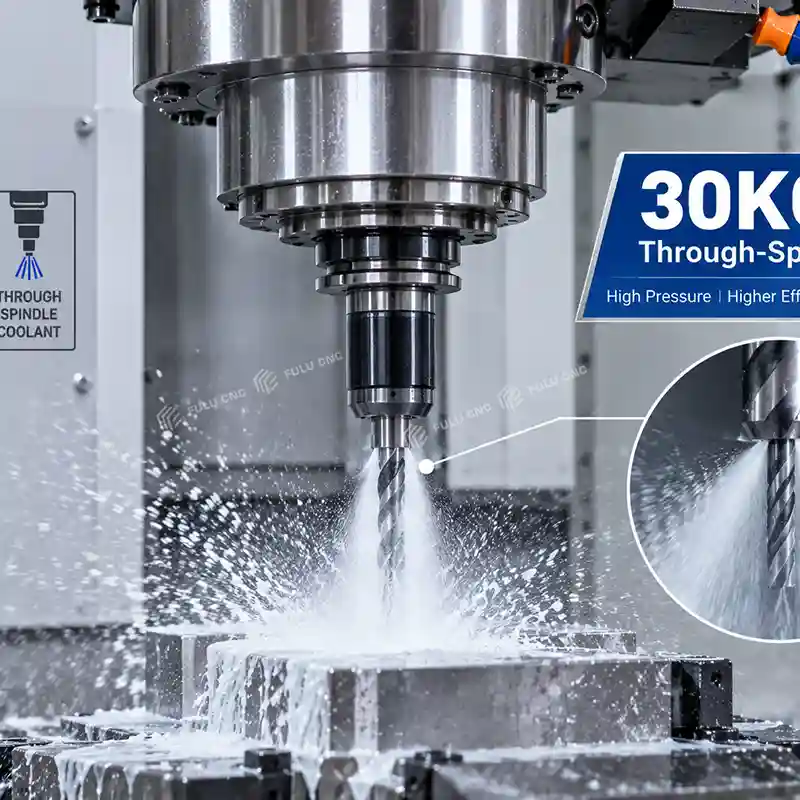

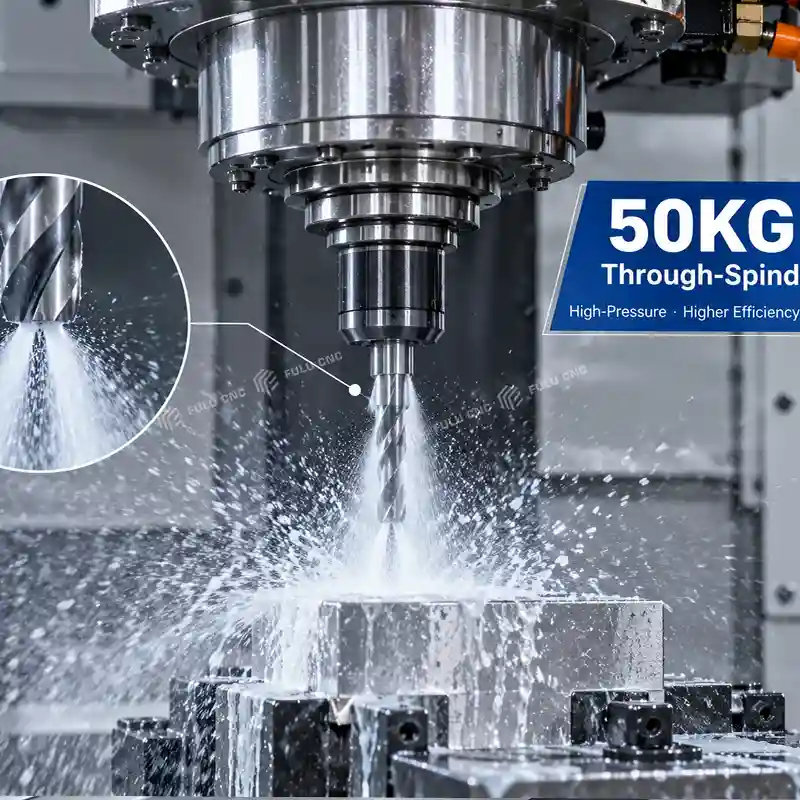

30kg/50kg/70kg center water outlet

Renishaw tool setter

170/200/250/300mm fourth axis

125/170/210/250mm fifth axis

chain-type chip conveyor

Machining Center Product Details

High efficiency machining, reducing production costs

High-speed spindle and automatic tool change system, significantly shortening machining cycles
High rigidity body structure, ensuring long-term stable machining
Optimized machining process, improving machining efficiency by more than 2 times
Reduce manual operation and equipment downtime, lowering overall production costs by over 30%

GSK Control System

This GSK system is the mainstream configuration of domestic economical machining centers, featuring stable performance and comprehensive functions, supporting G-code programming, tool compensation, macro programs, and other commonly used functions of machining centers.

BT40 Direct Coupling Spindle

Install tool holders, clamp tools, output cutting power

vertical machining center disc tool magazine

Disc-type Tool Magazine

Automatically switch tools between different machining processes without manual intervention, achieving multi-process machining in one clamping.

Spindle Cooling / Cutting Fluid Pipeline

The role of cutting fluid is to cool the tool and workpiece, lubricate the cutting area, wash away chips, and prevent tool overheating and workpiece thermal deformation.
This 'multi-channel cooling' design is standard equipment for vertical machining centers, adaptable to different tool and machining process requirements.

Electrical Control Cabinet

The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.
The layout in the image adopts a layered, modular design, separating strong and weak currents to reduce electromagnetic interference, typical of domestic high-end machining centers.

vertical machining center tool holder rack

Machining Center Automatic Tool Change System

Clamping BT40 tool holders during tool change, transferring tools between the spindle and tool magazine, preventing tool drop.

Select Configuration

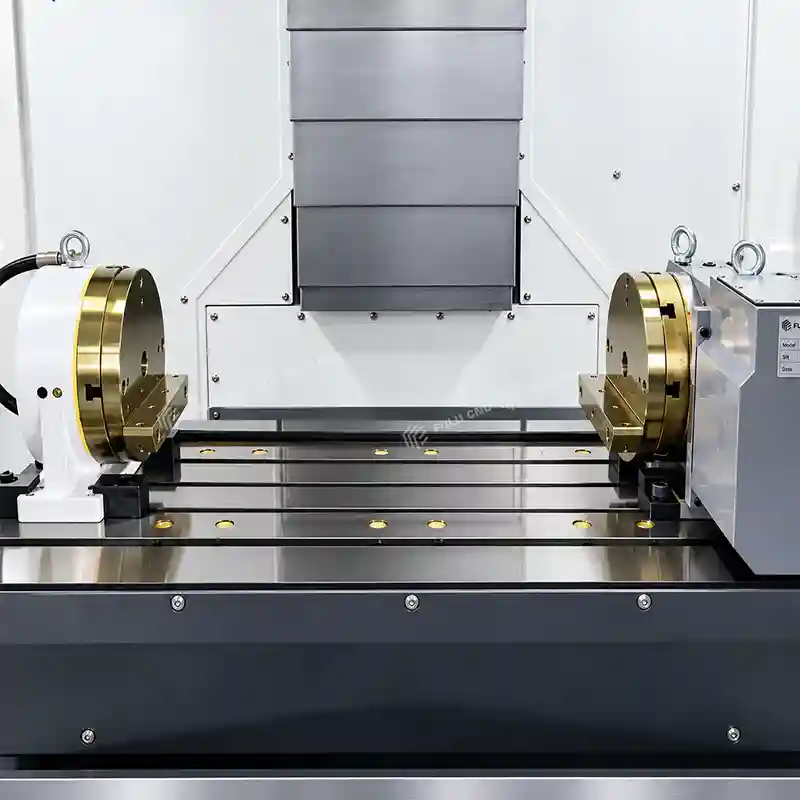

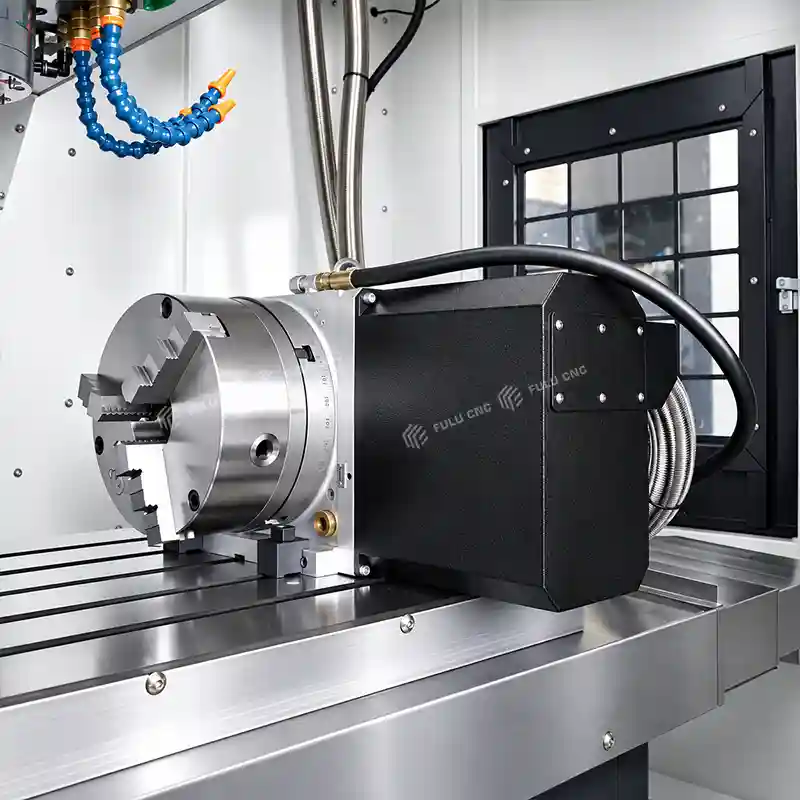

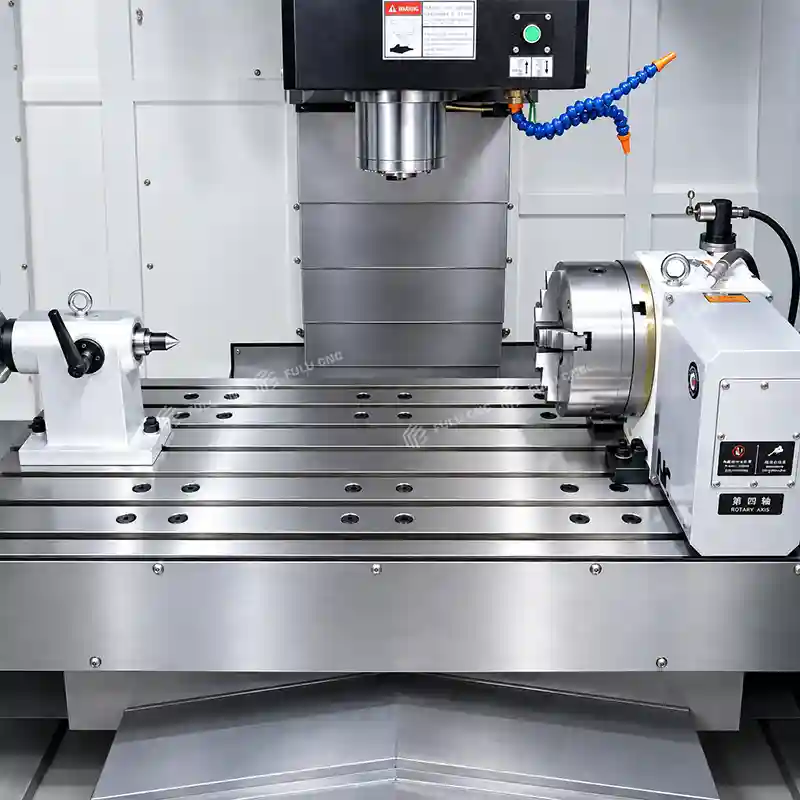

Fourth Axis

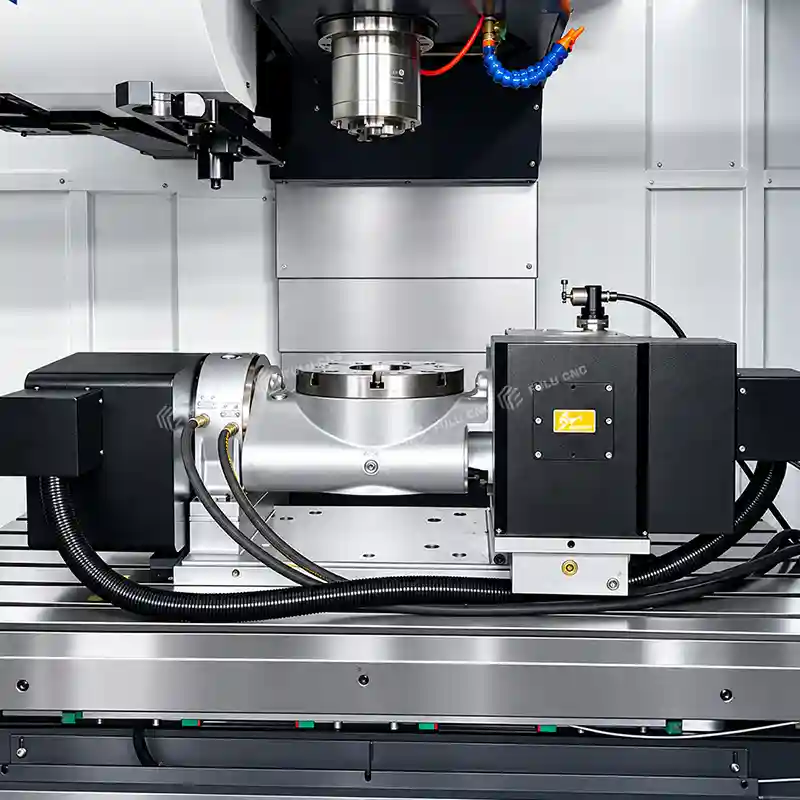

Fifth Axis

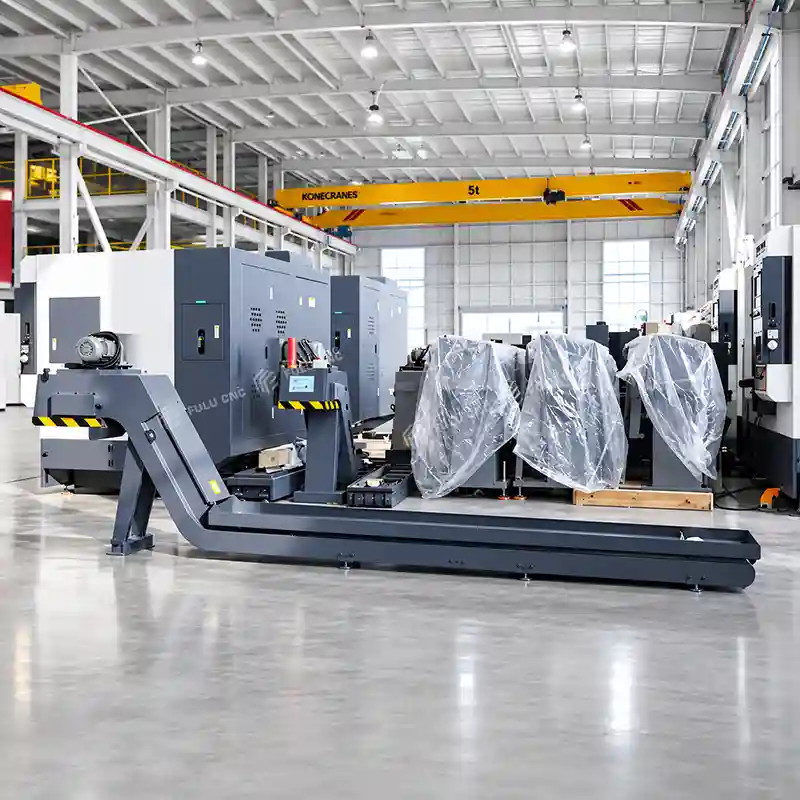

Chain Chip Conveyor

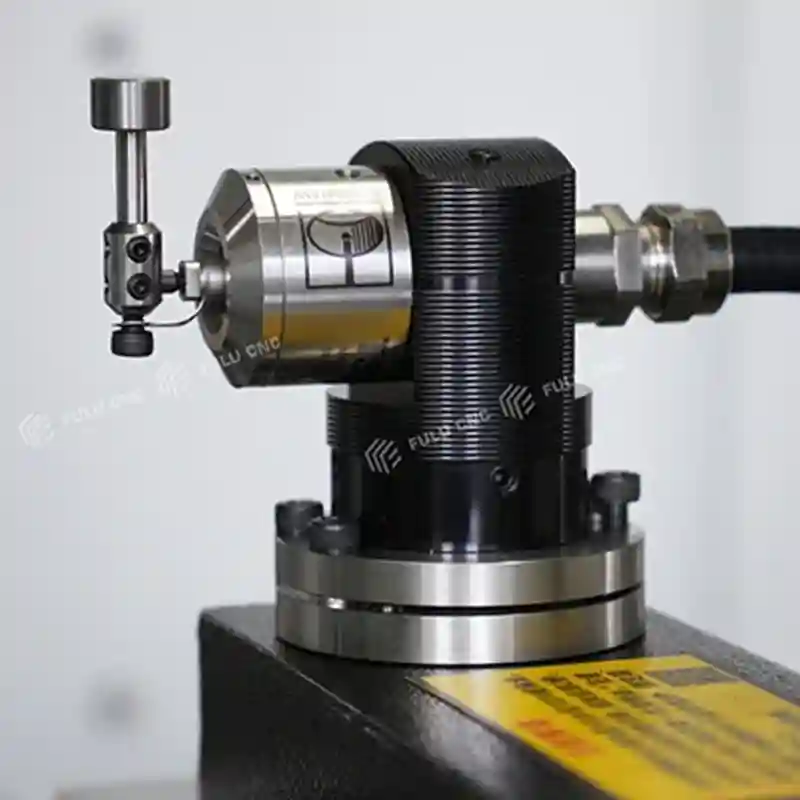

vertical machining center renishaw tool setter

Renishaw Tool Arm

Optional CNC SystemsControl System

GSK

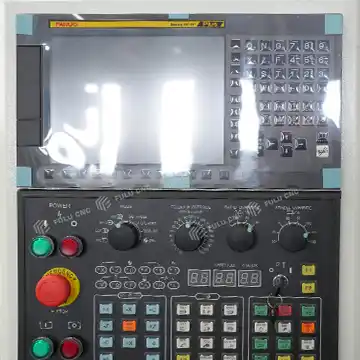

Fanuc
Kane's Empire
Mitsubishi
Siemens
New Era

------

Applications of CNC Machining Centers

Box Type

Gearbox Case / Gearbox Shell: Multi-hole System, Inner Cavity, Installation Surface Pump Body / Valve Body: Irregular Cavity, Flow Path Hole, Flange Surface

Plate Type / Disk Type / Flange Type

Installation Large Plate / Panel: Array Hole, Countersink Hole, Flat Groove Flange Plate / End Cap: Round Disk, Evenly Distributed Bolt Hole, Stop

Irregular Bracket / Support Type

Mechanical Bracket / Connection Seat: L/T Type, Multi-step, Lateral Hole Bearing Seat / Vertical Support: Half-round / Full-round Bearing Hole, Installation Bottom Surface

vertical machining center complex surface parts

Mold Type (Main Force of Vertical Machining Center)

Plastic Model Cavity / Core: Deep Cavity, Ribs, Curved Surface Mold Frame / Ejector Plate: Array Guide Post Hole, Ejector Hole

Complex Curved Surface Type (Three-axis / Five-axis)

Impeller / Blade: Spatial Twisted Surface, Flow Path Turbine / Fan Wheel: Multi-blade, Annular Curved Surface

vertical machining center precision parts

Precision Small Parts / Aluminum Shell Type

Aluminum Alloy Shell / Controller Box: Thin-walled Cavity, Interface Hole, Slot Multi-way Hydraulic Oil Block: Cross Deep Hole, Flat Sealing Position
