| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ550 |
| Maximum Cutting Diameter | mm | Φ440 |
| Machining Diameter Under Turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective machining length 500) |
| X-axis feed rate | mm/min | 20000 |
| Z-axis movement speed | mm/min | 20000 |
| Item | Unit | Specification |
| Maximum swing diameter over bed | mm | Φ550 |
| Maximum cutting diameter | mm | Φ440 |
| Processing diameter under turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective processing length 500) |
| X-axis moving speed | mm/min | 20000 |
| Z-axis moving speed | mm/min | 20000 |
| Handwheel | mm | 0.001/0.01/0.1 |
| X, Z feed speed | mm/min | 0~5000 |
| X, Z manual feed speed | mm/min | 0~1260 |
| X-axis repeat positioning accuracy | mm | 0.005 |
| X-axis positioning accuracy | mm | 0.006 |
| Z-axis repeat positioning accuracy | mm | 0.006 |
| Z-axis positioning accuracy | mm | 0.008 |
| Spindle speed | rpm | 35-3000 |
| Maximum spindle torque | N.m | 48 |
| Spindle nose | - | A2-6 |
| Spindle through hole diameter | mm | Φ66 |
| Hollow hydraulic chuck through hole diameter | mm | Φ55 |
| Chuck | - | 10" (optional 12") |
| Number of tool positions | - | 12 stations |
| Tool installation size | mm | 25×25 |
| Boring tool holder installation diameter | mm | Φ32 |

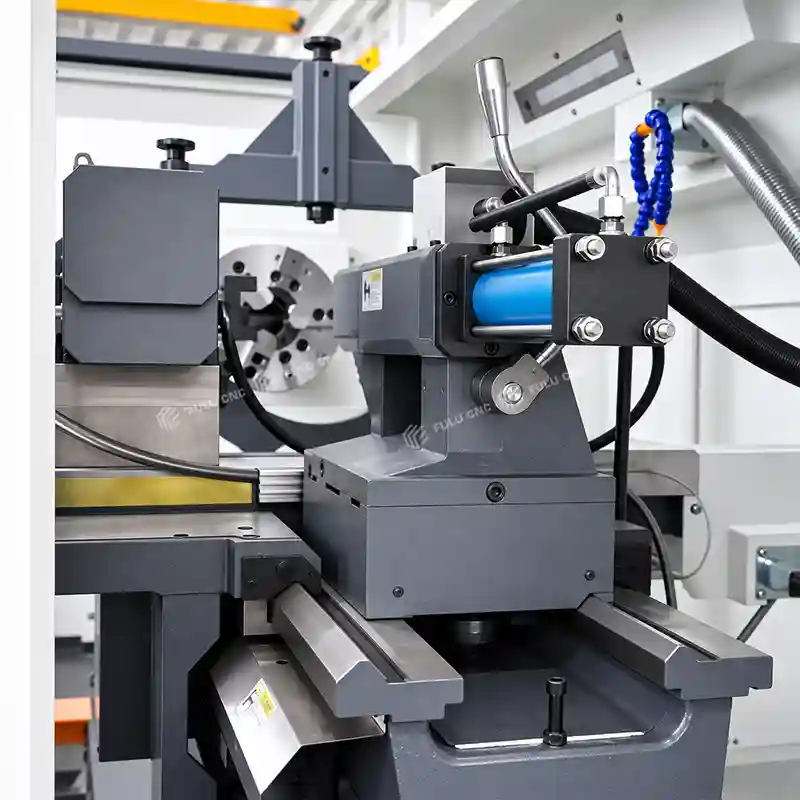

| Tailstock travel | mm | 500 |
| Center taper | - | MT-5# |
| Main motor power | kw | 7.5 |
| Main motor torque | N.m | 48 |
| X-axis feed motor power | kw | 2.2 |
| Z-axis feed motor power | kw | 1.5 |
| Length * Width * Height | mm | 2830*2030*1900 |
| Mechanical weight approximately | kg | 3600 |
| Serial Number | Name | Manufacturer | Optional |
| 1 | GSK980TB3i | GSK | FANUC |
| 2 | Servo main motor and X/Z axis servo motor | GSK | FANUC |
| 3 | Hydraulic chuck and oil cylinder | Zhejiang Dingchang | Jiangsu |
| 4 | Spindle unit | CSC | NSK |
| 5 | X/Z axis drive bearing | NSK | NSK |
| 6 | Ball screw | Taiwan | |
| 7 | Roller linear guide | Taiwan | |
| 8 | 12-station servo hydraulic tool holder | Taiwan Lianji | |
| 9 | Main electrical components | Delixi | |
| 10 | Coupling | Domestic | Japan |
| 11 | Spindle encoder | Domestic | |
| 12 | Hydraulic pump and motor | Domestic | |
| 13 | Lubrication parts | Domestic | Japan |
| Accessory Name |

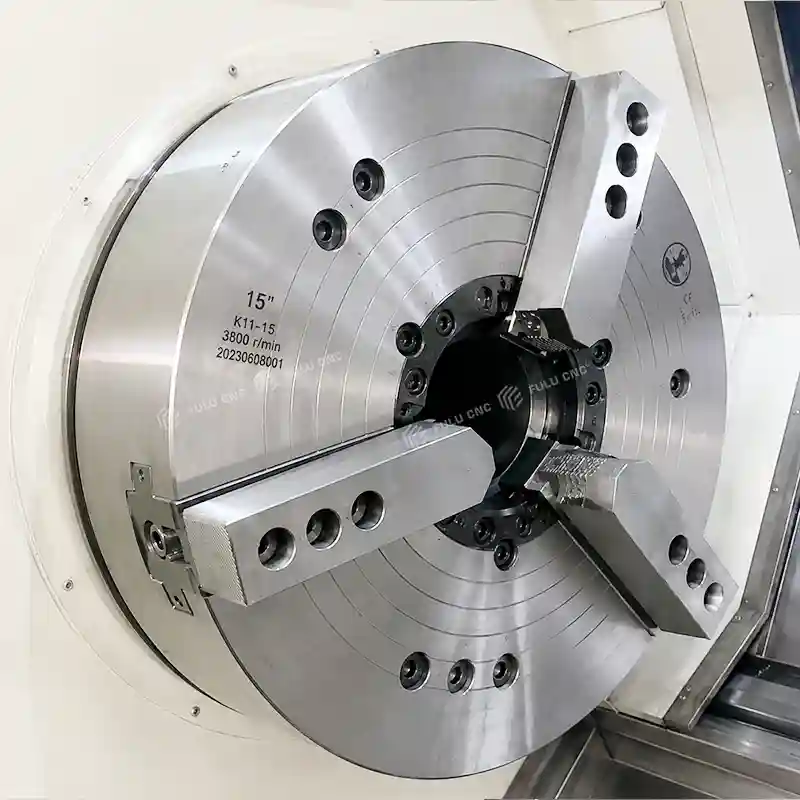

| 12/15 inch Hydraulic Chuck |
| Chain Type Chip Conveyor |
| Receiving Device |

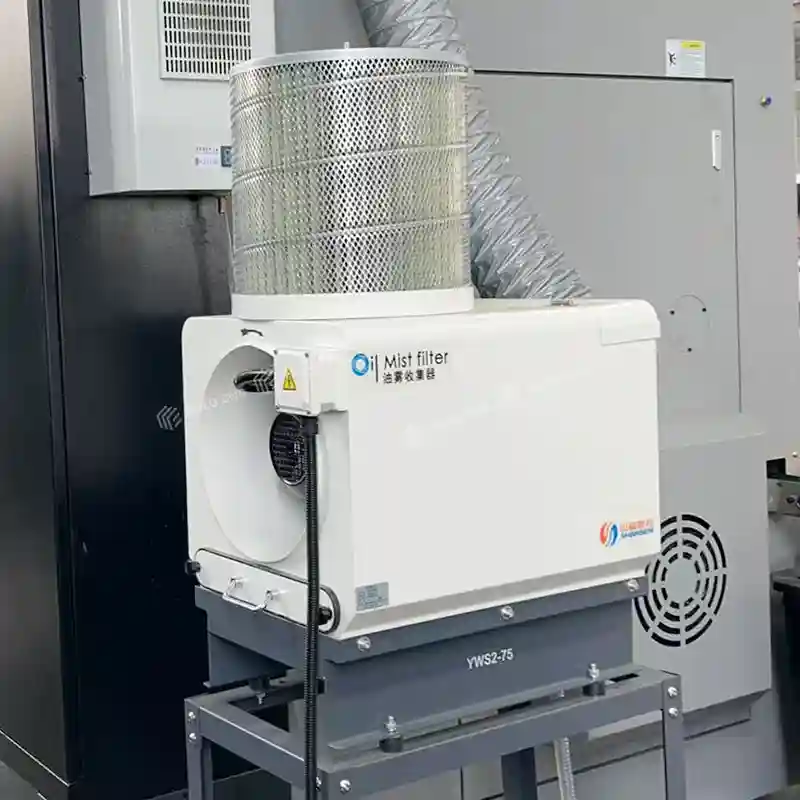

| Mist Collector |

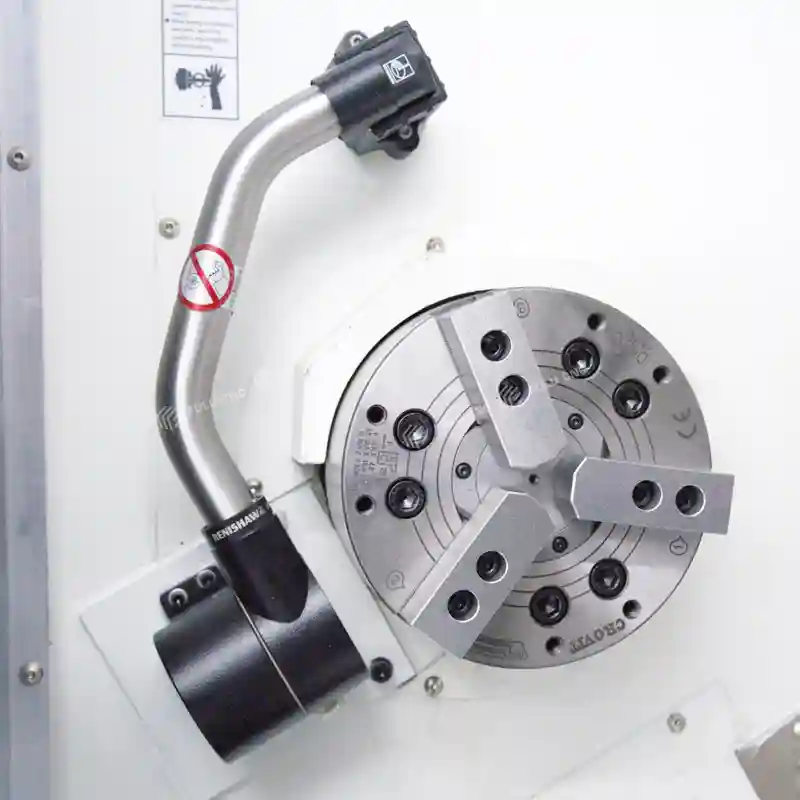

| Renishaw Tool Setter Arm |

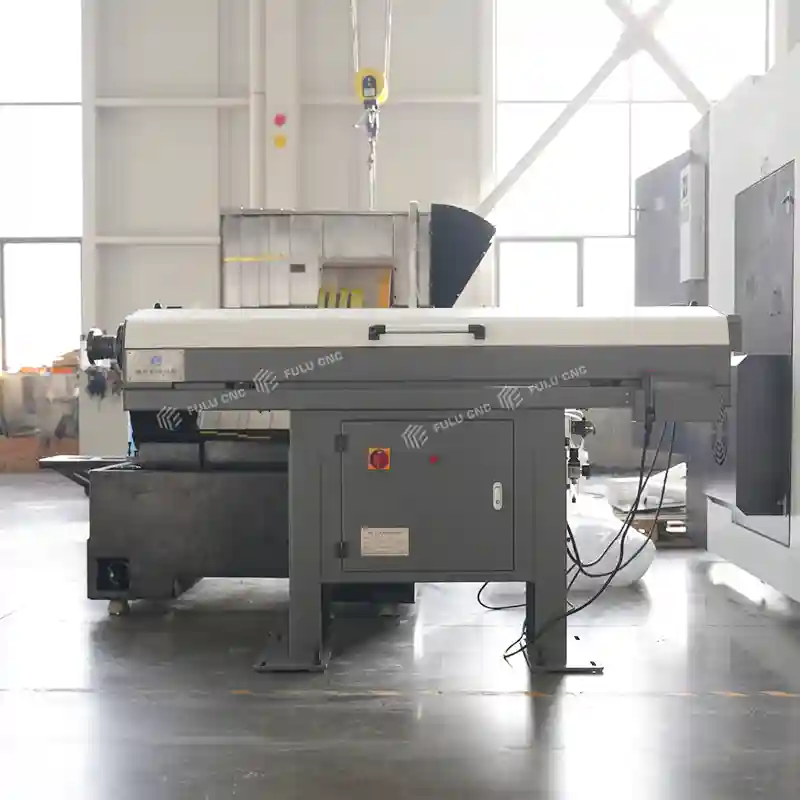

| Servo Feeder |
| GSK/Fanuc/Siemens Control System |

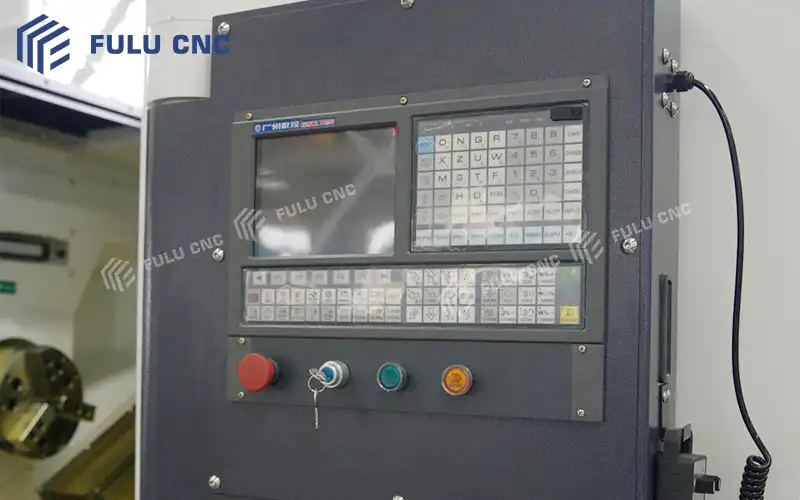

Equipped with the Guangzhou Numerical Control GSK 980 series lathe system, which is the mainstream configuration for economical CNC lathes in China. This type of system supports fixed cycle turning, macro programs, threading, and other lathe-specific functions. The left side features a color display screen for displaying coordinates, programs, tool compensation, alarms, and other key information; the right side has an alphanumeric/function keyboard for inputting G-code, setting parameters, and switching interfaces. It includes an emergency stop button (red mushroom head), power key switch, cycle start/feed hold button, as well as feed rate and spindle speed adjustment control keys for directly controlling machine actions. This is a three-jaw hollow hydraulic chuck, which is the mainstream configuration in the industry. The three jaws of the chuck move synchronously, allowing for automatic centering and clamping of workpieces, suitable for clamping bar stock and disc parts. Stable clamping force: The hydraulic-driven clamping force can be adjusted by the system to adapt to different materials and sizes of workpieces, avoiding deformation or falling off. High centering accuracy: The coaxiality error of repeated clamping is small, ensuring the roundness and coaxiality requirements of the workpiece. Supports hollow channels: Can be paired with a feeder for fully automatic feeding of bar stock, suitable for batch part processing. High-rigidity servo hydraulic turret with fast and precise tool indexing, ensuring stable cutting, high positioning accuracy, and efficient CNC turning.
Product Detail Information

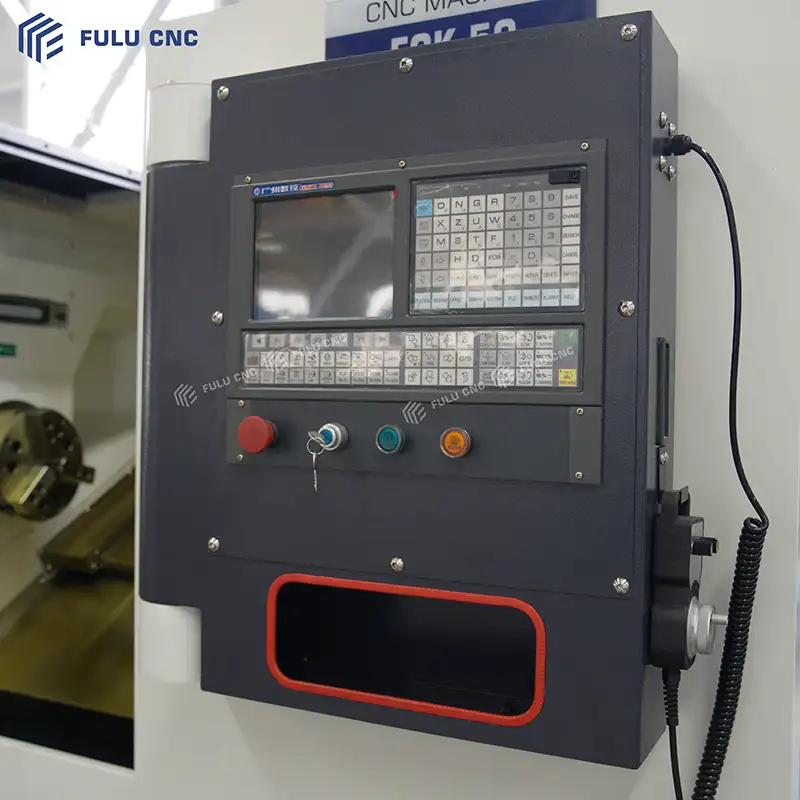

Guangzhou Numerical Control (GSK) System
The external handwheel (manual pulse generator) on the right side allows for manual fine-tuning, facilitating tool setting and program debugging. The window with a red border below is reserved for program/tool drawing observation or USB interface, making data import and export convenient.

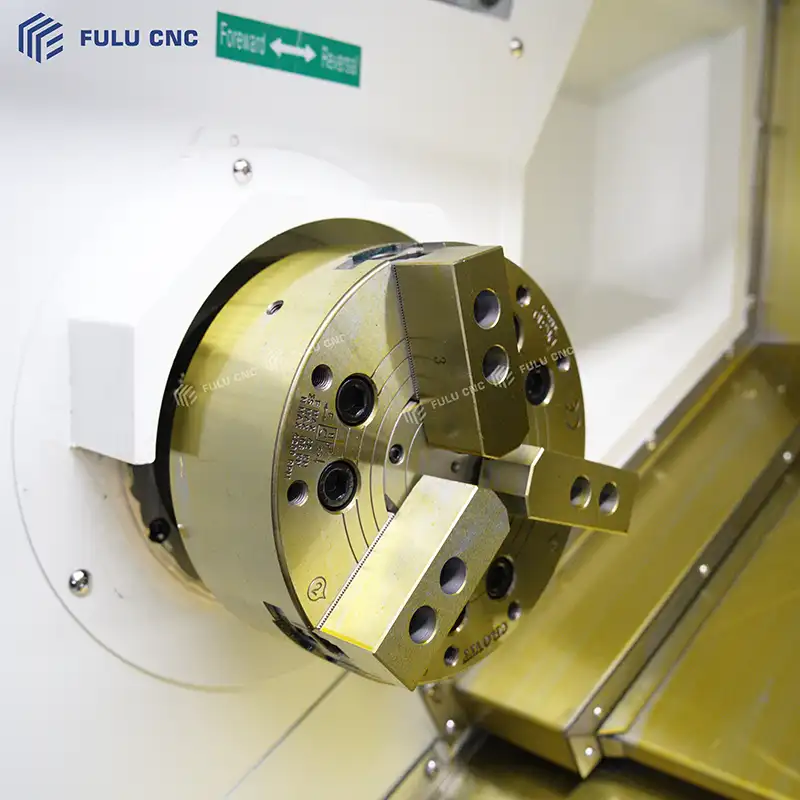

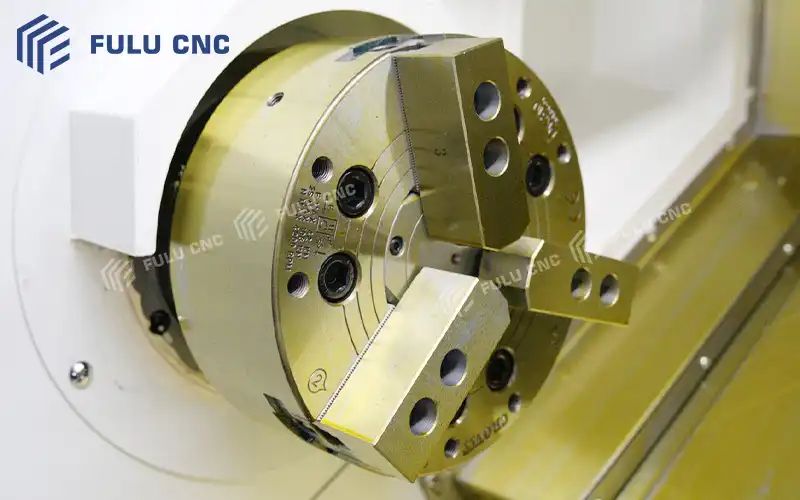

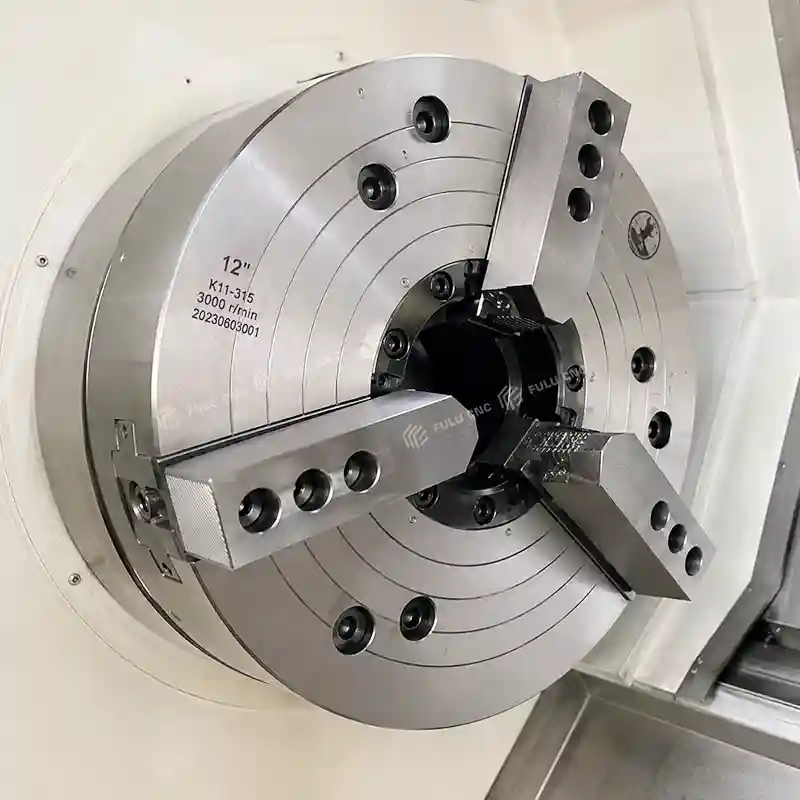

Three-jaw Hydraulic Chuck

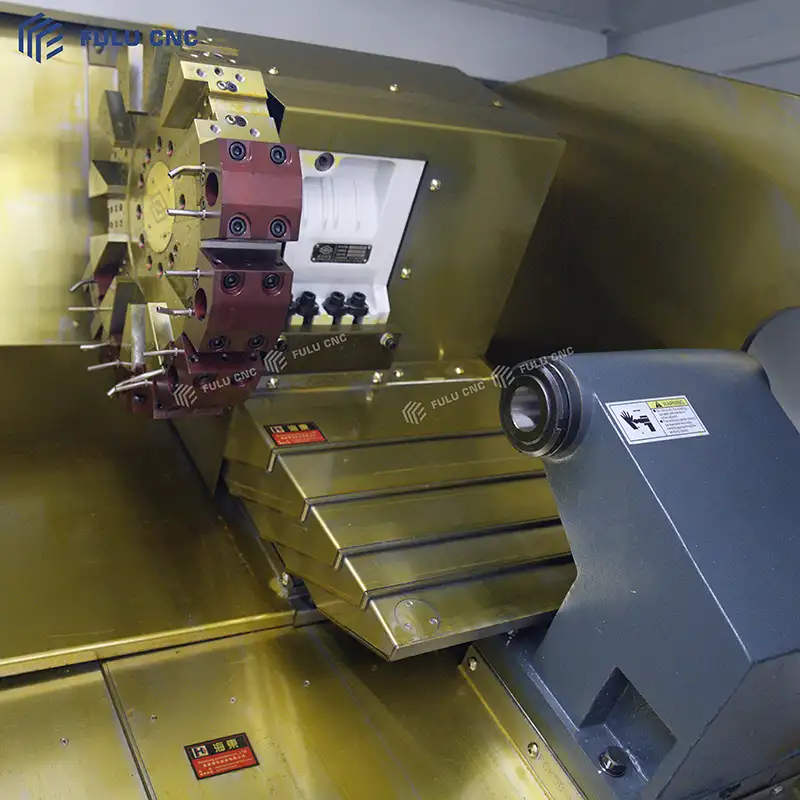

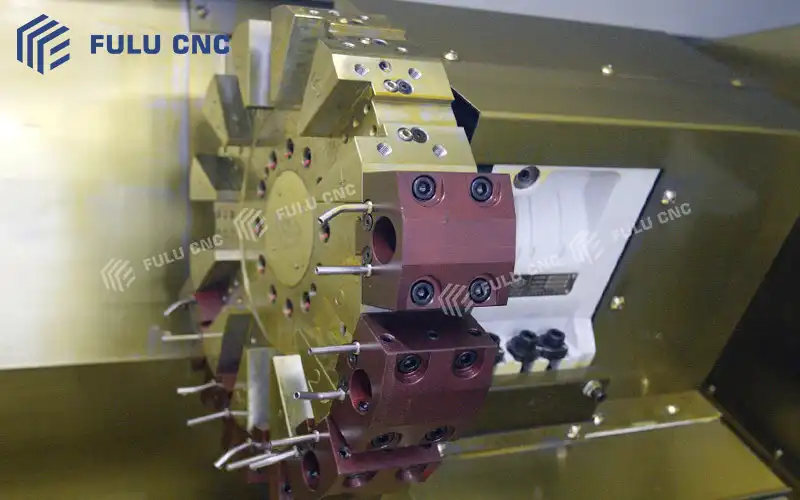

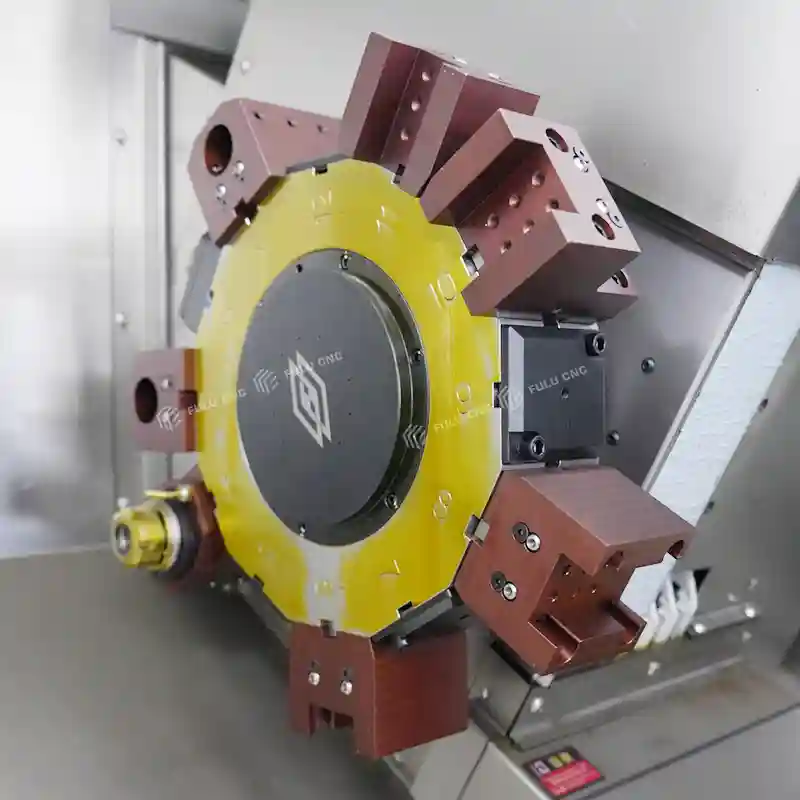

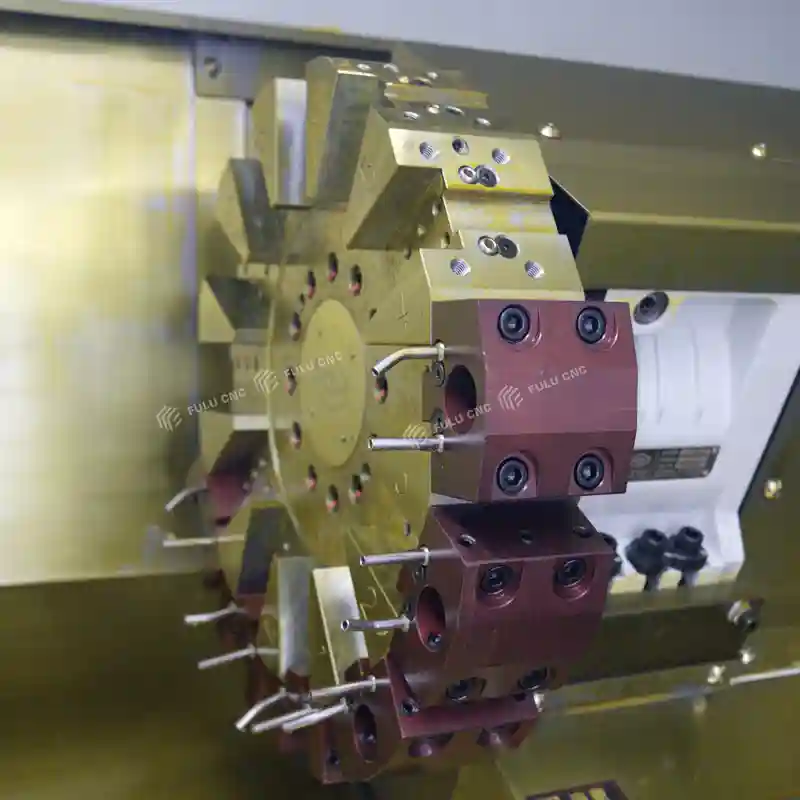

12-Station Servo Hydraulic Turret
Optional CNC Control Systems
