| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ550 |
| Maximum Cutting Diameter | mm | Φ440 |
| Machining Diameter Under Turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective machining length 500) |
| X-axis feed rate | mm/min | 20000 |
| Z-axis movement speed | mm/min | 20000 |
| Item | Unit | Specification |
| Maximum swing diameter over bed | mm | Φ550 |
| Maximum cutting diameter | mm | Φ440 |
| Processing diameter under turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective processing length 500) |
| X-axis moving speed | mm/min | 20000 |
| Z-axis moving speed | mm/min | 20000 |
| Handwheel | mm | 0.001/0.01/0.1 |
| X, Z feed speed | mm/min | 0~5000 |
| X, Z manual feed speed | mm/min | 0~1260 |
| X-axis repeat positioning accuracy | mm | 0.005 |
| X-axis positioning accuracy | mm | 0.006 |
| Z-axis repeat positioning accuracy | mm | 0.006 |
| Z-axis positioning accuracy | mm | 0.008 |
| Spindle speed | rpm | 35-3000 |
| Maximum spindle torque | N.m | 48 |
| Spindle nose | - | A2-6 |
| Spindle through hole diameter | mm | Φ66 |
| Hollow hydraulic chuck through hole diameter | mm | Φ55 |
| Chuck | - | 10" (optional 12") |

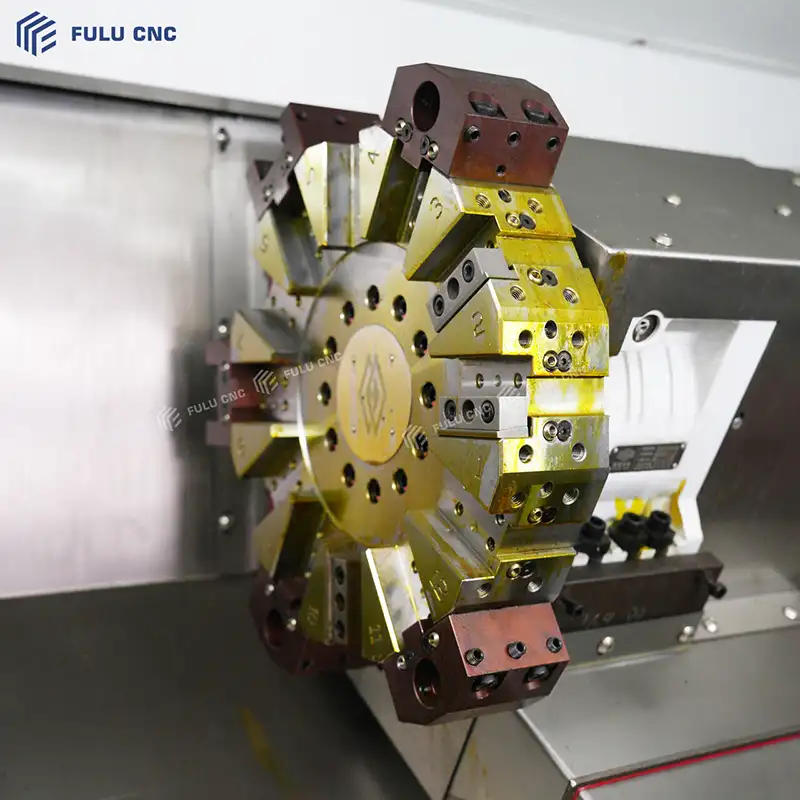

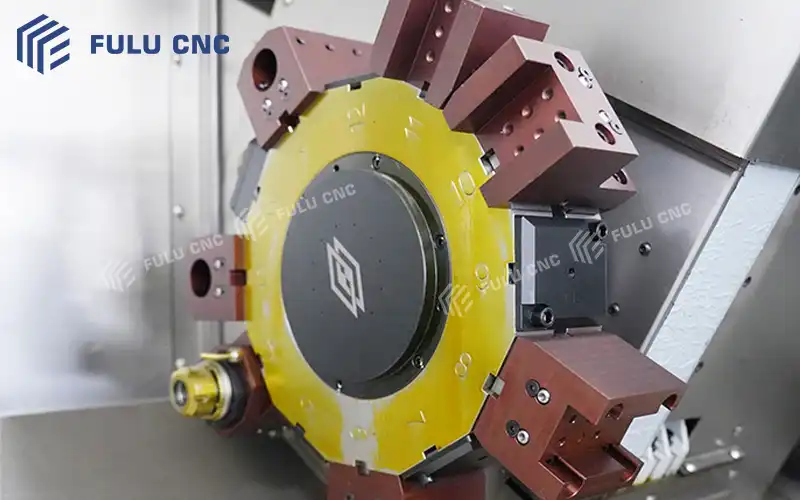

| Number of tool positions | - | 12 stations |
| Tool installation size | mm | 25×25 |
| Boring tool holder installation diameter | mm | Φ32 |
| Tailstock travel | mm | 500 |
| Center taper | - | MT-5# |
| Main motor power | kw | 7.5 |
| Main motor torque | N.m | 48 |
| X-axis feed motor power | kw | 2.2 |
| Z-axis feed motor power | kw | 1.5 |
| Length * Width * Height | mm | 2830*2030*1900 |
| Mechanical weight approximately | kg | 3600 |
| Serial Number | Name | Manufacturer | Optional |
| 1 | GSK980TB3i | GSK | FANUC |
| 2 | Servo main motor and X/Z axis servo motor | GSK | FANUC |
| 3 | Hydraulic chuck and oil cylinder | Zhejiang Dingchang | Jiangsu |
| 4 | Spindle unit | CSC | NSK |
| 5 | X/Z axis drive bearing | NSK | NSK |
| 6 | Ball screw | Taiwan | |
| 7 | Roller linear guide | Taiwan | |
| 8 | 12-station servo hydraulic tool holder | Taiwan Lianji | |
| 9 | Main electrical components | Delixi | |
| 10 | Coupling | Domestic | Japan |
| 11 | Spindle encoder | Domestic | |
| 12 | Hydraulic pump and motor | Domestic | |
| 13 | Lubrication parts | Domestic | Japan |
| Accessory Name |
| 12/15 inch Hydraulic Chuck |

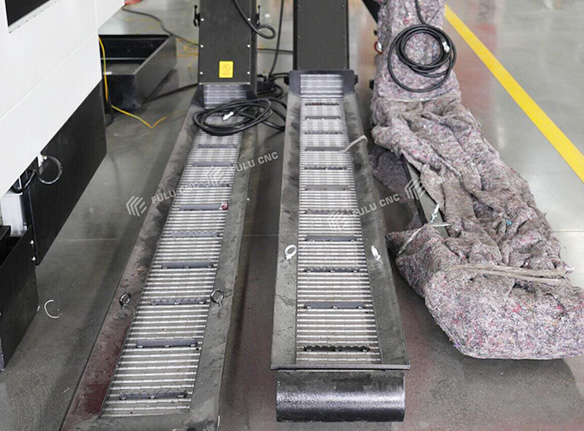

| Chain Type Chip Conveyor |
| Receiving Device |
| Mist Collector |
| Renishaw Tool Setter Arm |
| Servo Feeder |
| GSK/Fanuc/Siemens Control System |

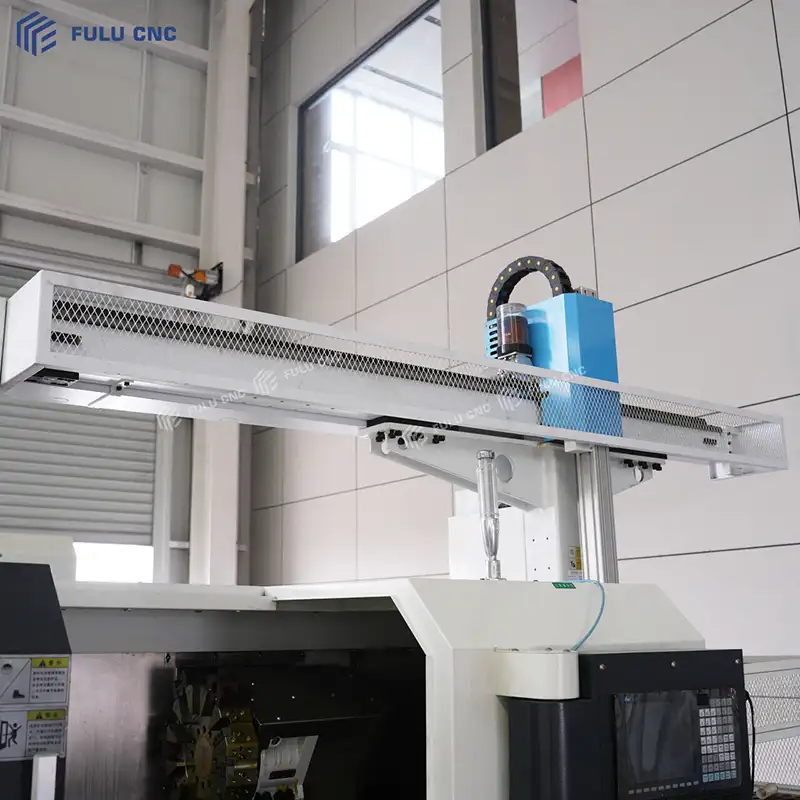

It uses a high-precision servo drive system and heavy-duty truss structure to achieve automatic workpiece grabbing, loading and unloading, and transportation. It can be connected to CNC lathes, turning centers, and other equipment for operation, meeting the needs of automated production, significantly improving production efficiency, reducing labor costs, and achieving intelligent and unmanned processing. This is a three-jaw hollow hydraulic chuck, which is a mainstream configuration in the industry. The three jaws of the chuck move synchronously, allowing for automatic centering and clamping of workpieces, suitable for clamping bar materials and disc-shaped parts. Stable clamping force: The hydraulic-driven clamping force can be adjusted through the system to adapt to workpieces of different materials and sizes, avoiding deformation or falling off. High centering accuracy: The coaxiality error of repeated clamping is small, ensuring the roundness and coaxiality requirements of the workpiece. Supports hollow channels: Can be paired with a feeder for fully automatic feeding of bar materials, suitable for batch part processing. The hydraulic tailstock is driven by a hydraulic cylinder, achieving automatic extension and retraction of the sleeve and automatic tightening of the workpiece. It features high tightening force, stable positioning, and convenient operation, effectively improving the processing accuracy and production efficiency of long shaft workpieces, widely used in heavy CNC lathes and turning centers.
Product Details
------

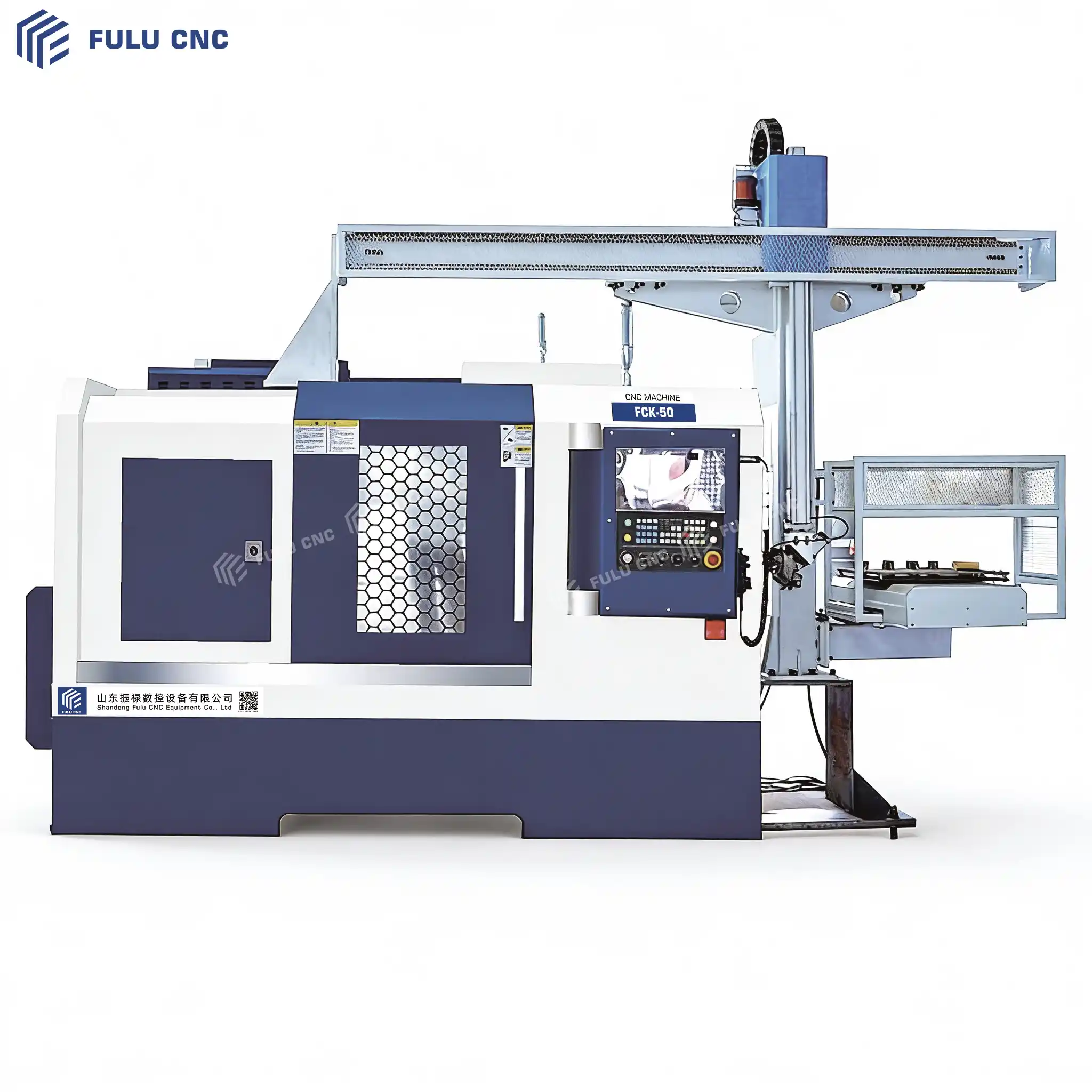

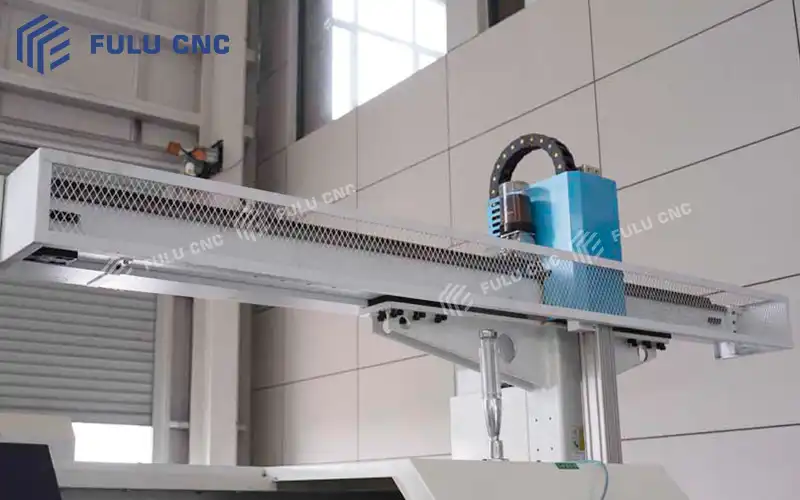

Truss Type Automatic Loading and Unloading Robot
------

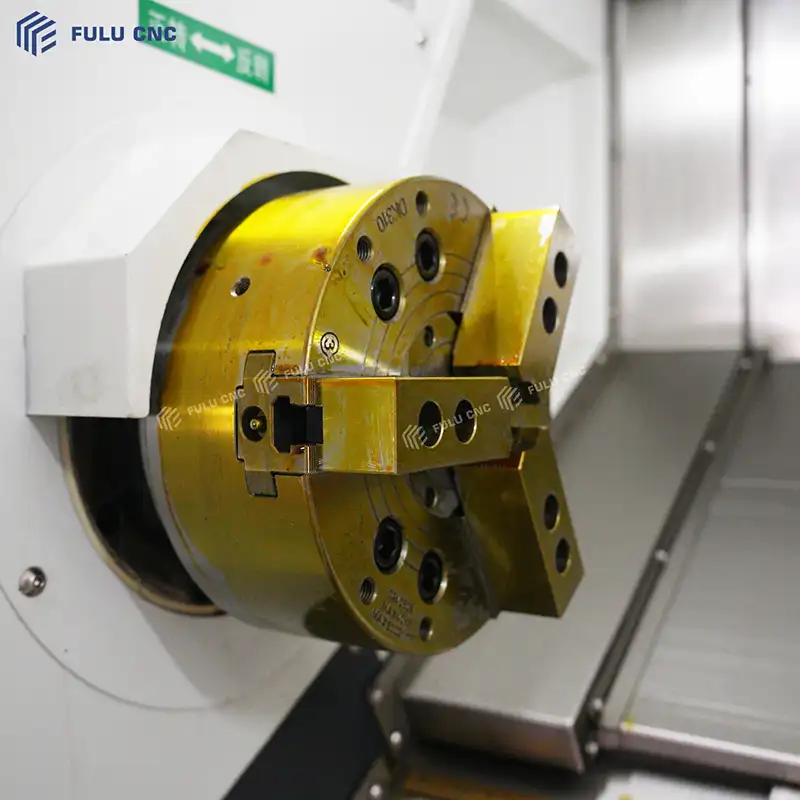

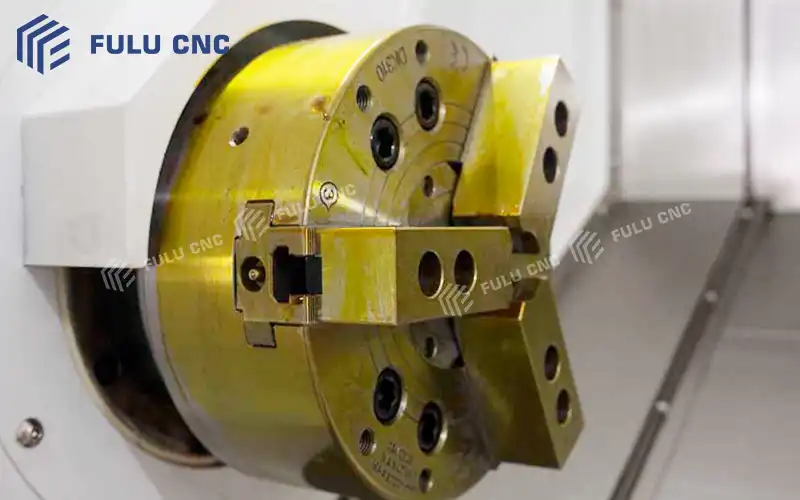

Three-Jaw Hydraulic Chuck
------
Hydraulic Tailstock

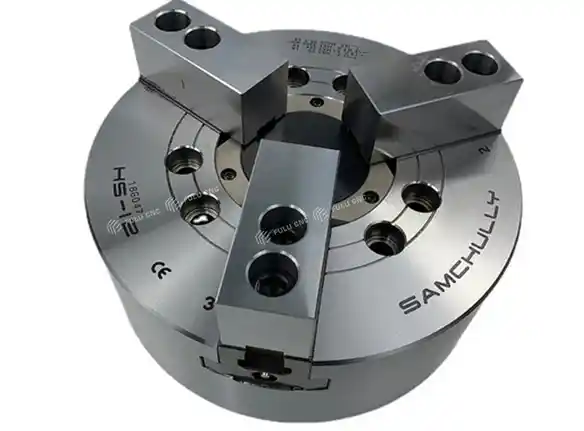

12-inch hydraulic chuck
15 inch hydraulic chuck

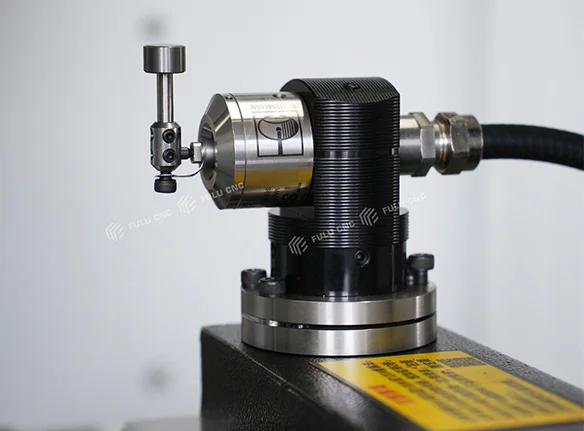

Renishaw Tool Arm
Chain Chip Conveyor
Servo Feeder
Oil Mist Collector

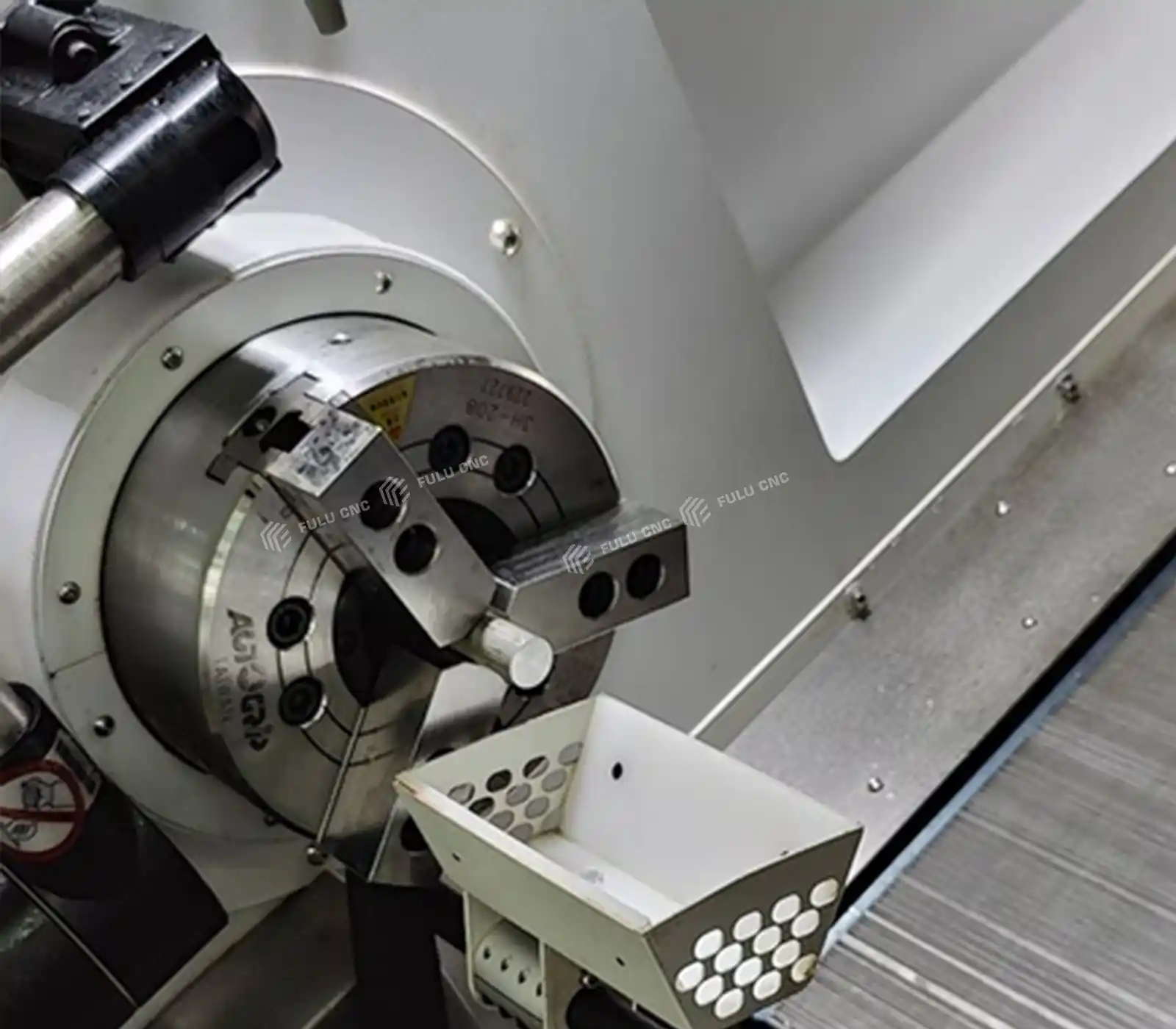

Receiving device

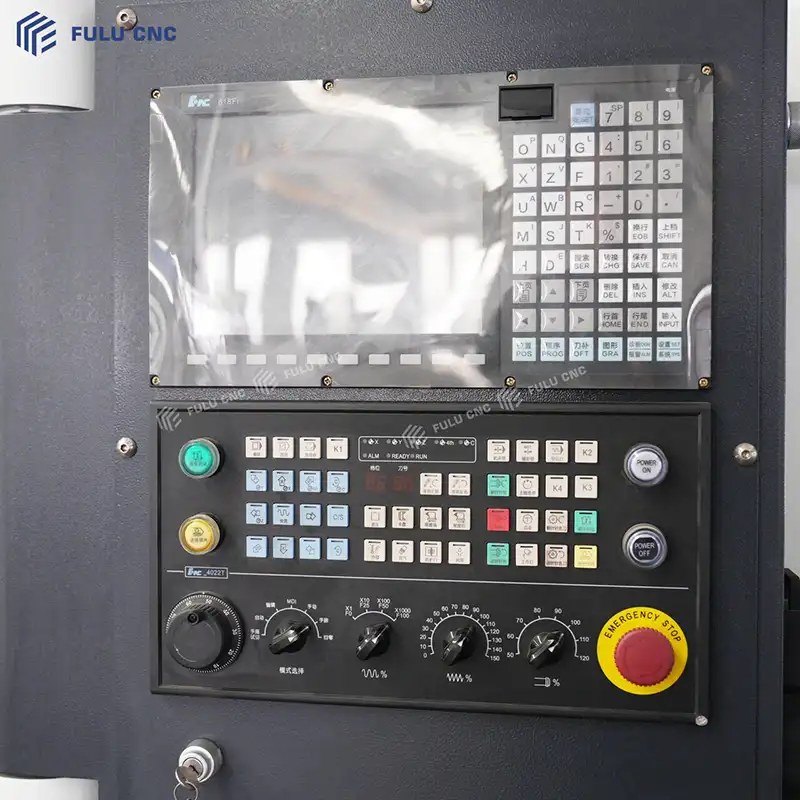

Optional CNC SystemsControl System
------
