| Maximum swing over bed | mm | Φ550 |
| Maximum cutting diameter | mm | Φ440 |
| Machining diameter under turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Part | Item | FCK56 |
| Processing Range | Maximum Turning Diameter on Bed (mm) | Φ650 |
| Maximum Cutting Diameter (mm) | Φ540 | |
| Maximum Cutting Length (mm) | 580 (Power Tool Post 540) | |
| X-axis Travel (mm) | 280 | |
| Z-axis Travel (mm) | 280 | |
| Travel and | X-axis Moving Speed (mm/min) | 24000 |
| Z-axis Moving Speed (mm/min) | 24000 | |
| Feed | Handwheel (mm) | 0.001/0.01/0.1 |
| X, Z Feed Speed (mm/min) | 0~5000 | |
| X, Z Manual Feed Speed (mm/min) | 0~1260 | |
| Position Accuracy | X-axis Repositioning Accuracy (mm) | 0.005 |
| X-axis Positioning Accuracy (mm) | 0.01 | |
| Z-axis Repositioning Accuracy (mm) | 0.006 | |
| Z-axis Positioning Accuracy (mm) | 0.015 | |
| Spindle | Spindle Speed (rpm) | 10-3000 (8-inch Hydraulic Chuck Maximum 3500) |
| Maximum Spindle Torque (N.m) | 72 | |
| Spindle Nose | A2-6 | |
| Spindle Through Hole Diameter (mm) | Φ66 | |
| Hollow Hydraulic Chuck Through Hole Diameter (mm) | Φ52 | |
| Chuck | 8” (Optional 10”) | |

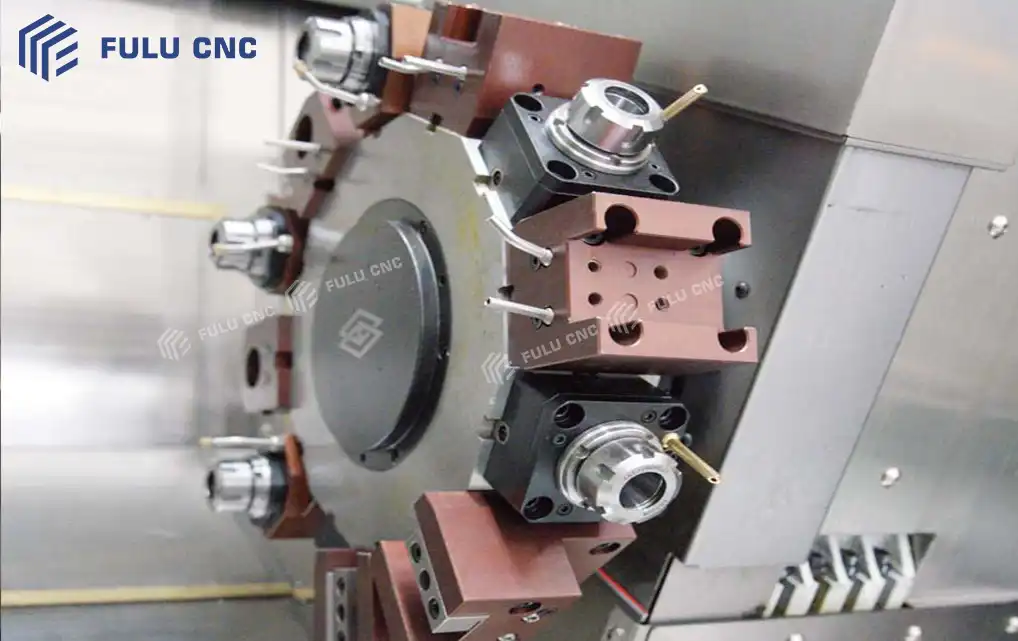

| Number of Tool Positions | 12 Stations | |
| Tool Change Time (s) | 0.25 | |
| Tool Post | Tool Installation Size (mm) | 25×25 |
| Boring Tool Holder Installation Diameter (mm) | Φ32 | |

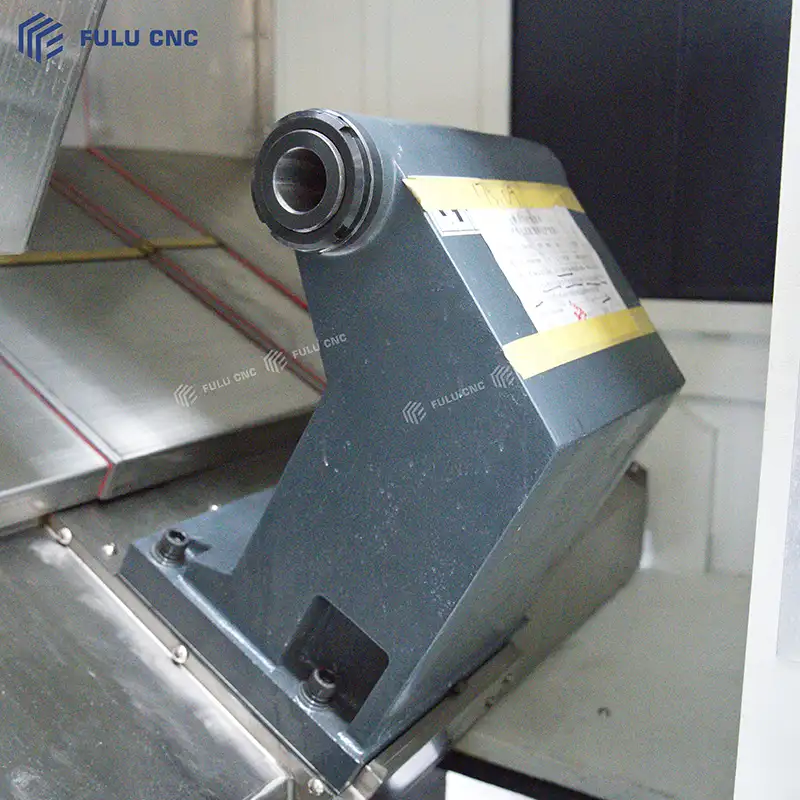

| Tailstock | Tailstock Travel (mm) | 480 |
| Center Taper | MT-5# | |
| Main Motor | Main Motor Power (kw) | 11(4500rpm) |
| Main Motor Torque (N.m) | 72 | |
| X, Z Axis | X-axis Feed Motor Power (kw) | 2.3 |
| X-axis Feed Motor Torque (N.m) | 15 | |
| Feed Motor | Z-axis Feed Motor Power (kw) | 2.3 |
| Z-axis Feed Motor Torque (N.m) | 15 | |
| Cooling System | Coolant Capacity (L) | 200 |
| Motor Type (1HP) (kw) | 0.18 | |
| Dimensions | Installation (Length * Width * Height) (mm) | 3400/2060/2100 |
| Weight | Machine Weight (kg) | 4200 |
| Serial Number | Name | Manufacturer | Optional |
| 1 | GuanShu 980TB3i | Guangzhou GuanShu | FANUC |
| 2 | Servo main motor and X/Z axis servo motor | Guangzhou GuanShu | FANUC |
| 3 | Hydraulic chuck and oil cylinder | Zhejiang Dingchang | Jiangsu |
| 4 | Spindle unit | HRB bearing | NSK |
| 5 | X/Z axis drive bearing | HRB bearing | NSK, Taiwan |
| 6 | Ball screw | Taiwan Hiwin | |
| 7 | Roller linear guide | Taiwan Hiwin | |
| 8 | 12-station servo hydraulic tool holder | Taiwan Taixin (Taiwan Lianji) | |
| 9 | Main electrical components | Delixi | |
| 10 | Coupling | Domestic | Japan |
| 11 | Spindle encoder | Domestic | |
| 12 | Hydraulic pump and motor | Domestic | |

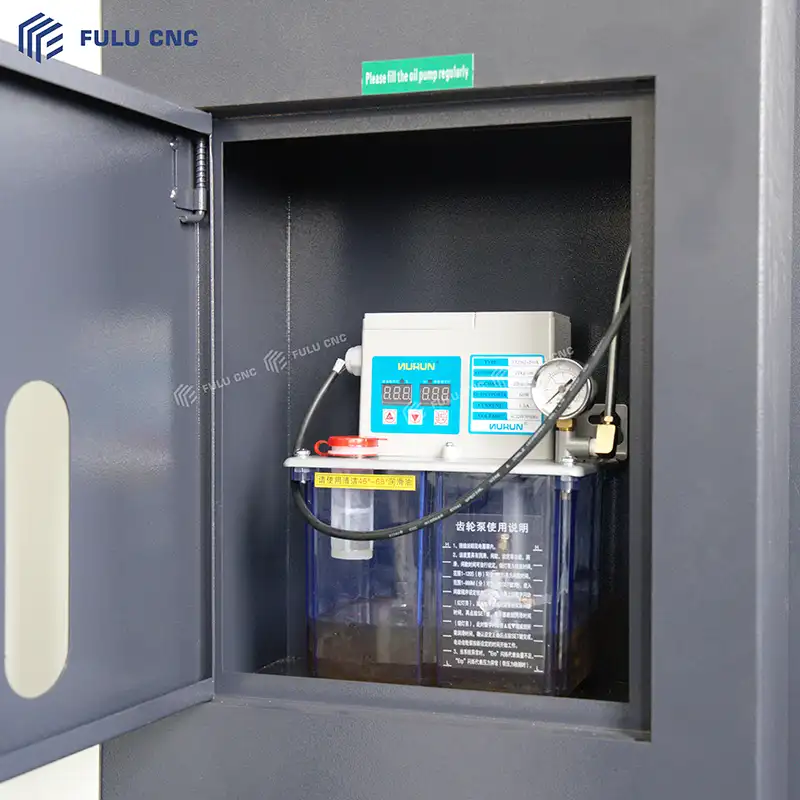

| 13 | Lubrication parts | Domestic | Japan |
| Accessory Name |
| 12/15 Inch Hydraulic Chuck |
| Chain Type Chip Conveyor |
| Receiving Device |
| Mist Collector |
| Renishaw Tool Setter |
| Servo Feeder |
| GSK/Fanuc/Siemens Control System |

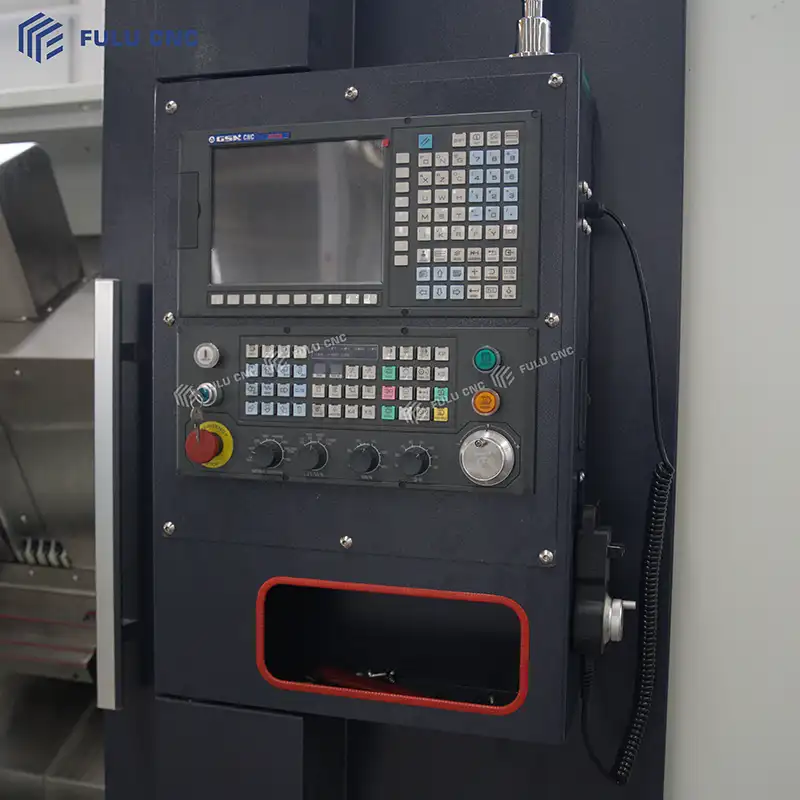

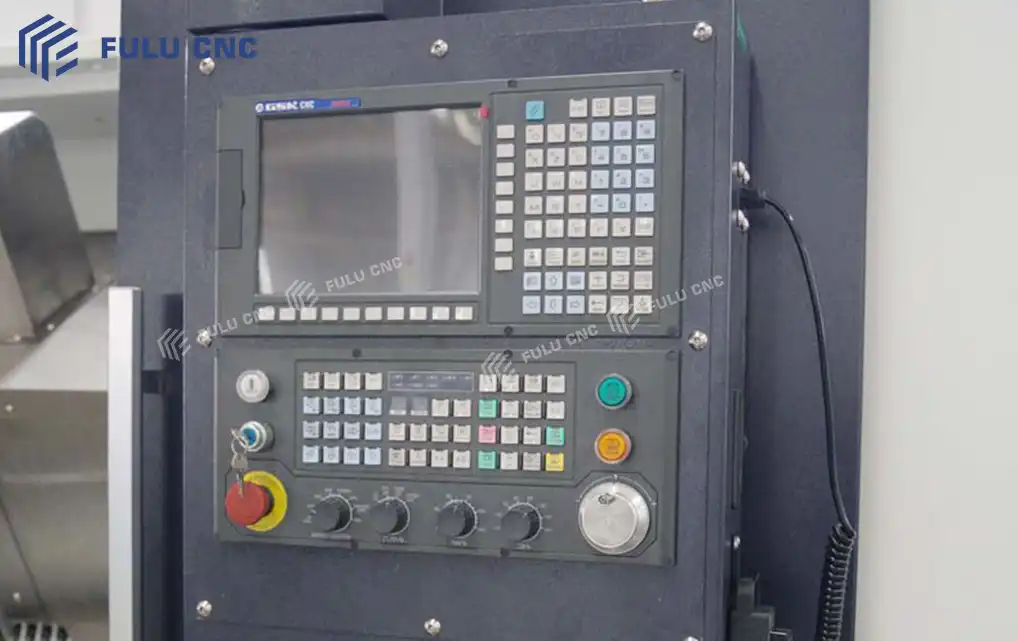

Equipped with the Guangzhou CNC GSK 980 series lathe system, which is the mainstream configuration for economical CNC lathes in China. This type of system supports turning fixed cycles, macro programs, threading, and other lathe-specific functions. The left side features a color display screen that shows coordinates, programs, tool compensation, alarms, and other key information; the right side has an alphanumeric/function keyboard for inputting G codes, setting parameters, and switching interfaces. It includes an emergency stop button (red mushroom head), power key switch, cycle start/feed hold button, as well as feed rate and spindle rate adjustment control keys for direct machine control. This is a three-jaw hollow hydraulic chuck, which is a mainstream configuration in the industry. The three jaws of the chuck move synchronously, allowing for automatic centering and clamping of workpieces, suitable for clamping bar stock and disc parts. Stable clamping force: The hydraulic-driven clamping force can be adjusted through the system to adapt to different materials and sizes of workpieces, avoiding deformation or falling off. High centering accuracy: The coaxiality error of repeated clamping is small, ensuring the roundness and coaxiality requirements of the workpiece. Supports hollow channels: Can be paired with a feeder for fully automatic feeding of bar stock, suitable for batch part processing. One of the core execution components of CNC lathes, used for automatic tool change and multi-process continuous machining.
Product Details
------
Guangzhou CNC (GSK) System
The external handwheel (manual pulse generator) on the right side allows for manual fine-tuning, facilitating tool setting and program debugging. The window with a red border below is for program/tool drawing observation or USB interface reservation, making data import and export convenient.
------

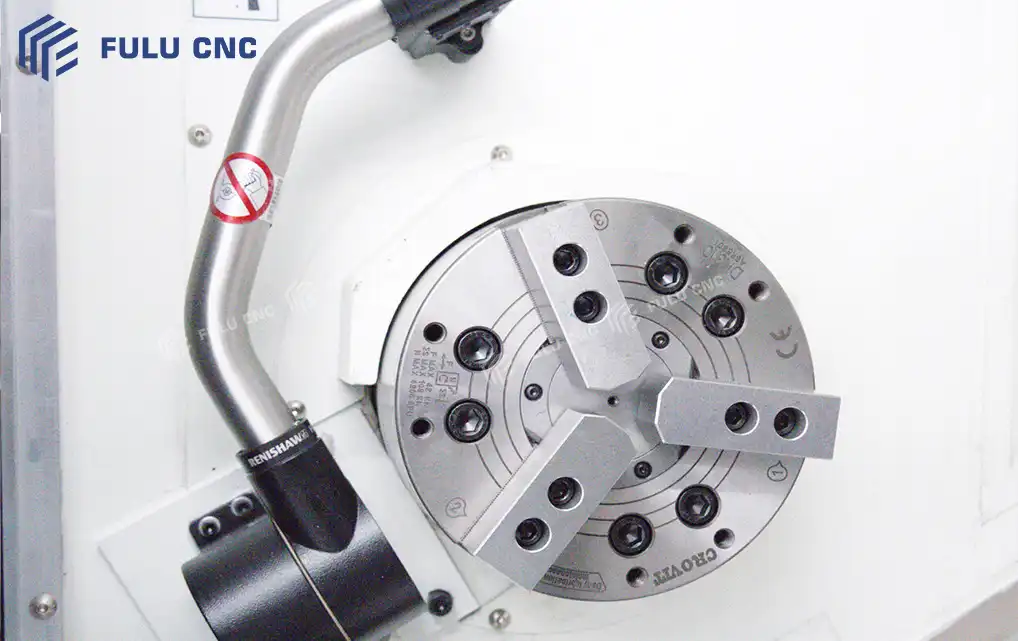

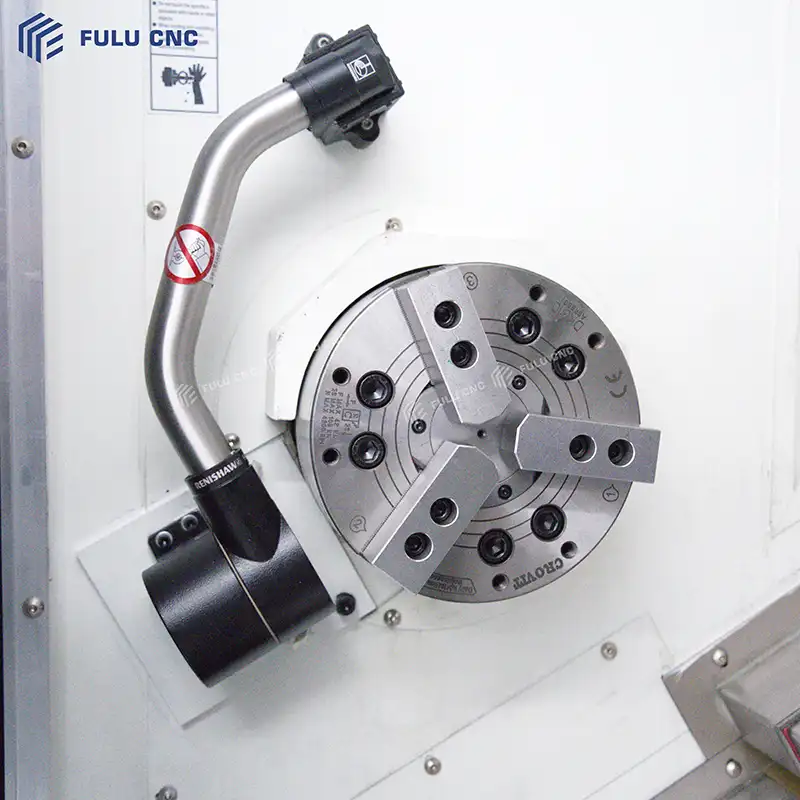

Three-jaw hydraulic chuck and tool setting probe
------
8-station hydraulic servo turret
12-inch hydraulic chuck
15 inch hydraulic chuck
Renishaw Tool Arm
Chain Chip Conveyor
Servo Feeder
Oil Mist Collector
Receiving device
Optional CNC SystemsControl System
------
