| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ450 |
| Maximum Cutting Diameter of Bar Stock | mm | Φ120 |
| Maximum Cutting Length | mm | 325 |
| X-axis travel | mm | 900 |
| Z-axis travel | mm | 325 |
| X-axis moving speed | mm/min | 20000 |
| Z-axis moving speed | mm/min | 20000 |
| Item | Unit | Specification |
| Maximum swing diameter over bed | mm | Φ450 |
| Maximum cutting diameter of bar material | mm | Φ120 |
| Maximum cutting length | mm | 325 |
| X-axis travel | mm | 900 |
| Z-axis travel | mm | 325 |
| X-axis moving speed | mm/min | 20000 |
| Z-axis moving speed | mm/min | 20000 |
| Handwheel | mm | 0.001/0.01/0.1 |
| X, Z feed speed | mm/min | 0~5000 |
| X, Z manual feed speed | mm/min | 0~1260 |
| X-axis repeat positioning accuracy | mm | 0.005 |
| X-axis positioning accuracy | mm | 0.01 |
| Z-axis repeat positioning accuracy | mm | 0.006 |
| Z-axis positioning accuracy | mm | 0.015 |
| Spindle speed | rpm | 35-3000 |
| Maximum spindle torque | N.m | 35 |
| Spindle nose | - | A2-5 (optional A2-6) |
| Spindle through hole diameter | mm | Φ52 |
| Hollow hydraulic chuck through hole diameter | mm | Φ40 |
| Chuck | - | 6" (optional 8") |
| Number of tool holders | - | 3-position tool holder |
| Tool change time | s | 0.25 |
| Tool installation dimensions | mm | 20×20 |
| Boring tool holder installation diameter | mm | Φ25 |
| Main motor power | kw | 5.5 |
| Main motor torque | N.m | 35 |
| X-axis feed motor power | kw | 1.5 |
| X-axis feed motor torque | N.m | 7.5 |
| Z-axis feed motor power | kw | 1.5 |
| Z-axis feed motor torque | N.m | 5 |
| Machine dimensions length*width*height | mm | 2250*1850*2000 |
| Weight approximately | kg | 1600 |
| Serial Number | Name | Manufacturer | Optional |
| 1 | GSK980TB3i | Guangzhou GSK | FANUC |
| 2 | Servo Main Motor and X/Z Axis Servo Motor | Guangzhou GSK | FANUC |
| 3 | Hydraulic Chuck and Cylinder | Zhejiang Dingchang | Jiangsu |
| 4 | Spindle Unit | CSC | NSK |
| 5 | X/Z Axis Drive Bearing | NSK | NSK |
| 6 | Ball Screw | Taiwan | |
| 7 | Roller Linear Guide | Taiwan | |
| 8 | 12 Station Servo Hydraulic Tool Holder | Taiwan Lianji | |
| 9 | Main Electrical Components | Delixi | |
| 10 | Coupling | Domestic | Japan |
| 11 | Spindle Encoder | Domestic | |
| 12 | Hydraulic Pump and Motor | Domestic | |
| 13 | Lubrication Parts | Domestic | Japan |
| 8-station servo hydraulic turret |
| Chain-type chip conveyor |
| Receiving device |
| Mist collector |
| Renishaw tool setter |
| Servo feeder |
| GSK/Fanuc/Siemens control system |

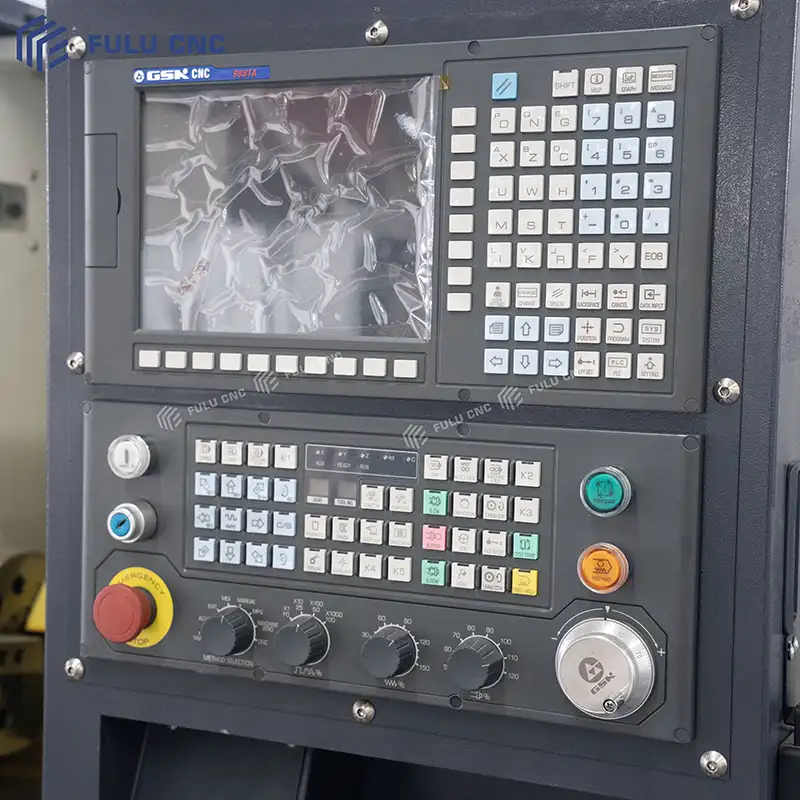

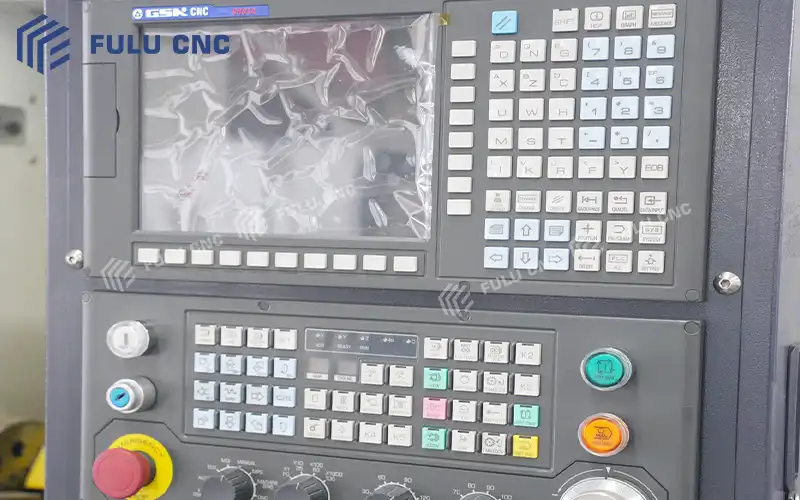

Equipped with the Guangzhou CNC GSK 980 series lathe system, which is the mainstream configuration for economical CNC lathes in China. This type of system supports fixed cycle turning, macro programming, threading, and other lathe-specific functions. The left side features a color display screen for showing coordinates, programs, tool compensation, alarms, and other key information; the right side has an alphanumeric/function keyboard for inputting G-code, setting parameters, and switching interfaces. It includes an emergency stop button (red mushroom head), a power key switch, a cycle start/feed hold button, as well as control keys for feed rate and spindle speed adjustments, used for directly controlling machine actions. This is a three-jaw hollow hydraulic chuck, which is a mainstream configuration in the industry. The three jaws of the chuck move synchronously, allowing for automatic centering and clamping of workpieces, suitable for clamping bar stock and disc parts. Stable clamping force: The hydraulic-driven clamping force can be adjusted through the system to adapt to workpieces of different materials and sizes, avoiding deformation or falling off. High centering accuracy: The coaxiality error of repeated clamping is small, ensuring the roundness and coaxiality requirements of the workpiece. Supports hollow passage: Can be paired with a feeder for fully automatic feeding of bar stock, suitable for batch part processing. Adopts a high-rigidity hydraulic locking structure, with rapid tool change and precise positioning, meeting various process requirements such as outer diameter turning, boring, grooving, and threading, effectively improving processing efficiency and accuracy, widely used in CNC lathes and turning centers.
Product Detail Information
Guangzhou CNC (GSK) System

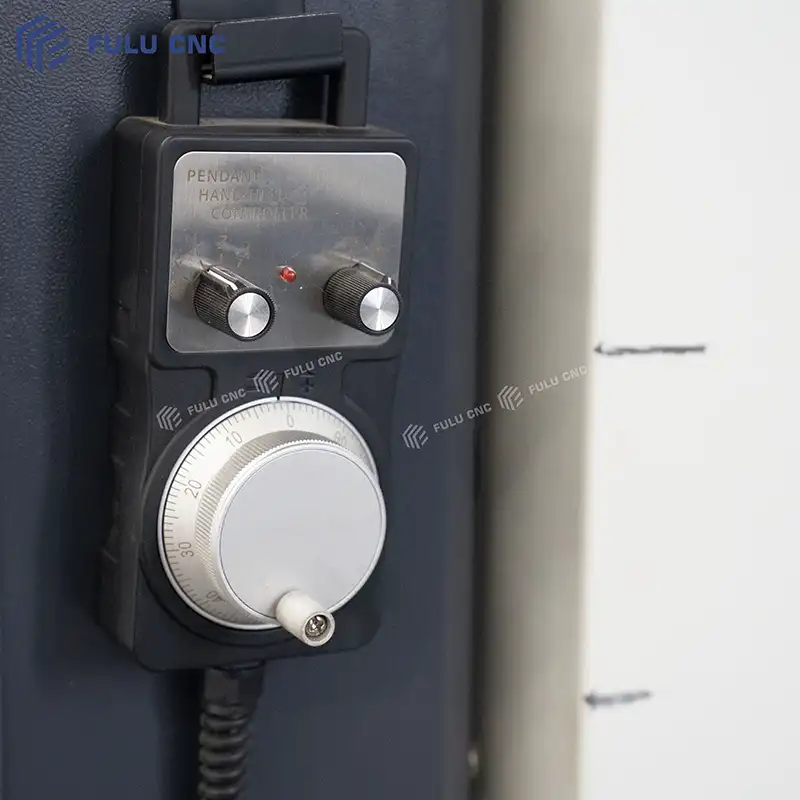

The external handwheel (manual pulse generator) on the right allows for manual fine-tuning, facilitating tool setting and program debugging. The window with a red border below is reserved for program/tool drawing observation or USB interface, making data import and export convenient.

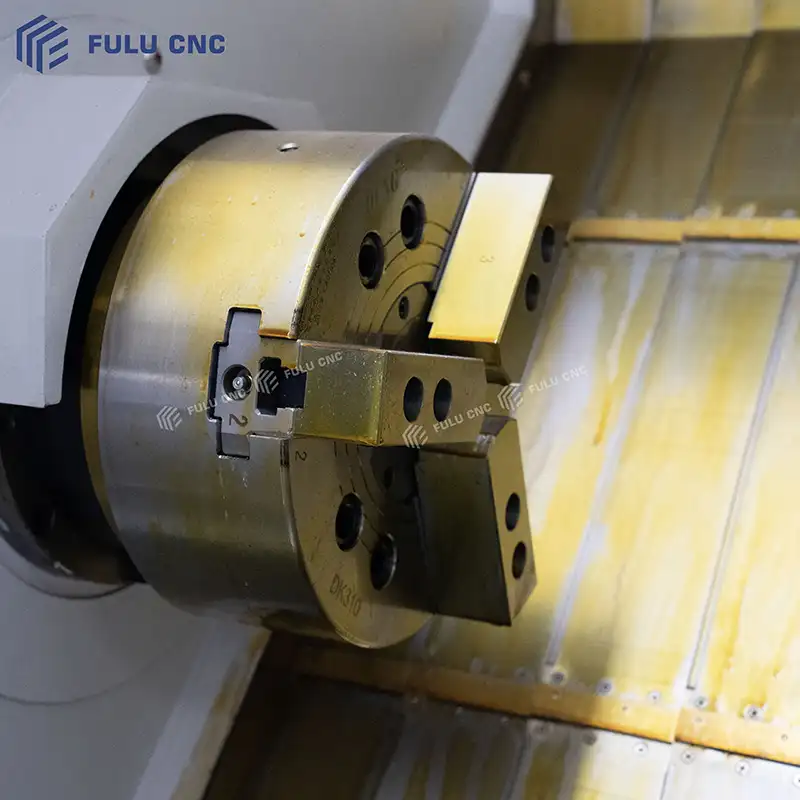

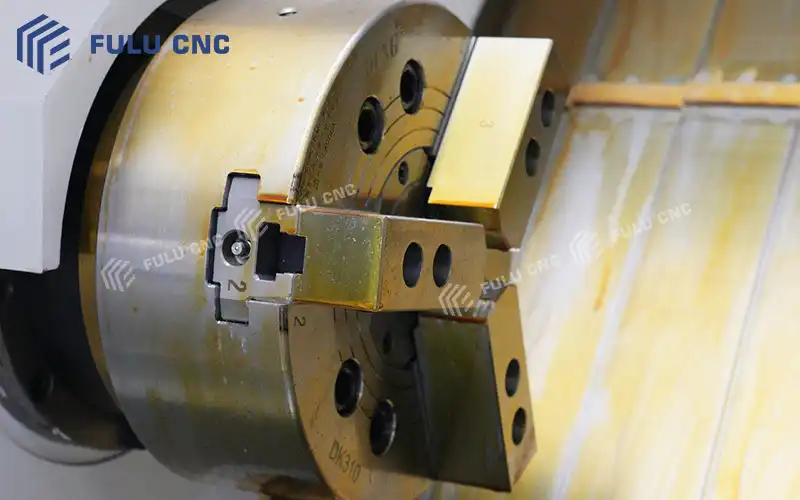

Three-jaw Hydraulic Chuck

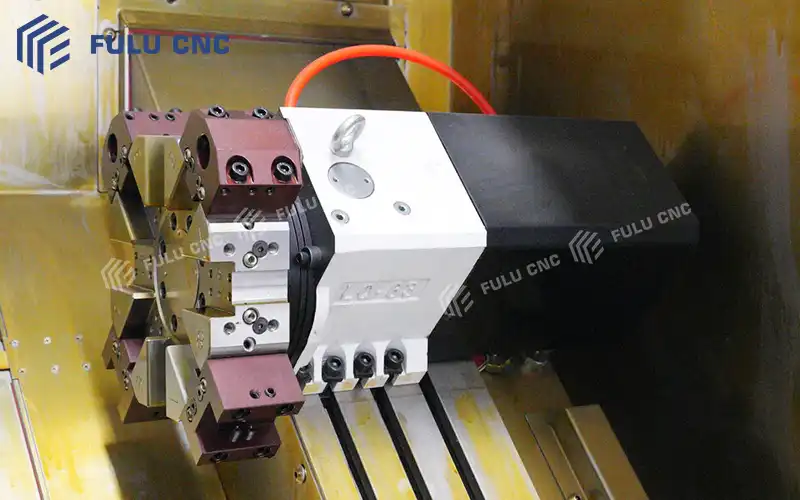

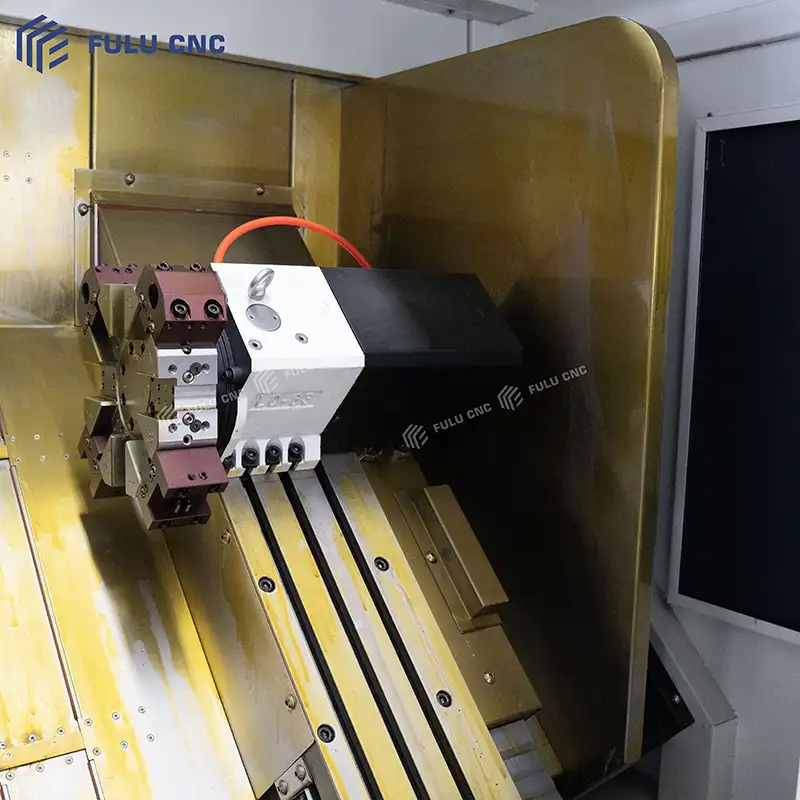

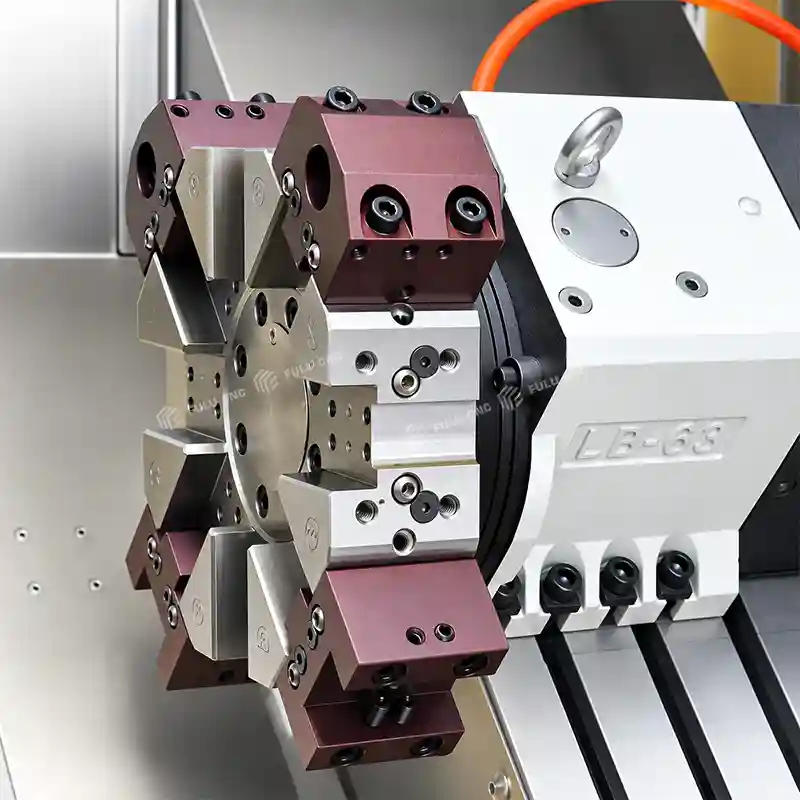

8-station Servo Hydraulic Turret
Optional CNC Control Systems
