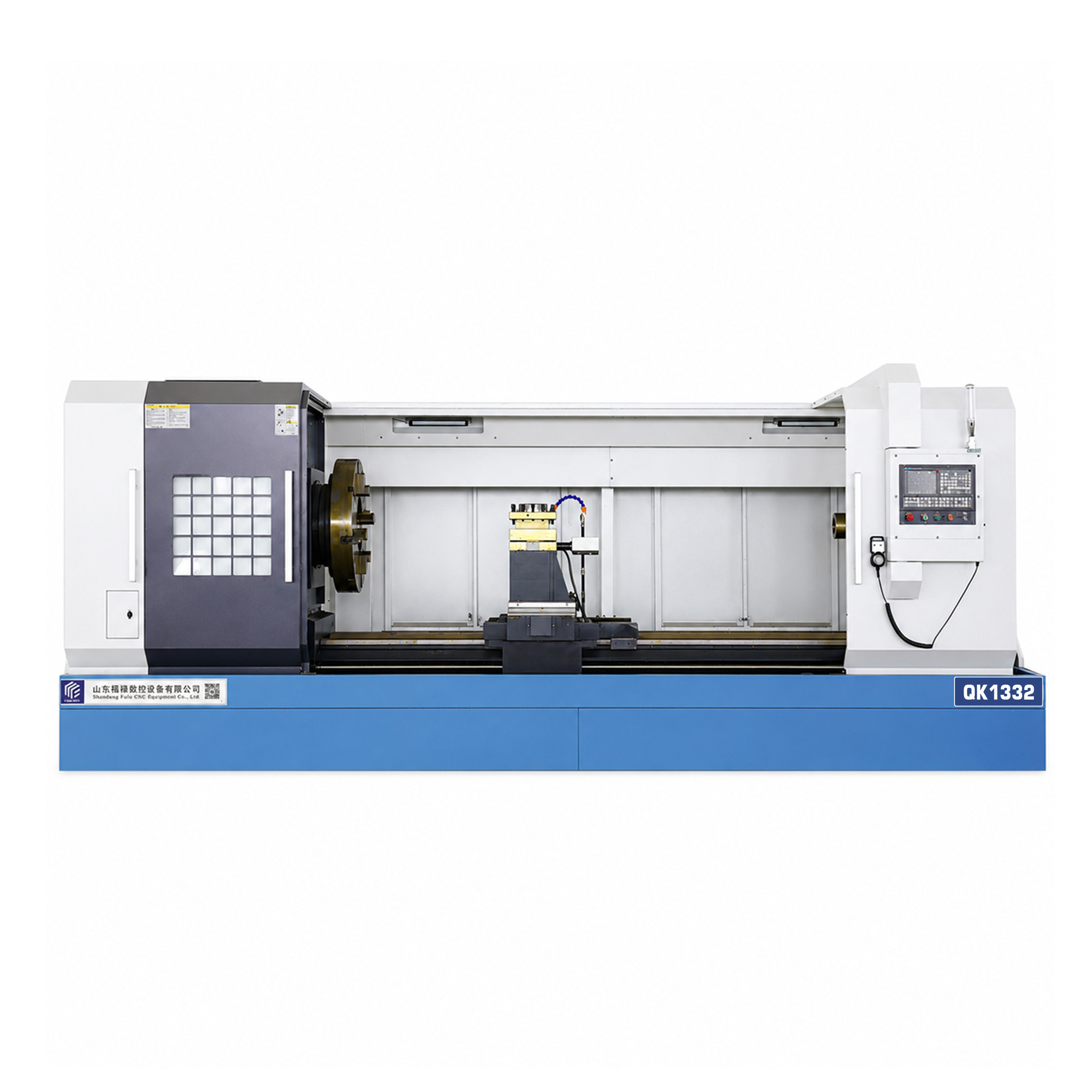

QK1332

Parameter

Maximum swing diameter over bed	1000
Maximum swing diameter over tool post	650mm
Width of upper bed guideway	600/755mm
Spindle nose	A2-11
Spindle bore diameter	320mm
Spindle speed	22-85,85-342

Inquiry

Detail Inquiry

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large bearing capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than the same specification slant bed, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rail / medium frequency quenching guide rail, wear-resistant, good precision retention; equipped with precision ball screw, accurate positioning, high repeat precision.

Learn More

Nulla bibendum dictum pulvinar feugiat

CNC flat lathe features a horizontal flat bed structure, two axes (X/Z) linkage, used for automatic processing of external circles, internal holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. With strong overall rigidity, simple structure, and high cost performance, it is the main model for medium and small batch, heavy cutting, long shaft processing, widely used in automotive parts, motors, bearings, agricultural machinery, and general machinery industries.

Technical Parameters
Standard Configuration
Select Configuration

Maximum spindle diameter on the bed	1000
Maximum spindle diameter on the tool holder	650mm
Width of the upper guide rail on the bed	600/755mm
Spindle end	A2-11
Spindle through hole diameter	320mm
Spindle speed	22-85,85-342
Spindle	Manual two-speed, stepless speed change within the gear
Minimum movement unit in the Z direction of the carriage	0.001mm/min
Minimum movement unit in the X direction of the carriage	0.005mm/min
Travel in the X direction of the carriage	500mm
Travel in the Z direction of the carriage	1500/2000/3000/4000mm
Maximum processing length	1350/1850/2850/3850 (one clamp and one support)
Rapid movement speed in the X/Z direction of the carriage	6000mm/min
Diameter of tailstock sleeve	100/130mm
Taper hole of tailstock sleeve	MT6
Maximum travel of tailstock sleeve	250mm
Chuck	800mm
Main motor power	11kw
Z-axis repeat positioning accuracy	0.015mm
X-axis repeat positioning accuracy	0.01mm
Approximate weight of the whole machine	5/5.6/6.3/7T

	Equipment Name	Model and Specifications	Description	Quantity
1	CNC Lathe	QK1332		1 unit


2	System	GSK980 System	Other brands available	1 set
3	Ball Screw		Hanjing	1 set
			Hanjing	1 set
4	Tool Holder Specifications	280X280mm	Wenchang/Hongda	1
5	Tool Square Section	32*32mm	Wenchang	1
6	Motor	11KW	Shanghai/Nanjing
8	Inverter	11KW	Olinuo
9	Spindle	High Precision Spindle
10	Spindle Bearing	High Precision	Harbin

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Simens Control System

Product Details

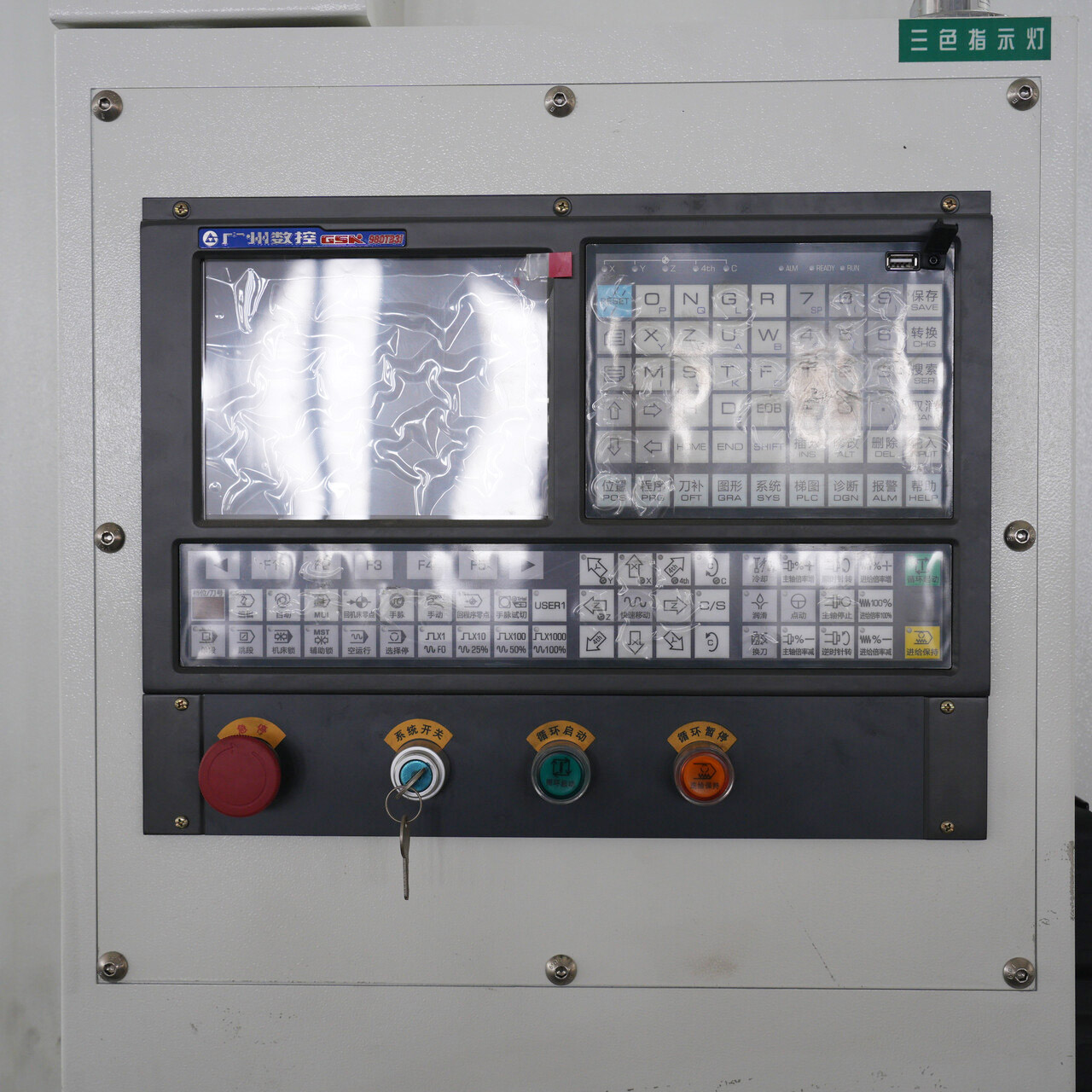

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including the main control unit, servo drivers, and input-output modules, which can be flexibly configured to meet the usage needs of different machine tools.
----

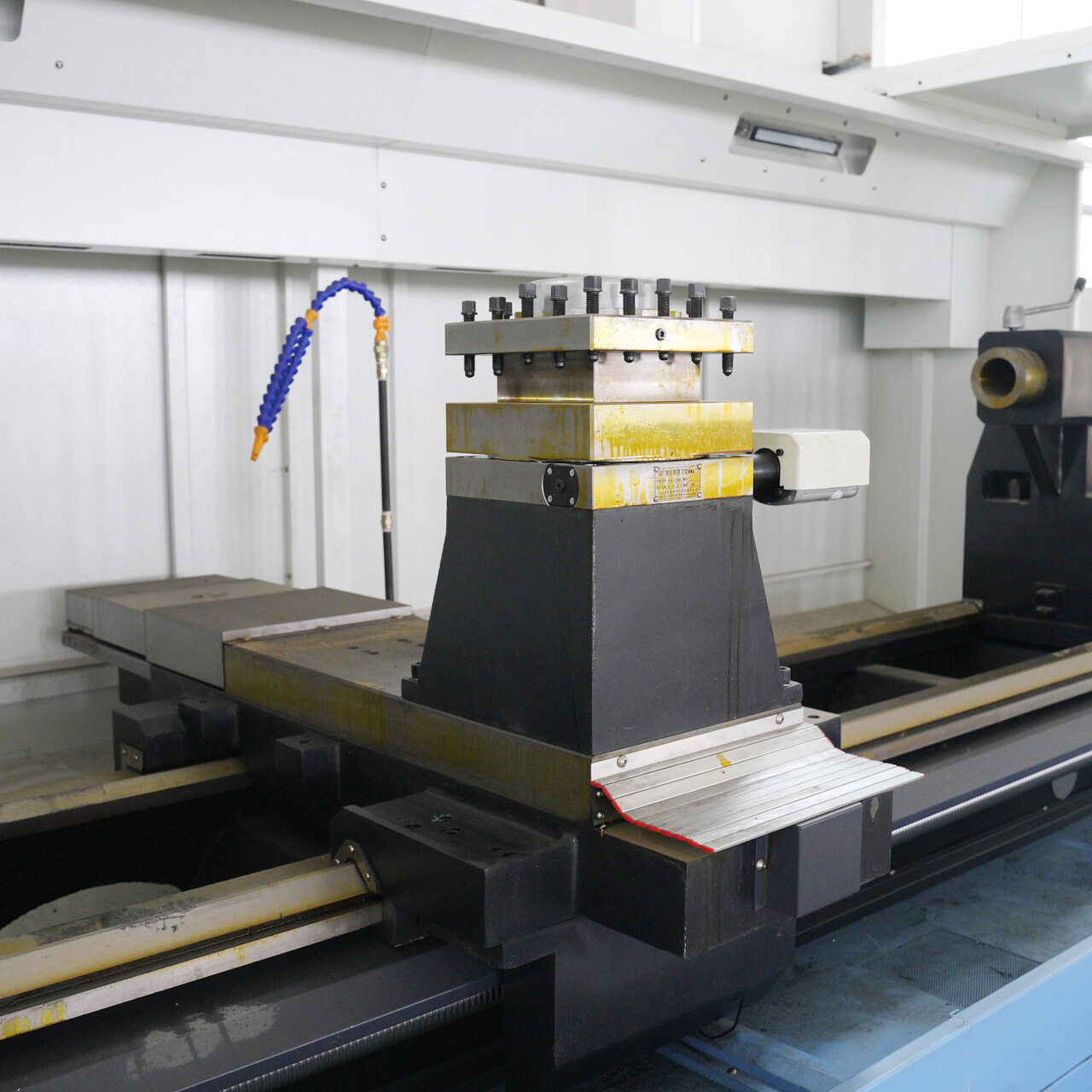

4 Station Electric Tool Holder

The 4 station electric tool holder is the most commonly used automatic tool change component for economical flat-bed CNC lathes, with 4 tool installation positions evenly distributed on the tool body, allowing for 4 turning tools to be installed simultaneously. The tool change is automatically completed through the CNC program T code without manual operation of the handle.
----

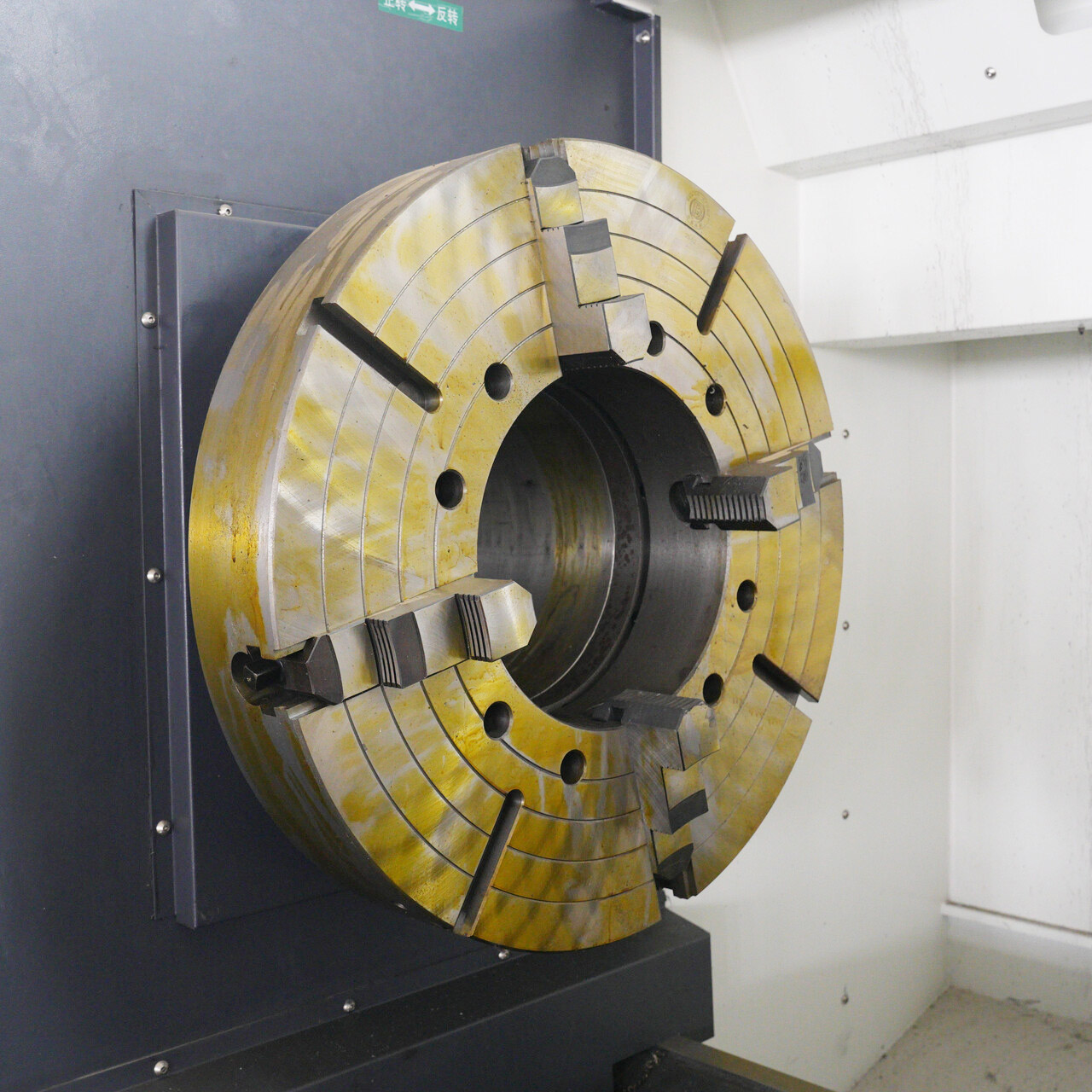

Four-Jaw Chuck

Installed at the front end of the spindle, used for clamping and positioning workpieces. Unlike ordinary three-jaw self-centering chucks, each jaw can be adjusted individually, allowing for the clamping of various irregular, eccentric, and large workpieces, providing greater clamping flexibility and machining accuracy.
----

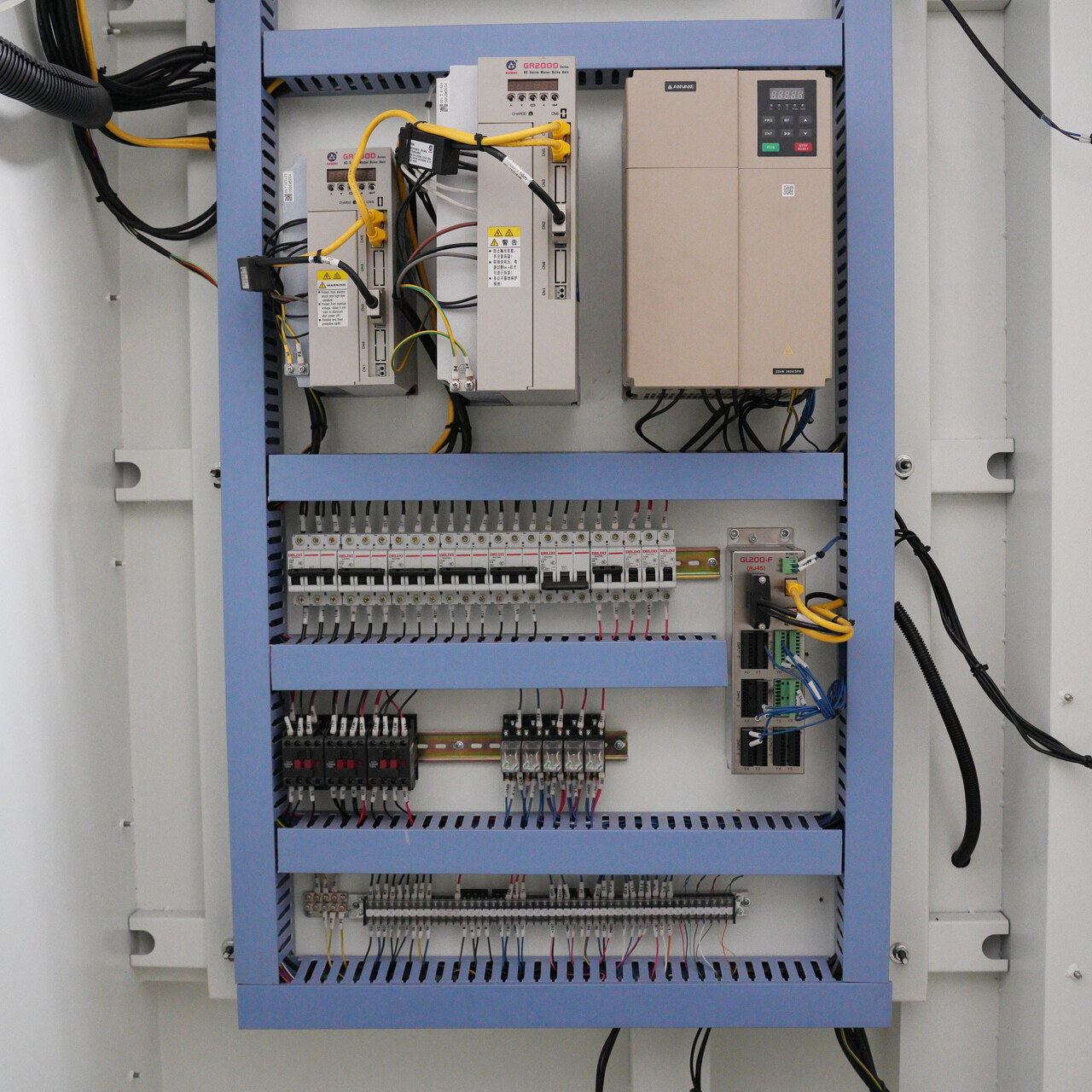

Electrical Control Cabinet

The electrical control cabinet is the 'nerve center' of the CNC machine tool. It converts CNC program instructions into precise motion actions, safely distributes power, and protects various electrical components of the machine tool.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole

------
