From high-quality raw materials to precision machining, every process is strictly controlled to create high-precision, high-strength core components for lathes.
Suitable for large-scale mass production, precision parts processing, and custom non-standard parts, deeply engaged in various industries.

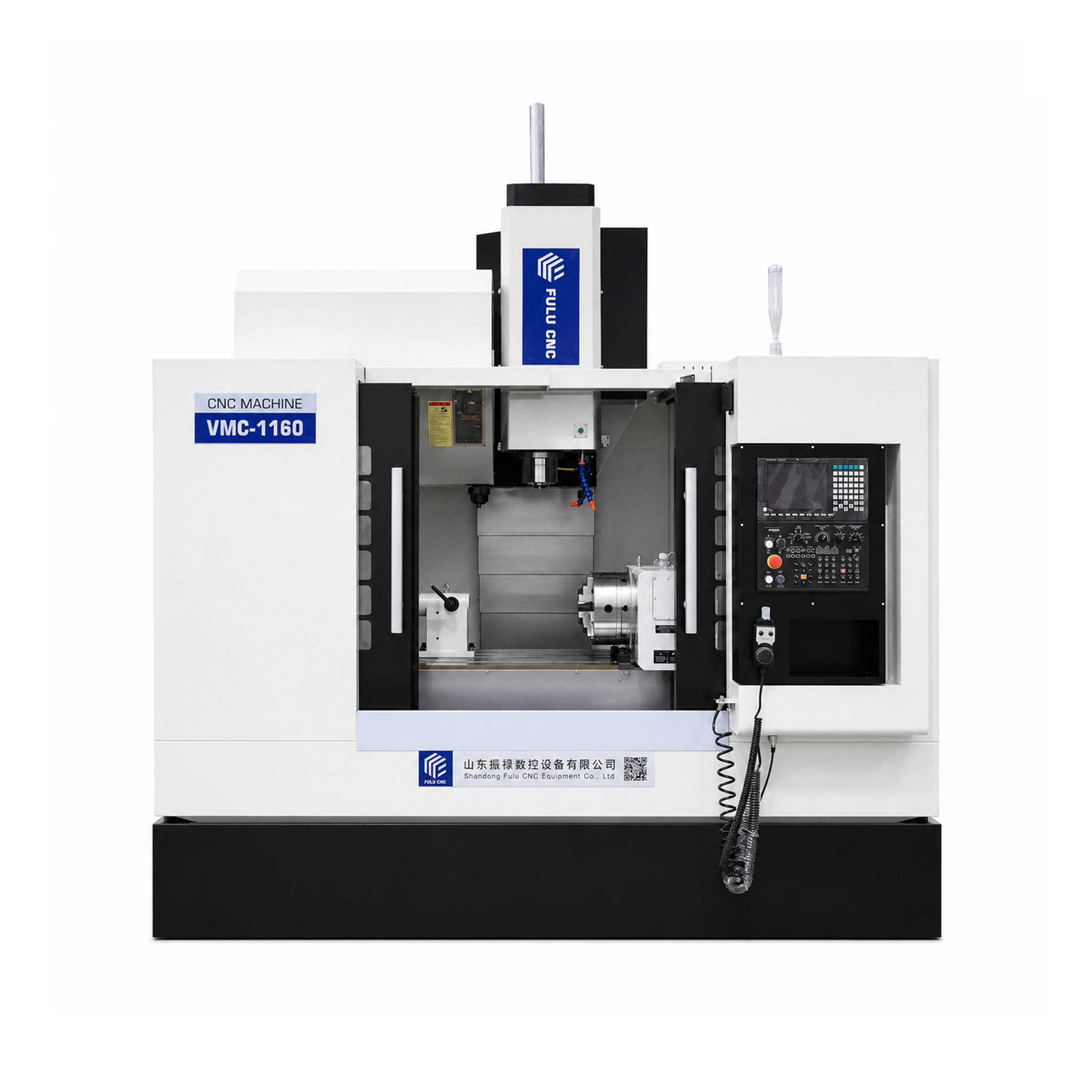

| Machine Model: VMC1160 | Unit | Specification |
| Table Size | mm | 1200x600 |
| X/Y/Z Axis Travel | mm | 1100/600/600 |
| Distance from Spindle Nose to Table | mm | 120-720 |
| Distance from spindle center to column | mm | 672 |
| Maximum load on worktable | Kg | 800 |
| Worktable T-slot | mm | 5-18x100 |
| X/Y/Z axis rapid feed | m/min | 32/32/26 |
| Machine Model: VMC1160 | Unit | Specification |
| Table Size | mm | 1200x600 |
| X/Y/Z Axis Travel | mm | 1100/600/600 |
| Distance from Spindle Face to Table | mm | 120-720 |
| Distance from Spindle Center to Column | mm | 672 |
| Maximum Load on Table | Kg | 800 |
| Table T-Slot | mm | 5-18x100 |
| X/Y/Z Axis Rapid Feed | m/min | 32/32/26 |
| X/Y/Z Guide Rail Width Specification | mm | RGH45/45/45 |
| X/Y/Z Screw Specification | mm | 4012 |
| Positioning Accuracy | mm | ±0.008 |
| Repeat Positioning Accuracy | mm | ±0.005/300 |
| Minimum Positioning Unit | mm | ±0.001 |
| Maximum Spindle Speed | rpm | 8000 (ring cooling spray) |
| Spindle Taper | mm | BT40-150 |
| Disc Mechanical Arm Tool Magazine | pcs | 24T |
| Controller System | / | GSK 25i |
| X/Y/Z Axis Motor Power | Nm | 18/18/28 |
| Spindle Motor Power | Kw | November 15 |
| Machine Weight Approximately | Kg | 6000 |
| Dimensions | mm | 2800x2400x2800 |
| No | Product Name | Place of Origin | Manufacturer |
| 1 | Main Structure Cast Iron (Bed) | Yunnan | Tai Biao |
| 2 | CNC Controller | Taiwan | Guangshu 25i |
| 3 | Spindle Drive Motor | Taiwan | Guangshu 25i |
| 4 | Three-axis Drive Motor | Taiwan | Guangshu 25i |
| 5 | Integrated Spindle | Taiwan | Okada |
| 6 | Spindle Tool Cylinder | China-Japan | China-Japan Xina Card |
| 7 | X, Y, Z Three-axis Bearings (P4) | Taiwan/Japan | TPI/NACHI |
| 8 | X, Y, Z Three-axis Linear Guide | Taiwan | Hiwin |
| 9 | X, Y, Z Ball Screw (C3 Grade) | Taiwan | Hiwin |
| 10 | Three-axis Coupling | Taiwan | S+P |
| 11 | Centralized Automatic Lubrication System | Taiwan | Baoyu |
| 12 | Air Source Filtration and Purification Device | Taiwan | AirTAC Air Curtain Protection |
| 13 | Cooling Device | China | Weisen |
| 14 | Operation Panel and Handwheel | Taiwan | Guangshu |
| 15 | Electrical Appliances, Overload Protector | France | Schneider |
| 16 | Robot Tool Magazine | Taiwan | Okada |
| 17 | Electrical Cabinet Heat Exchanger | Jiangsu | Ke Heng Ao |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg center water outlet |
| Renishaw tool setter |
| 170/200/250/300mm fourth axis |
| 125/170/210/250mm fifth axis |
| chain-type chip conveyor |
1.X, Y, Z axis travel: 1100x600x600mm
2. The spindle rotation method is belt drive with a maximum speed of 8000 RPM (circular water spray).
3. The standard configuration of the tool magazine is a disc-type magazine with 24 tools, meeting customer needs.
4. The head assembly is a heavy-duty box structure, reinforced with internal ribs for high rigidity.
5. The spindle cutting method uses a pneumatic mechanism, ensuring uniform force on the spindle during cutting, extending bearing life.
6. The electrical box adopts an internal isolation design, separating the heat source of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical box; a fan is used at the rear for cooling the heat plate.
7. The three axes use high-precision screws, combined with precision nut preloading and tail end pre-tensioning devices, ensuring that the machine's backlash and thermal deformation remain low for a long time.
8. The X, Y, Z axes (X/Z axis has 6 sliders) use roller-type linear guides, which have high rigidity, low noise, and can achieve rapid displacement and optimal cycle accuracy.
9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine is subjected to strict inspection measures before shipment to ensure long-term stability of various precisions.
The VMC-855 vertical machining center is equipped with an industrial-grade CNC control panel, integrating program editing, machining control, and status monitoring. It features a user-friendly layout design, with clearly defined functional key areas, supporting various operating modes such as automatic machining, manual adjustment, and electronic handwheel. Coupled with feed rate, spindle rate, and rapid movement adjustment functions, it achieves efficient, safe, and precise machining, meeting the needs of mold manufacturing, mechanical parts processing, and mass production.

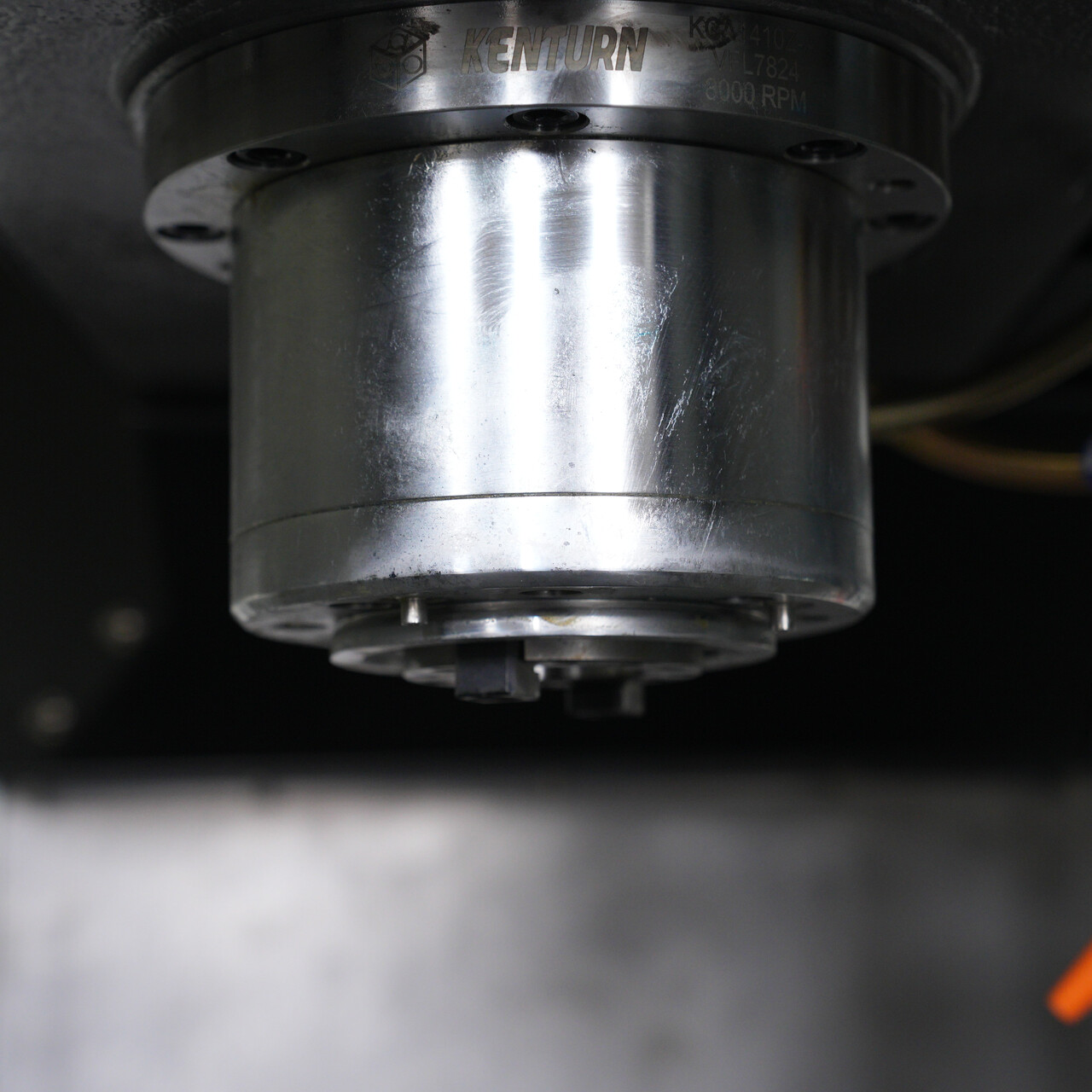

Spindle
The maximum speed of this spindle can reach12000 RPM, belonging to a medium-high speed spindle configuration, balancing the rigid cutting of steel parts with the high-speed finishing needs of aluminum parts and molds.

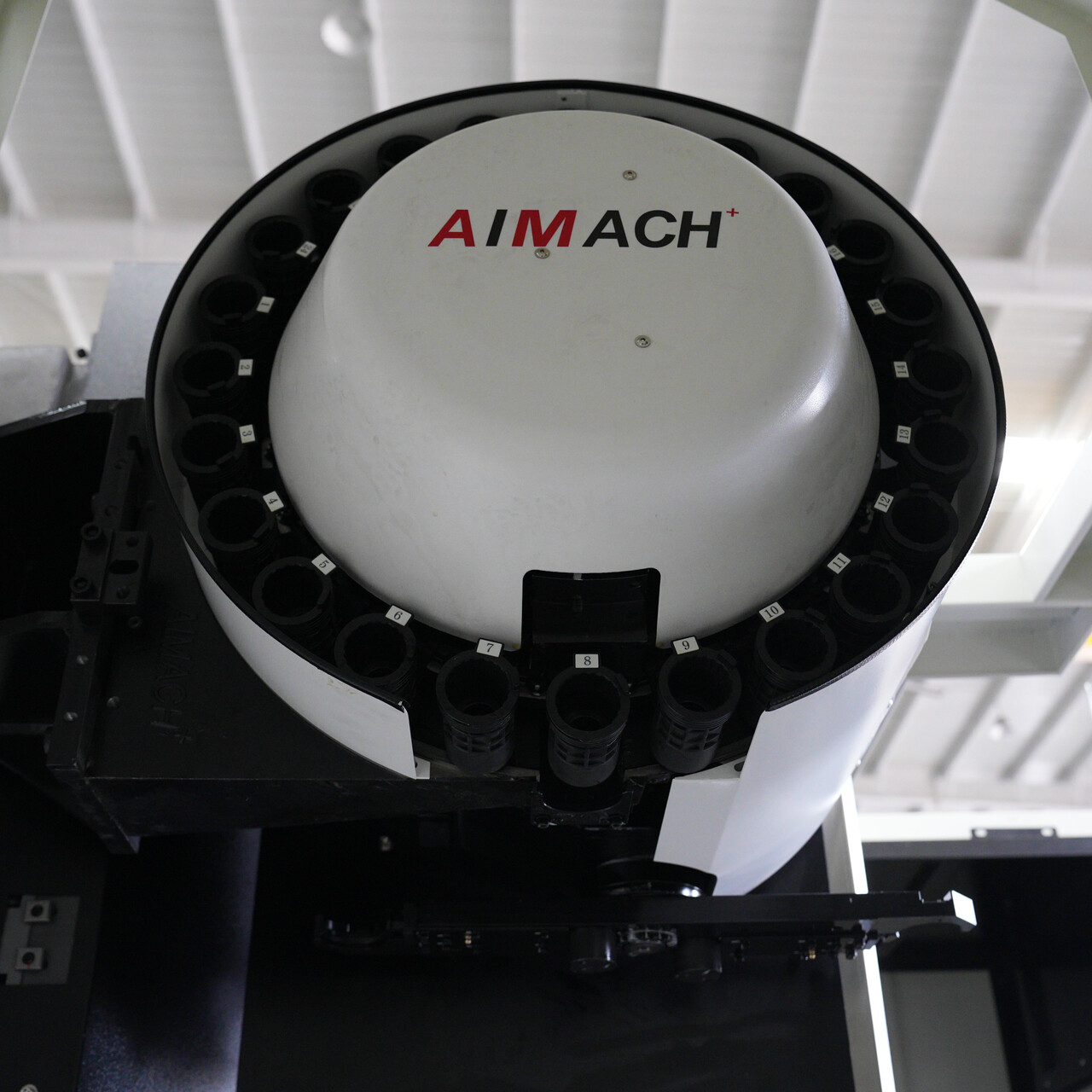

Disc-type Tool Magazine
Automatically switches tools between different machining processes without manual intervention, achievingMulti-process machining completed in one setup。

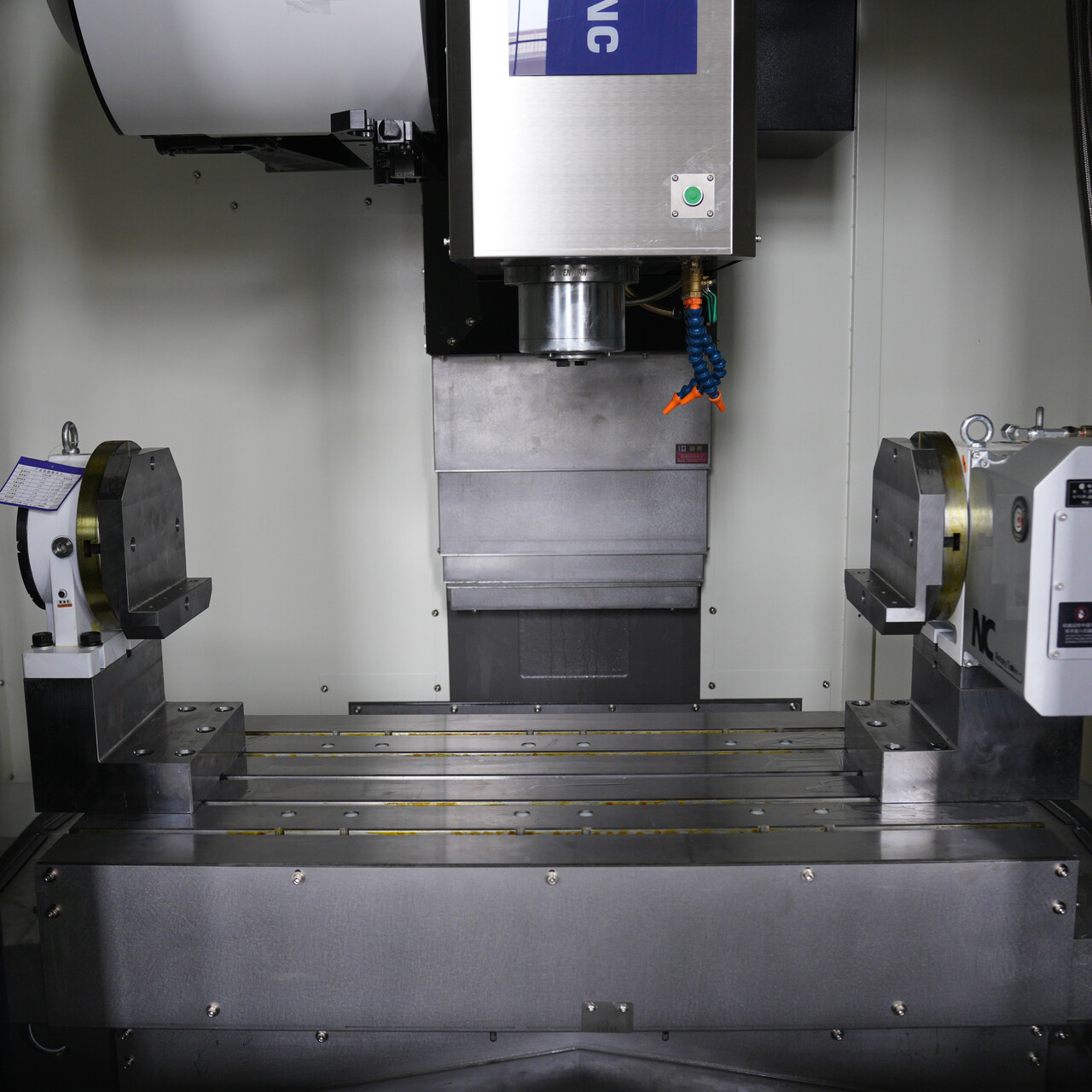

Fourth Axis CNC Rotary Table + Tailstock Support System
Install BT40/BT50 tools
Features:

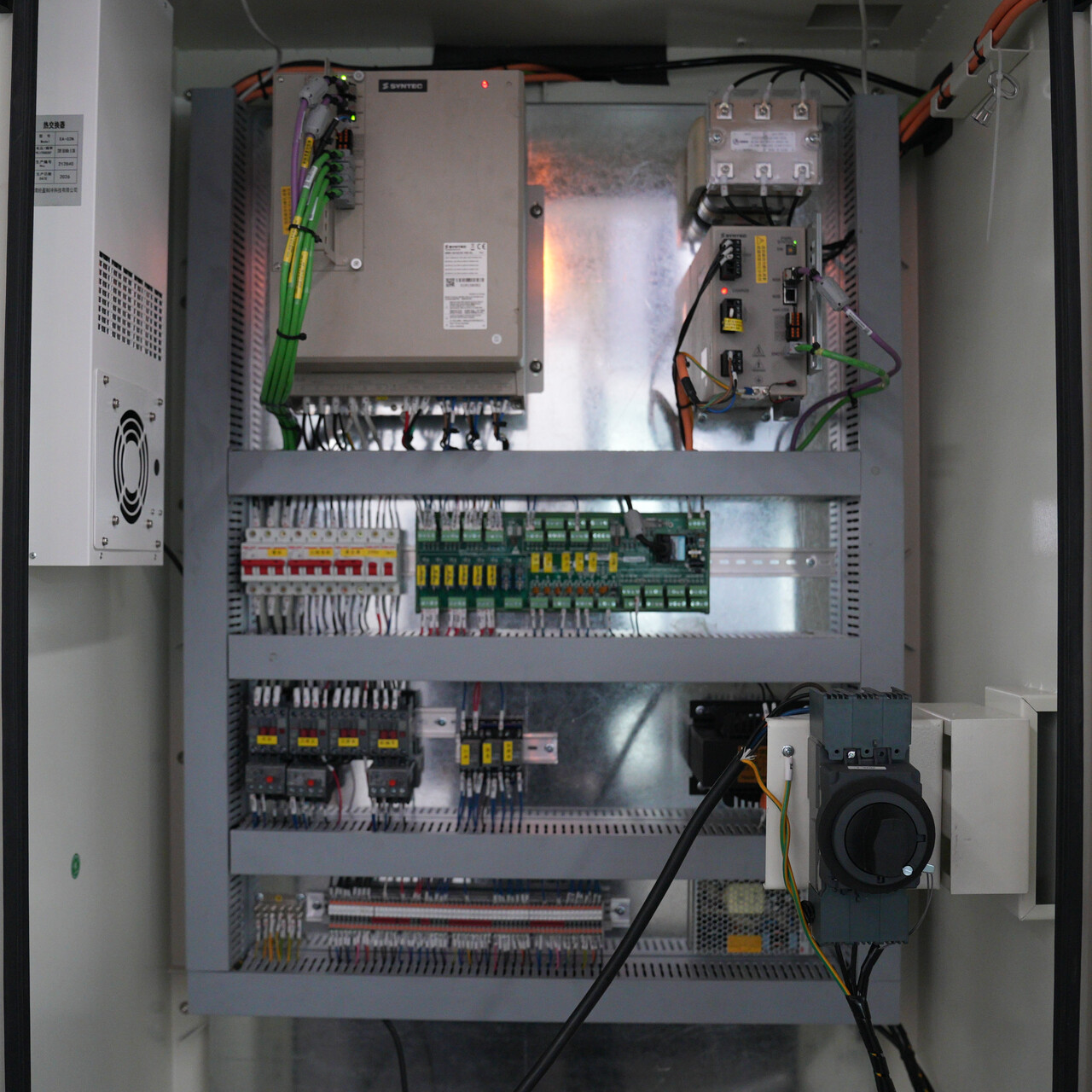

Electrical Control Cabinet

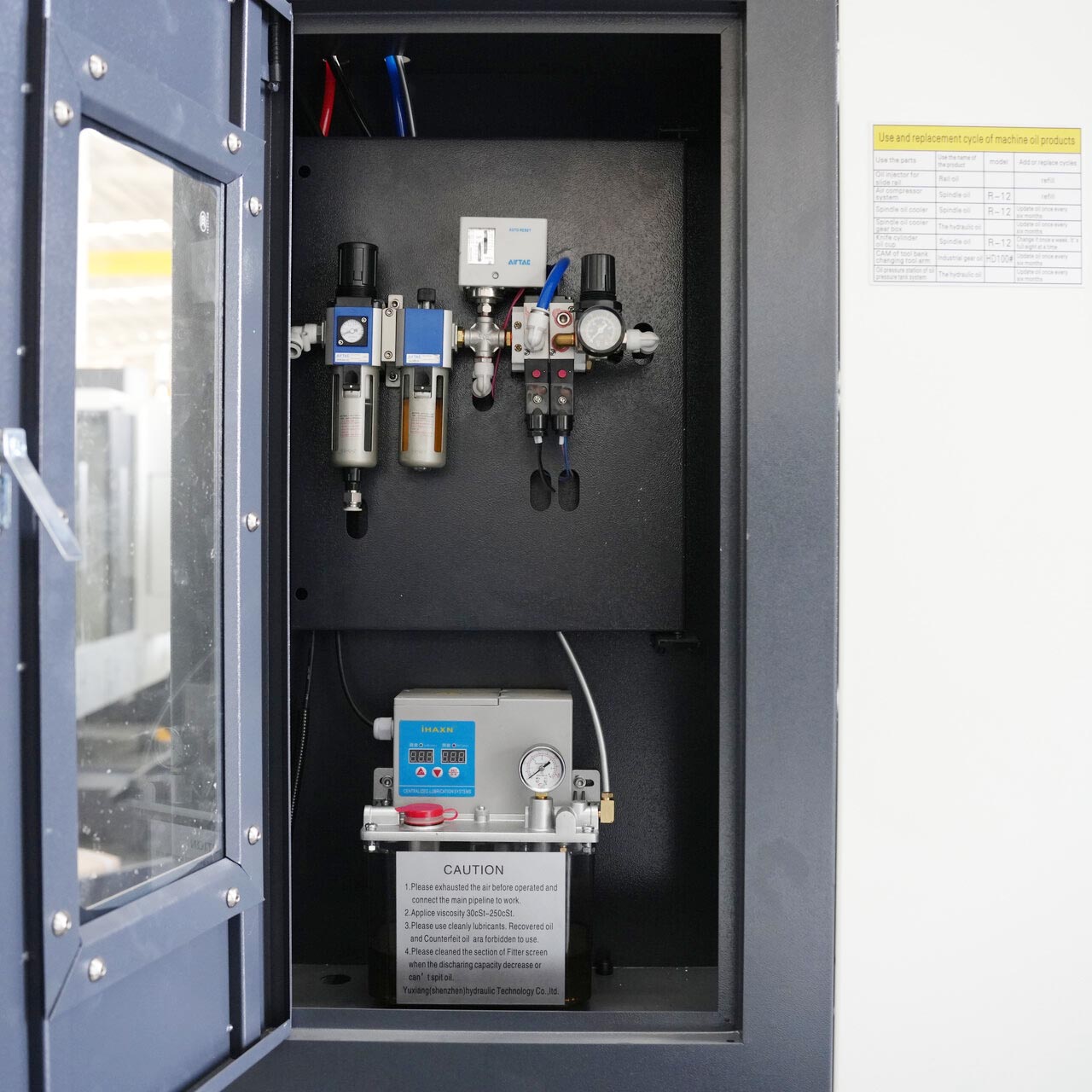

Automatic Lubrication Pump
The machine is equipped with an intelligent centralized automatic lubrication system, which can automatically supply oil to the guide rails, screws, and key transmission components according to a set cycle, achieving continuous stable lubrication,
effectively reducing wear and improving machining accuracy and equipment service life.
Optional Control System
