From high-quality raw materials to precision machining, every process is strictly controlled to create high-precision, high-strength core components for lathes.
Suitable for large-scale mass production, precision parts processing, and custom non-standard parts, deeply engaged in various industries.
| Worktable size | mm | 1000x550 |
| X/Y/Z axis travel | mm | 800/550/550 |
| Distance from spindle nose to worktable | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Maximum load of workbench | Kg | 600 |

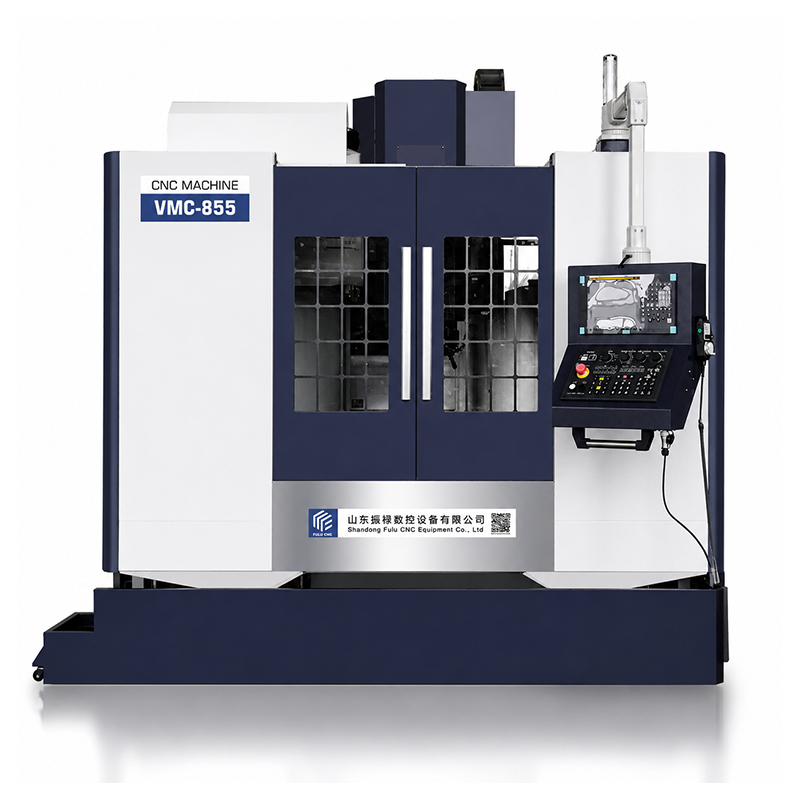

| Machine model: VMC855 | Unit | Specification |
| Table size | mm | 1000x550 |
| X/Y/Z axis travel | mm | 800/550/550 |
| Distance from spindle end face to table | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Maximum load on table | Kg | 600 |
| T-slot on table | mm | 5-18x90 |
| X/Y/Z axis rapid feed | m/min | 36/36/32 |
| X/Y/Z guide rail width specification | mm | RGH35/45/45 roller linear guide |
| X/Y/Z screw specification | mm | φ4016 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.006 /300 |
| Minimum positioning unit | mm | ±0.001 |
| Four-axis accuracy | mm | ≤0.01 |
| Maximum spindle speed | rpm | 8000 (spindle ring spray) |
| Spindle taper | mm | BT40-150 |
| Disc mechanical arm tool magazine | pcs | 24T |
| Controller system | / | GSK25i |
| X/Y/Z axis motor power | Nm | 15/15/22 |
| Spindle motor power | Kw | 11 |
| Machine weight approximately | Kg | 5000 |
| Dimensions | mm | 2600x2400x2650 |
| NO | Configuration Content | NO | Configuration Content |
| 1 | Cutting Cooling System | 13 | Machine Internal Cleaning Device: Chip Blowing Gun |
| 2 | Automatic Lubrication System | 14 | Manual Pulse Generator: Handwheel |
| 3 | Cutting Blowing Device | 15 | External Network Transmission Interface |
| 4 | Spindle and Servo Overload System Protection | 16 | Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal) |
| 5 | Three-Color Alarm Light | 17 | External Protection High-Quality Baked Paint Sheet Metal |
| 6 | Horizontal Adjustment Bolt and Spacer | 18 | Rigid Tapping |
| 7 | Electrical Box Heat Exchanger | 19 | Precision Inspection Certificate |
| 8 | Three-Axis Screw Pre-Tensioning Device | 20 | Electrical Manual |
| 9 | Program Storage | 21 | User Manual |
| 10 | Spindle Ring Water Spray | 22 | Program Operation Manual |
| 11 | Reserved for Adding Four-Axis Interface | 23 | Front Chip Discharge |
| 12 | Internal Work Light |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg central water outlet |
| Renishaw tool setter |
| 170/200/250/300mm fourth axis |
| 125/170/210/250mm fifth axis |
| chain-type chip conveyor |
1.X, Y, Z axis travel: 800x550x550mm 2. The spindle rotation method is belt drive with a maximum speed of 8000 RPM (spindle ring spray) 3. The standard configuration of the tool magazine is a disc with 24 tool holders to meet customer needs. 4. The head assembly is a heavy-duty box structure, internally reinforced with ribs for high rigidity. 5. The spindle cutting method uses a pneumatic mechanism, ensuring even force on the spindle during cutting, extending the spindle's service life. 6. The electrical box adopts an internal isolation design, separating the heat-generating parts of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical box; a fan is used at the rear for cooling the heat plate. 用风扇为扇热板散热。 7. The three axes use high-precision screws, combined with precision nut preloading and tail-end pre-tensioning devices, to ensure that the machine's backlash and thermal deformation remain low over time. 8. The X, Y, Z axes (Z axis has 6 sliders) use roller-type linear guides, which have high rigidity, low noise, can perform rapid displacement, and achieve optimal cycle accuracy. 9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine is subjected to strict inspection measures before shipment to ensure long-term stability of all machine accuracies. Learn More

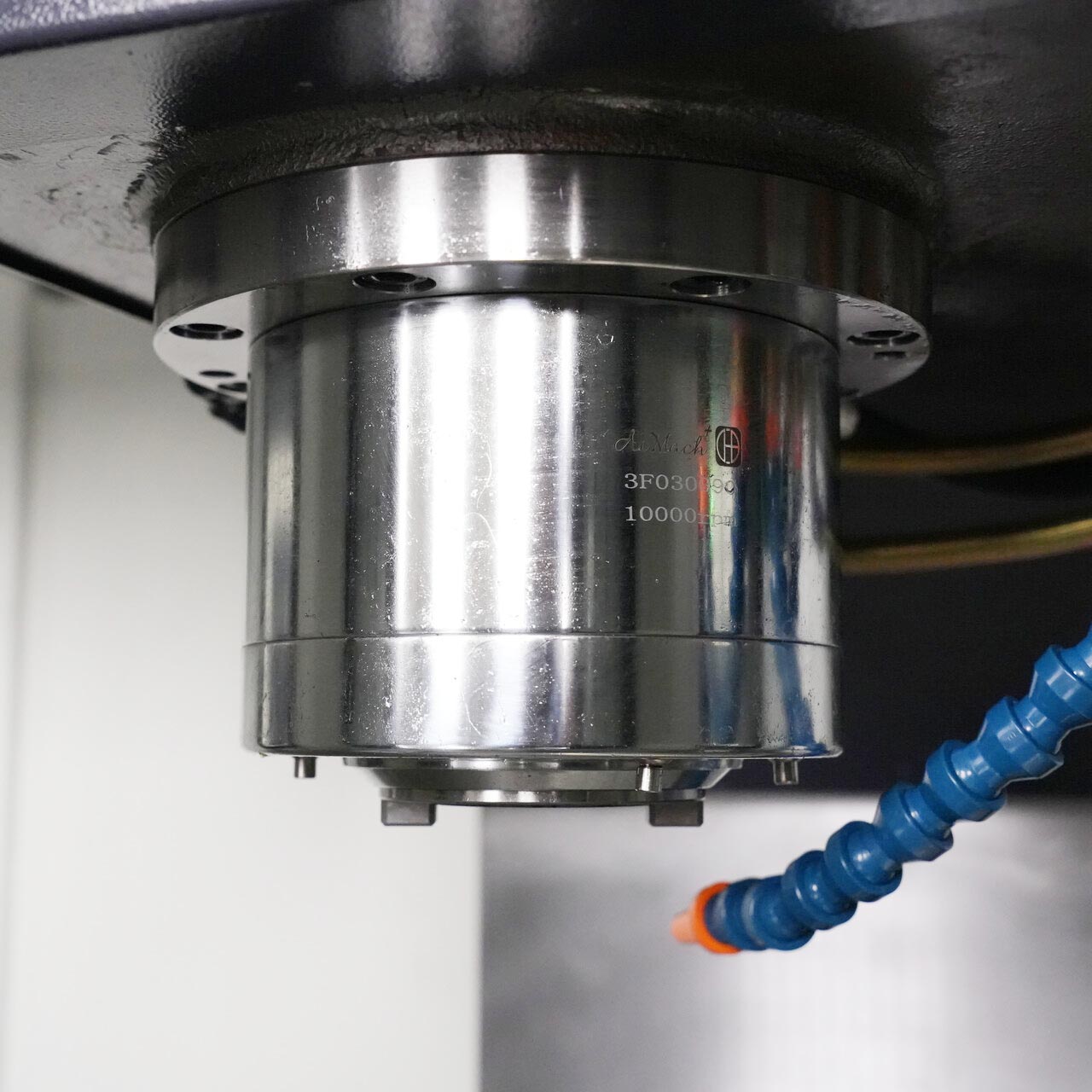

which is currently the mainstream high-end CNC control system for horizontal CNC lathes, divided intothe upper LCD display unitand the lower machine operation button panel+two main parts, with an external handheld electronic handwheel on the right side.Spindle The maximum speed of this spindle can reach 12000 RPM, which belongs to a medium-high speed spindle configuration, balancing the rigid cutting of steel parts with the high-speed precision machining needs of aluminum parts and molds.Contact Us Automatically switches tools between different processing operations without manual intervention, achieving multi-process machining in one clampingContact Us。

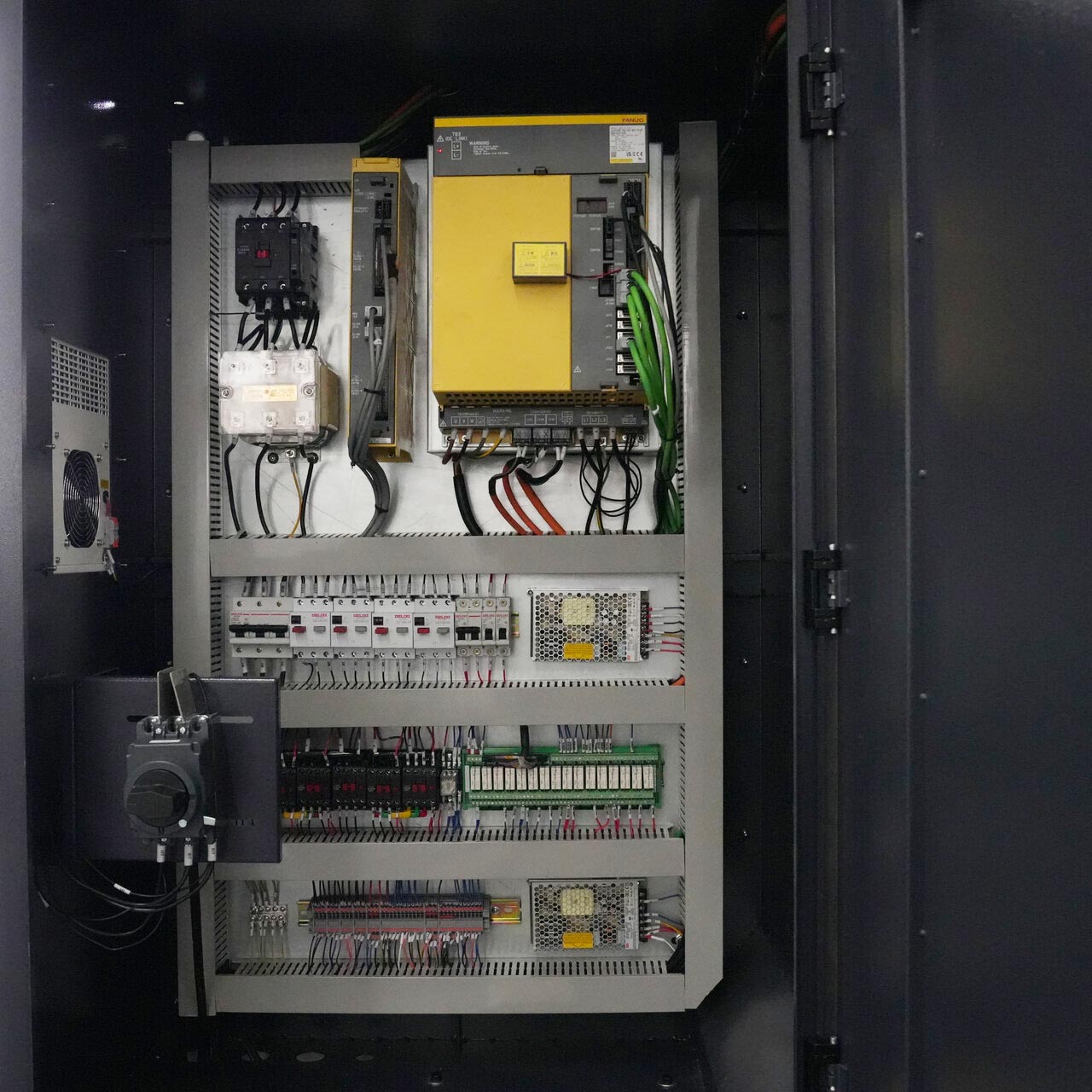

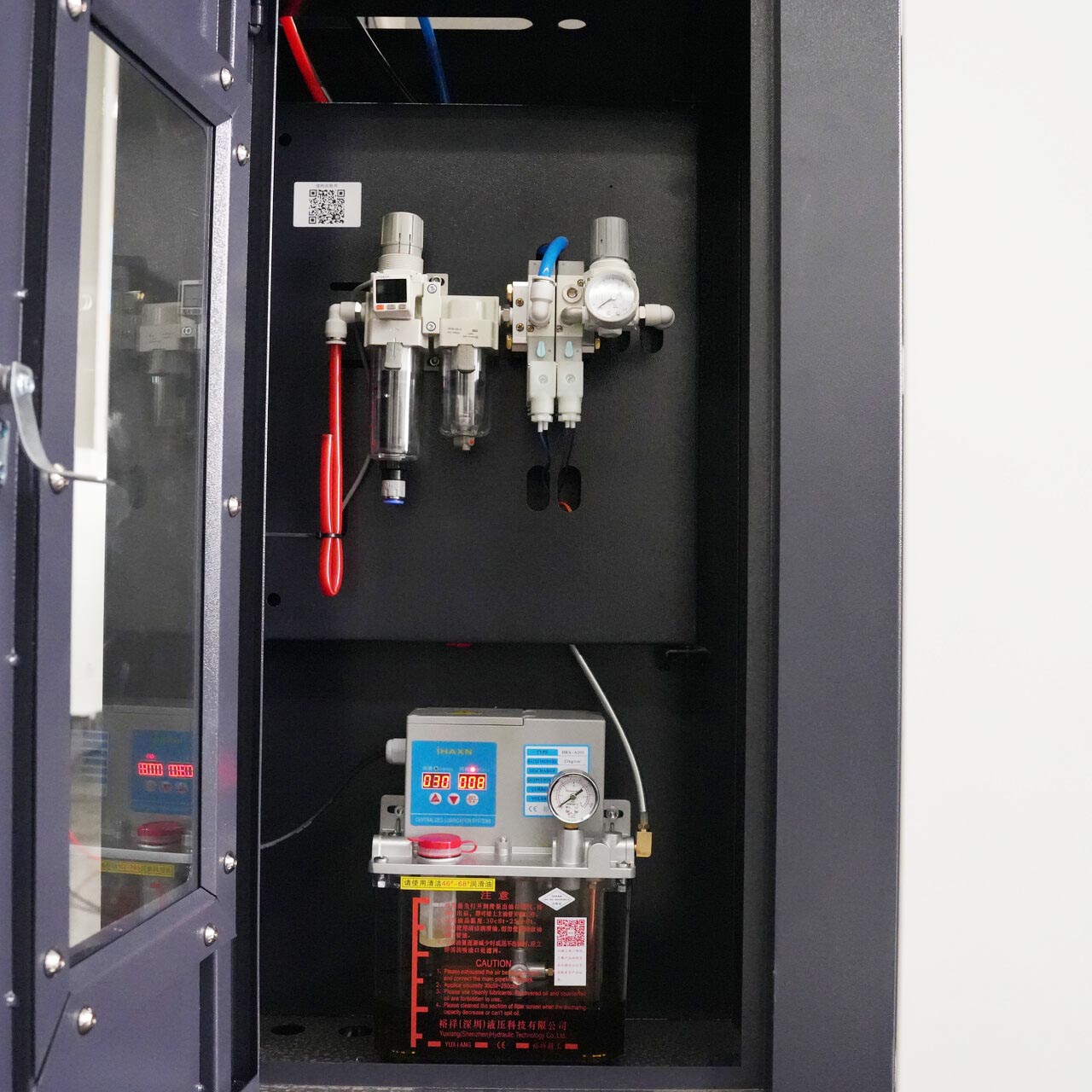

that transport coolant from the cooling system to the nozzle. The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool. The machine is equipped with an intelligent centralized automatic lubrication system that can automatically supply oil to the guide rails, screws, and key transmission components according to a set cycle, achieving continuous and stable lubrication, effectively reducing wear and improving machining accuracy and equipment service life. Contact Us
Product Details

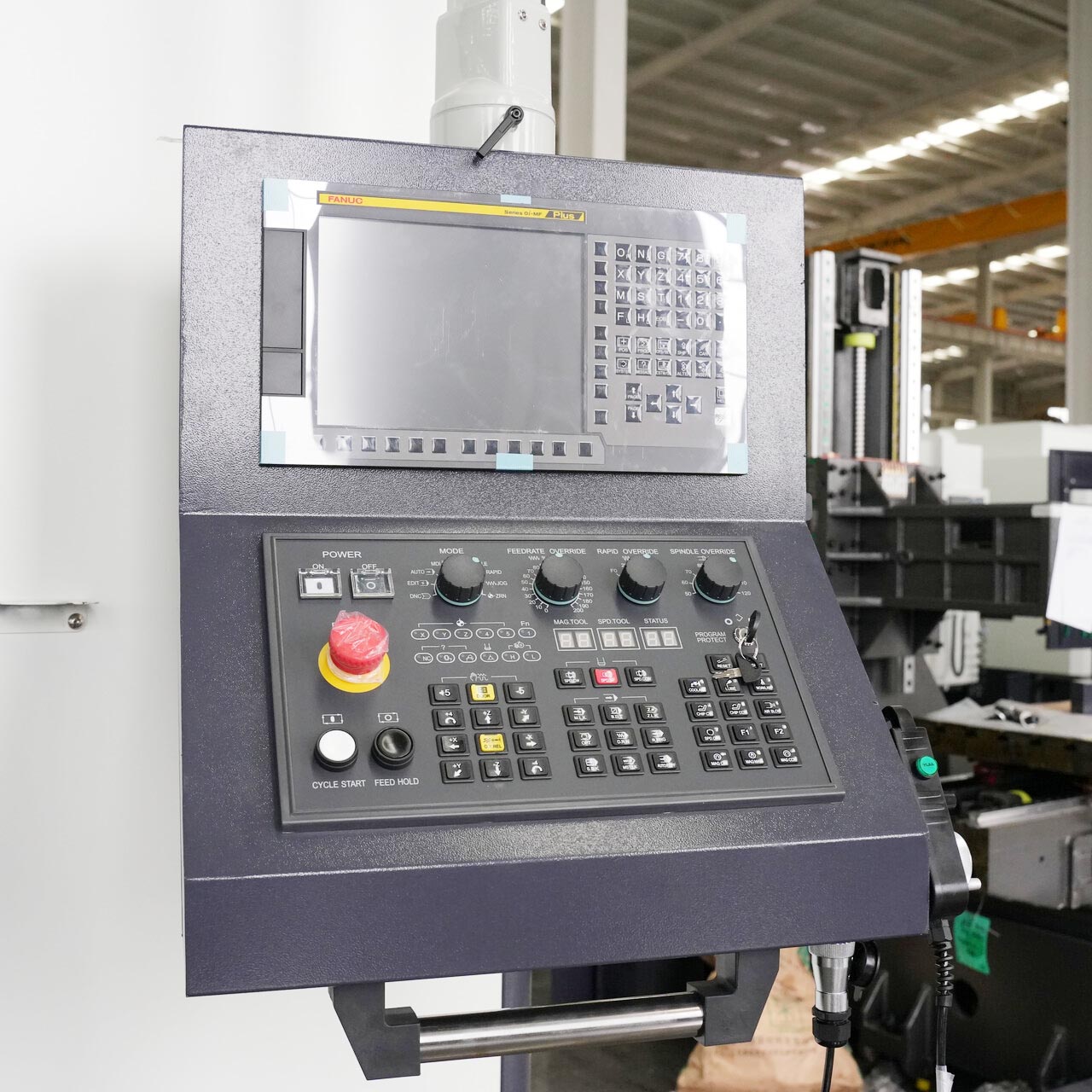

FANUC Control System
The FANUC (FANUC) 0i-TF Plus CNC system dedicated to lathes features an operation panel,

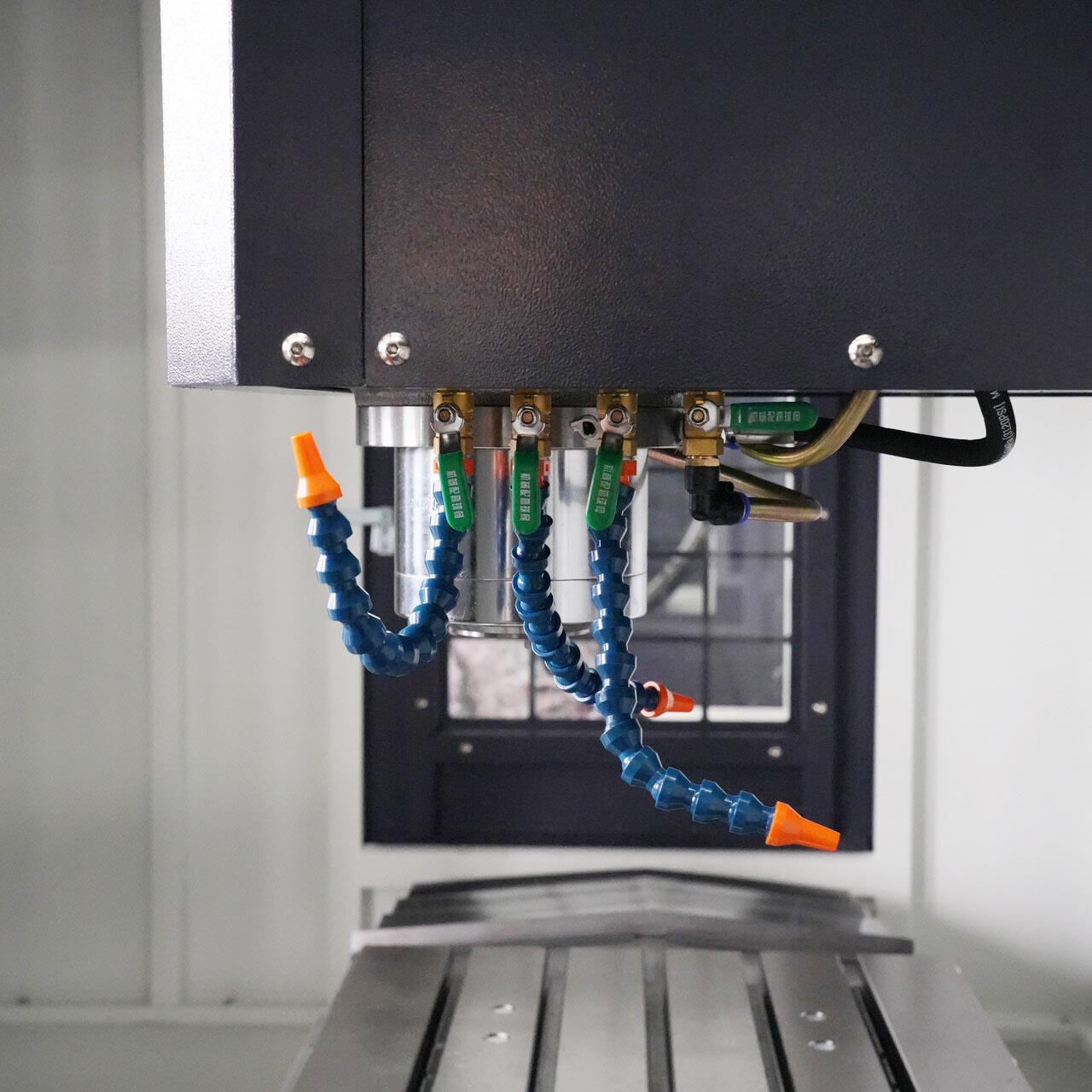

The green connector and transparent hose above the image are the coolant pipelines
Optional Control System
Plsease input value
Error E-mail format
Error cellphone format
Plsease input value
Plsease input value
Phone: +8613361065708
Email: lris@fulucnc.com
Whatsapp: +8613361065708
In-stock products: Production completed within 7–15 days.
Yes. If your order meets our minimum order quantity (MOQ) requirements, we can print your brand logo on the products and packaging.
Yes. If your order meets our MOQ requirements, we can customize the product color according to your needs.
After signing the contract, the customer needs to pay a 50% deposit, and we arrange production; after production is completed, the customer pays the remaining 50% balance, and then we arrange shipment.
1. Strict quality inspection during the production process. 2. Strict sampling inspection before shipment to ensure product quality meets standards and packaging is intact.
