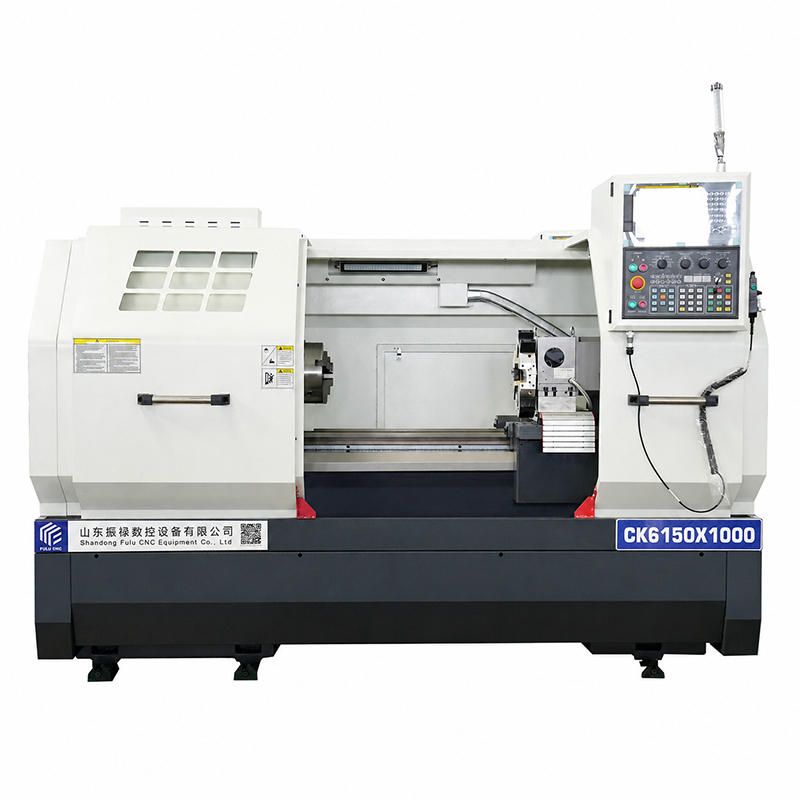

From high-quality raw materials to precision machining, every process is strictly controlled to create high-precision, high-strength core components for lathes.
Suitable for large-scale mass production, precision parts processing, and custom non-standard parts, deeply engaged in various industries.
| Item | Unit | Specification |
| Maximum Swing Diameter over Bed | mm | 500 |
| Maximum Swing Diameter over Saddle Slide | mm | 270 |
| Guideway Span | mm | 400 |
| Effective machining length | mm | 850/1350/1850 |
| Maximum stroke X | mm | 280 |
| Maximum stroke Z | mm | 1000/1500/2000 |
Product Features

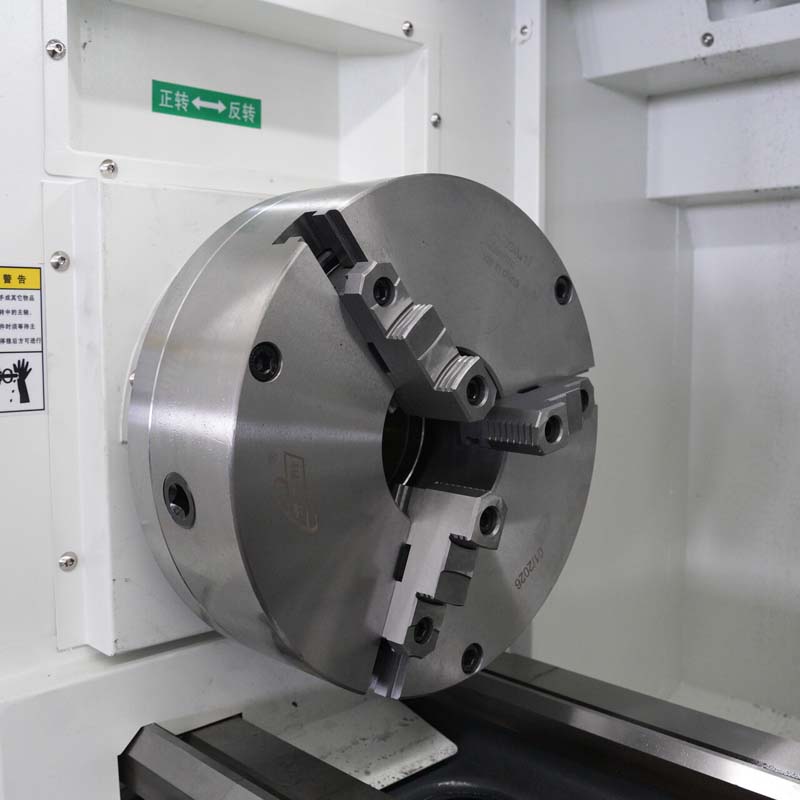

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large bearing capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than the same specification slant bed, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rail / medium frequency quenching guide rail, wear-resistant, good precision retention; equipped with precision ball screw, accurate positioning, high repeat precision.
| Project | Unit | Specification |
| Maximum turning diameter on the bed | mm | 500 |
| Maximum turning diameter on the saddle slide | mm | 270 |
| Guide rail span | mm | 400 |
| Effective processing length | mm | 850/1350/1850 |
| Maximum travel X | mm | 280 |
| Maximum travel Z | mm | 1000/1500/2000 |
| Spindle speed range | r/min | 45-1600/1200 (three-speed) |
| Spindle through hole diameter | mm | Φ82/Φ105 |
| Spindle taper hole | Metric | Metric 90 (1:20) |
| Spindle end model | A2-8 | |
| Height from spindle center to bed surface | mm | 255 |
| Maximum travel of tailstock sleeve | mm | 150 |
| Diameter of tailstock sleeve | mm | 75 |
| Taper of tailstock sleeve taper hole | Morse 5 | |
| Rapid movement speed (X/Z axis) | m/min | ≥6/8 |
| Turning thread range (metric thread) | mm | 0.2～30 |
| Repeat positioning accuracy (X/Z axis) | mm | 0.007～0.01 |
| Processing accuracy | IT6～IT7 | |
| Processing roughness | Ra1.6 | |
| Maximum load for shaft parts | kg | 500 |
| Maximum load for disc parts | kg | 300 |
| Dimensions: Length × Width × Height | mm | 2640×1600×1800 |
| Machine weight (approximately) | kg | 2500/2700/3200 |
| Name | Model, Specification | Quantity | Place of Origin |
| Control System | GSK980TB3i Bus System | 1 | Guangzhou |
| Ball Screw | X-axis: FFZD2505 | 1 | Taiwan Shenghe/Nanjing Process |
| Z-axis: FFZD4010 | 1 | Huaxia | |
| Screw Bearing | X:760204TN/P5DB | 1 Pair | Harbin |
| Z:760307TN/P5DB/7206AC/6206RS | 1 Set | Harbin | |
| Inverter | 7.5KW | 1 | Domestic |
| Spindle Bearing | 234424BM1/SP5（120×180×72） | 1 | HRB |
| NN3024K/W33/P5.2（120×180×46） | 1 | HRB | |
| NN3020K/W33/P5（105×160×26） | 1 | HRB | |
| 6019（105×160×26） | 1 | HRB | |
| Tool Holder | LDB4-6150/110 | 1 | Hongda |
| Manual Chuck | Φ250 Three-Jaw | 1 | Domestic |
| Lubrication System | TZ-150/4C | 1 | Domestic |
| Cooling Pump | AB-25 | 1 | Domestic |
| Accessory Name |
| 6/8/10 Inch Hydraulic Chuck |

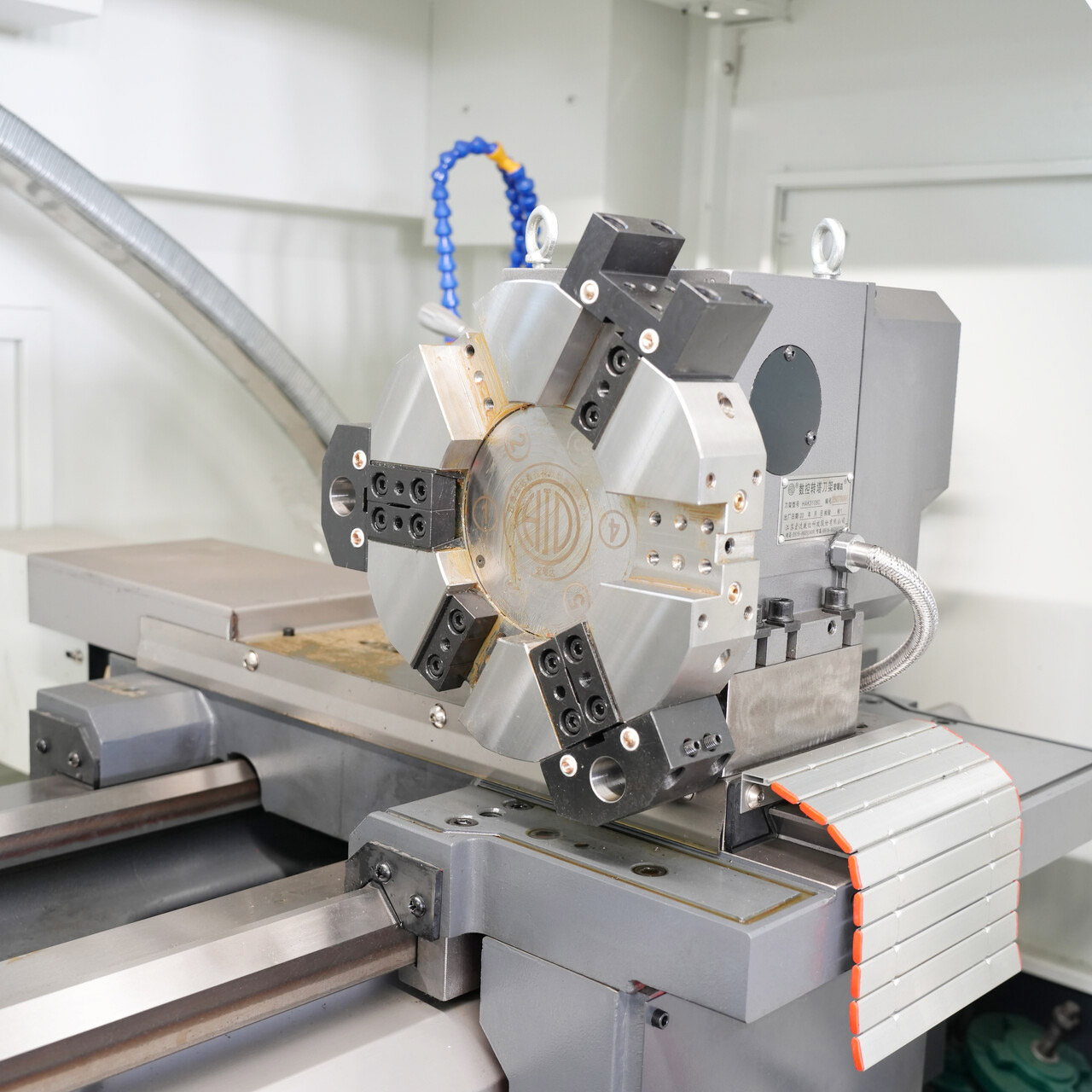

| 6/8 Station Electric Tool Holder |
| Hydraulic Tailstock |

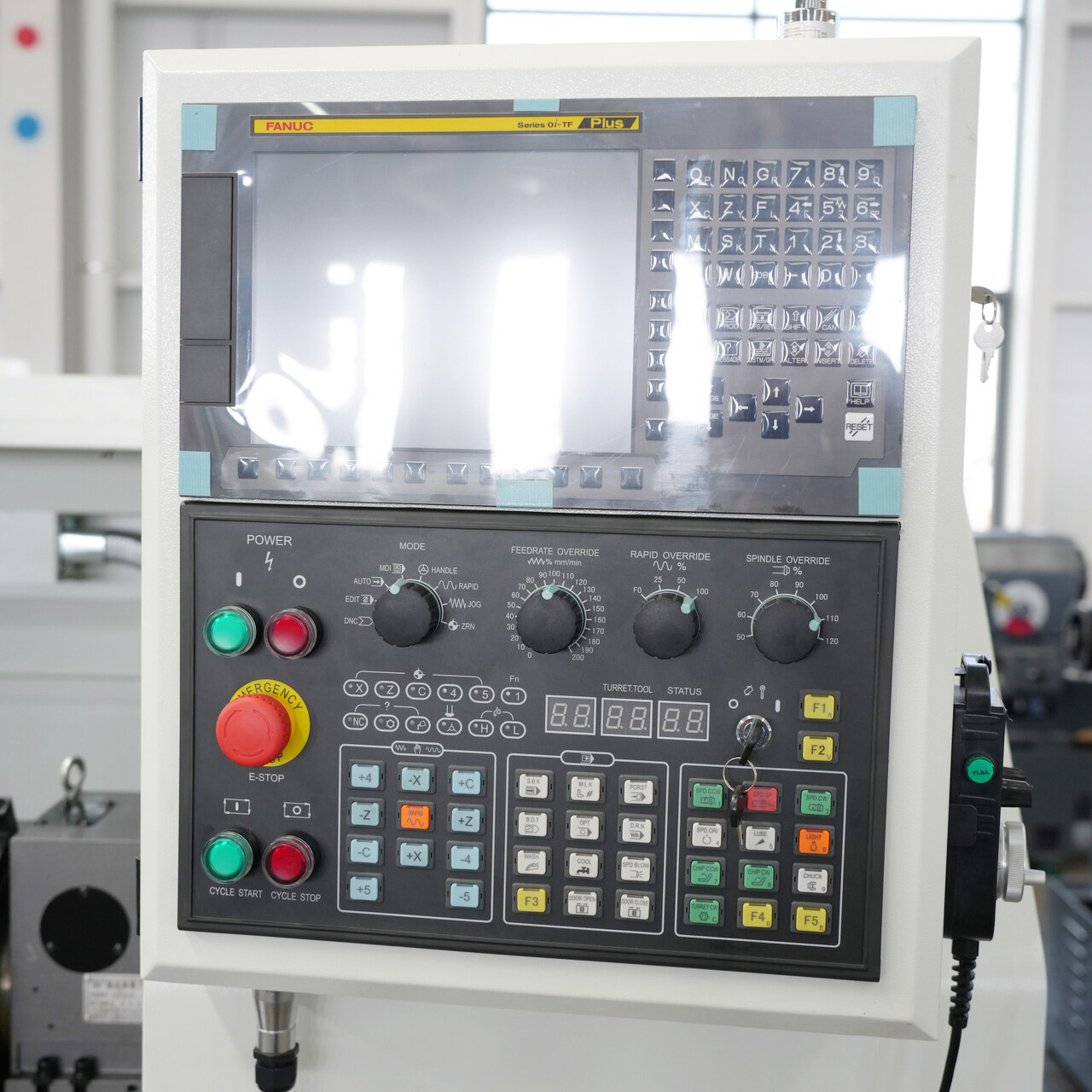

| GSK/Fanuc/Siemens Control System |
