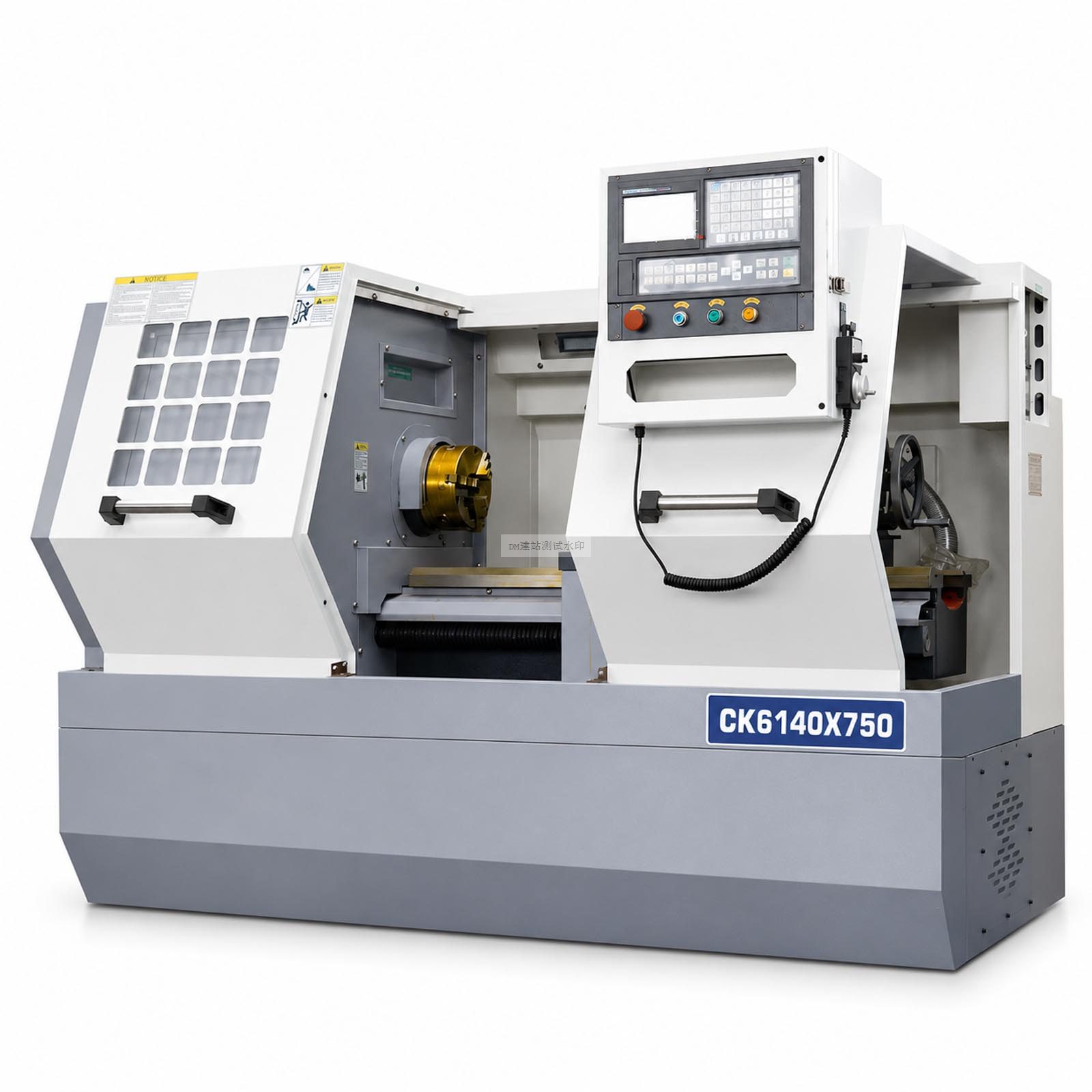

CK6140X750

Parameter

Maximum swing diameter on bed slide	mm	Φ400
Maximum swing diameter on slide		Φ200
Maximum machining length	mm	750/1000/1500
Maximum machining diameter	mm	Φ400
Maximum bar diameter	mm	Φ200
Chuck		200 Three-jaw Chuck

Inquiry

Detail Inquiry

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large bearing capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than the same specification slant bed, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rail / medium frequency quenching guide rail, wear-resistant, good precision retention; equipped with precision ball screw, accurate positioning, high repeat precision.

Learn More

Nulla bibendum dictum pulvinar feugiat

CNC flat lathe features a horizontal flat bed structure, two axes (X/Z) linkage, used for automatic processing of external circles, internal holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. With strong overall rigidity, simple structure, and high cost performance, it is the main model for medium and small batch, heavy cutting, long shaft processing, widely used in automotive parts, motors, bearings, agricultural machinery, and general machinery industries.

Technical Parameters
Standard Configuration
Select Configuration

Project (CK6140)	Unit	CK6140
Maximum turning diameter on the bed slide	mm	Φ400
Maximum turning diameter on the slide		Φ200
Maximum processing length	mm	750/1000/1500
Maximum processing diameter	mm	Φ400
Maximum bar diameter	mm	Φ200
Chuck		200 three-jaw chuck
Spindle head type		ISO (GB)A2-6
Spindle through hole diameter	mm	Φ52
Spindle levels		Variable speed / two-speed (frequency conversion within gear)
Spindle speed range	r/min	10-1800/50-1600
X/Z axis travel	mm	200/（750/1000/1500）
X/Z axis screw diameter × pitch	mm	Φ20/φ40
X/Z rapid traverse speed	m/min	April 6
Tool holder type		Electric vertical
Number of stations		4
Tool holder size	mm	20×20
Sleeve diameter / stroke	mm	Φ65/100
Sleeve inner hole taper		MT4
Sleeve drive type		Manual
Tailstock body movement type		Manual
Spindle motor power	Kw	5.5
Cooling pump motor power	W	90
Bed saddle layout type		Flat bed
Guide rail type		Hard rail (average HRC55)
Machine dimensions: length × width × height	mm	2150/2650/3250X1500X1700

Accessory Name	Specifications Model	Manufacturer
CNC System	GSK980TB3i English System	GSK
Main Motor	5.5KW	Shanghai
Spindle Bearing		Harbin
X-axis Ball Screw	Φ20	Jiangsu Qijian
Z-axis Ball Screw	Φ40	Jiangsu Qijian
Chuck	200 Three-Jaw Self-Centering	Wafangdian
Tool Holder	4 Station Electric	Wenchang

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Siemens Control System

Learn More

Product Details

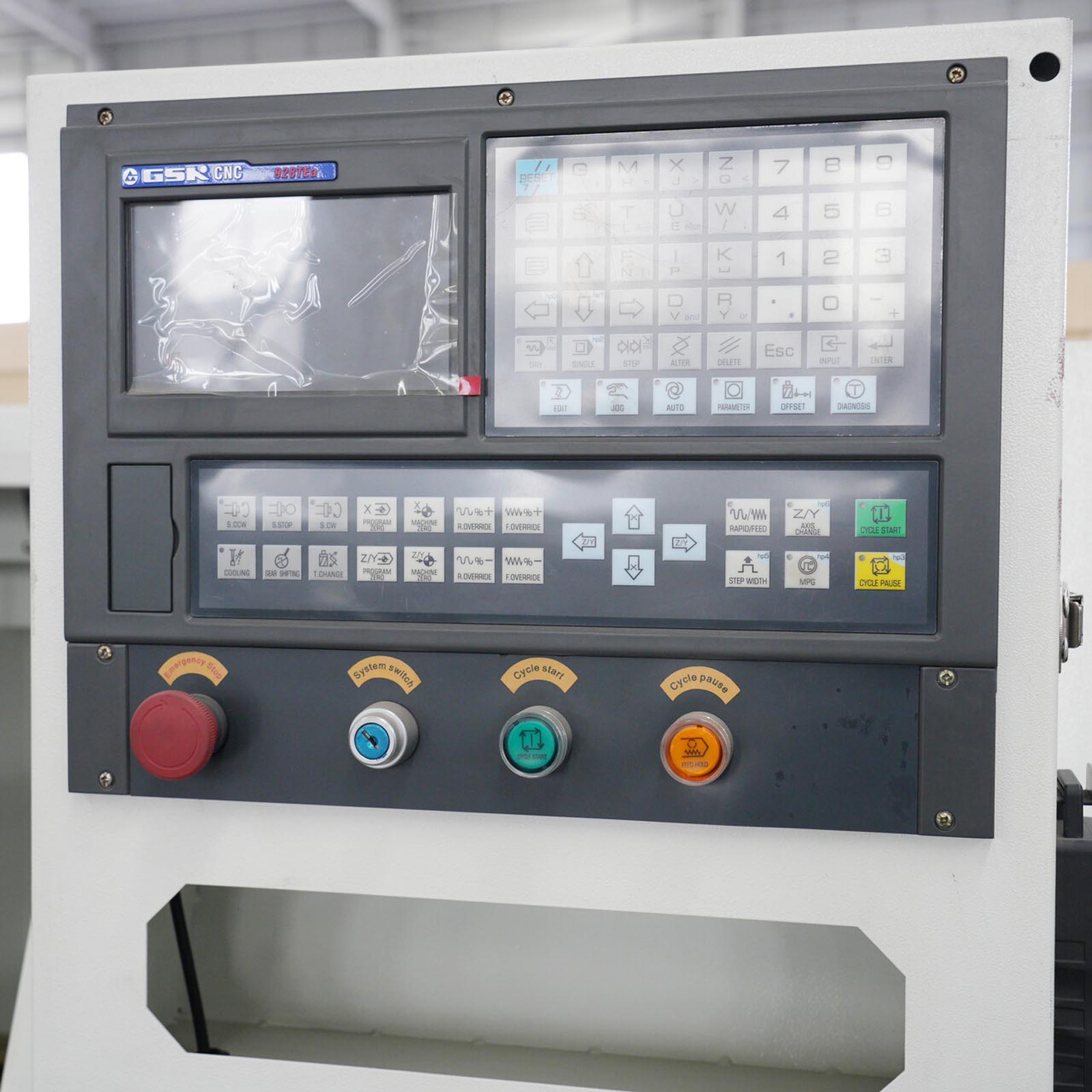

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including the main control unit, servo drives, and input-output modules, which can be flexibly configured to meet the needs of different machine tools.
----

8 Station Electric Tool Holder

This type of tool holder is a standard configuration for modern CNC lathes, eliminating the manual tool change process, significantly improving production efficiency, and supporting complex multi-process machining in a single clamping.
----

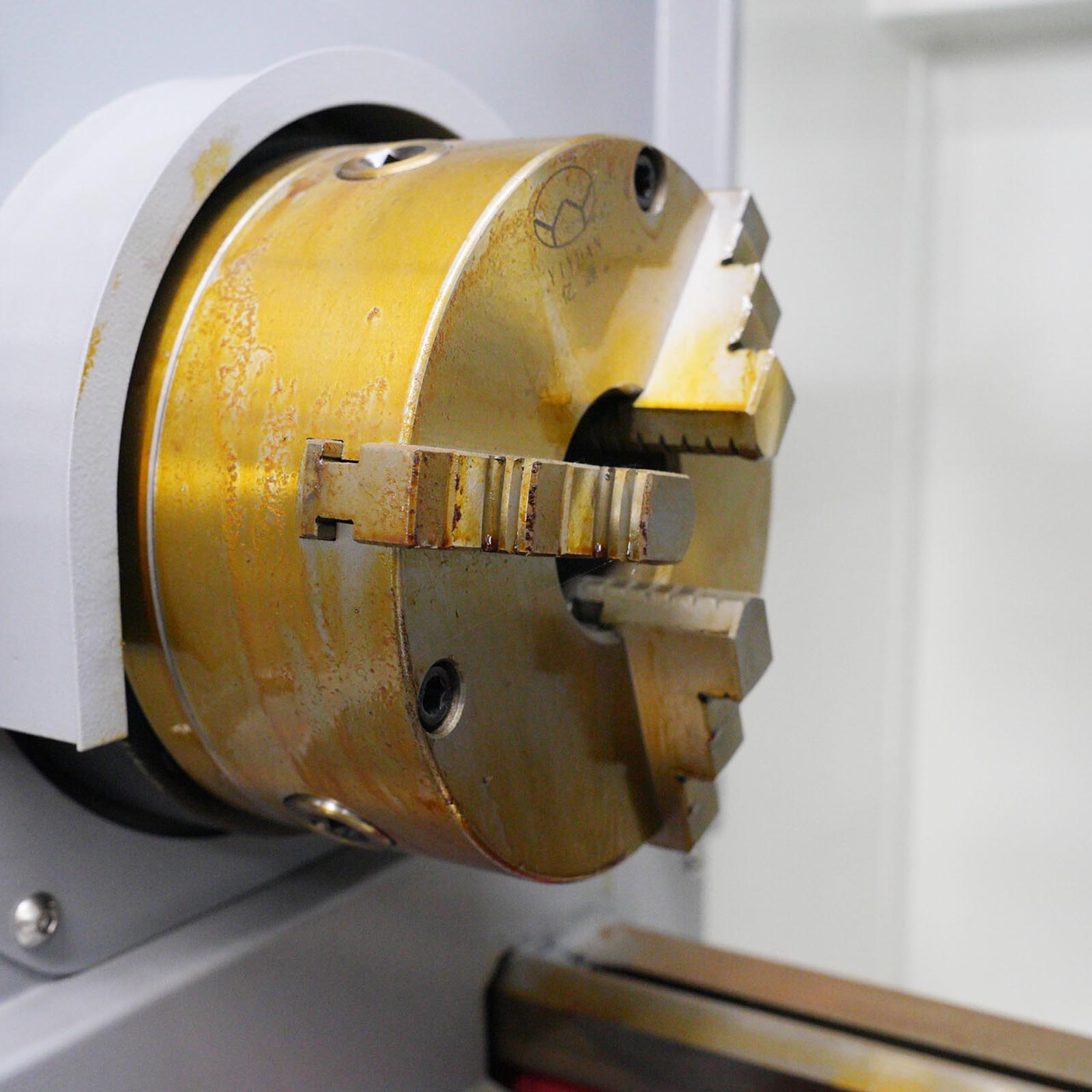

Three-Jaw Self-Centering Chuck

It can achieve automatic centering and clamping for shaft and disc workpieces; when used with a four-axis rotary table, it can also complete multi-surface machining and complex curved surface machining.
----

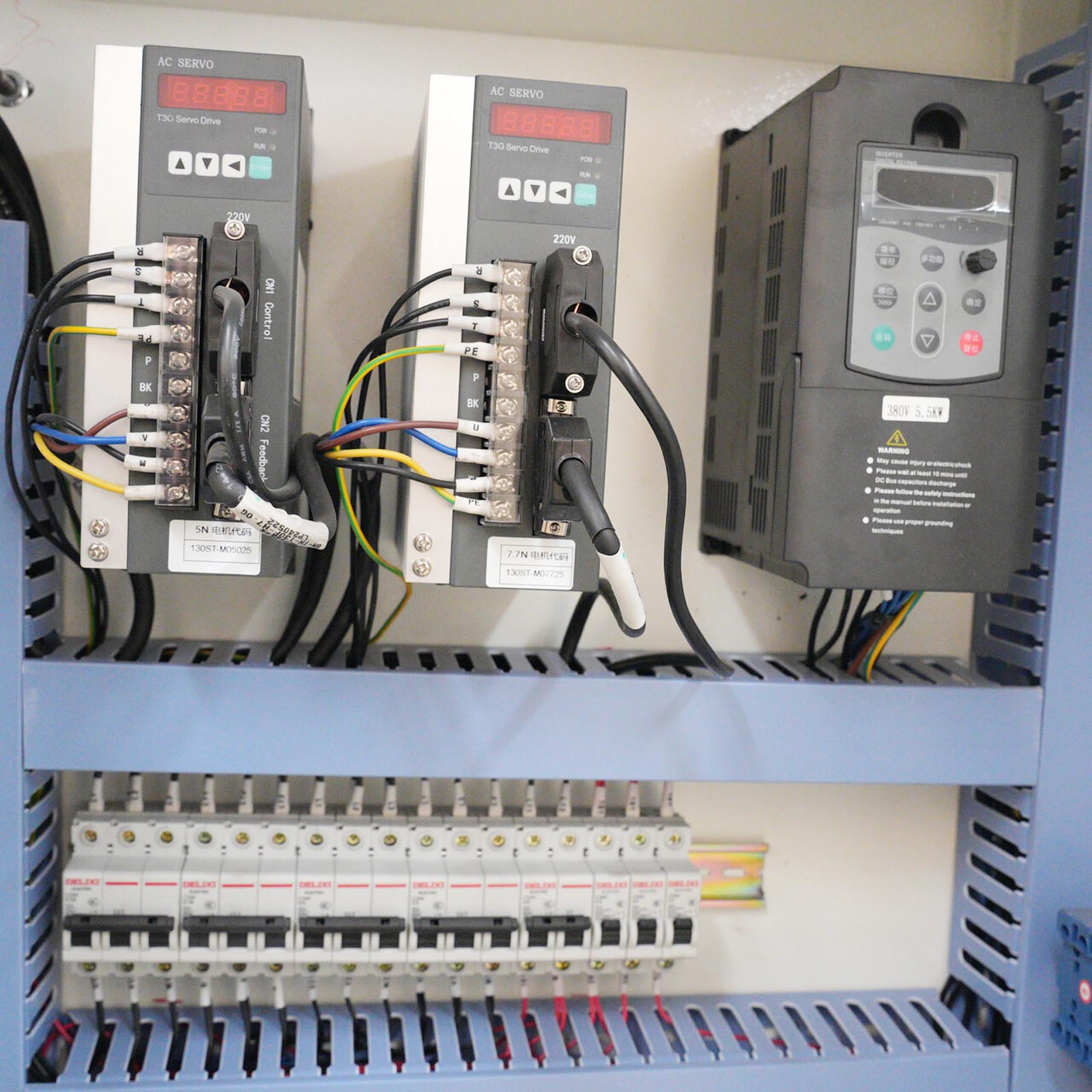

Electrical Control Cabinet

The electrical control cabinet is the 'nerve center' of CNC machine tools. It converts CNC program instructions into precise motion actions, safely distributes power, and protects various electrical components of the machine tool.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole

------
