Product Details

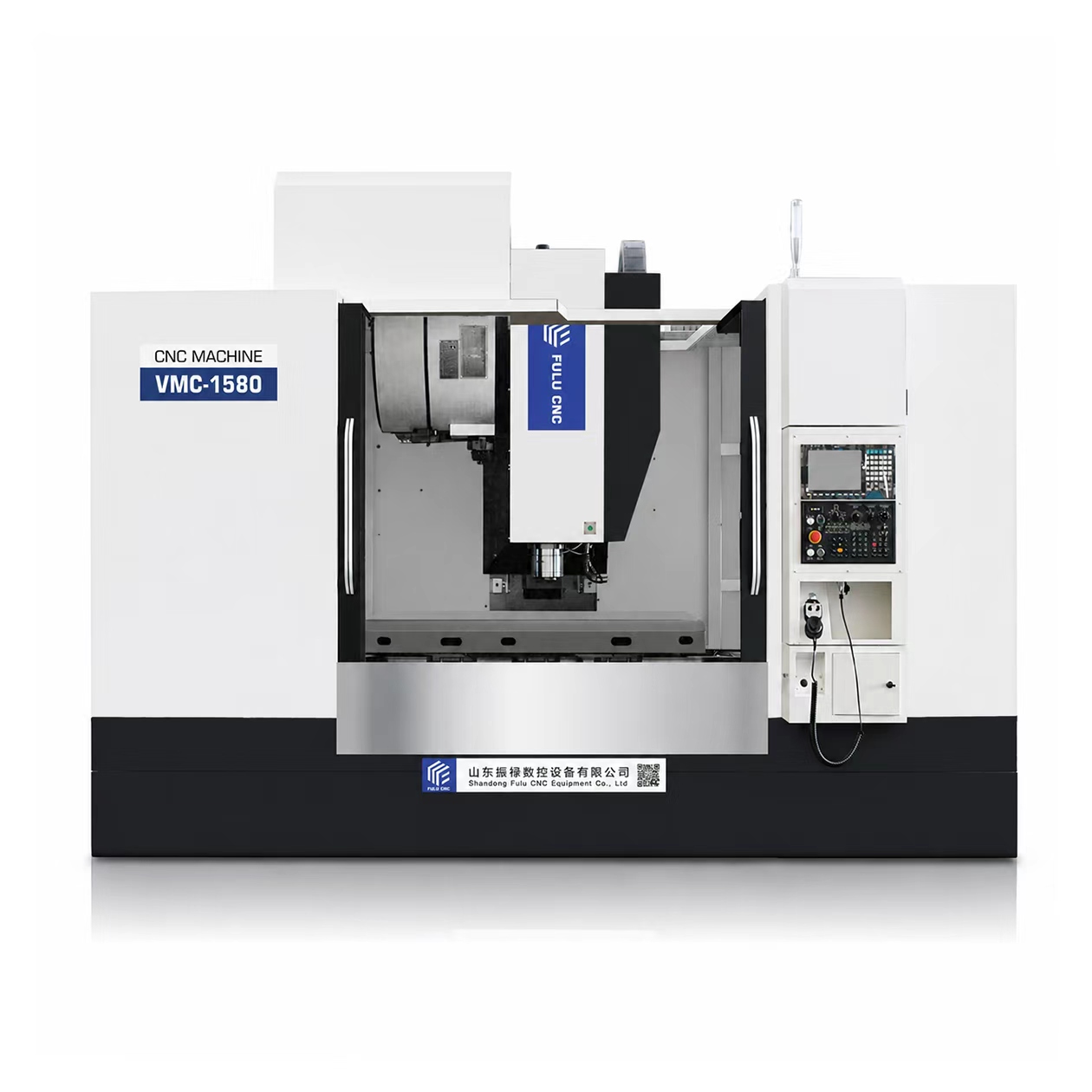

1. X, Y, Z axis travel: 1500x800x700mm

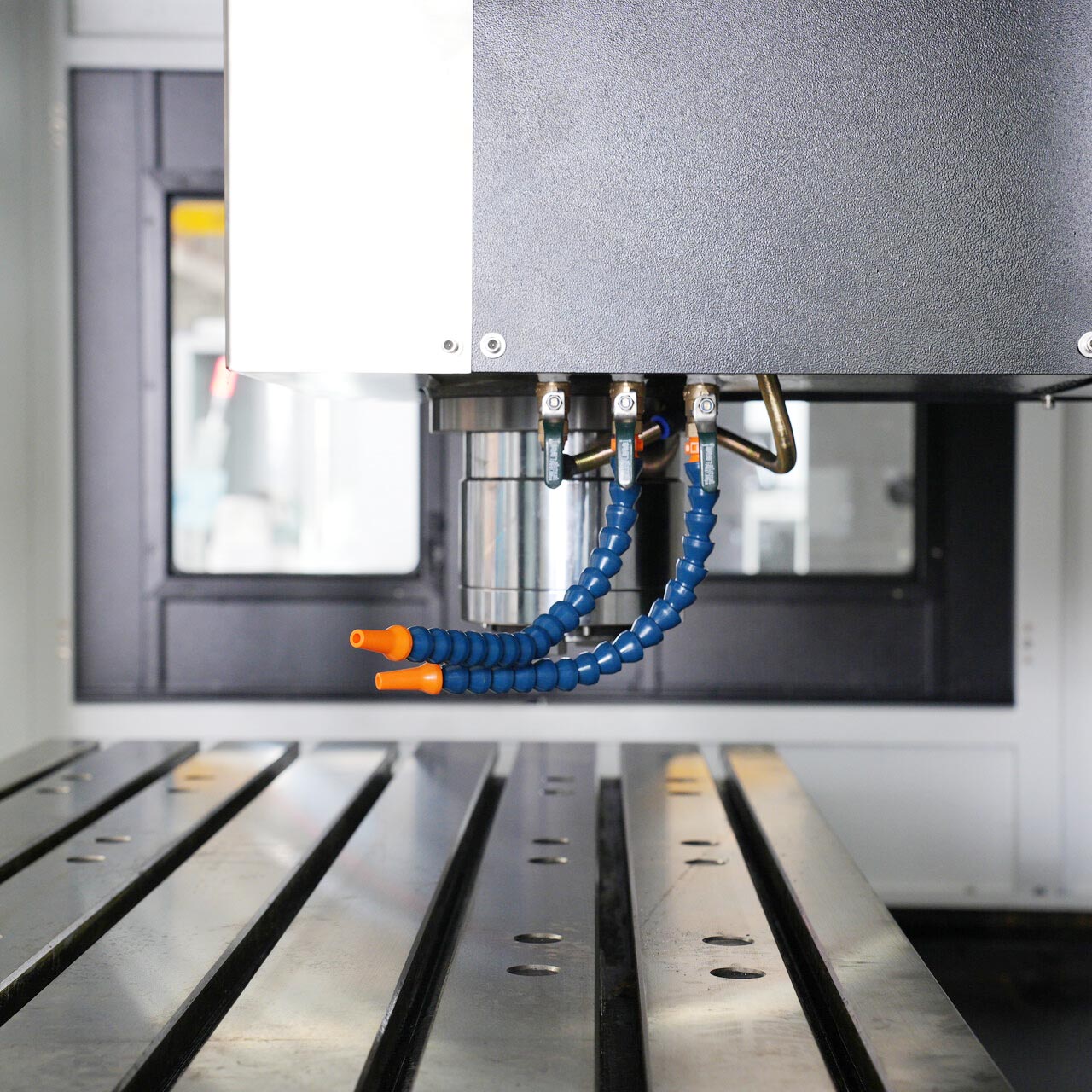

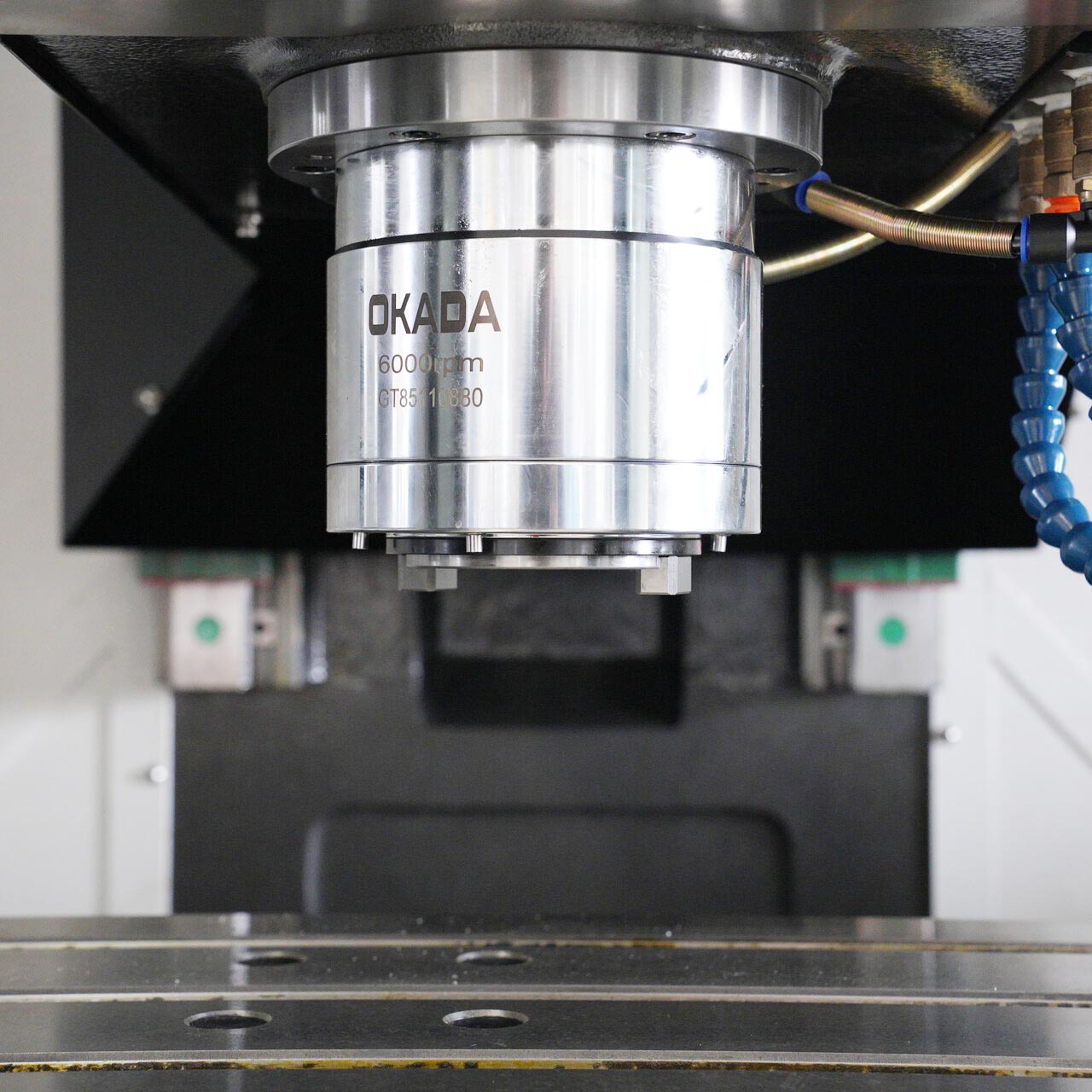

2. The spindle rotation method is belt drive, with a maximum speed of: 6000 RPM (ring water spray).

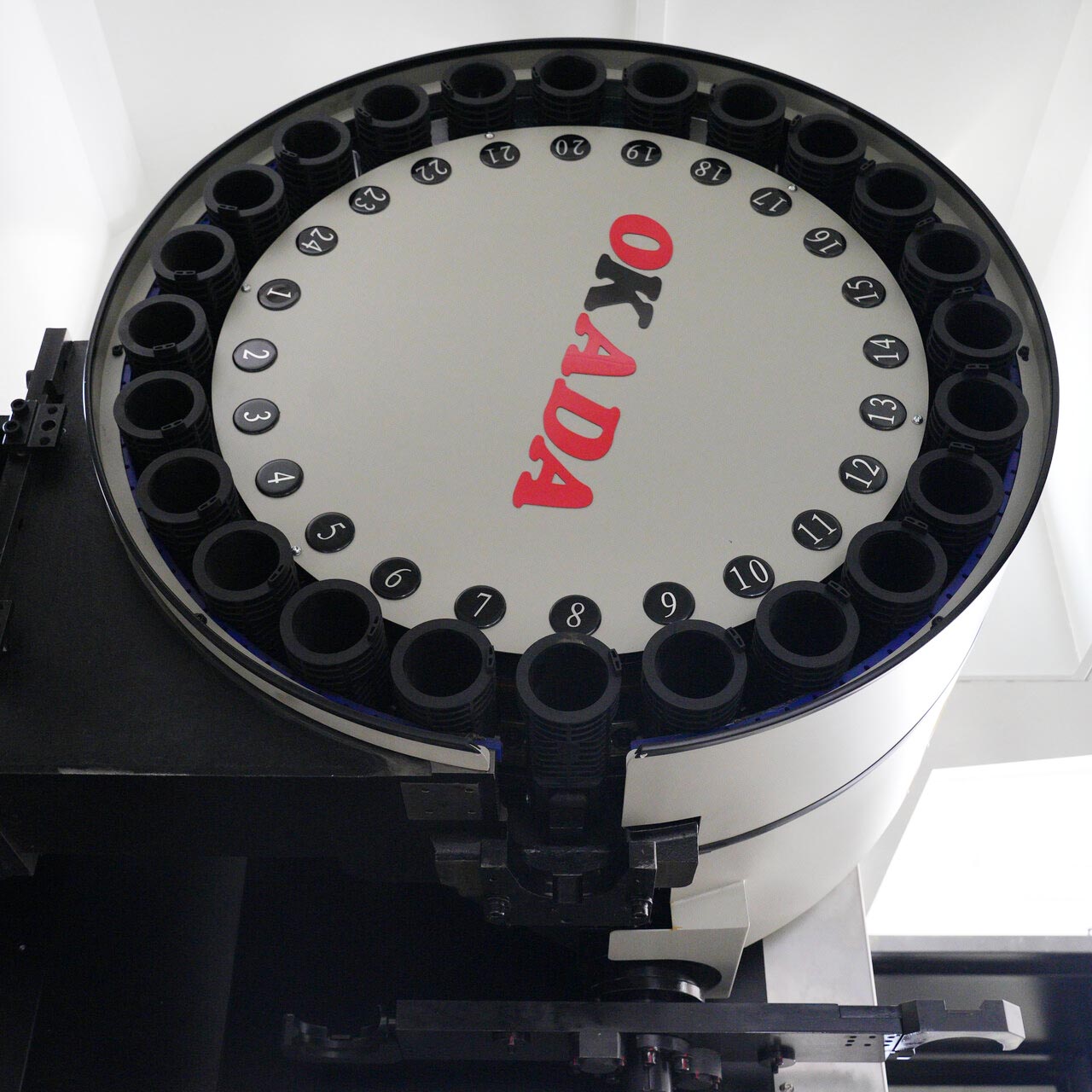

3. The standard configuration of the tool magazine is a disc-type 24-tool magazine, meeting customer needs.

4. The head assembly is a heavy-duty box structure, reinforced with internal ribs for high rigidity.

5. The spindle cutting method uses a pneumatic mechanism, ensuring even force on the spindle during cutting, extending bearing life.

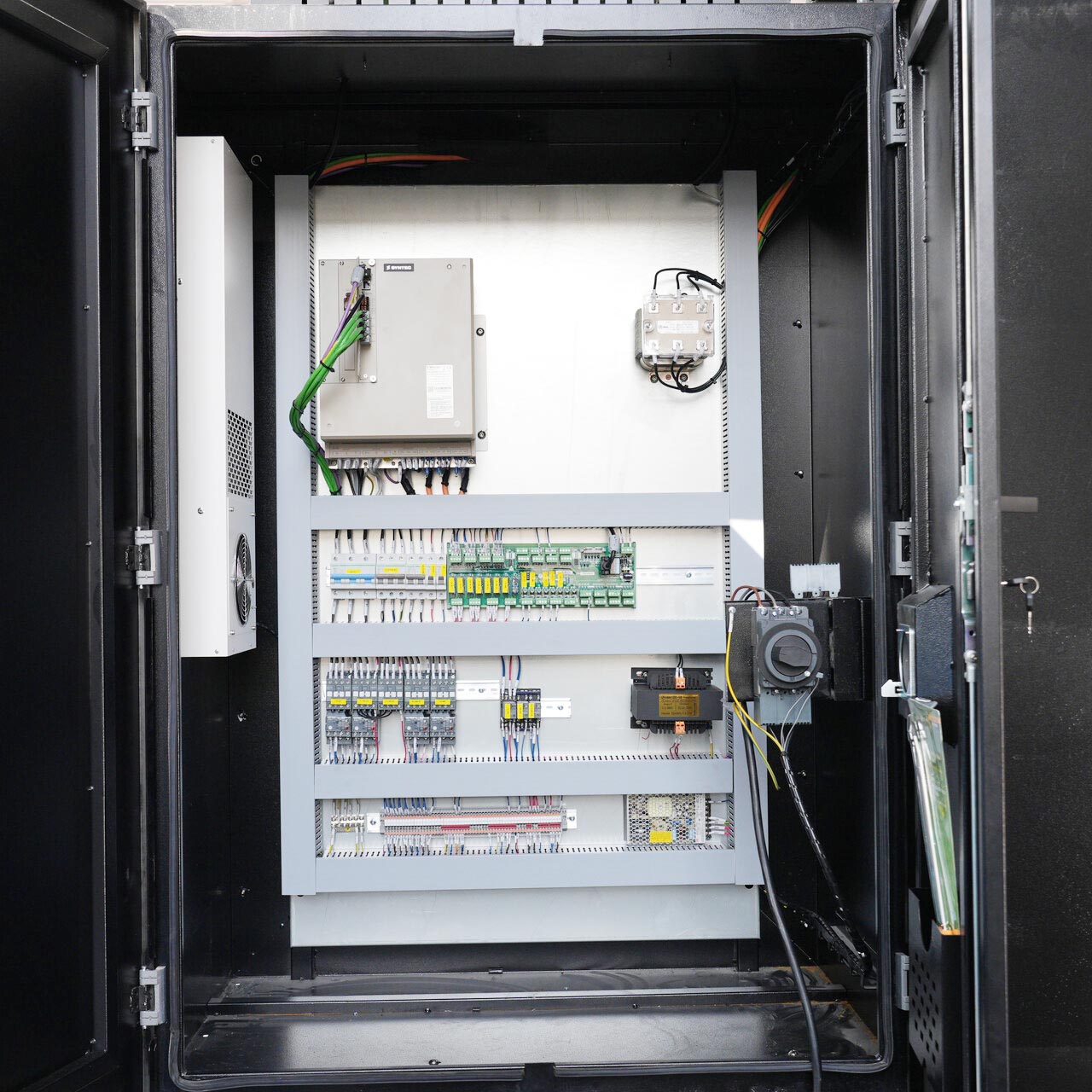

6. The electrical cabinet adopts an internal isolation design, separating the heat-generating parts of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical box; the rear uses a fan for cooling the heat plate.

7. The three axes use high-precision quenched screws, combined with precision nut preloading and rear-end pre-tensioning devices, ensuring that the machine's backlash and thermal deformation remain low for a long time.

8. X, Y, Z axes (X/Y axis RGH55, 6 blocks; Y axis 4 guide rails, Z axis hard rail) have high rigidity and low noise, capable of rapid displacement and achieving optimal cycle accuracy.

9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine undergoes strict inspection measures before shipment to ensure long-term stability of various precisions.
