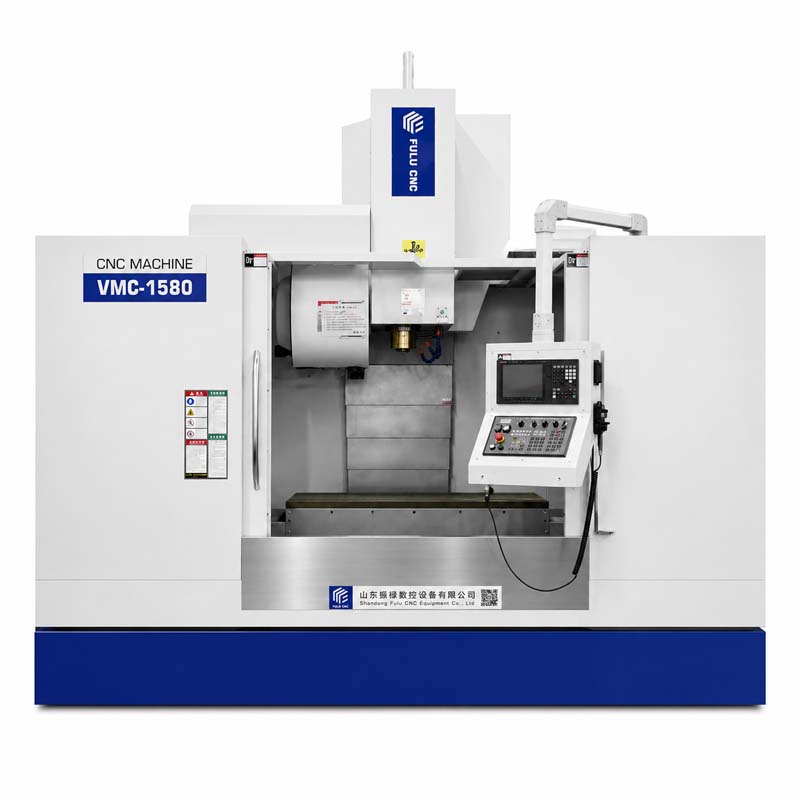

From high-quality raw materials to precision machining, every process is strictly controlled to create high-precision, high-strength core components for lathes.
Suitable for large-scale mass production, precision parts processing, and custom non-standard parts, deeply engaged in various industries.
| Project | Unit | Parameter |
| Worktable Size | mm | 1700x800 |
| X/Y/Z Axis Travel | mm | 1500/800/700 |
| Distance from Spindle Nose to Worktable | mm | 160-860 |
| Distance from spindle center to column | mm | 855 |
| Maximum load of worktable | Kg | 1500 |
| Worktable T-slot | mm | 5-22*135 |
| X/Y/Z axis rapid feed | m/min | 26/26/20 |
| Project | Unit | Parameter |
| Table Size | mm | 1700x800 |
| X/Y/Z Axis Stroke | mm | 1500/800/700 |
| Distance from Spindle End Face to Table | mm | 160-860 |
| Distance from Spindle Center to Column | mm | 855 |
| Maximum Load on Table | Kg | 1500 |
| T-Slot on Table | mm | 5-22*135 |
| X/Y/Z Axis Rapid Feed | m/min | 26/26/20 |
| X/Y/Z Guide Rail Specification | mm | X: RGH55 6 Slider Y: RGH55 4 Guide Rail Z: Plastic Coated Hard Rail |
| Positioning Accuracy | mm | ±0.008 |
| Repeat Positioning Accuracy | mm | ±0.006 |
| Minimum Positioning Unit | mm | ±0.001 |
| Maximum Spindle Speed | rpm | 6000 (Spindle Oil Cooling) |
| Spindle Taper | mm | BT50 |
| Disc Robot Tool Magazine | pcs | 24T |
| Controller System | / | GSK25i System |
| Three-Axis Motor Power | Nm | 28/35/35 |
| Spindle Motor Power | Kw | 18.5KW |
| Machine Weight Approximately | T | 12 |
| No | Product Name | Place of Origin | Manufacturer |
| 1 | Main Structure Cast Iron (Bed) | Yunnan | Taibiao |
| 2 | CNC Controller | China | GSK25i |
| 3 | Spindle Drive Motor | China | GSK25i |
| 4 | Three-Axis Drive Motor | China | GSK25i |
| 5 | Integrated Spindle | Taiwan | Okada |
| 6 | Spindle Tool Cylinder | Taiwan | Zhongri Xinaika |
| 7 | X, Y, Z Bearings | Germany/Japan | NACHI |
| 8 | X, Y, Z Linear Guide Rollers | Taiwan | HIWIN |
| 9 | X, Y, Z Screws | Taiwan | HIWIN |
| 10 | Three-Axis Screw Pre-Tension Nut | Taiwan | Yingxi |
| 11 | Three-Axis Coupling | Taiwan | S+P |
| 12 | Centralized Automatic Lubrication System | Taiwan | Baoyu |
| 13 | Air Source Filtration Device | Taiwan | AirTAc |
| 14 | Cooling Device (Water Pump) | China | Zhehong |
| 15 | Operation Panel | China | GSK |
| 16 | Sheet Metal Appearance | China | Domestic |
| 17 | Electronic Handwheel | China | GSK |
| 18 | Electrical, Overload Protector | France | Schneider |
| 19 | Robot Tool Magazine | Taiwan | Beiju/Okada |
| 20 | Added Chain Type Chip Conveyor | Domestic | |
| 21 | Spindle Oil Cooler | Jiangsu | Wenheng/Diot |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg central water outlet |

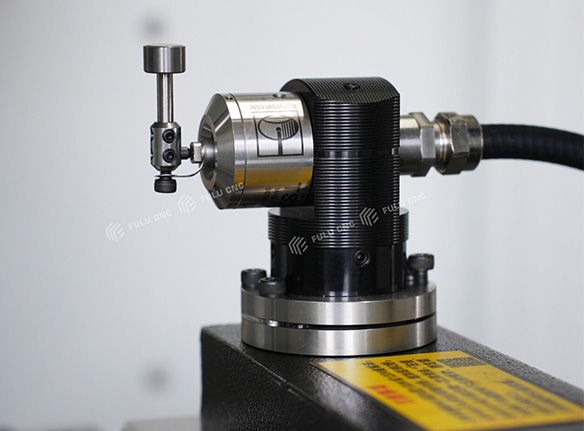

| Renishaw tool setter |
| 170/200/250/300mm fourth axis |
| 125/170/210/250mm fifth axis |
| chain-type chip conveyor |
1. X, Y, Z axis travel: 1500x800x700mm
2. The spindle rotation method is belt drive, with a maximum speed of 6000 RPM (ring spray).
3. The standard configuration of the tool magazine is a disc-type magazine with 24 tools, meeting customer needs.
4. The head assembly is a heavy-duty box structure, reinforced with internal ribs for high rigidity.
5. The spindle cutting method uses a pneumatic mechanism, ensuring even force on the spindle during cutting, extending bearing life.
6. The electrical cabinet adopts an internal isolation design, separating the heat source of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical cabinet; the rear side uses a fan for cooling the heat plate.
7. The three axes use high-precision quenched screws, combined with precision nut preloading and tail-end pre-tensioning devices, ensuring that the machine's backlash and thermal deformation remain low over time.
8. X, Y, Z axes (X/Y axis RGH55, 6 sliders; Y axis 4 guide rails, Z axis hard rail) have high rigidity and low noise, allowing for rapid displacement and achieving optimal cycle accuracy.
9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine undergoes strict inspection measures before shipment to ensure long-term stability of various accuracies.

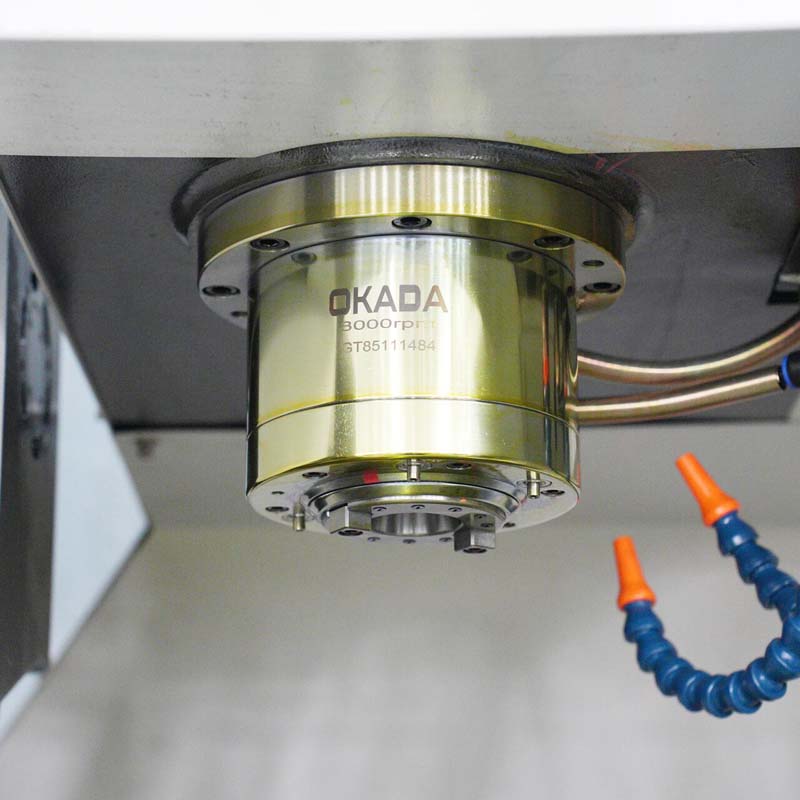

Spindle
The maximum speed of this spindle can reach12000 RPM, belonging to a medium-high speed spindle configuration, balancing the rigid cutting of steel parts with the high-speed precision machining needs of aluminum parts and molds.

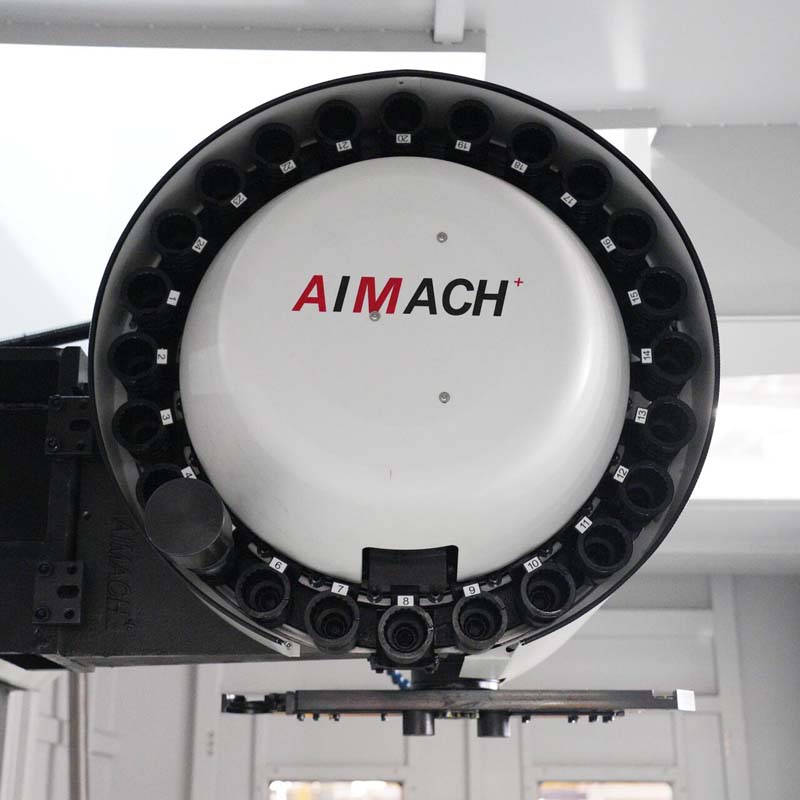

Disc-type Tool Magazine
Automatically switches tools between different processing operations without manual intervention, achievingmulti-process machining in one setup。

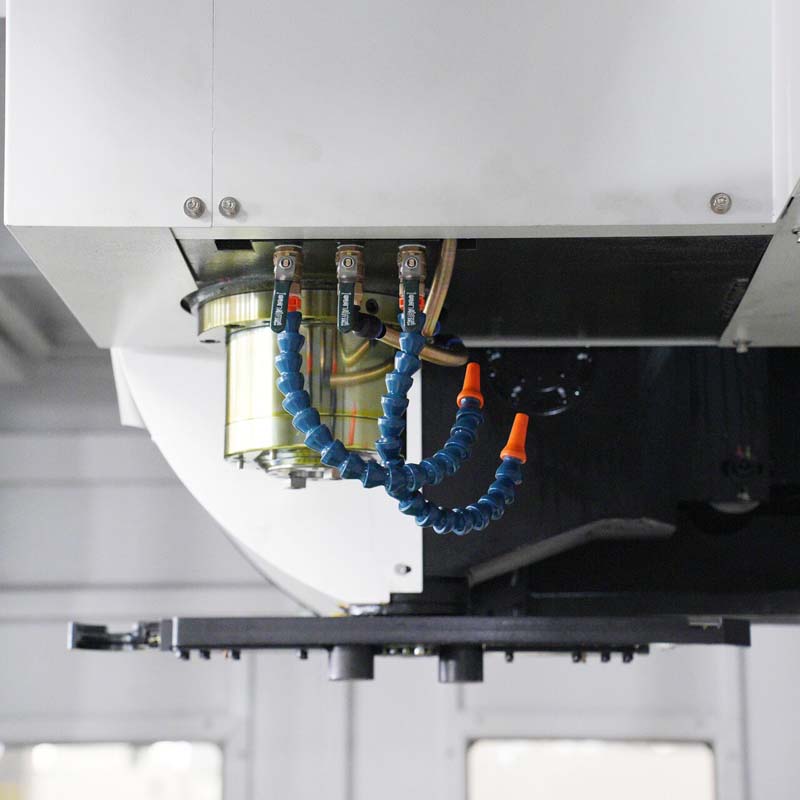

Spindle Cooling / Cutting Fluid Pipeline

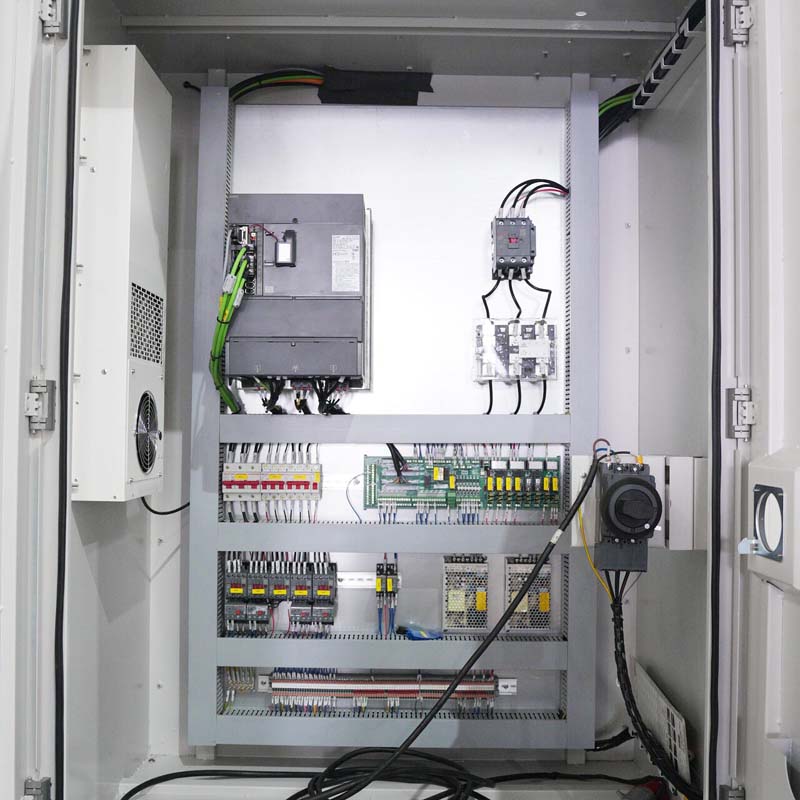

Electrical Control Cabinet

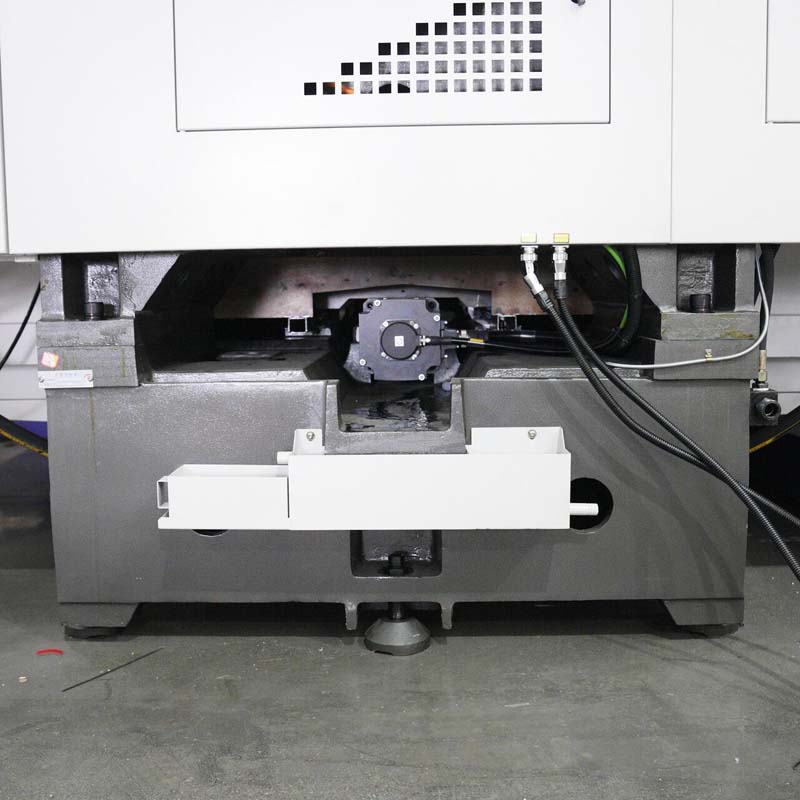

Servo Spindle Motor + Oil-Gas Lubrication Collection Tank
This structure is thecutting power unit of the CNC machining center: The servo spindle motor outputs cutting power, the white oil collection tank is responsible for lubrication fluid recovery and protection, and the heavy cast iron saddle ensures high-speed rigidity during heavy cutting, working with the M80 CNC system to complete all machining processes including milling, drilling, boring, and tapping.
Select Configuration

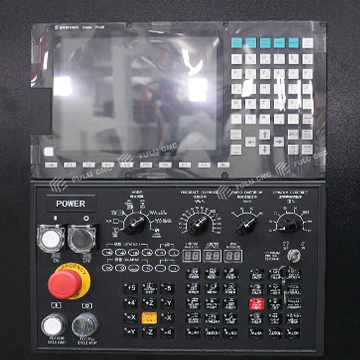

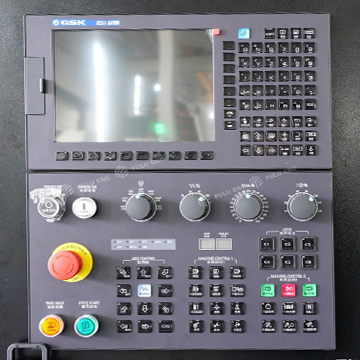

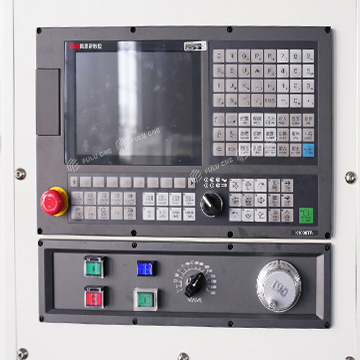

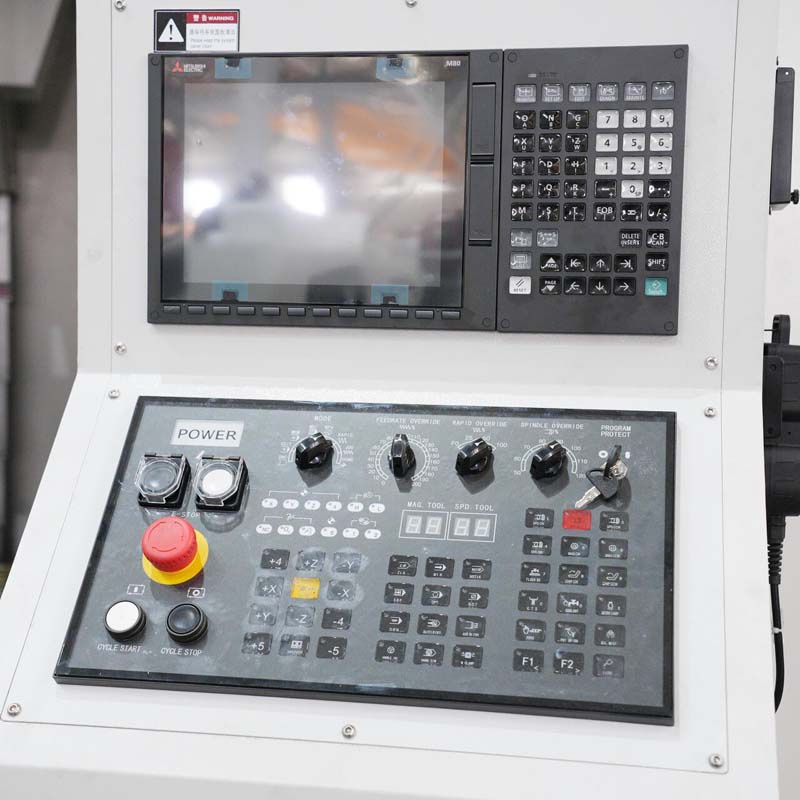

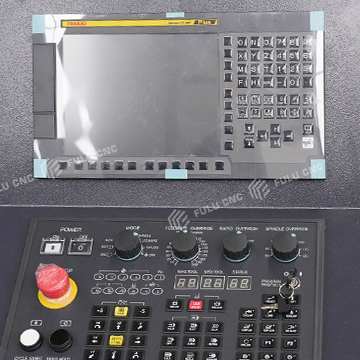

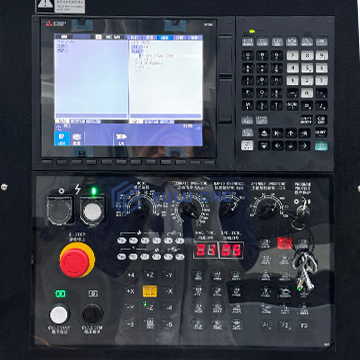

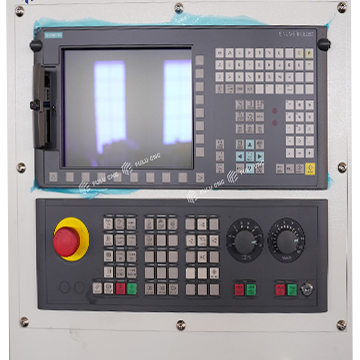

Optional Control System
