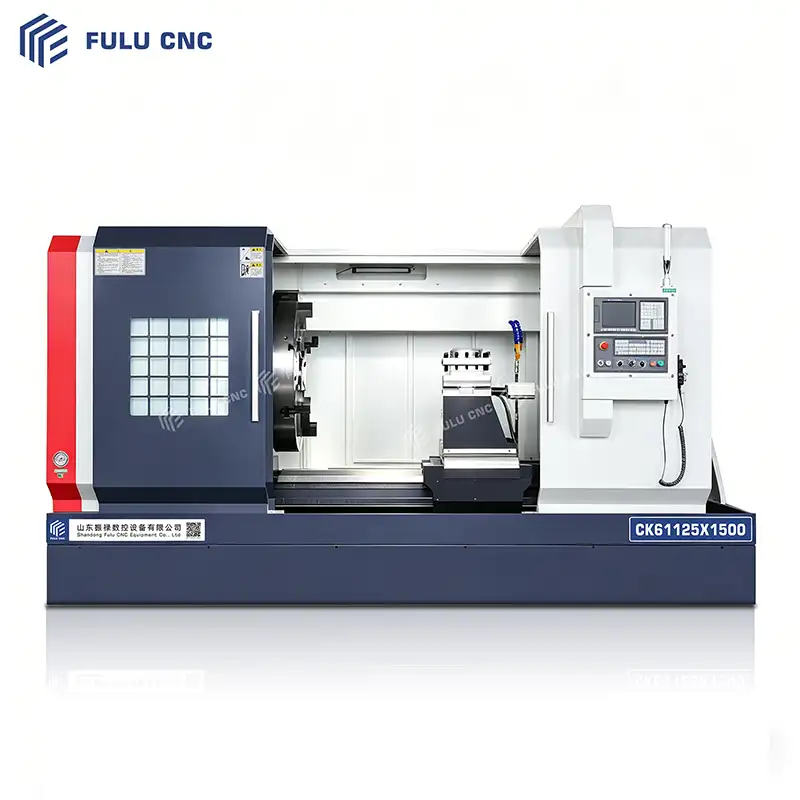

ck61125x1500 heavy duty cnc lathe machine

CK61125X1500 CNC Lathe Machine

Product Parameters

Project	Unit	Specification
Maximum Workpiece Swing Diameter on Bed	mm	1250mm
Maximum Workpiece Swing Diameter on Tool Post	mm	850mm
Maximum Workpiece Length Between Two Centers	mm	1500/2000/3000/4000/5000
Effective machining length	mm	1350/1850/2850/3850/4850
Bed guide width	mm	755/600
Spindle bore diameter	mm	ф105/130

Online Consultation

Content Details tabbb1t2t3Online Consultation

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large load capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than similarly sized slant bed lathes, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rails / medium frequency hardened guide rails, wear-resistant, good precision retention; equipped with precision ball screws, accurate positioning, high repeatability.

Learn More

Product Introduction

The CNC flat lathe features a horizontal flat bed structure, with two axes (X/Z) linked, used for automatic processing of external circles, inner holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. It has strong overall rigidity, simple structure, and high cost performance, making it the main model for medium and small batch, heavy cutting, long shaft processing, widely used in industries such as automotive parts, motors, bearings, agricultural machinery, and general machinery.

Technical Parameters
Standard Configuration
Select Configuration

Project	Unit	Specification
Maximum workpiece rotation diameter on the bed	mm	1250mm
Maximum workpiece rotation diameter on the tool holder	mm	850mm
Maximum workpiece length between centers	mm	1500/2000/3000/4000/5000
Effective processing length	mm	1350/1850/2850/3850/4850
Width of bed guide rail	mm	755/600
Spindle hole diameter	mm	ф105/130
Spindle end code	-	A2-11
Spindle speed range (frequency conversion stepless speed regulation)	r/min	30-84/53-150/125-350/300-835
Chuck (manual) four-jaw chuck	mm	1000
Main motor power	Kw	November 15
Main motor power	mm	40×40
Electric tool holder	-	Vertical four-station tool holder
Maximum stroke of the saddle in the Z direction	mm	1500/2000/3000/4000/5000
Maximum lateral stroke of the tool holder in the X direction	mm	620
Rapid movement speed of the saddle in the Z direction	m/min	6
Lateral rapid movement speed of the tool holder in the X direction	m/min	4
Torque of X/Z axis	nm	10/15/18.5/22
Diameter of tailstock sleeve	mm	φ100
Stroke of tailstock sleeve	mm	250
Taper of tailstock sleeve	-	Metric 100/Morse 6
Machine profile (Length x Width x Height) CK61125	mm	3500/3900/5500/6500/750020002000

Accessory Name	Specification Model	Manufacturer
CNC System	GSK980TB3i Bus Full Set Absolute Value System	GSK
Main Motor	15KW	Shanghai
Spindle Bearing		Harbin
X-axis Ball Screw	φ32*6	Nanjing Process
Z-axis Ball Screw	Φ50/63/80*10	Nanjing Process
Chuck	1000 Four-jaw	Wafangdian
Tool Holder	4-position Electric	Hongda

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Turret

Hydraulic Tailstock

GSK/Fanuc/Simens Control System

Learn More

Product Details

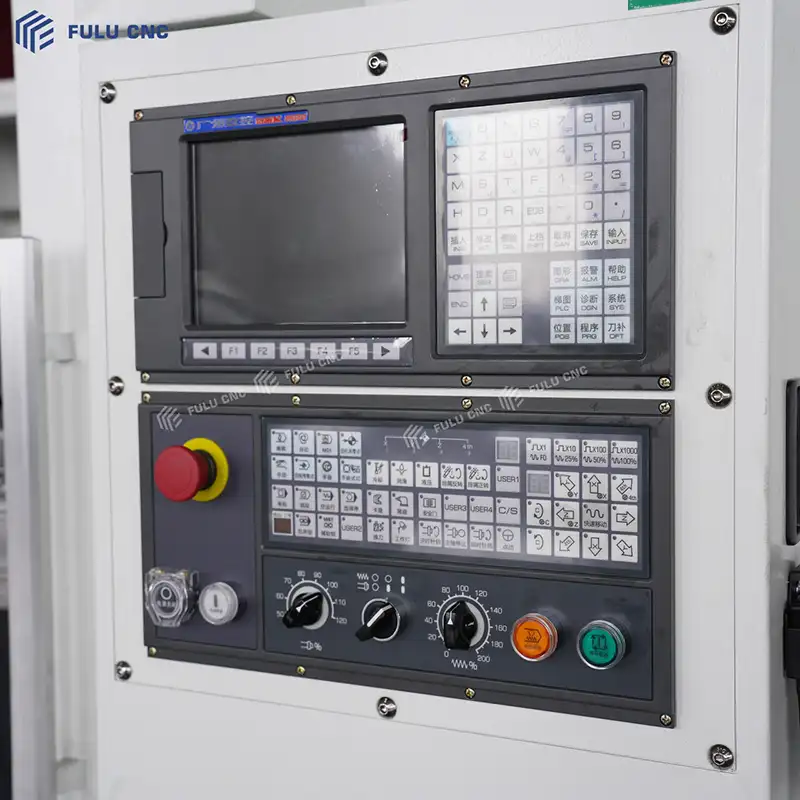

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including a master control unit, servo drives, and input/output modules, which can be flexibly configured to meet the needs of different machine tools.
----

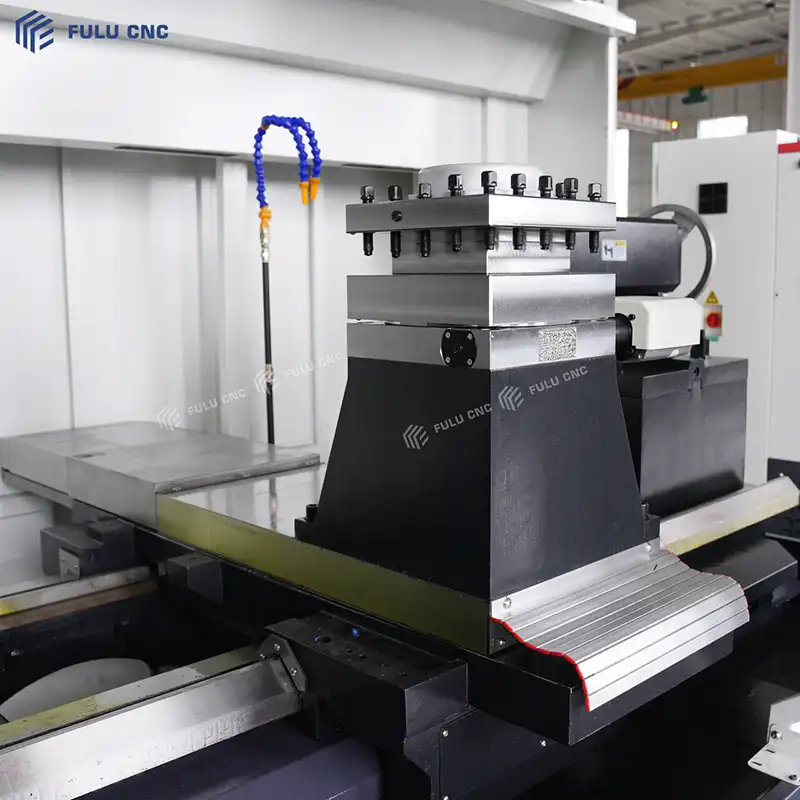

ck61125x1500 4 station electric tool post

4 Station Electric Tool Holder

The 4-station electric tool holder is the most commonly used automatic tool change component for economical flat-bed CNC lathes, with 4 tool installation stations evenly distributed on the tool body, allowing for 4 turning tools to be installed simultaneously. The tool change is automatically completed through the CNC program T code, without the need for manual operation of the handle.
----

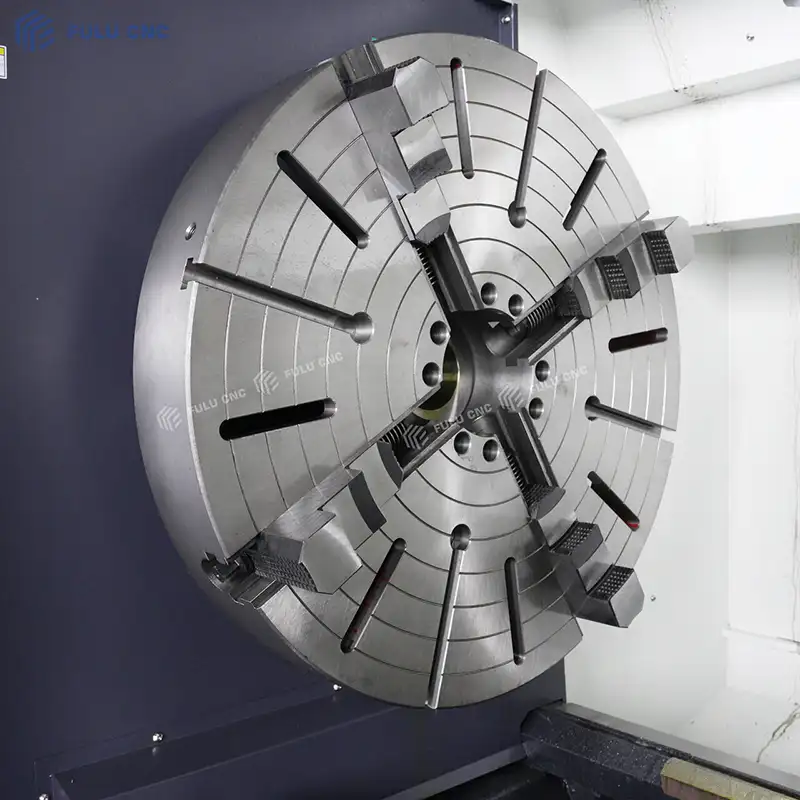

Four-Jaw Chuck

Installed at the front end of the spindle, used for clamping and positioning workpieces. Unlike ordinary three-jaw self-centering chucks, each jaw can be adjusted individually, allowing for the clamping of various irregular, eccentric, and large workpieces, providing higher clamping flexibility and processing accuracy.
----

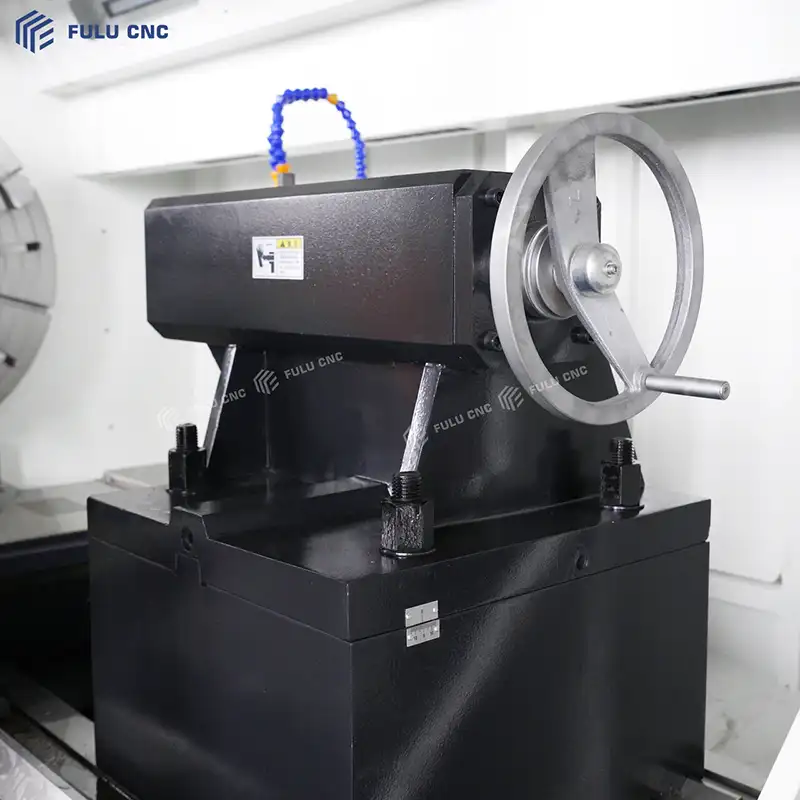

Manual Tailstock

The manual tailstock is an important auxiliary component of CNC lathes and ordinary lathes, installed on the bed guide rail, used to support long shaft workpieces or install tools such as drills and reamers, improving processing rigidity and accuracy.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole
