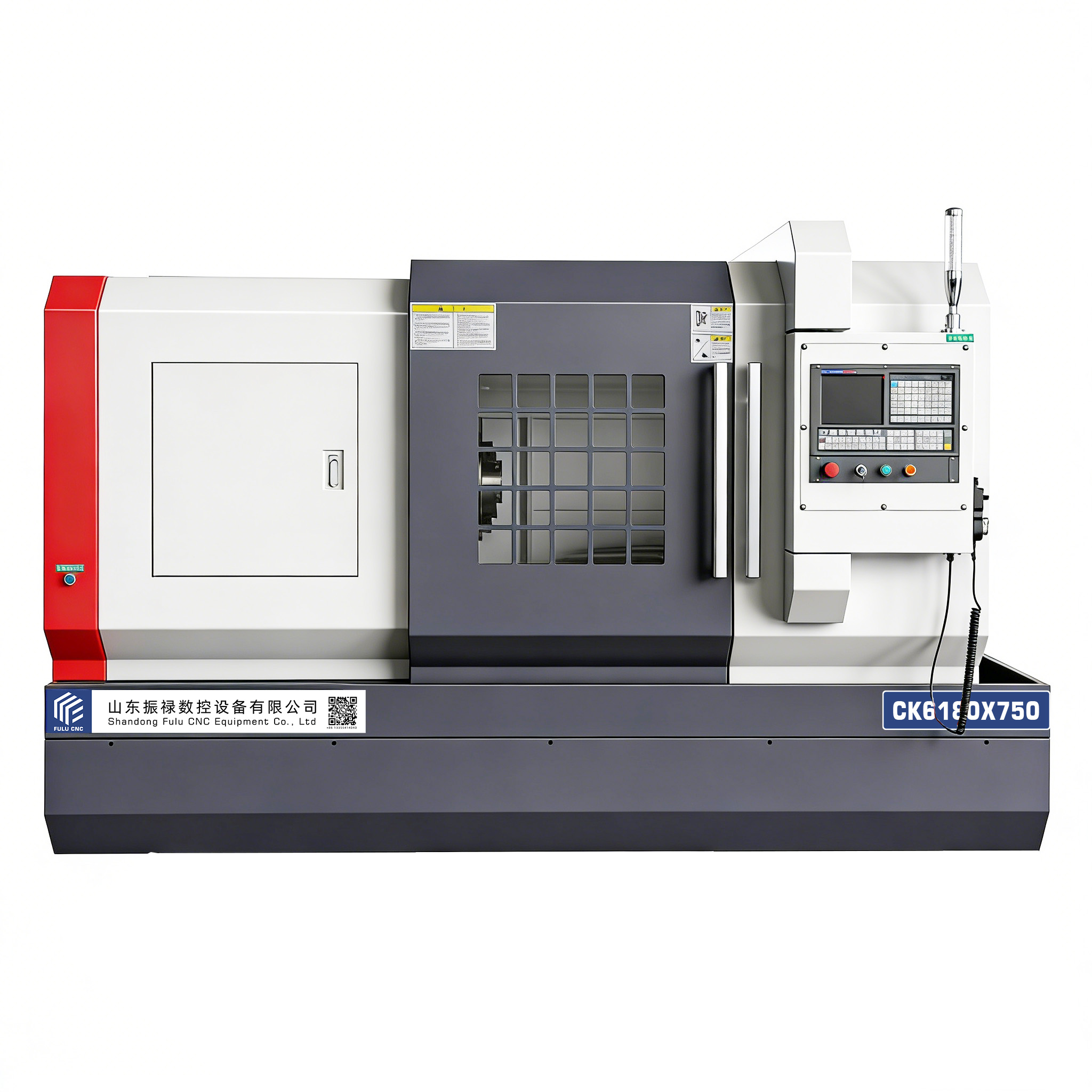

CK6180X750

Parameter

Project	Unit	Specification
Maximum workpiece swing diameter over bed	mm	ф800
Maximum workpiece swing diameter over tool post	mm	ф480
Maximum workpiece length	mm	1500/2000/3000
Effective machining length	mm	1350/1850/2850
Bed guide width	mm	600
Spindle bore diameter	mm	ф105

Inquiry

Detail Inquiry

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large bearing capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than the same specification slant bed, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rail / medium frequency quenching guide rail, wear-resistant, good precision retention; equipped with precision ball screw, accurate positioning, high repeat precision.

Learn More

Nulla bibendum dictum pulvinar feugiat

CNC flat lathe features a horizontal flat bed structure, two axes (X/Z) linkage, used for automatic processing of external circles, internal holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. With strong overall rigidity, simple structure, and high cost performance, it is the main model for medium and small batch, heavy cutting, long shaft processing, widely used in automotive parts, motors, bearings, agricultural machinery, and general machinery industries.

Technical Parameters
Standard Configuration
Select Configuration

Project	Unit	Specification
Maximum workpiece rotation diameter on the bed	mm	ф800
Maximum workpiece rotation diameter on the bed	mm	ф480
Maximum workpiece length	mm	1500/2000/3000
Effective processing length	mm	1350/1850/2850
Width of bed guide rail	mm	600
Spindle hole diameter	mm	ф105
Spindle end code	-	C11
Spindle speed range (frequency conversion stepless speed regulation)	r/min	40-125/110-350/290-950
Chuck (manual) four-jaw chuck	mm	Ф630
Main motor power	Kw	November 15
Tool size	mm	32×32
Electric tool holder	-	Vertical four-station tool holder
Maximum stroke of the saddle in the Z direction	mm	1500/2000/3000
Maximum lateral stroke of the tool holder in the X direction	mm	420
Rapid movement speed of the saddle in the Z direction	m/min	6
Lateral rapid movement speed of the tool holder in the X direction	m/min	4
X/Z axis torque	nm	October 15
Tailstock sleeve diameter	mm	Φ120
Tailstock sleeve stroke	mm	250
Taper of tailstock sleeve	-	Morse 6
Machine tool profile (length X width X height)	mm	3400/3900/4400/54002000 2000

Accessory Name	Specifications Model	Manufacturer
CNC System	GSK980TB3i Bus Full Set Absolute Value System	GSK
Main Motor	11KW/15KW	Shanghai
Spindle Bearing		Harbin
X-axis Ball Screw	φ32*06	Taiwan
Z-axis Ball Screw	Φ63*10	Taiwan
Chuck	630 Four-jaw	Wafangdian
Tool Holder	4 Station Electric	Hongda

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Simens Control System

Learn More

Product Details

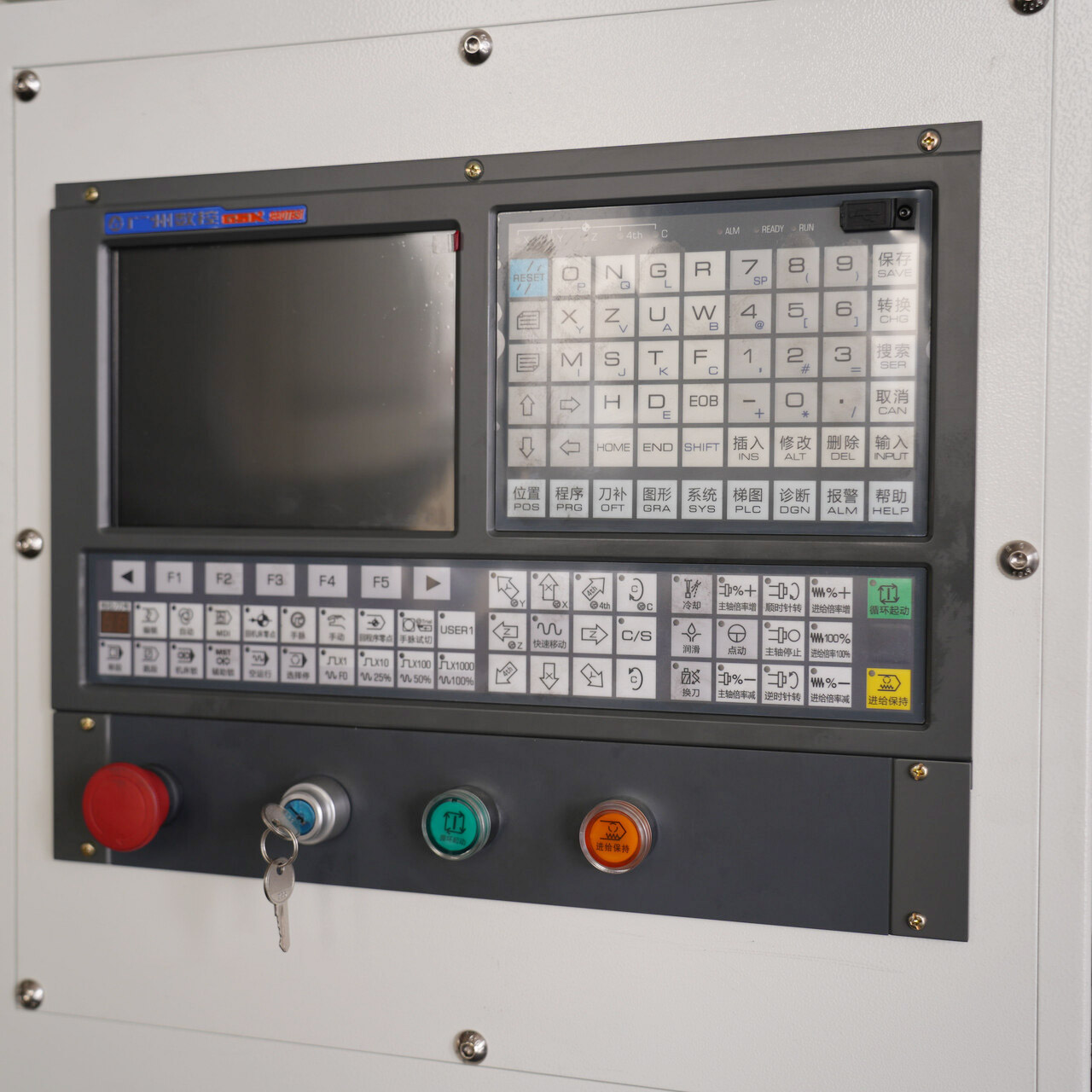

GSK 980TDi Plus CNC System

The GSK CNC system adopts a modular hardware architecture, including the main control unit, servo drives, and input-output modules, which can be flexibly configured to meet the needs of different machine tools.
----

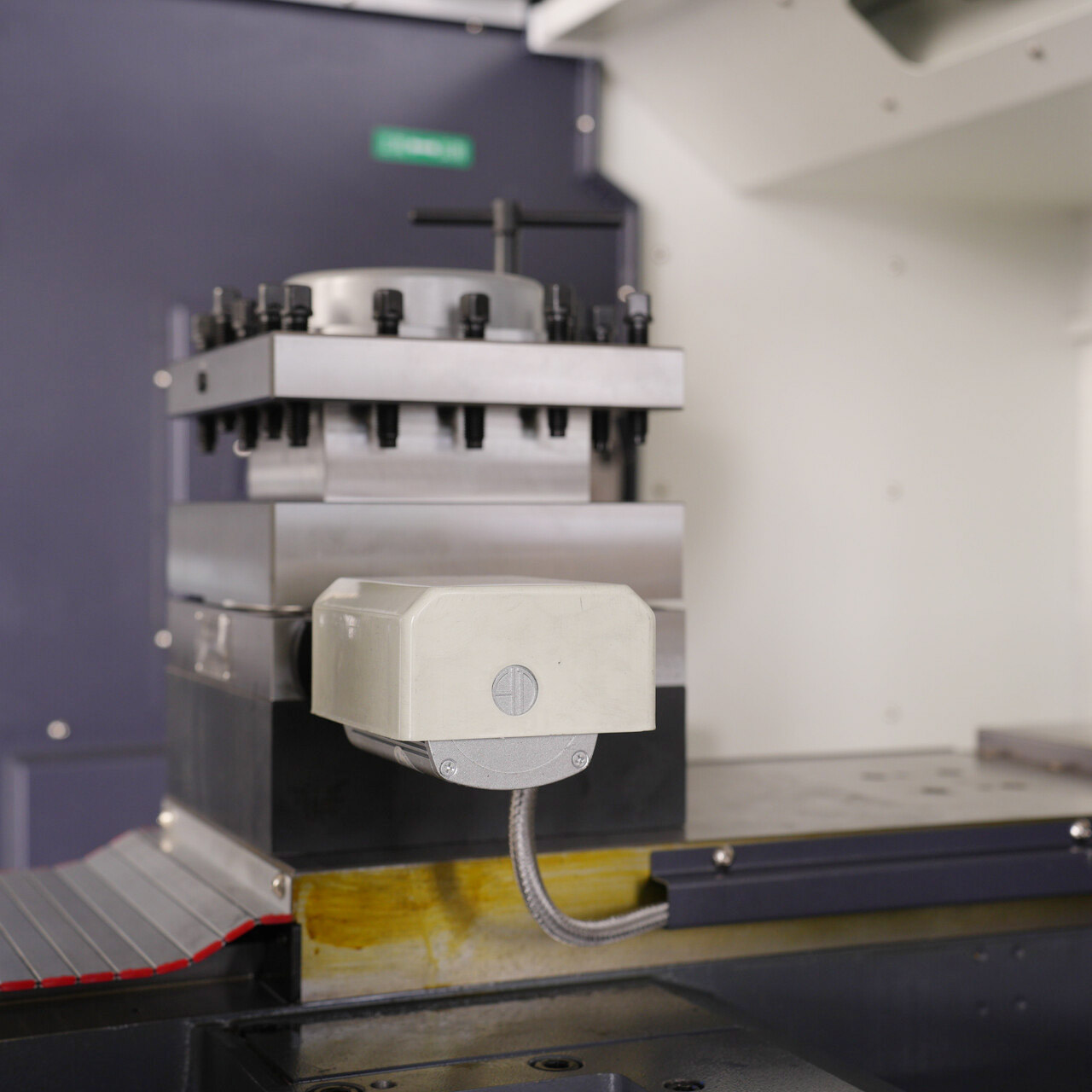

Servo Drive Motor

Relying on high-precision servo motors to control the turret's rotation positioning, unlike ordinary stepper motor tool holders: it can achieve bidirectional near-tool selection without unidirectional cyclic rotation, significantly reducing tool change time.
----

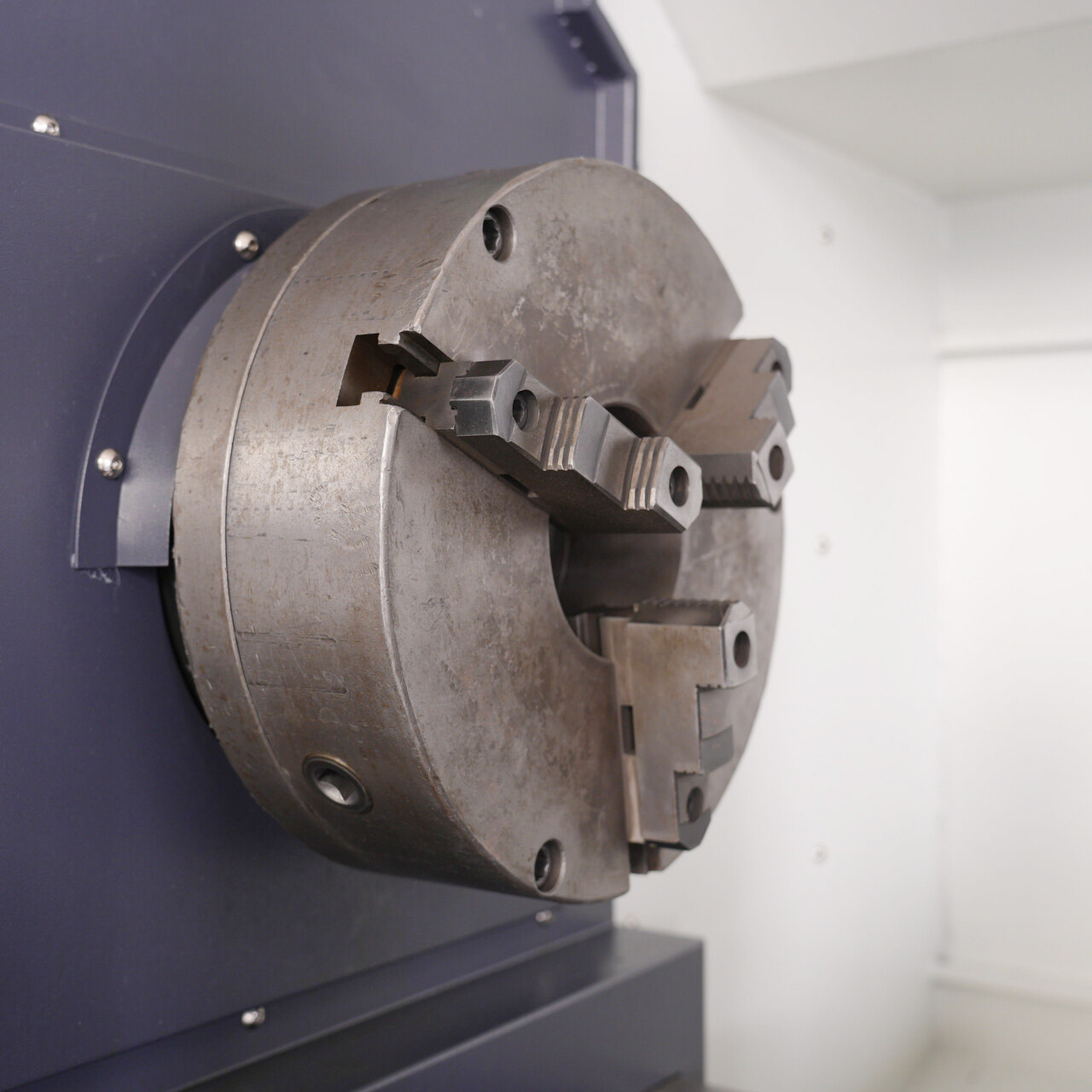

Three-Jaw Centering Chuck

It can automatically center and clamp shaft and disc workpieces; when used with a four-axis rotary table, it can also complete multi-surface processing and complex curved surface processing.
----

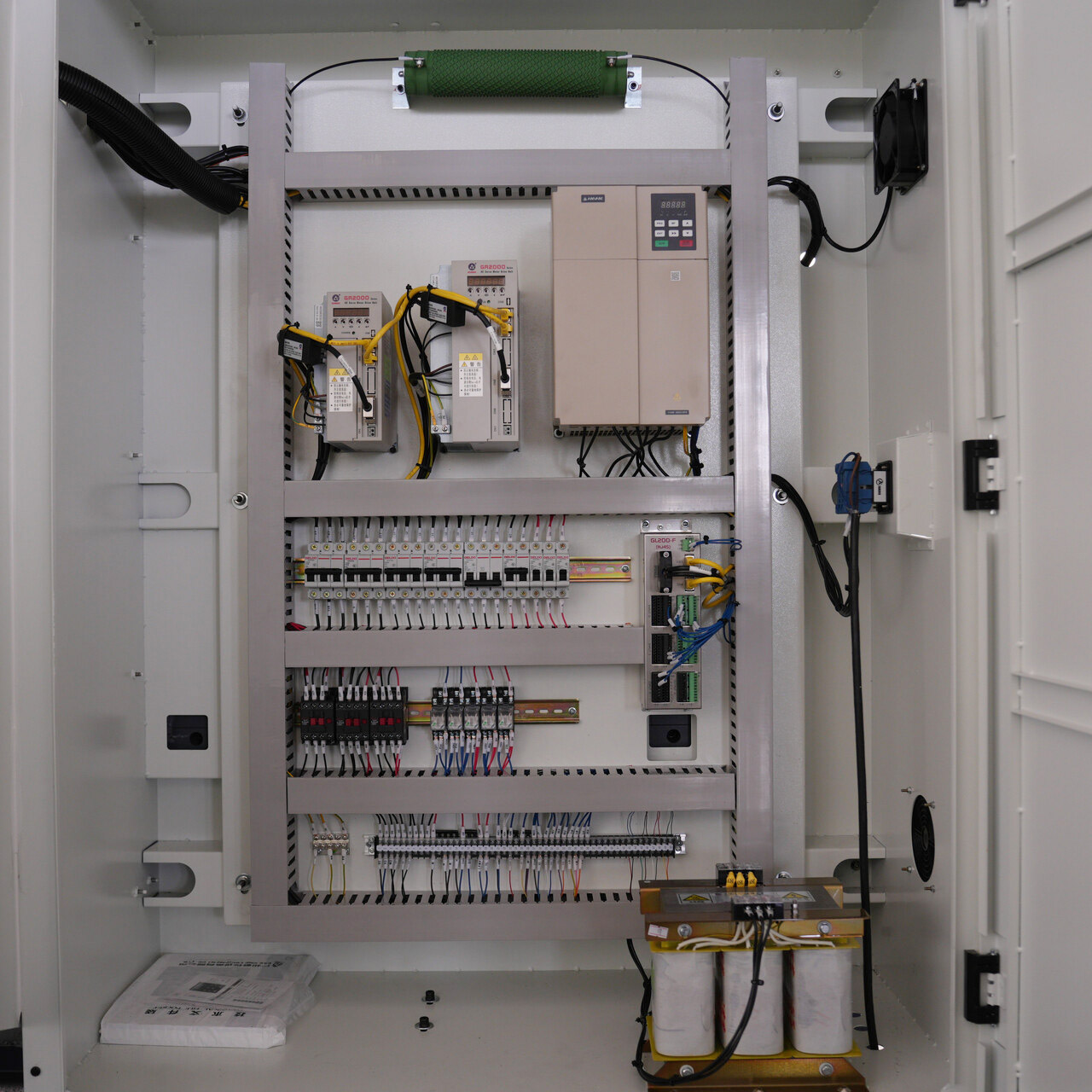

Electrical Control Cabinet

The electrical control cabinet is the 'nerve center' of the CNC machine tool. It converts CNC program instructions into precise motion actions, safely distributes power, and protects various electrical components of the machine tool.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole

------
