ck6180x1000 siemens 6 station flat bed cnc lathe

CK6180X1000Siemens CNC Lathe Machine

Product Parameters

Project	Unit	Specification
Maximum Workpiece Swing Diameter on Bed	mm	ф800
Maximum Workpiece Swing Diameter on Tool Post	mm	ф480
Maximum Workpiece Length	mm	1500/2000/3000
Effective machining length	mm	1350/1850/2850
Bed guide width	mm	600
Spindle bore diameter	mm	ф105

Online Consultation

Content Details tabbb1t2t3Online Consultation

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large load capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than similarly sized slant bed lathes, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rails / medium frequency hardened guide rails, wear-resistant, good precision retention; equipped with precision ball screws, accurate positioning, high repeatability.

Learn More

Product Introduction

The CNC flat lathe features a horizontal flat bed structure, with two axes (X/Z) linked, used for automatic processing of external circles, inner holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. It has strong overall rigidity, simple structure, and high cost performance, making it the main model for medium and small batch, heavy cutting, long shaft processing, widely used in industries such as automotive parts, motors, bearings, agricultural machinery, and general machinery.

Technical Parameters
Standard Configuration
Select Configuration

Project	Unit	Specification
Maximum workpiece rotation diameter on the bed	mm	ф800
Maximum workpiece rotation diameter on the bed	mm	ф480
Maximum workpiece length	mm	1500/2000/3000
Effective processing length	mm	1350/1850/2850
Width of bed guide rail	mm	600
Spindle hole diameter	mm	ф105
Spindle end code	-	C11
Spindle speed range (frequency conversion stepless speed regulation)	r/min	40-125/110-350/290-950

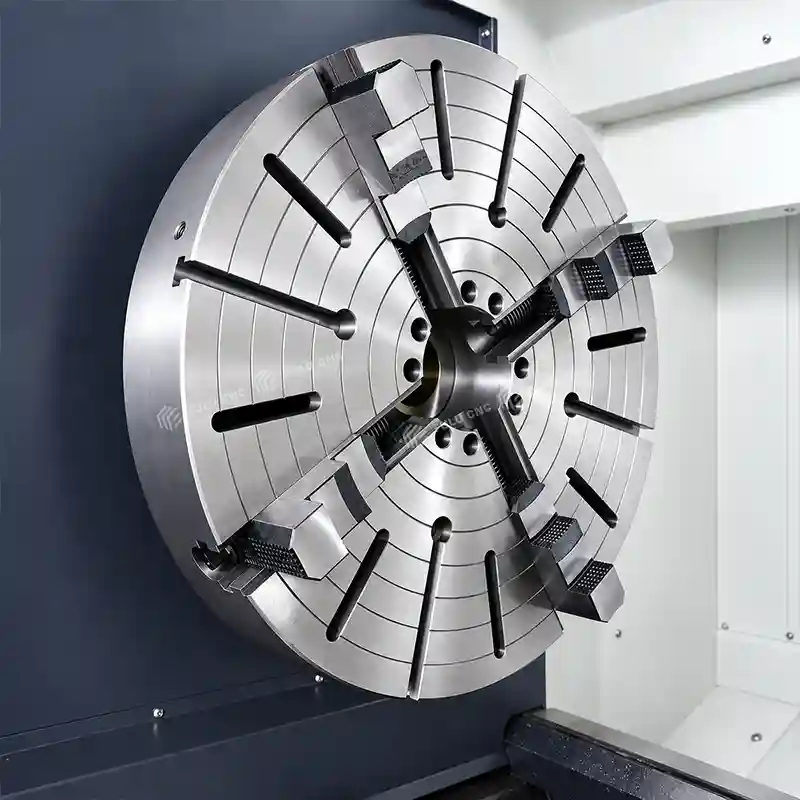

Chuck (manual) four-jaw chuck	mm	Ф630
Main motor power	Kw	November 15
Tool size	mm	32×32
Electric tool holder	-	Vertical four-station tool holder
Maximum stroke of the saddle in the Z direction	mm	1500/2000/3000
Maximum lateral stroke of the tool holder in the X direction	mm	420
Rapid movement speed of the saddle in the Z direction	m/min	6
Lateral rapid movement speed of the tool holder in the X direction	m/min	4
X/Z axis torque	nm	October 15
Tailstock sleeve diameter	mm	Φ120
Tailstock sleeve stroke	mm	250
Taper of tailstock sleeve	-	Morse 6
Machine tool profile (length X width X height)	mm	3400/3900/4400/54002000 2000

Accessory Name	Specifications Model	Manufacturer
CNC System	GSK980TB3i Bus Full Set Absolute Value System	GSK
Main Motor	11KW/15KW	Shanghai
Spindle Bearing		Harbin
X-axis Ball Screw	φ32*06	Taiwan
Z-axis Ball Screw	Φ63*10	Taiwan
Chuck	630 Four-jaw	Wafangdian
Tool Holder	4 Station Electric	Hongda

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

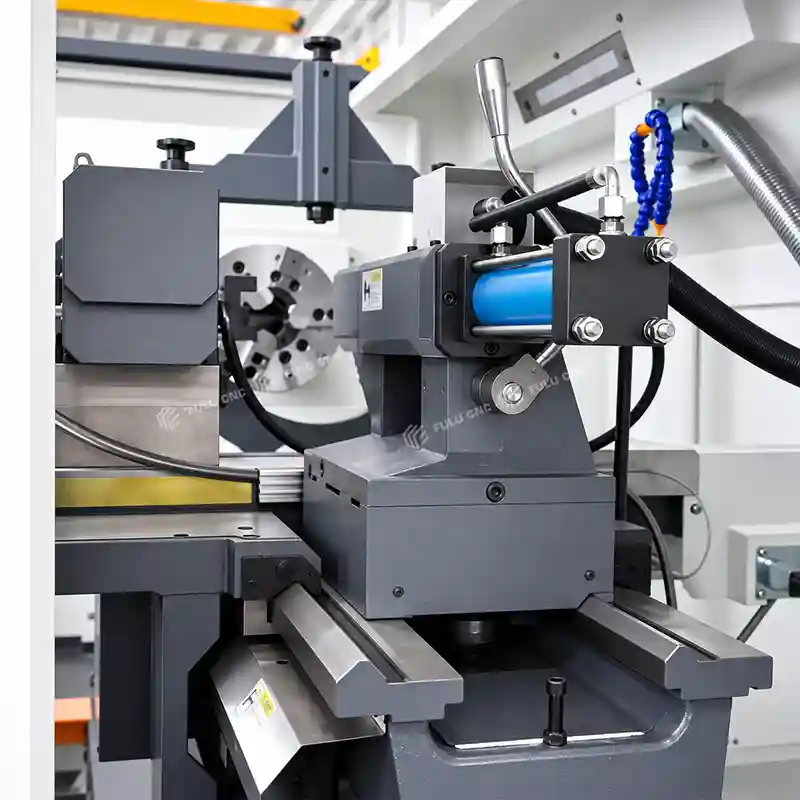

Hydraulic Tailstock

GSK/Fanuc/Simens Control System

Learn More

Product Details

Siemens CNC System

The image shows the Siemens CNC system, which is a high-performance CNC control system developed by Siemens specifically for lathes, milling machines, and machining centers, widely used in the mid-to-high-end CNC machine tool field. It integrates the CNC unit (NC), PLC controller, human-machine interface (HMI), and drive control functions, featuring high precision, high stability, and intelligent characteristics, making it an important control platform for modern intelligent manufacturing.
----

6 Station Electric Tool Holder

It is an automated tool switching device installed on the slide of CNC lathes, relying on motor drive to achieve tool holder rotation and positioning. It reserves a total of 6 standard tool installation positions, allowing for the simultaneous clamping of 6 different cutting tools, and automatically completes the tool change action through CNC system commands, making it a commonly used automatic tool change component for economical flat-bed and slant-bed CNC lathes.
----

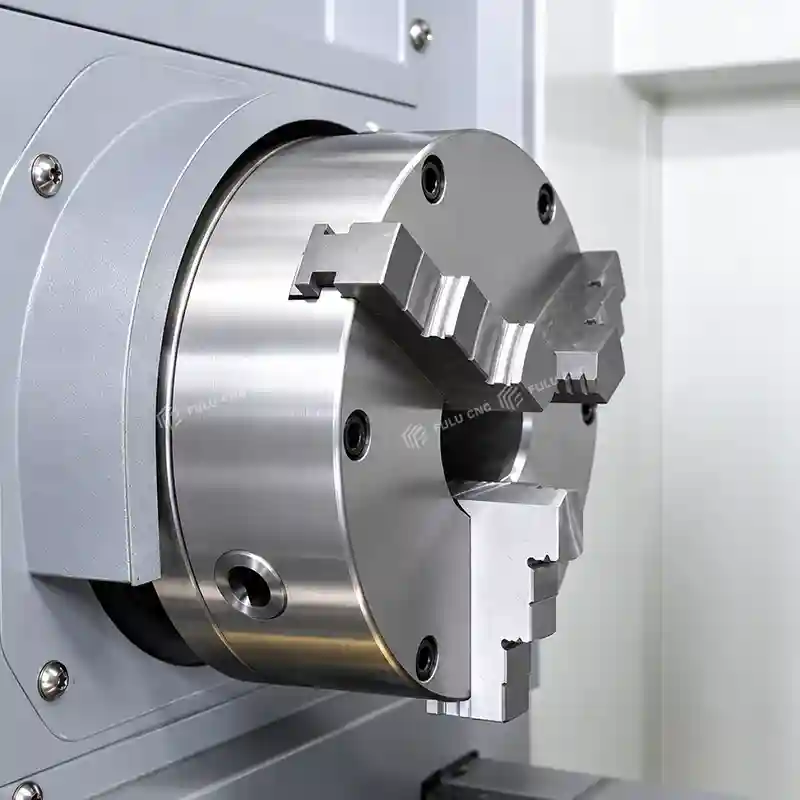

Three-Jaw Self-Centering Chuck

It can achieve automatic centering and clamping for shaft-type and disc-type workpieces; when used with a four-axis rotary table, it can also complete multi-surface machining and complex curved surface machining.
----

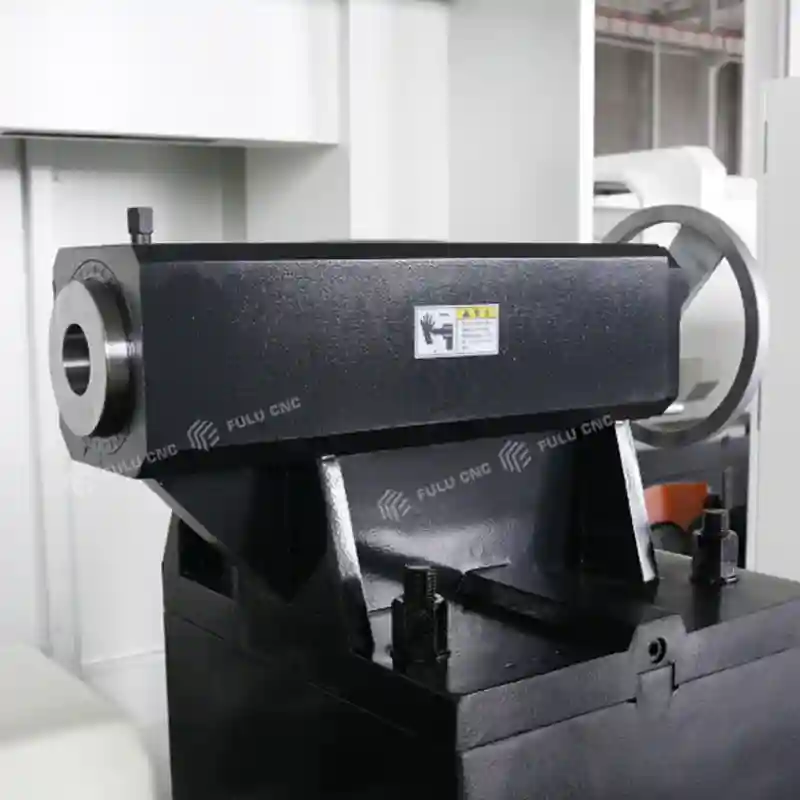

Manual Tailstock

The manual tailstock is an important auxiliary component of CNC lathes and ordinary lathes, installed on the bed guide rail, used to support long shaft workpieces or install tools such as drill bits and reamers, improving machining rigidity and precision.
----

Select Configuration

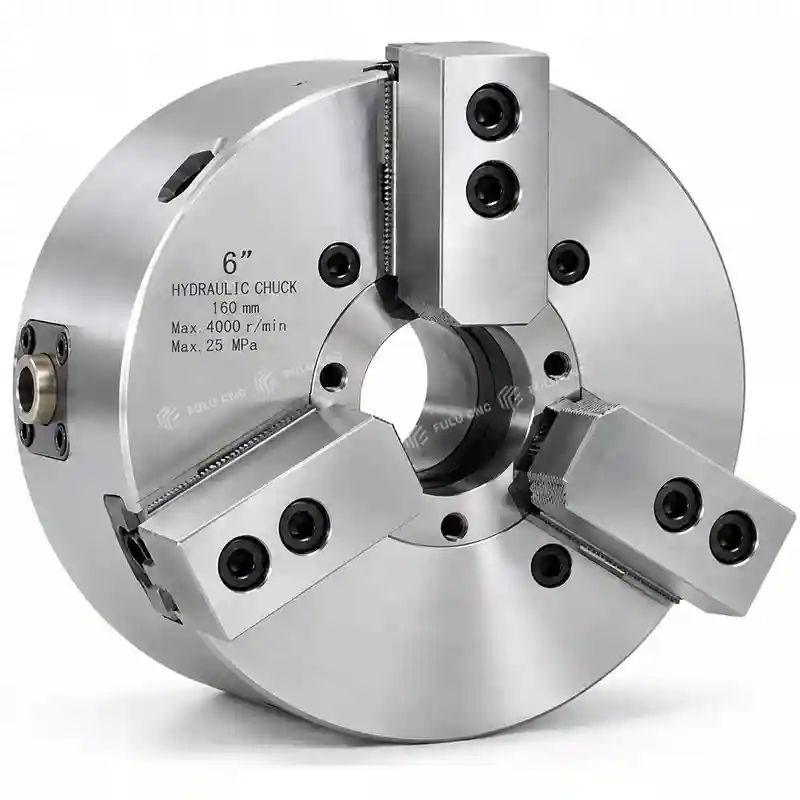

Six Inch Hydraulic Chuck

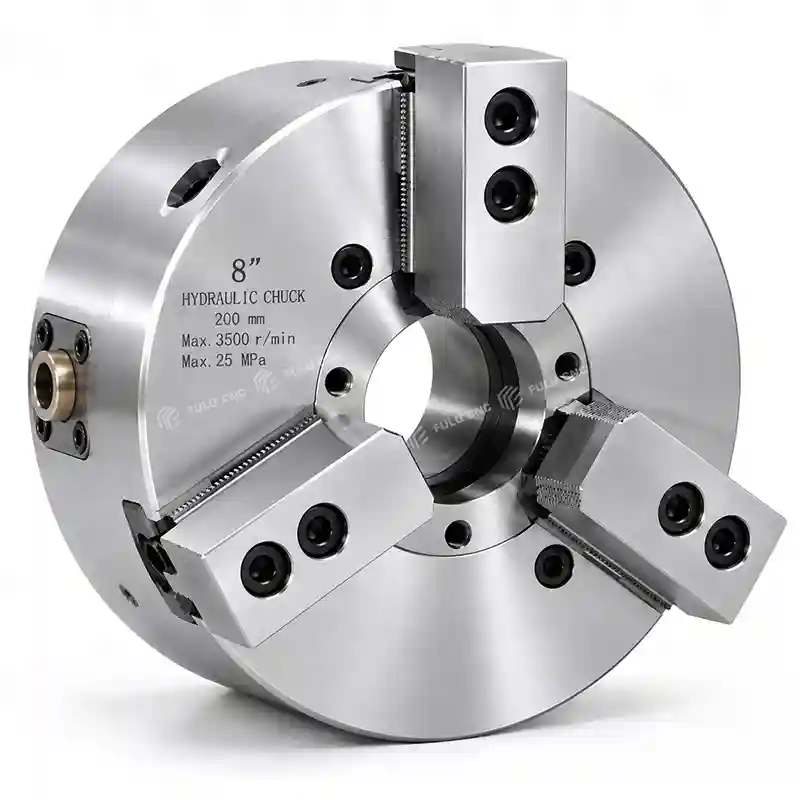

8 inch hydraulic chuck

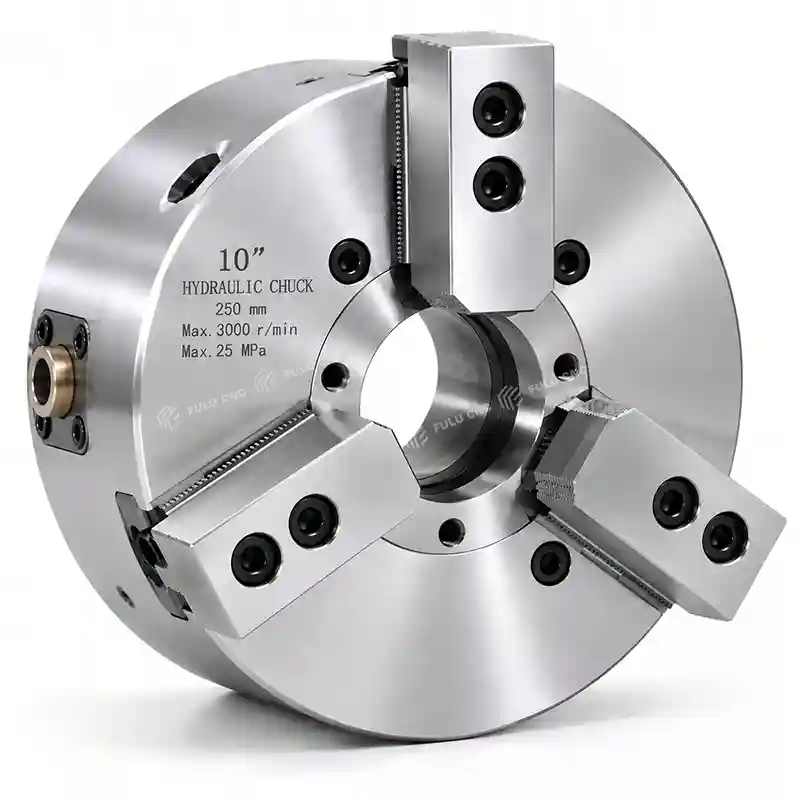

10 inch hydraulic chuck

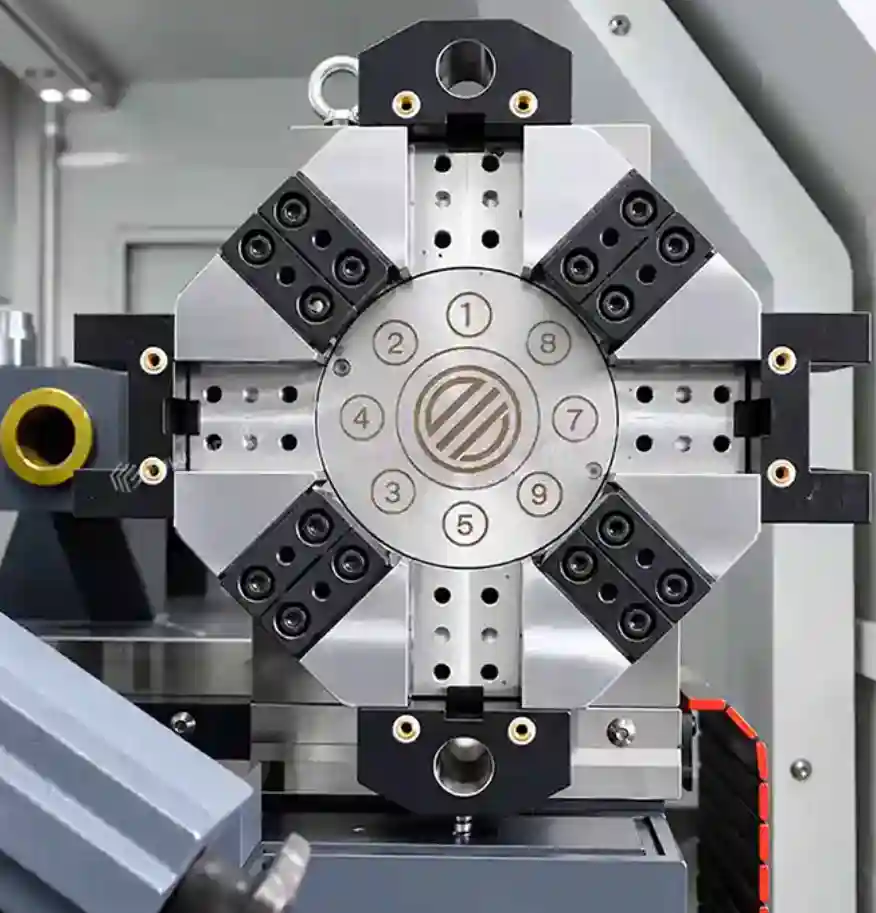

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole
