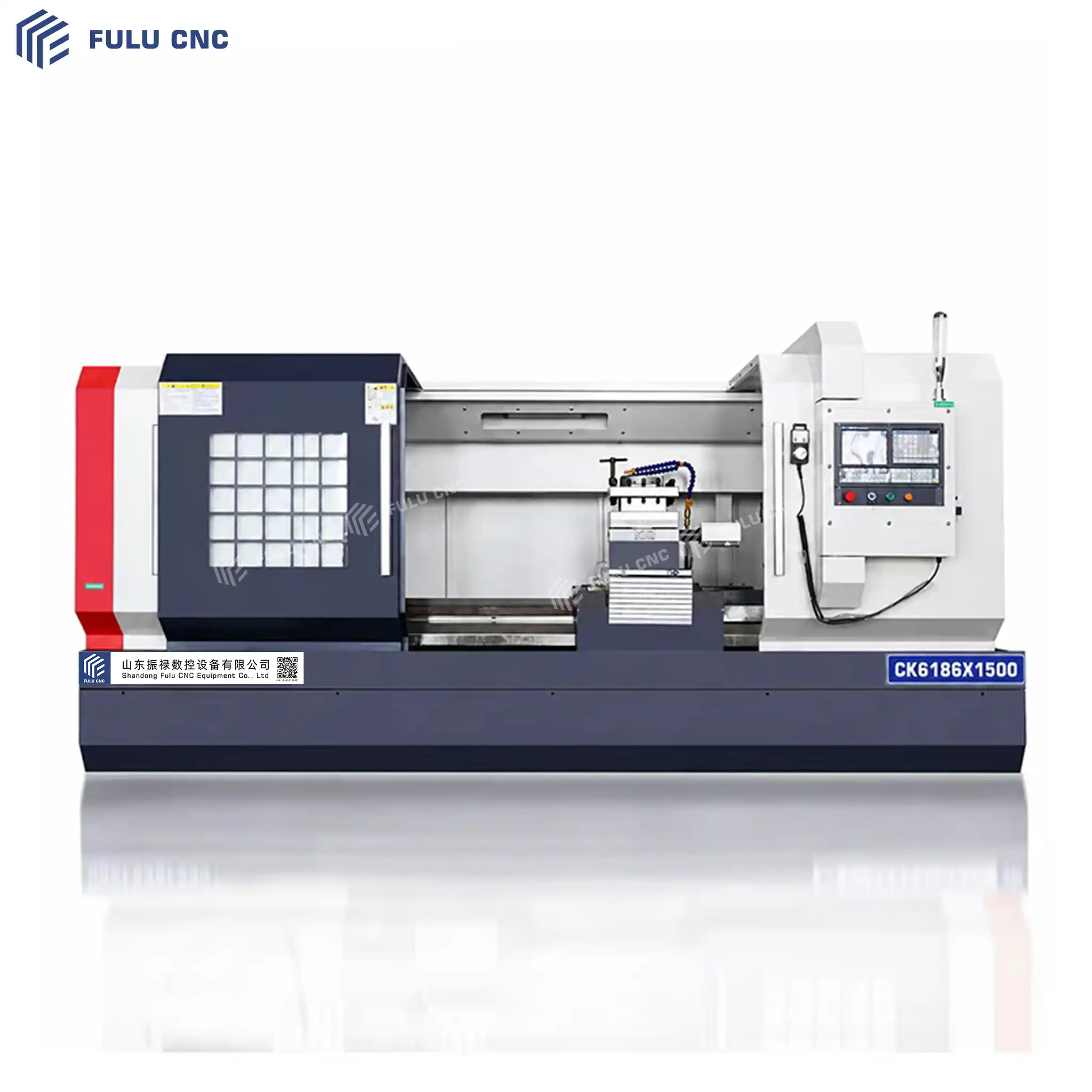

ck6186x1500 heavy duty cnc lathe machine

CK6186X1500 CNC Lathe Machine

Product Parameters

Project	Parameters
Maximum Swing Diameter over Bed	Φ860 mm
Maximum Swing Diameter over Cross Slide	Φ540 mm
Distance Between Centers	1000～6000 mm (optional)
Maximum Turning Length	1000～6000 mm (depending on model)
Spindle Bore Diameter	Φ105 mm
Bar stock with a diameter of	Φ104 mm

Online Consultation

Content Details tabbb1t2t3Online Consultation

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large load capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than similarly sized slant bed lathes, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rails / medium frequency hardened guide rails, wear-resistant, good precision retention; equipped with precision ball screws, accurate positioning, high repeatability.

Learn More

Product Introduction

The CNC flat lathe features a horizontal flat bed structure, with two axes (X/Z) linked, used for automatic processing of external circles, inner holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. It has strong overall rigidity, simple structure, and high cost performance, making it the main model for medium and small batch, heavy cutting, long shaft processing, widely used in industries such as automotive parts, motors, bearings, agricultural machinery, and general machinery.

Technical Parameters
Standard Configuration
Select Configuration

Project	Parameters
Maximum turning diameter on the bed	Φ860 mm
Maximum turning diameter on the carriage	Φ540 mm
Center distance	1000～6000 mm (optional)
Maximum turning length	1000～6000 mm (depending on model)
Spindle through hole diameter	Φ105 mm
Bar passage diameter	Φ104 mm
Spindle end form	A2-11
Chuck specification	Φ400 mm (three-jaw chuck)
Spindle speed range	30～835 r/min (four-speed)
X-axis travel	400 mm
X/Z axis rapid traverse speed	4/5 m/min
Tool holder	Four-station electric tool holder
Tool rod size	32×32 mm
Tailstock sleeve diameter	Φ130 mm
Tailstock sleeve travel	265 mm
Tailstock taper hole	MT6
Main motor power	15 kW
Total installed power	18 kW
Machine weight	About 5.1～7.2 tons (varies with length)

Project	Standard Configuration
Bed	Overall cast iron flat bed, hard rail structure
Chuck	Φ400mm three-jaw manual chuck
Tool Holder	Four-position electric tool holder
Tailstock	Manual tailstock (MT6 Morse taper hole)
Spindle through hole	Φ105mm
Spindle nose	A2-11
Spindle speed	30～835rpm (4-speed mechanical transmission + stepless speed regulation)
Main motor	15kW
Lubrication system	Automatic centralized lubrication
Cooling system	Coolant circulation system
Protection	Semi-enclosed protective cover
CNC system	Domestic Guangshu/GSK (some manufacturers default to KND)
Guide rail	Ultrasonic quenching hard rail
Accuracy	Minimum setting unit 0.001mm

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Siemens Control System

Learn More

Product Details

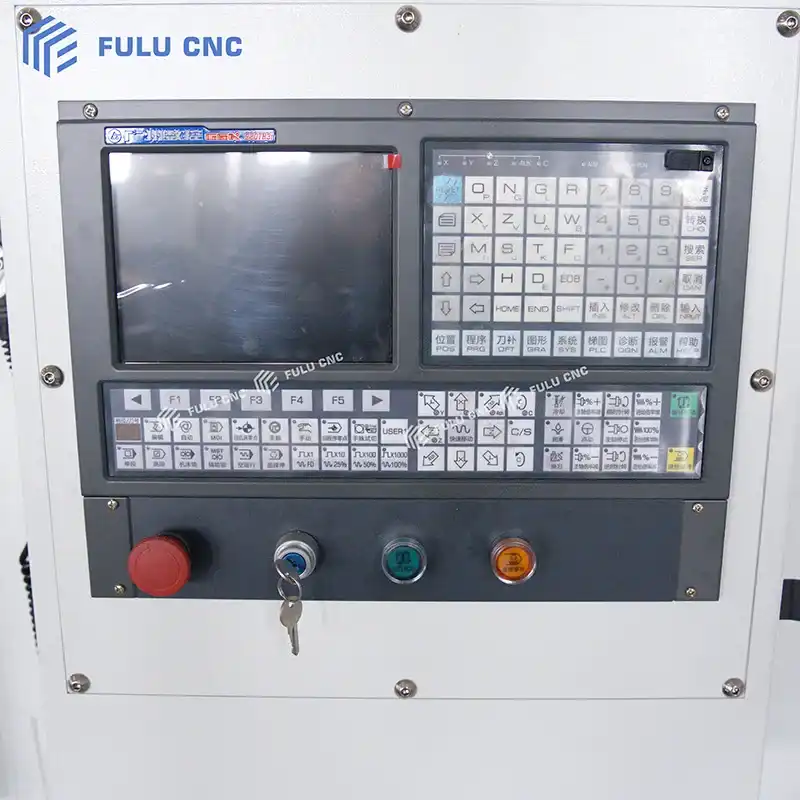

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including the main control unit, servo drives, and input-output modules, which can be flexibly configured to meet the needs of different machine tools.
----

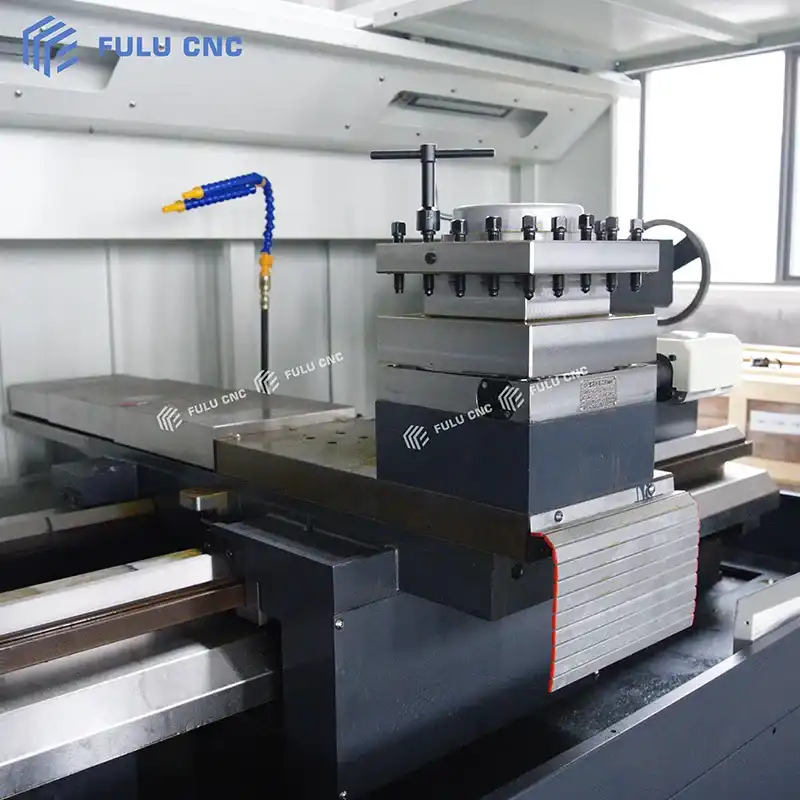

ck6186x1500 4 station electric tool post

4 Station Electric Tool Holder

The 4-station electric tool holder is the most commonly used automatic tool change component for economical flat-bed CNC lathes, with 4 tool installation positions evenly distributed on the tool body, allowing for 4 turning tools to be installed simultaneously. The tool change is automatically completed through the CNC program T code without manual operation of the handle.
----

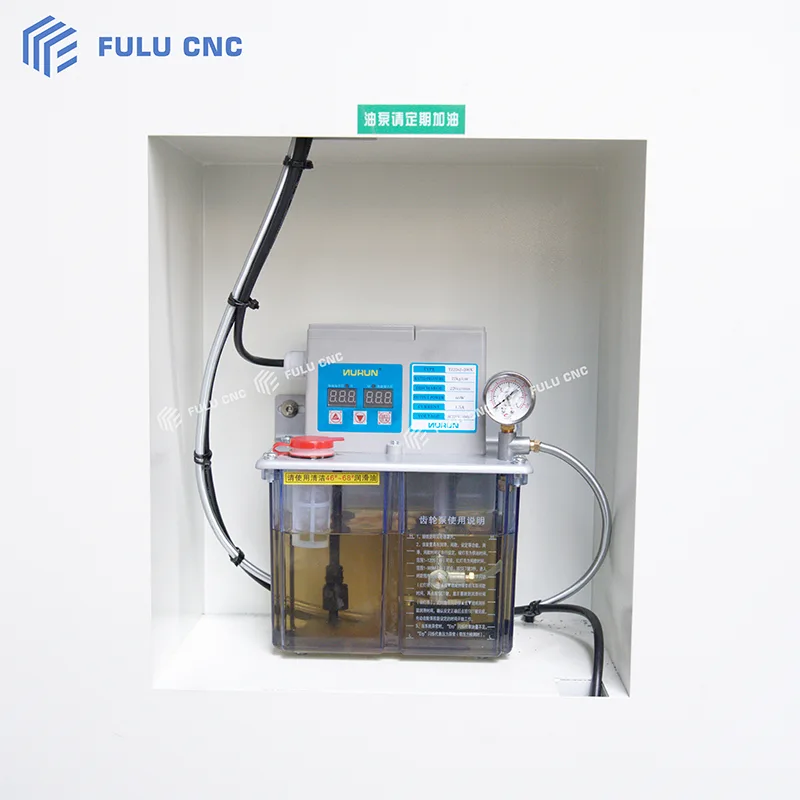

Automatic Lubrication System

This system is responsible for delivering a timed and quantified supply of lubricating oil to key moving parts such as the machine tool guide rails, ball screws, and bearings, ensuring the equipment operates stably for a long time.
----

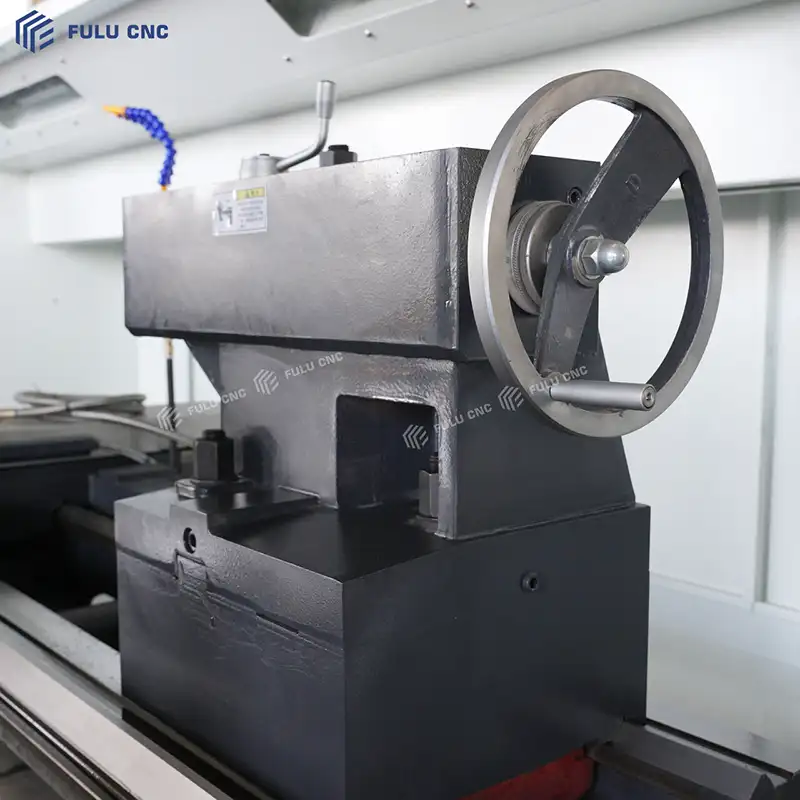

Manual Tailstock

The manual tailstock is an important auxiliary component of CNC lathes and conventional lathes, installed on the bed guide rail to support long shaft workpieces or to install tools such as drills and reamers, enhancing machining rigidity and precision.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole
