CK6163X2000 CNC Lathe Machine

Product Parameters

Item	Unit	Specification
Maximum Swing Diameter over Bed	mm	630
Maximum Swing Diameter over Saddle Slide	mm	380
Guideway Span	mm	400
Effective Workpiece Length	mm	850/1350/1850
Maximum Stroke X	mm	350
Maximum Stroke Z	mm	1000/1500/2000
Spindle Speed Range	r/min	45-1600 (Three-speed)

Online Consultation

Content Details tabbb1t2t3Online Consultation

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large load capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than similarly sized slant bed lathes, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rails / medium frequency hardened guide rails, wear-resistant, good precision retention; equipped with precision ball screws, accurate positioning, high repeatability.

Learn More

Product Introduction

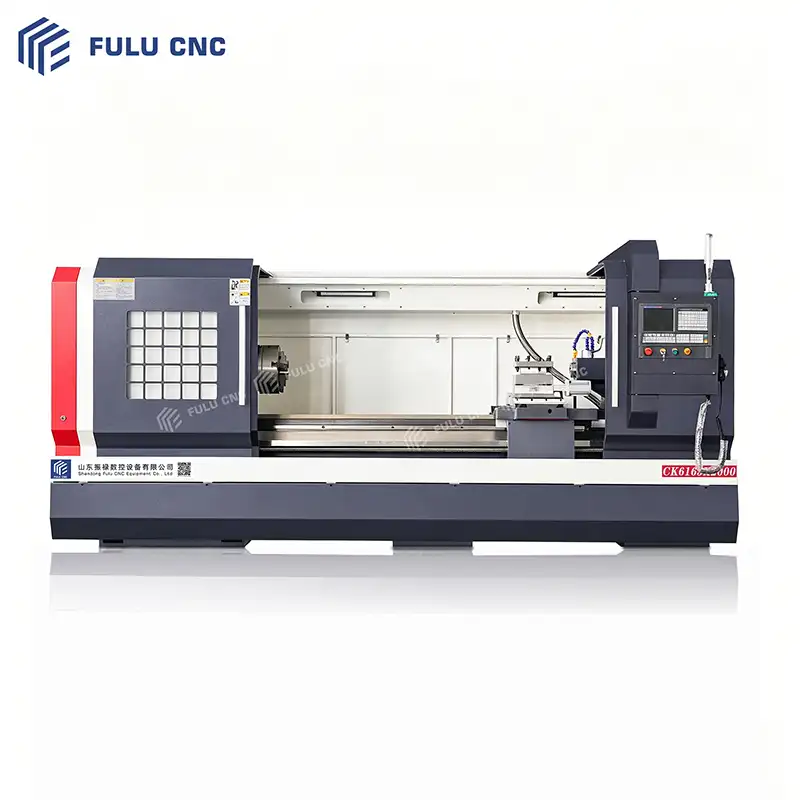

The CNC flat lathe features a horizontal flat bed structure, with two axes (X/Z) linked, used for automatic processing of external circles, inner holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. It has strong overall rigidity, simple structure, and high cost performance, making it the main model for medium and small batch, heavy cutting, long shaft processing, widely used in industries such as automotive parts, motors, bearings, agricultural machinery, and general machinery.

Technical Parameters
Standard Configuration
Select Configuration

Project	Unit	Specification
Maximum Turning Diameter on Bed	mm	630
Maximum Turning Diameter on Saddle	mm	380
Guide Rail Span	mm	400
Effective Workpiece Length	mm	850/1350/1850
Maximum Stroke X	mm	350
Maximum Stroke Z	mm	1000/1500/2000
Spindle Speed Range	r/min	45-1600 (Three-speed)
Spindle Through Hole Diameter	mm	Φ82
Spindle Taper Hole	Metric	Metric 90 (1:20)
Spindle End Model		A2-8
Maximum Stroke of Tailstock Sleeve	mm	150
Diameter of Tailstock Sleeve	mm	75
Taper of Tailstock Sleeve Taper Hole		Morse No. 5
Rapid Traverse Speed (X/Z Axis)	m/min	≥6/8
Turning Thread Range (Metric Thread)	mm	0.2～30
Repeatability Accuracy (X/Z Axis)	mm	0.007～0.01
Processing Accuracy		IT6～IT7
Processing Roughness		Ra1.6
Maximum Load for Shaft Components	kg	500
Maximum Load for Disc Components	kg	300
Dimensions: Length × Width × Height	mm	2640×1600×1800
Net Weight of Machine Tool (Approx.):	kg	2600/2800/3200

Name	Model, Specification	Quantity	Place of Origin
Control System	GSK980TB3i Bus Absolute System	1	Guangzhou
Ball Screw	X Axis: FFZD2505	1	Nanjing Process or Taiwan Shenghe
Ball Screw	Z Axis: FFZD4010	1	Huaxia
Screw Bearing	X：760204TN/P5DB	1 Pair	NSK
Screw Bearing	Z：760307TN/P5DB/7206AC/6206RS	1 Set	NSK
Inverter	11KW	1	Domestic
Spindle Bearing	234424BM1/SP5（120×180×72）	1	HRB
	NN3024K/W33/P5.2（120×180×46）	1	HRB
	NN3020K/W33/P5（105×160×26）	1	HRB
	6019（105×160×26）	1	HRB
Tool Holder	LDB4-6150/110	1	Hongda
Manual Chuck	∮315 Three-Jaw	1	Wafangdian

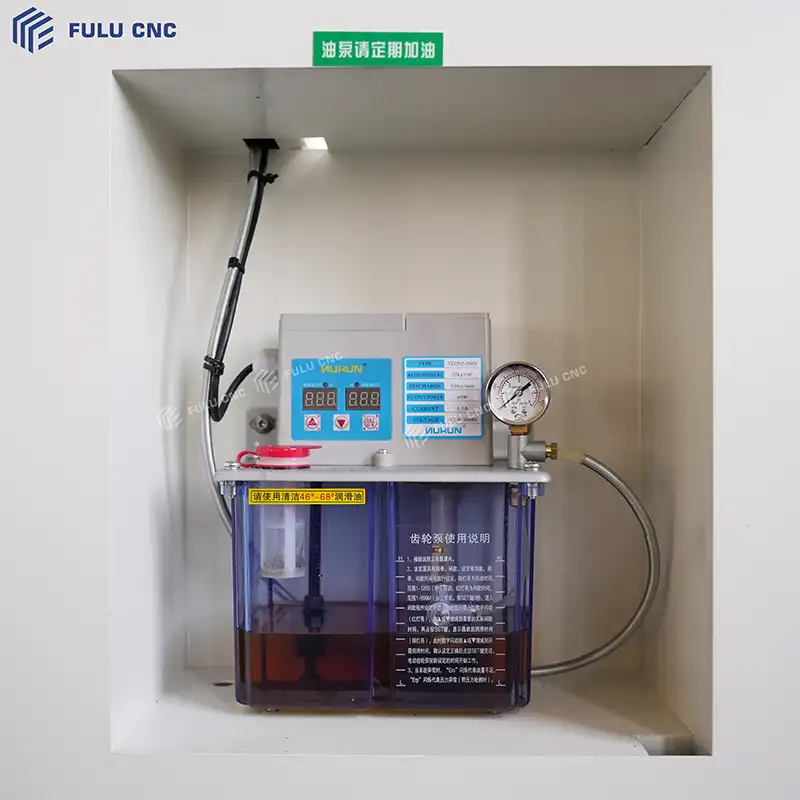

Lubrication System	TZ-150/4C	1	Domestic
Cooling Pump	AB-25	1	Domestic

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Siemens Control System

Learn More

Product Details

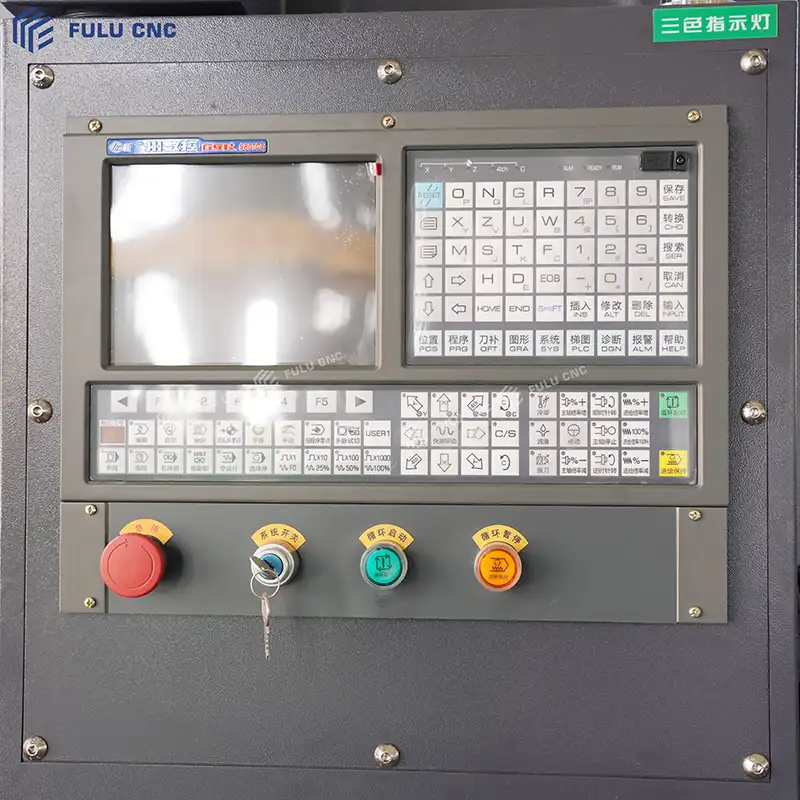

GSK 980TDi Plus CNC System

The GSK CNC system adopts a modular hardware architecture, including a main control unit, servo drivers, and input-output modules, which can be flexibly configured to meet the needs of different machine tools.
----

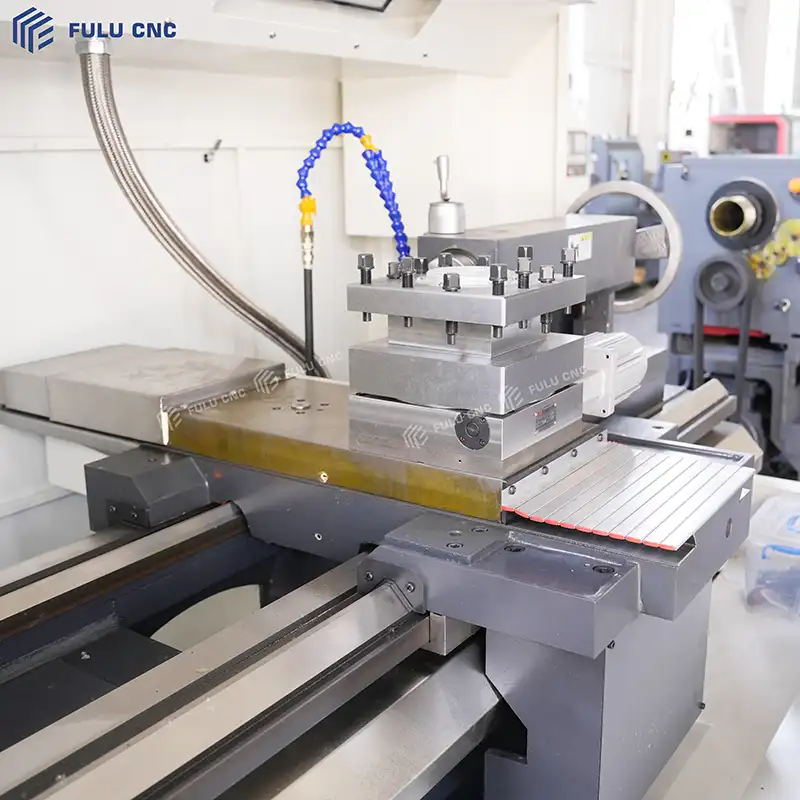

ck6163x2000 4 station electric tool post close up

Servo Drive Motor

Relying on high-precision servo motors to control the turret's rotation and positioning, unlike ordinary stepper motor tool holders: it can achieve bidirectional near-tool selection without unidirectional cyclic rotation, greatly reducing tool change time.
----

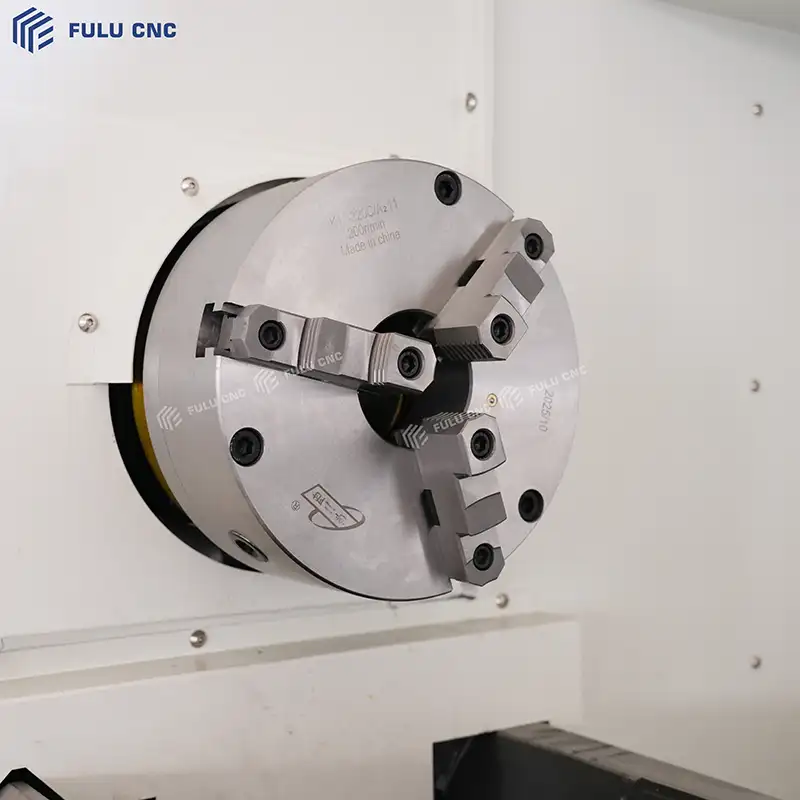

Three-Jaw Centering Chuck

It can achieve automatic centering and clamping of shaft and disc workpieces; when used with a four-axis rotary table, it can also complete multi-surface processing and complex curved surface processing.
----

Electrical Control Cabinet

The electrical control cabinet is the 'nerve center' of the CNC machine tool. It converts CNC program instructions into precise motion actions, while safely distributing power and protecting various electrical components of the machine tool.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole
