ck61100x1500 heavy duty cnc lathe machine

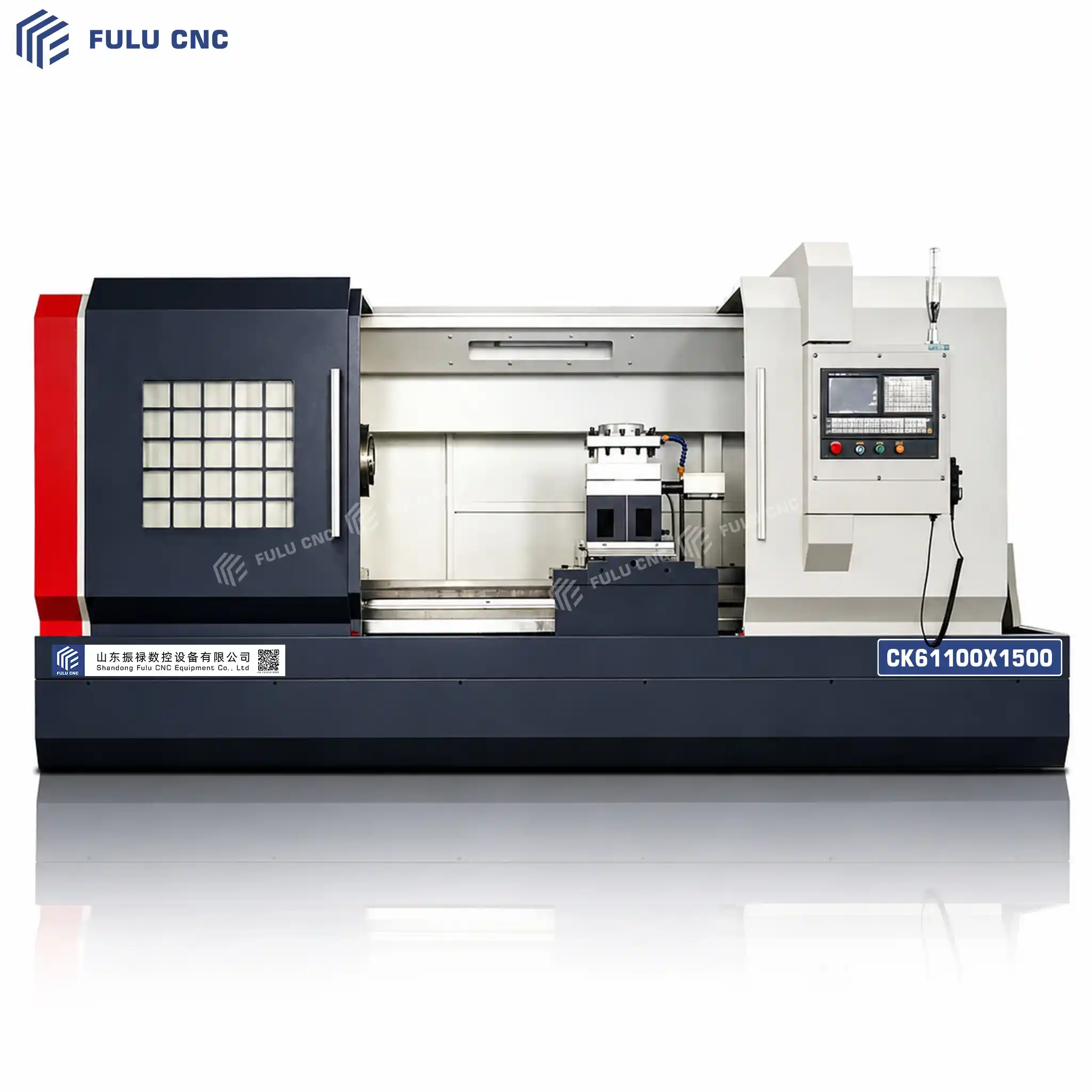

CK61100X1500 CNC Lathe Machine

Project	CK61100
Maximum Swing Diameter of Bed	Φ1000 mm
Maximum Swing Diameter on Saddle	Φ630～680 mm
Maximum Processing Length	1000 / 1500 / 2000 / 3000 / 4000 / 5000 / 6000 mm
Spindle Bore	Φ105 mm (Φ130 mm for some models)

Inquiry

Content Details Inquiry

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large load capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than similarly sized slant bed lathes, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rails / medium frequency hardened guide rails, wear-resistant, good precision retention; equipped with precision ball screws, accurate positioning, high repeatability.

Learn More

Product Introduction

The CNC flat lathe features a horizontal flat bed structure, with two axes (X/Z) linked, used for automatic processing of external circles, inner holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. It has strong overall rigidity, simple structure, and high cost performance, making it the main model for medium and small batch, heavy cutting, long shaft processing, widely used in industries such as automotive parts, motors, bearings, agricultural machinery, and general machinery.

Technical Parameters
Standard Configuration
Select Configuration

Project	CK61100
Maximum spindle turning diameter	Φ1000 mm
Maximum turning diameter on the carriage	Φ630～680 mm
Maximum processing length	1000 / 1500 / 2000 / 3000 / 4000 / 5000 / 6000 mm
Spindle through hole	Φ105 mm (some models Φ130 mm)
Spindle end	C11 or A2-15
Spindle speed	30～835 rpm (four-speed mechanical transmission)
Chuck specification	Φ630 four-jaw chuck (some equipped with 800 four-jaw)
Tool holder	Four-station electric tool holder
Tool rod size	32×32 mm or 40×40 mm
X-axis travel	480～520 mm
Z-axis travel	1000～6000 mm (random model variation)
X/Z rapid traverse speed	4/6 m/min or 6/8 m/min
Tailstock sleeve diameter	Φ100～160 mm
Tailstock sleeve travel	250～300 mm
Tailstock taper hole	MT6
Main motor power	11～22 kW
Bed width	600～755 mm
Positioning accuracy	≤0.02 mm
Repeat positioning accuracy	≤0.01 mm
Machine weight	5～9 tons
CNC system	GSK980, KND, FANUC, Siemens optional

Guoshu GSK980 System

Four-Position Electric Tool Holder

Manual Four-Jaw Chuck

Manual Tailstock

Automatic Lubrication System

Cooling System

Work Lighting

Semi-Enclosed Protective Cover

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Siemens Control System

Learn More

Flat Bed CNC Lathe Machine Details

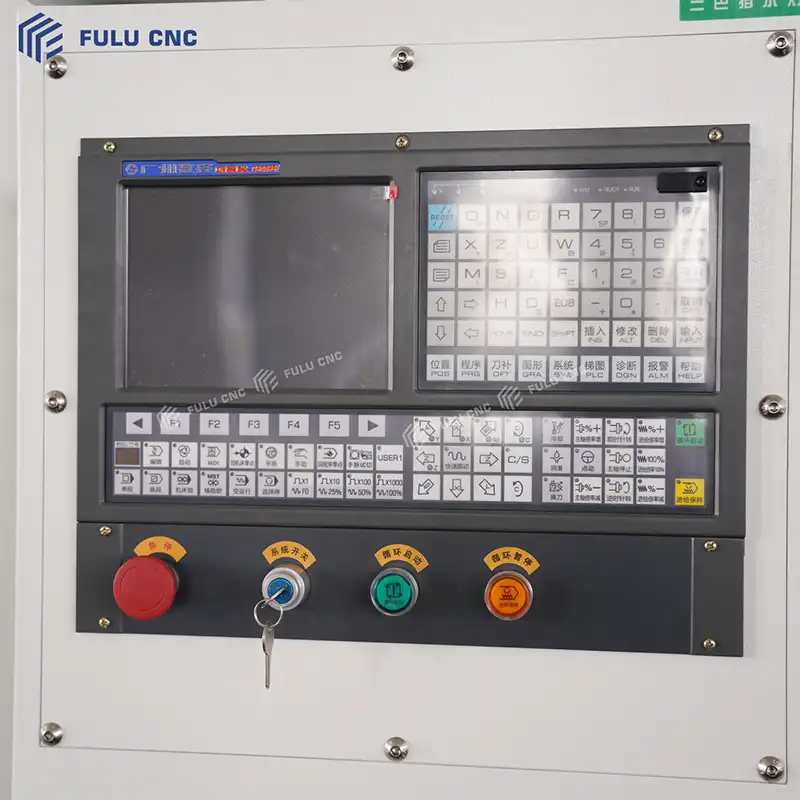

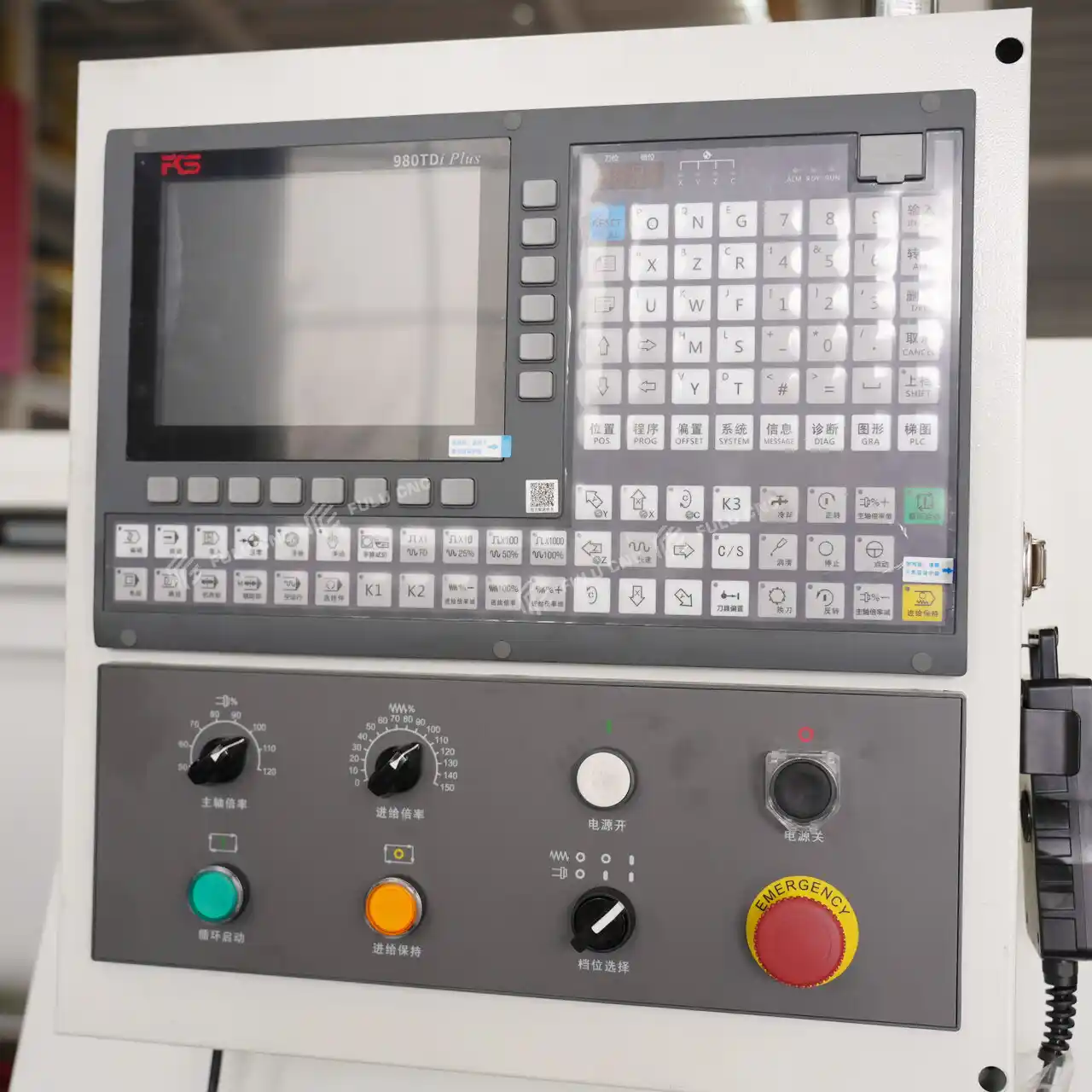

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including a master control unit, servo drives, and input/output modules, which can be flexibly configured to meet the usage needs of different machine tools.

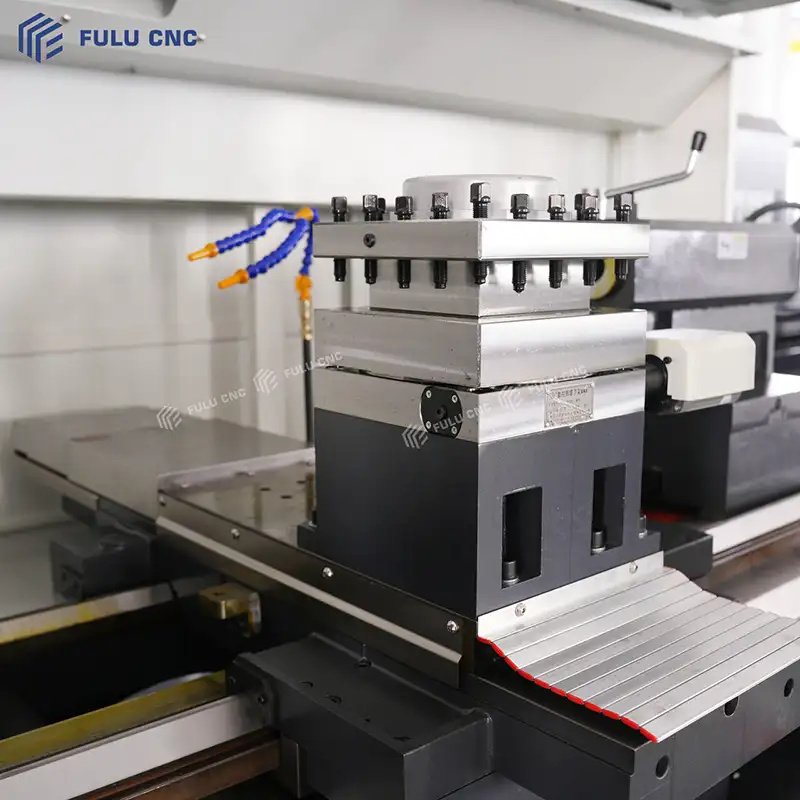

ck61100x1500 4 station electric tool post

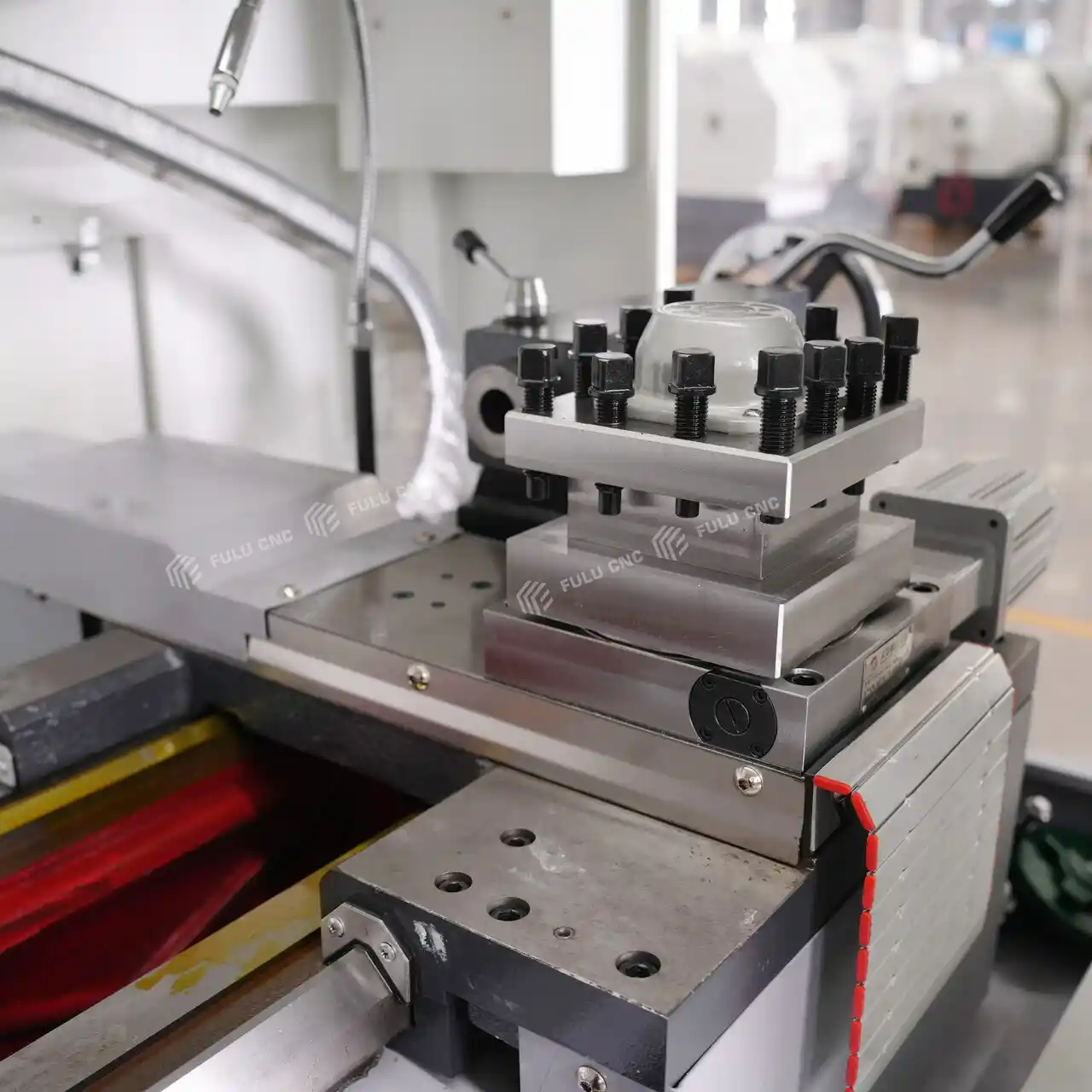

4 Station Electric Tool Holder

The 4-station electric tool holder is the most commonly used automatic tool change component for economical flat-bed CNC lathes, with 4 tool mounting stations evenly distributed on the tool body, allowing for 4 cutting tools to be installed simultaneously. The tool change is automatically completed through the CNC program T code without the need for manual operation.

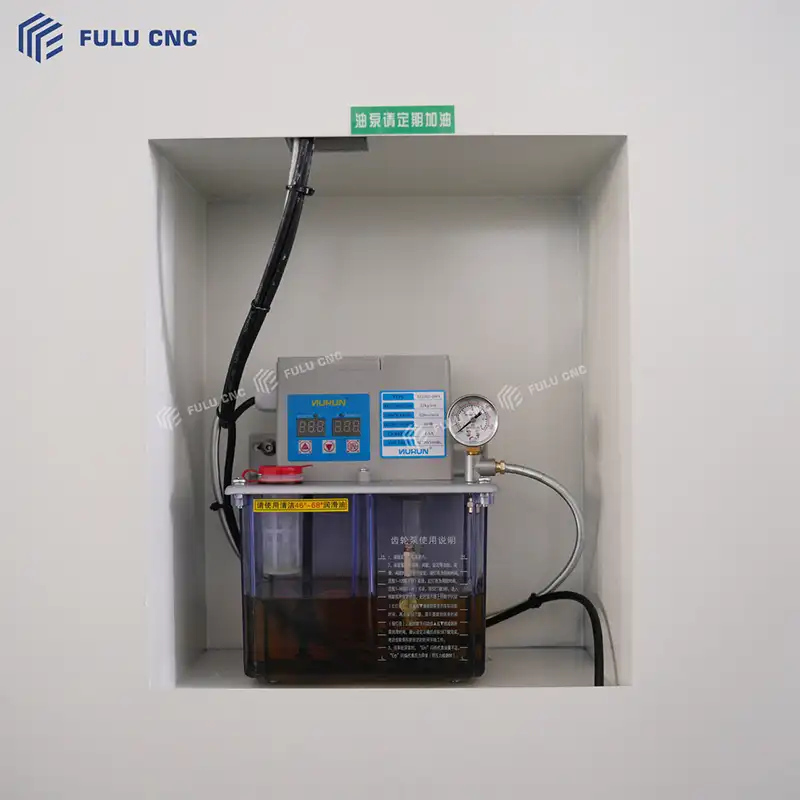

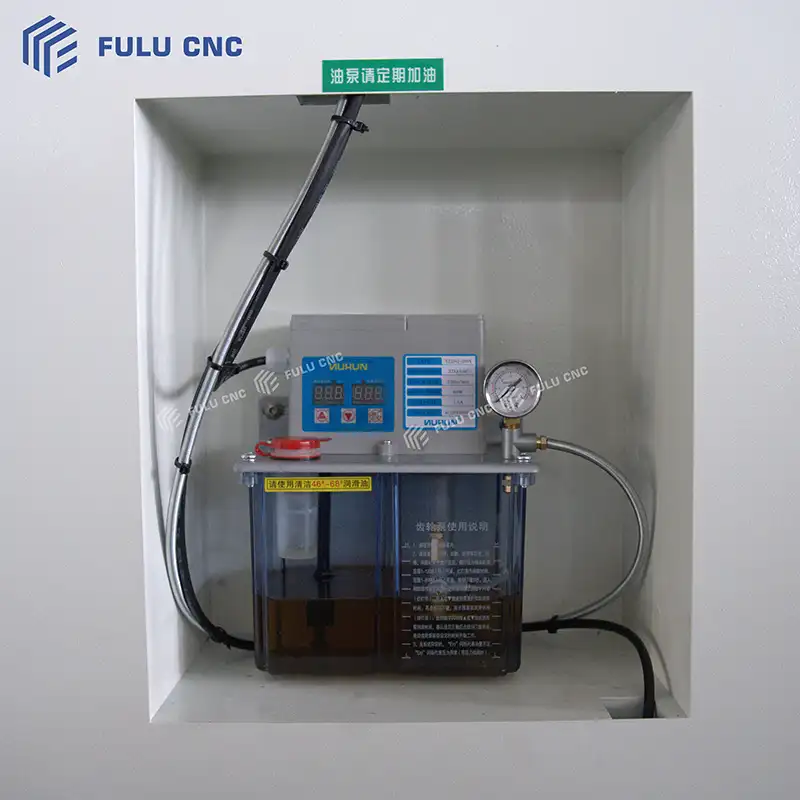

Automatic Lubrication System

This system is responsible for delivering lubricating oil to key moving parts of the machine tool, such as guide rails, ball screws, and bearings, in a timely and quantitative manner, ensuring long-term stable operation of the equipment.

Electrical Control Cabinet

The electrical control cabinet is the 'nerve center' of the CNC machine tool. It converts CNC program instructions into precise movement actions, safely distributes power, and protects various electrical components of the machine tool.

Select CNC Machine Configuration

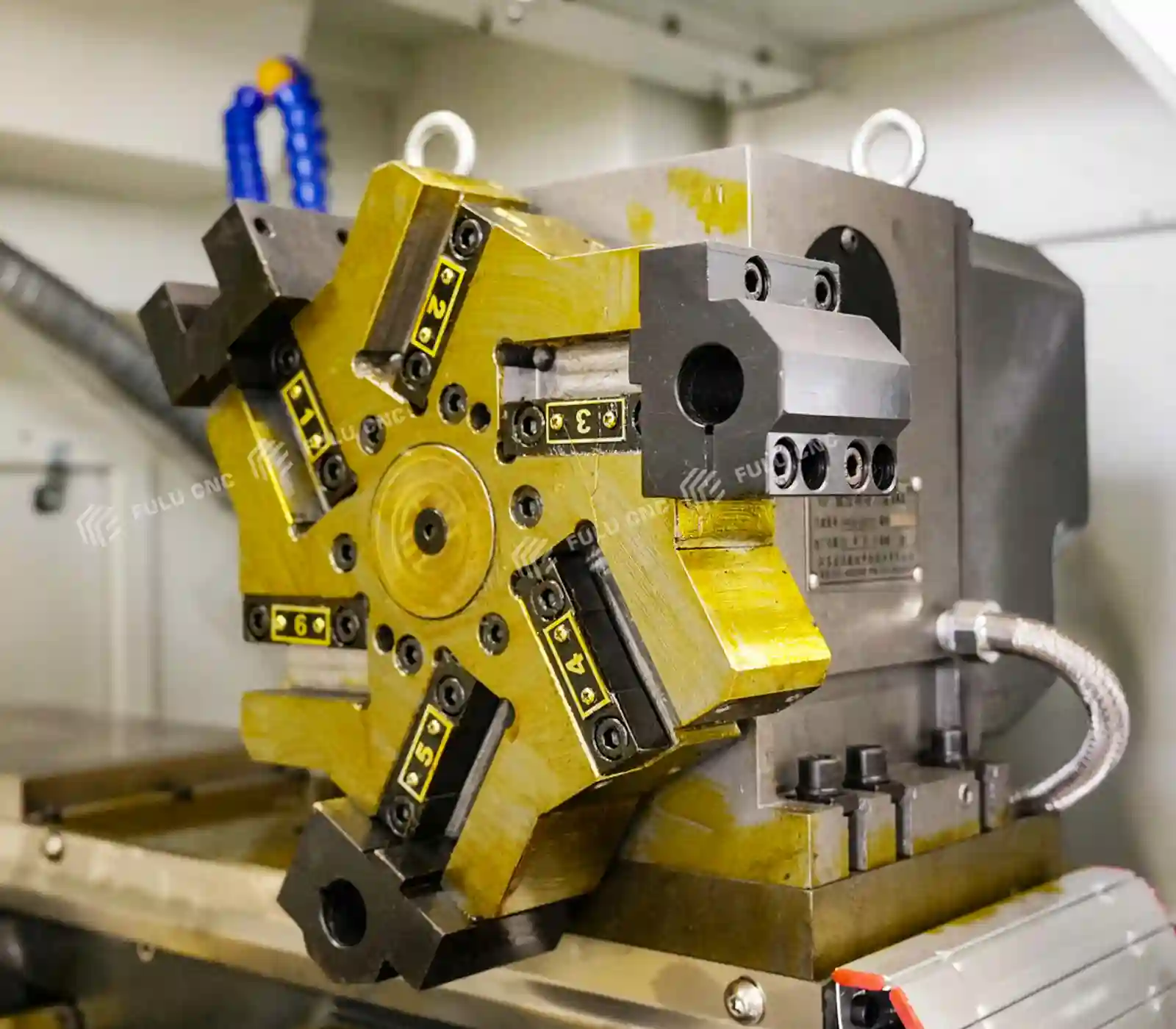

6-Station Electric Tool Turret

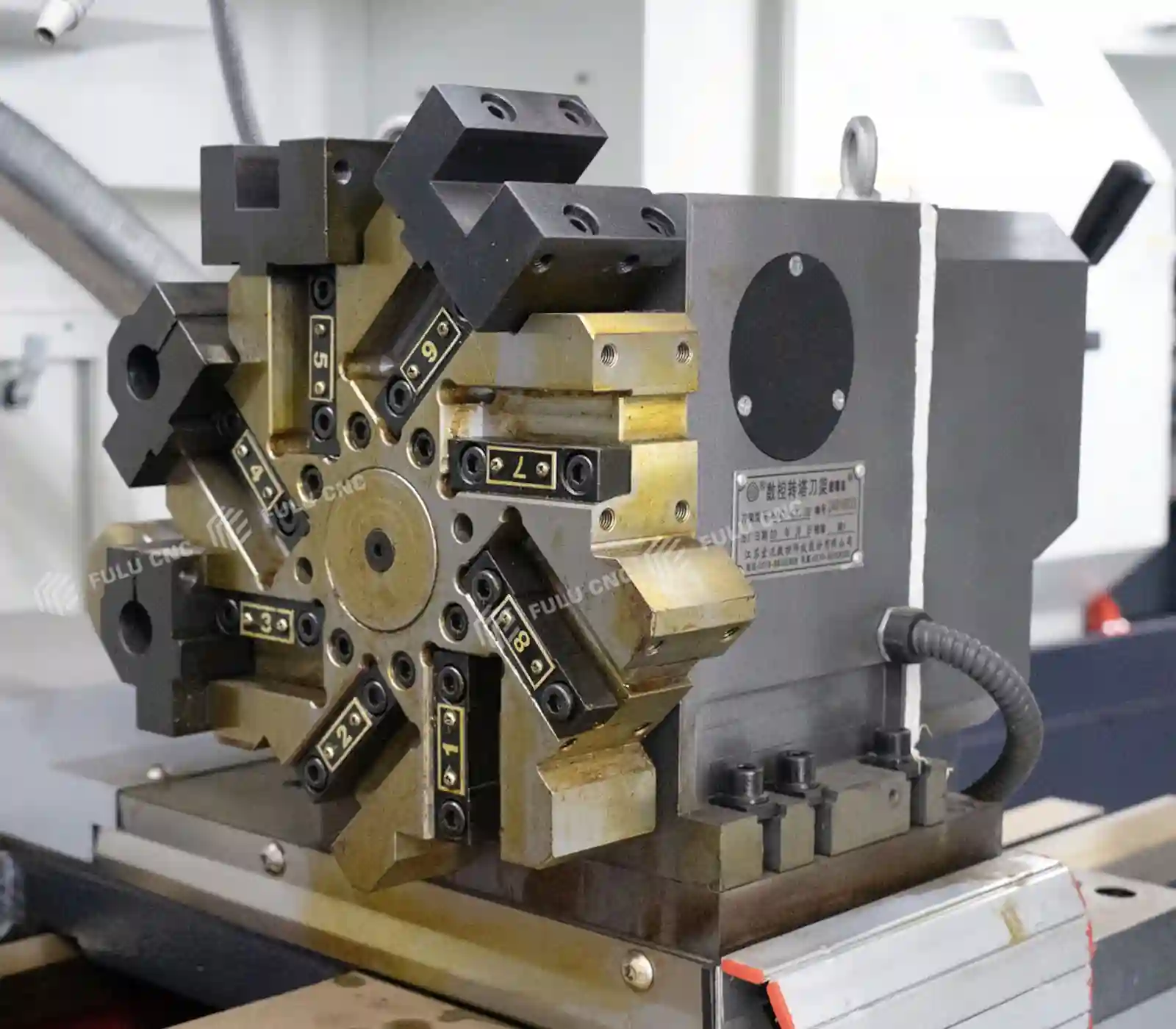

8-Station Electric Tool Turret

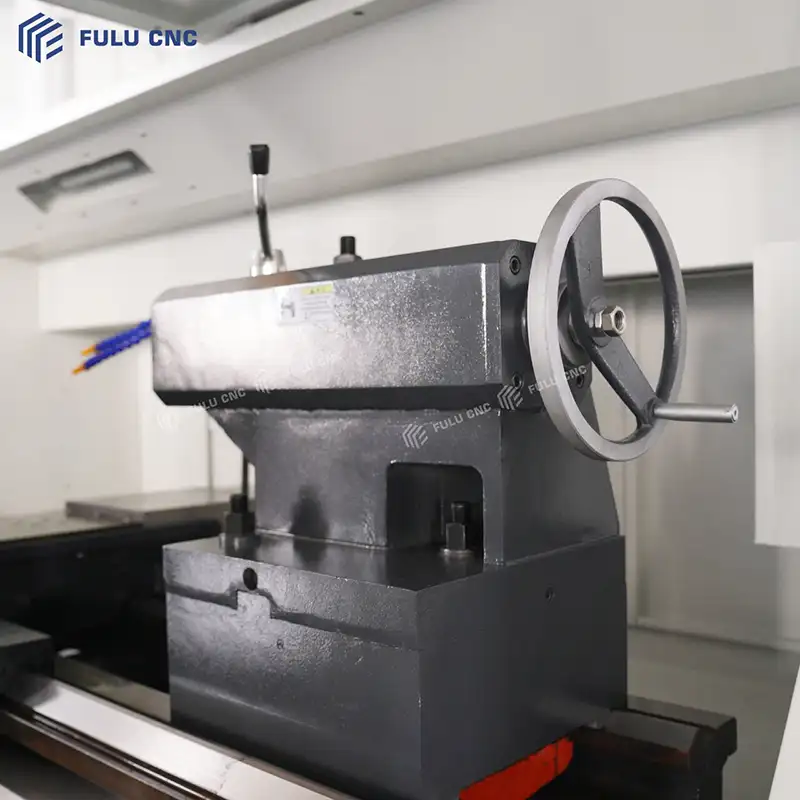

Manual Tailstock

Hydraulic Tailstock

CNC Flat‑Bed Lathe Optional Configurations

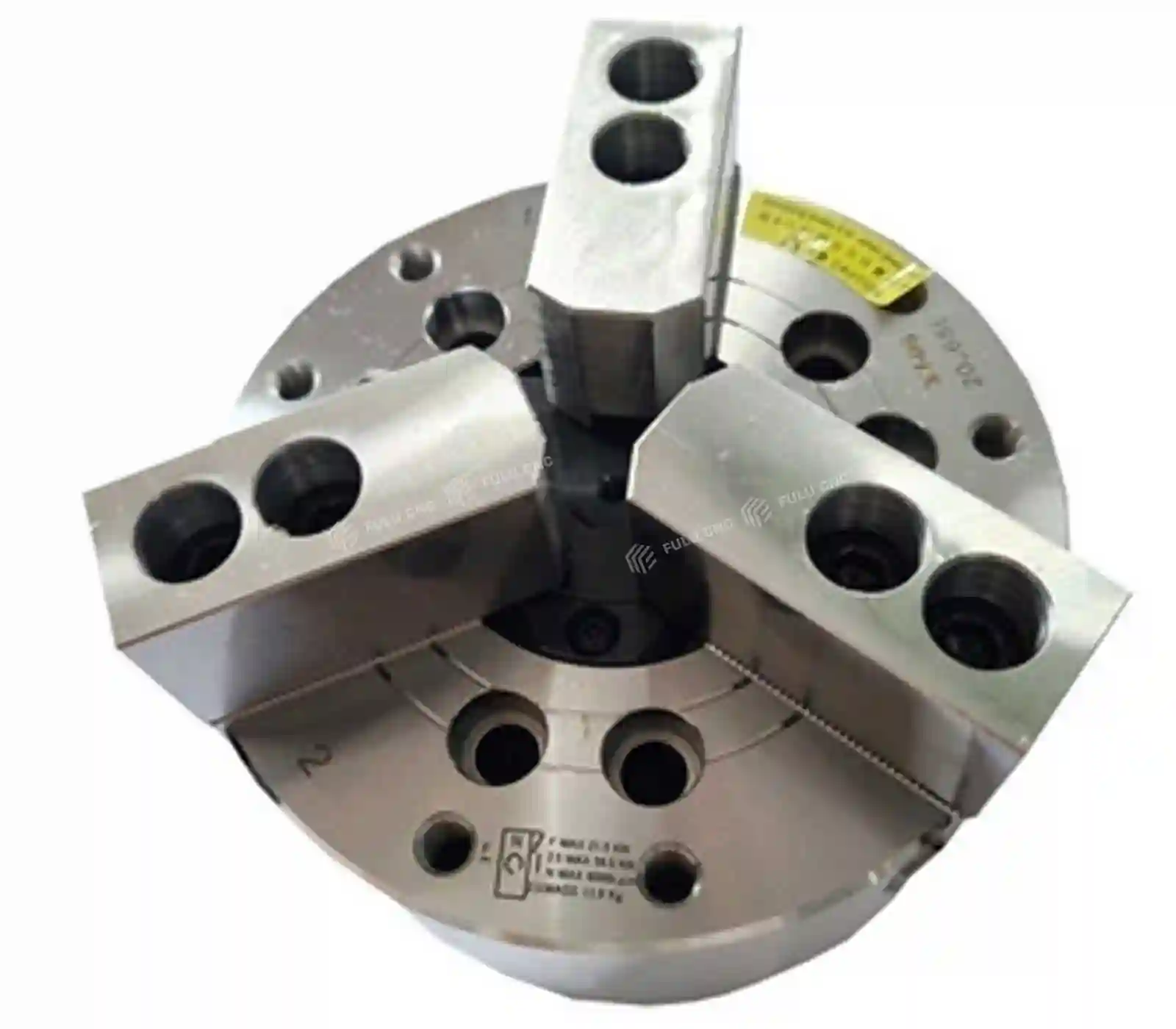

6-Inch Hydraulic Chuck

Stable clamping for precision machining.

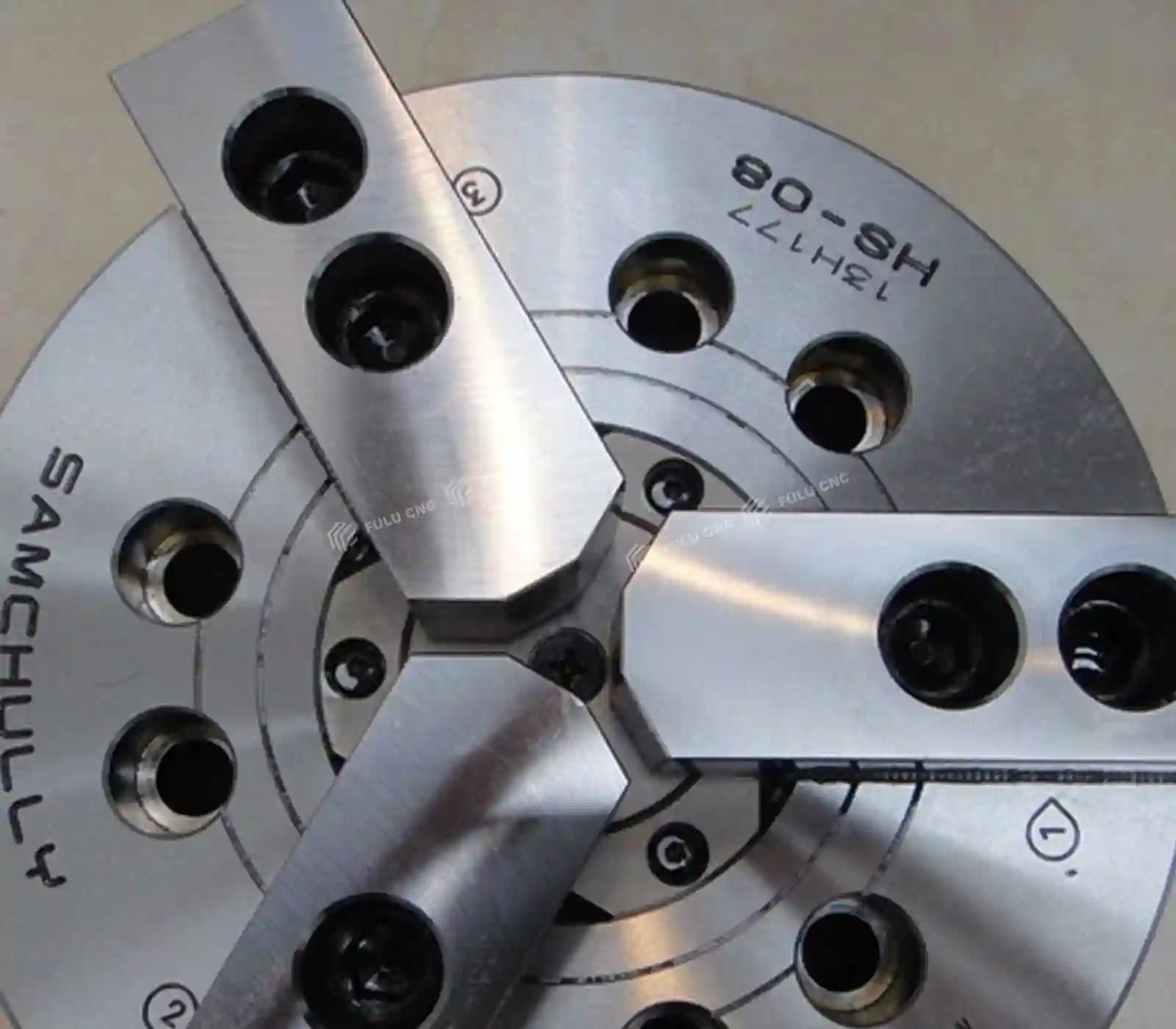

8-Inch Hydraulic Chuck

Strong clamping for efficient machining.

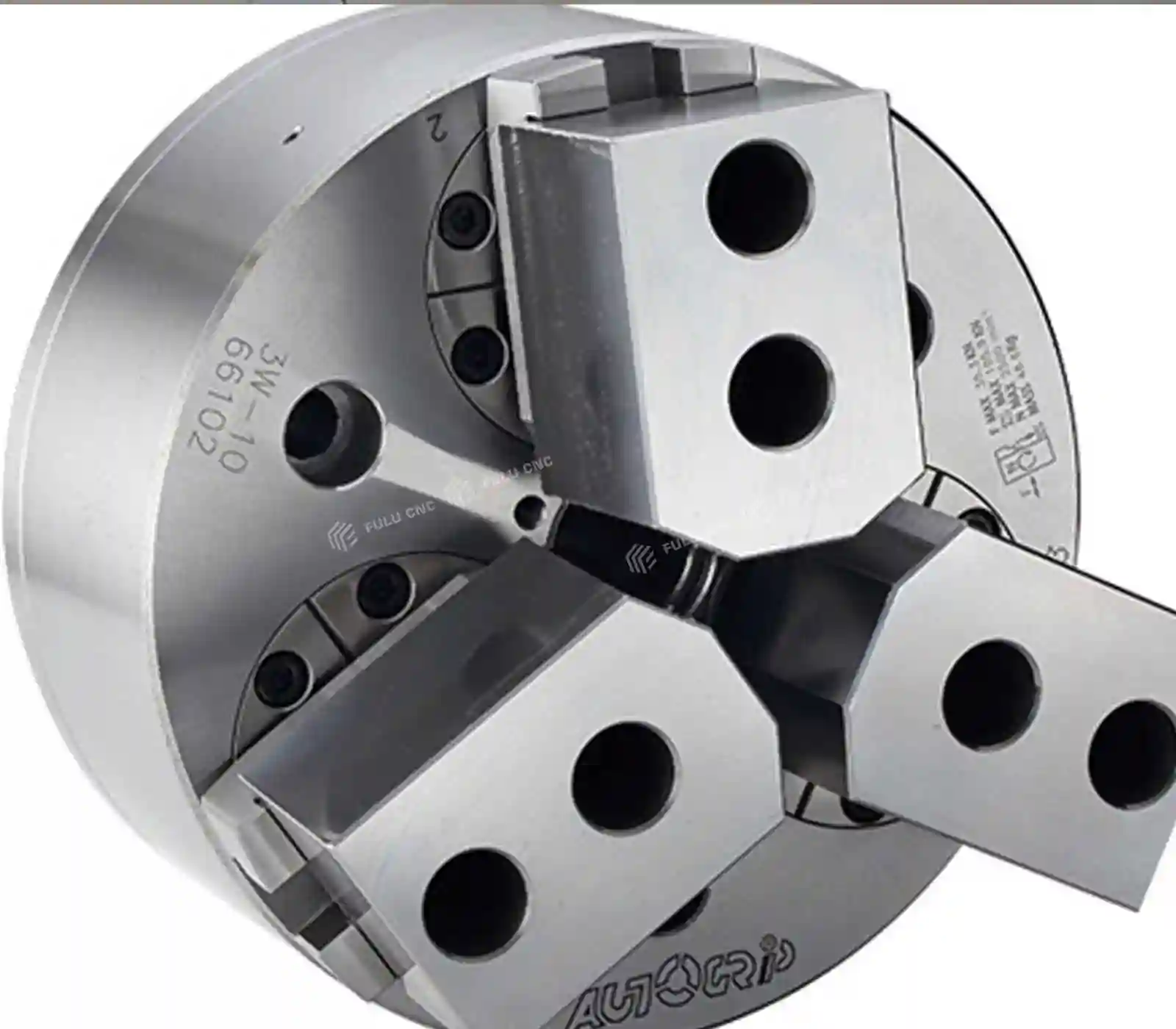

10-Inch Hydraulic Chuck

Powerful clamping for larger workpieces.

Hydraulic Power Unit

Provides stable hydraulic power.

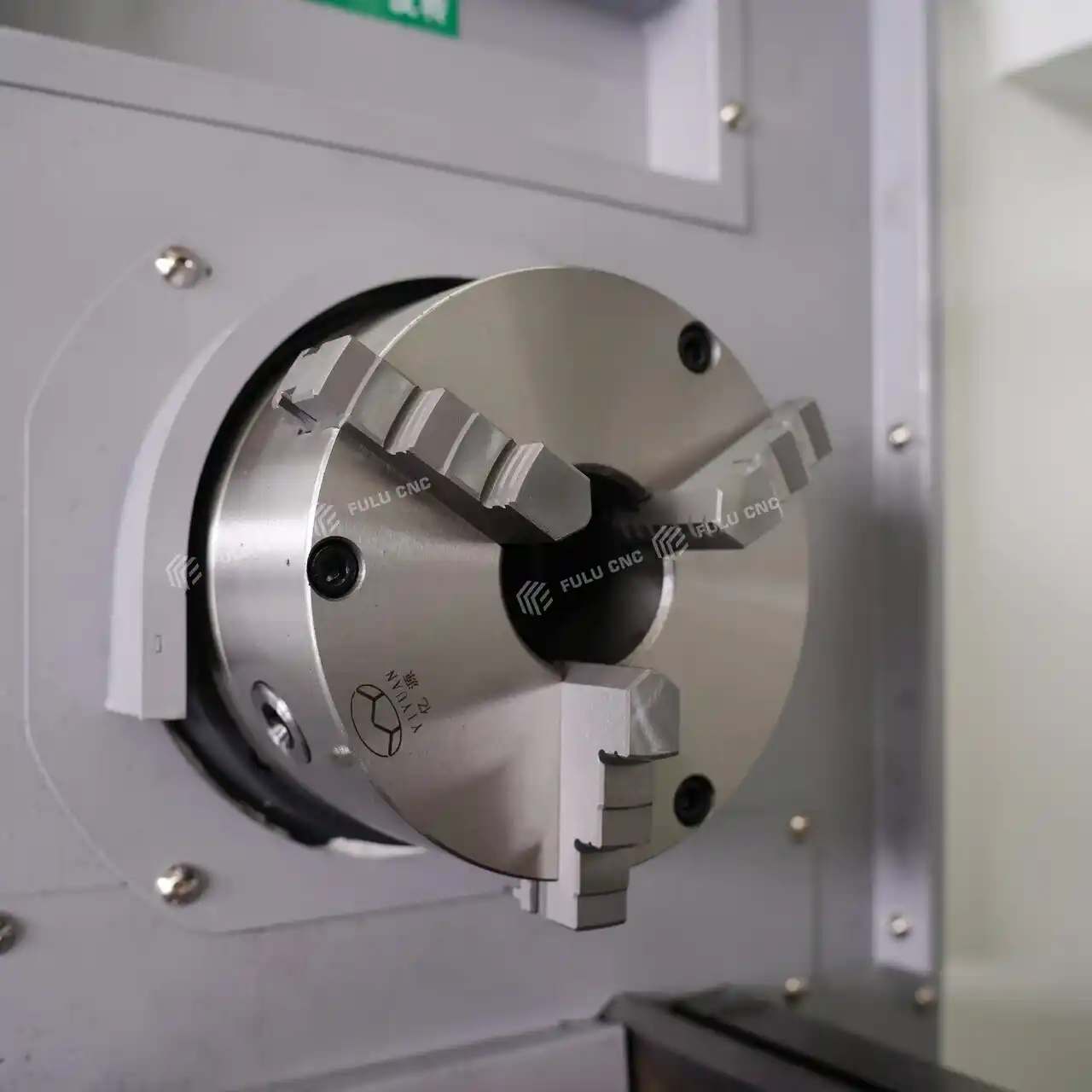

3-Jaw Manual Chuck

Easy clamping for round workpieces.

4-Jaw Manual Chuck

Flexible clamping for irregular workpieces.

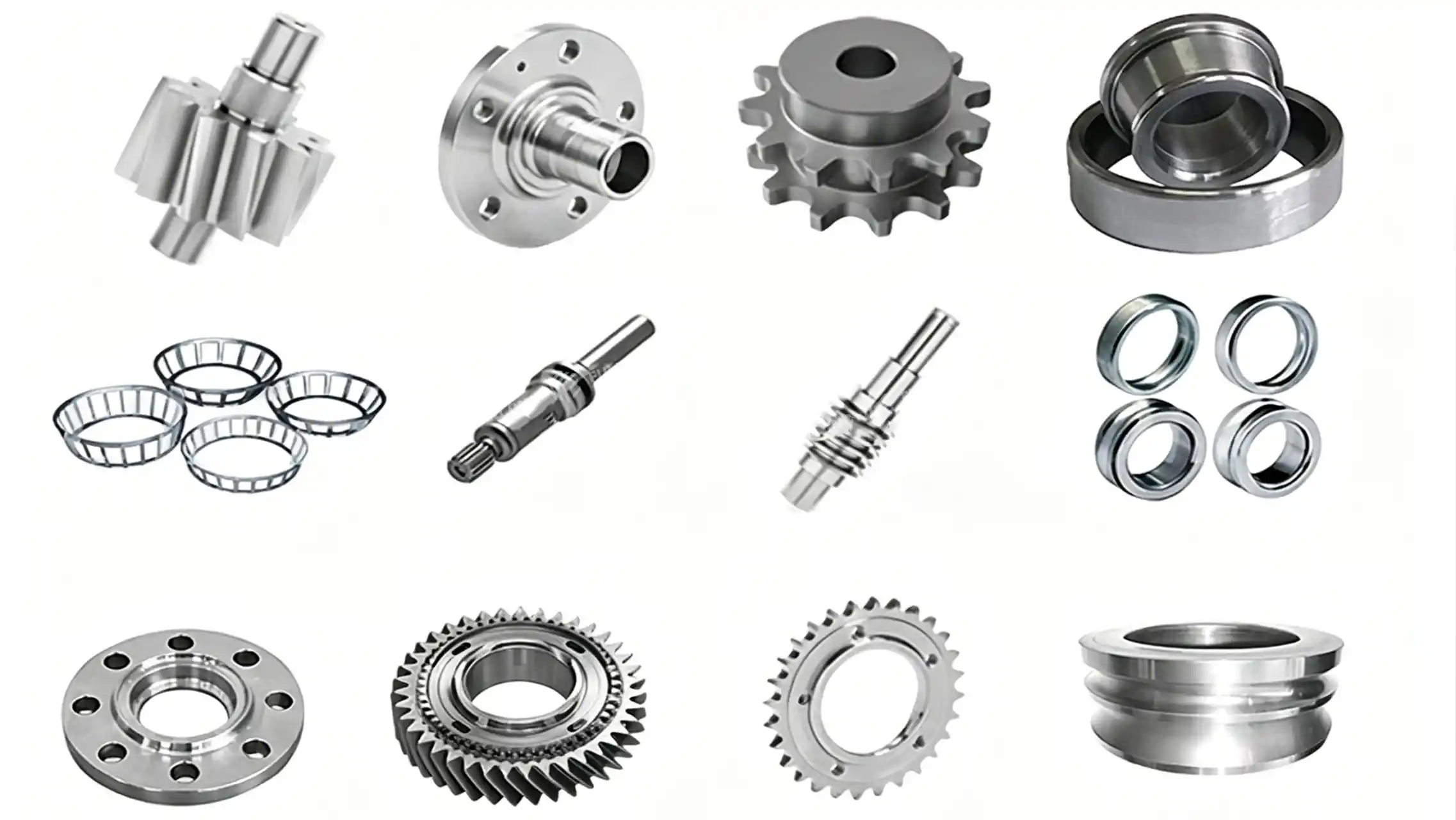

Machinable Parts

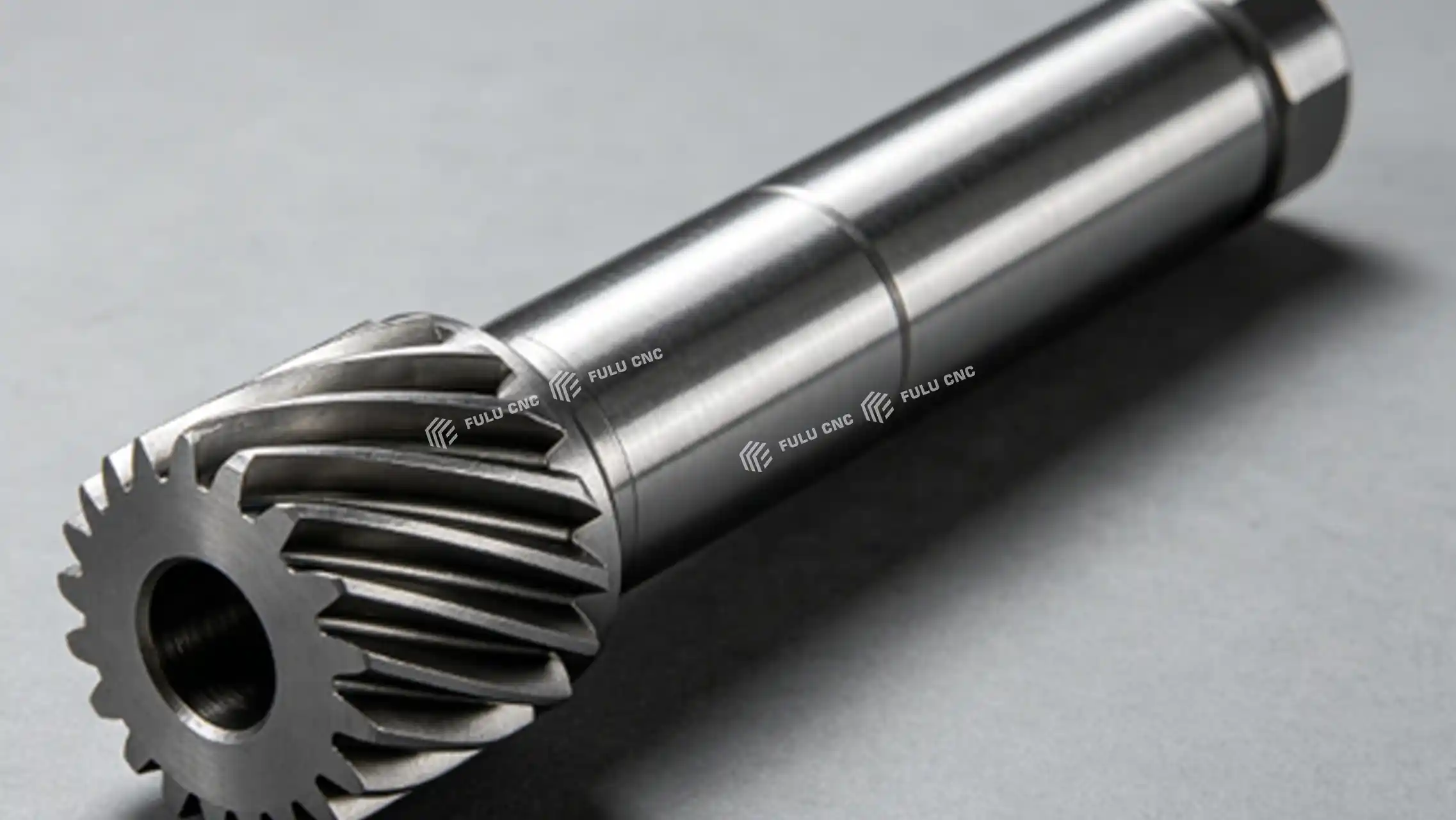

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

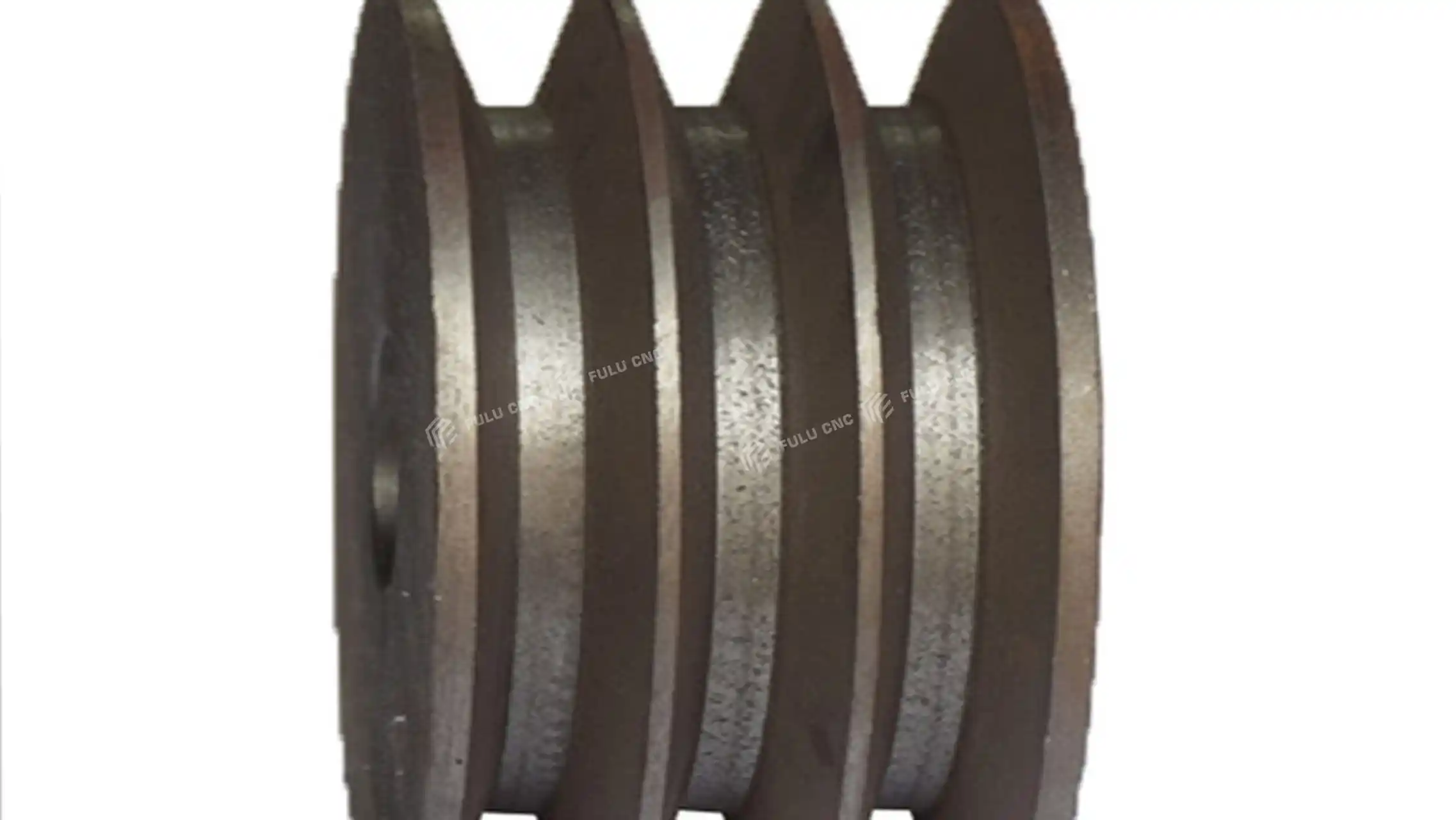

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

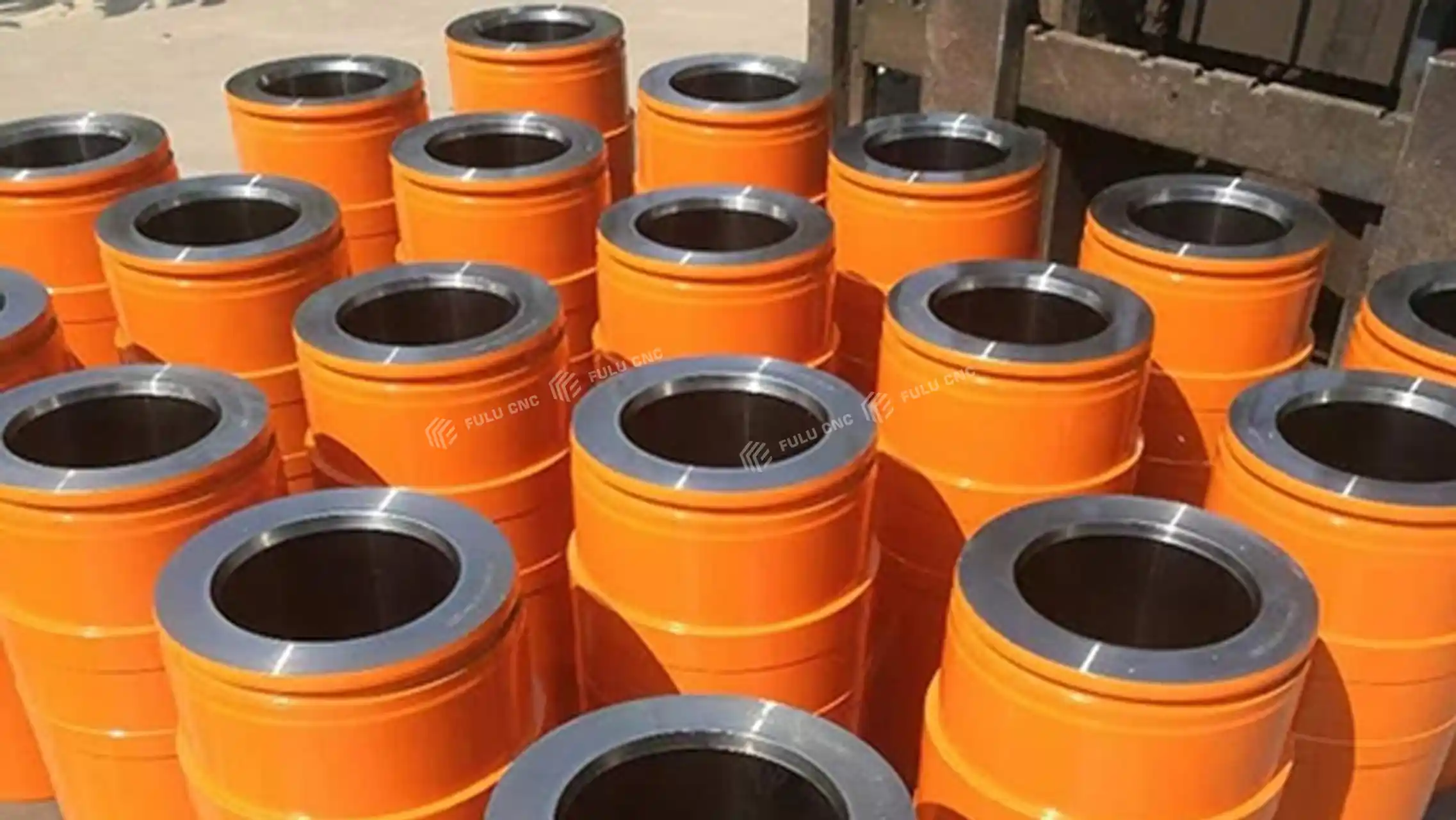

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

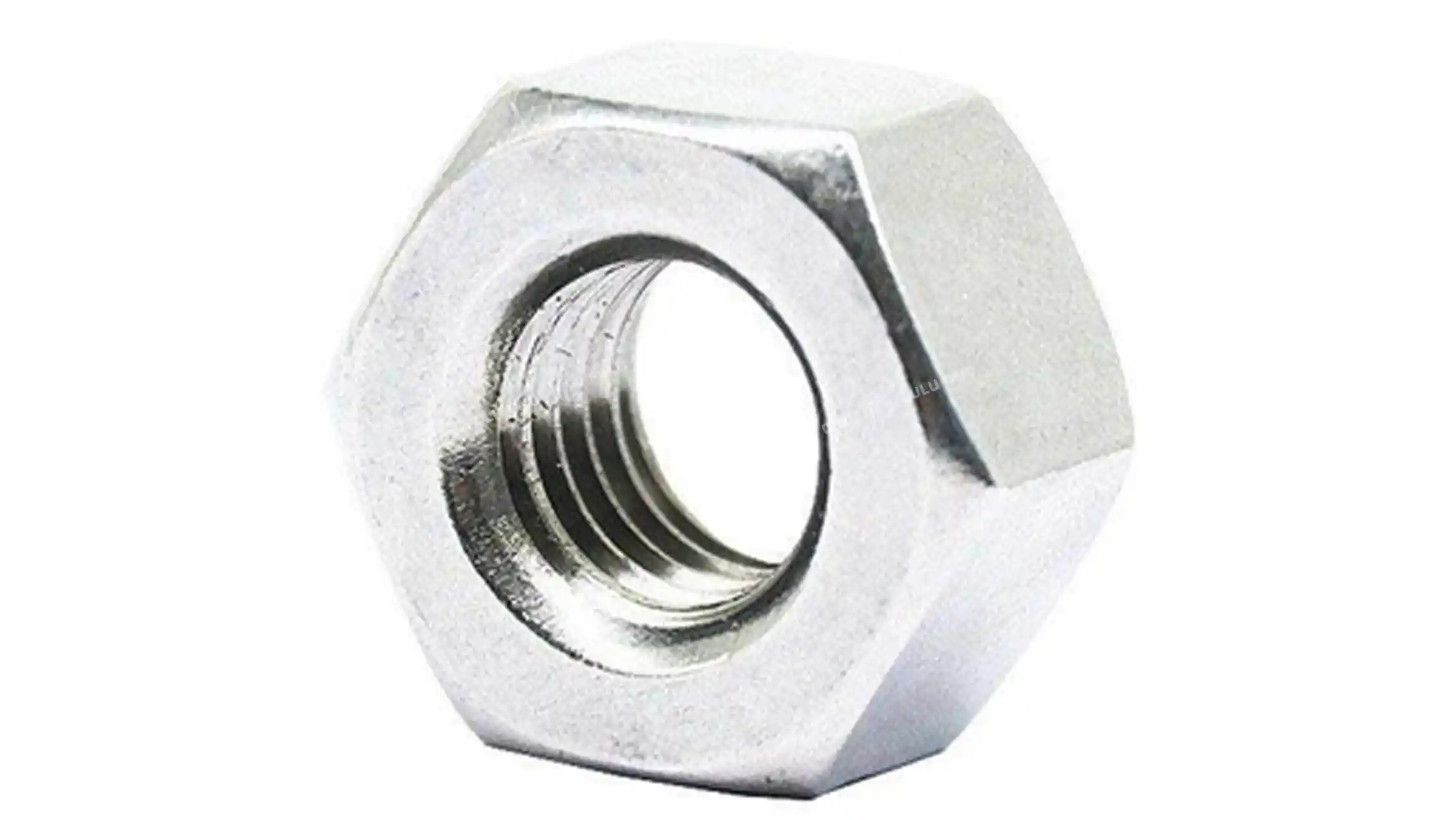

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

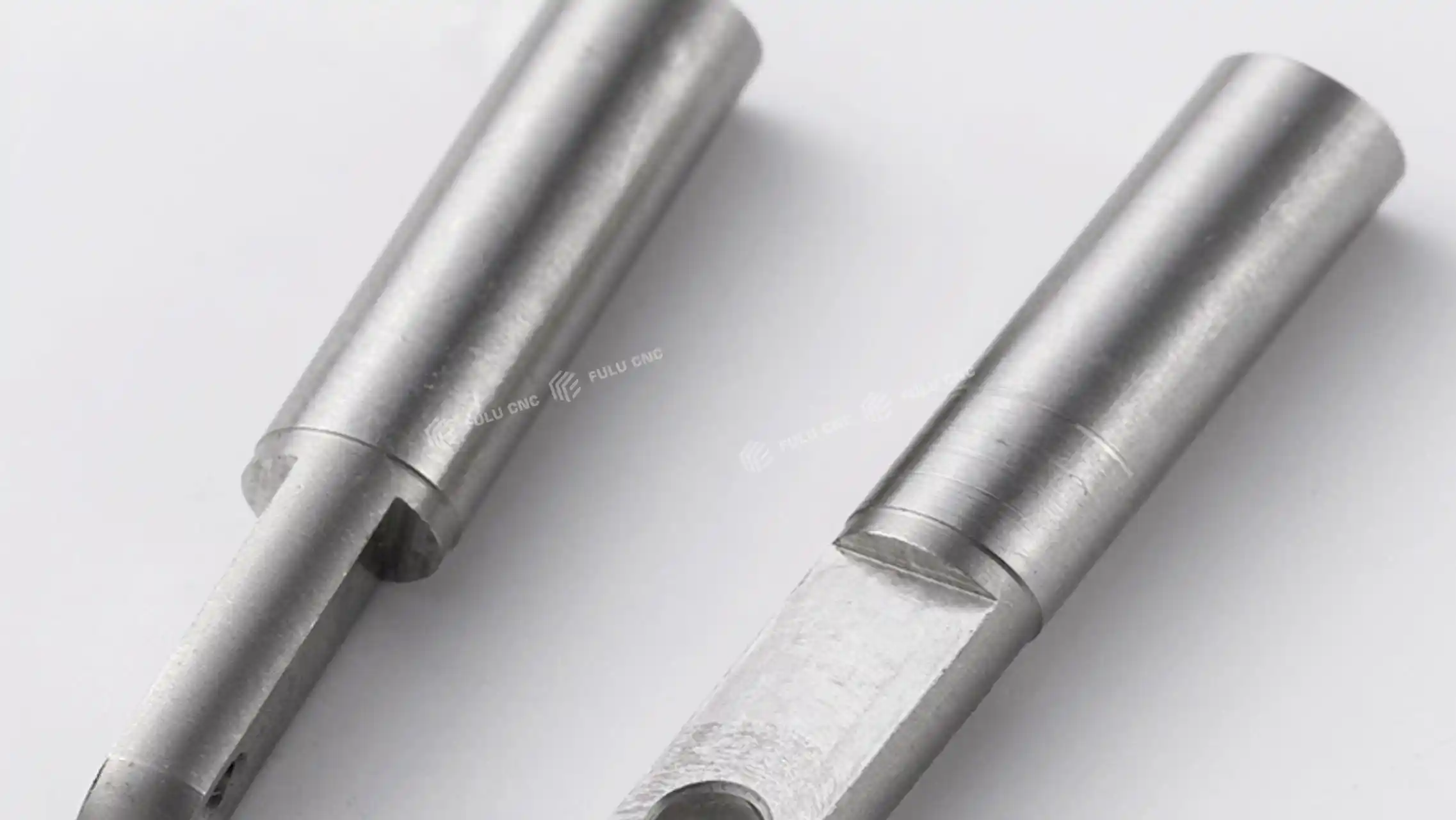

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole
